woot, once u success pls post it here again

hey bro, sry out topic... i see typo on ur sig... 3mhz for 8400 ? LOL..

rofl.....hahah din notice that too...will change

Before :


After :






Please give me some more guide

no Crossfire Bridge after cable management?

too bad the ide cable spoil the view

lolz... just forgot to put in back before taking photo...

---

Added on August 10, 2008, 10:15 pmyeah.. and i still feel like very mesh...

This post has been edited by FoxNope: Aug 10 2008, 10:15 PM

Do u need the two crossfire bridge to run in CF mode ??

I run my CF 3870 last time with single bridge and both card installed with AC S1 ..

It works like charm ..

One is actually alright... just put for fun.

even i put one... the ac s1 still can install in... still too big...

I am thinking to actually cut small bit of the ac s1... but i sked after i cut it, the whole card doest't work... so can anyone tell me is that alright to do so?

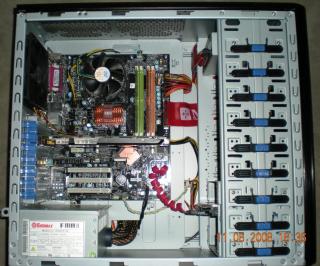

here's mine..

really dunno how to minimize the cable crossing from mobo tray to front panel..
thats the best i can do..

anyway, is it ok if i put the hsf fan cable like this;

it touch back of the mobo directly, not behind the mobo tray. will the wire melt and short-circuiting the mobo?

It's possible, U have to remember that all the capacitor feet are at the back. Some of it could puncture a hole thru the cable and make contact with the wire inside.

This post has been edited by zubai: Aug 11 2008, 11:13 PM

hoho.. quiet scary.. gonna remove it asap!
tq for ur advice. totally forgot bout the capacitor, only know bout the heat from the proc

imo u firstly u need to change your ide cable. it looks horrible. i threw away my gigabyte ide cable and got a rounded cable

This post has been edited by ham_revilo: Aug 12 2008, 11:48 PM

i think u can put ur front panel cable under mobo tray and going out thru the same hole u u put ur psu cable (if the cable is long enuf la)

overall i think ur cable management looks nice already

p/s: ur case is CM590 rite? if u r using front+side panel fan, i suggest u add another fan (or two) at top panel for better airflow

huhu...i tried that oredi, but the cable is not long enough..
this cm590 i get it at cycom, where the seller said its for display only.. somehow manage to buy it.

future planning is to change ide cable, add 1 more fan at front panel and 2 at top panel, and change stock hsf to thermalright ultima 90.

or u can sleeve the front panel cables to make them look better

@FoxNope

Don't really get ur point ...

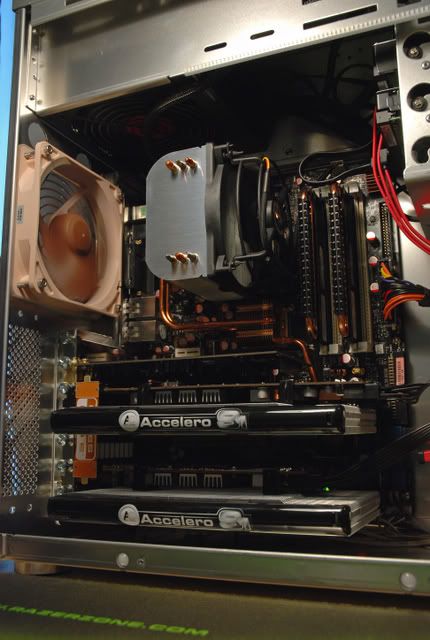

this is how I did it in my cf setup last time

just slide the cable through the fins .. I protect it wit two layers of tape.

good job.
wat case u using?

doom u really geng

@doom
can i know what RAM HS is that? looks nice.
