err razer smilodon? you mean raidmax smilodon? anyways, try a green and blue mix.

i dont think there no gap anymore under the mobo..coz if u c properly the screw mount there seem like base..its abit higher than mobo tray..so i assume theres more gap between mobo and mobo tray..if no more gap im oso didnt dare do it

Can anyone teach me how to improve my cable...this is the best that i can do...

with this case and ide cable rom ...

I guess it's pretty much all u have got loh ..

you could probably sleeve the entire PSU to have a neat cables ...

bro you are using CM590..use all the holes provided on that casing,put all the cables in the side panel, there is some space where we can hide the cables..then sleeve all the cables and change all IDE device to SATA, sure neat!

ur 8pin can go from back with atx 24pin and come down from top? would be neater if u do so.

heh .... just providing some links. they're not mine anyway but ..

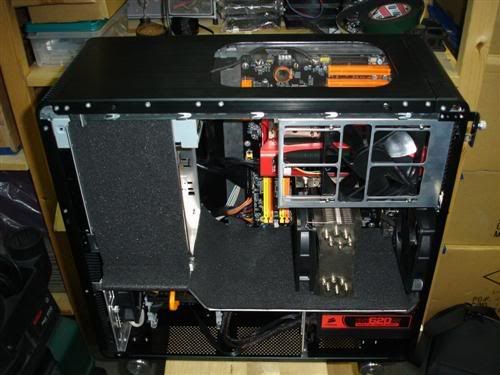

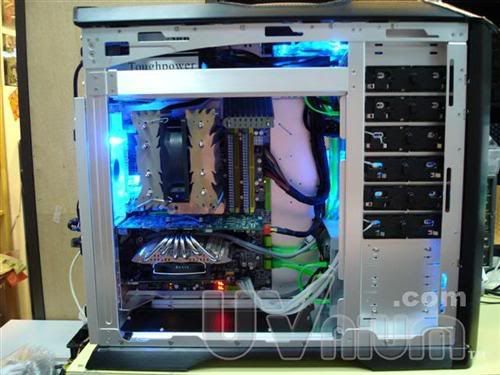

haha the pics touch by uglyvamp nice n clean

imo, different people different style, i think ugly's style is more to simplicity ? really hate it for their infectious systems.

a link for more of their serious works

http://www.uvnium.com/?cat=11

its myb the hardwares choosen by his customer..then he jus fix it wit proper cable management

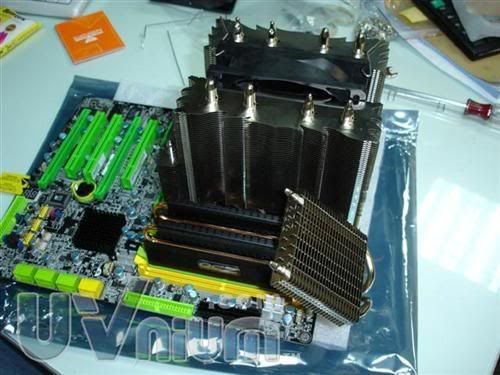

Thermalright combo is always the nicest 1. City of heatsinks.

Hi all sifu, guru, pro ... need some help over here...







also having some problem at the Graphic Card... can't put anther Cooler on it... the Crossfire bridge not long enough.

This post has been edited by FoxNope: Aug 3 2008, 07:36 PM

ur heatsink fan wire. adjust til the wire faced inside. Theres a user uses his IDE cable to cover the wire mess.

1)route ur silverstone fan cable from other side to make it stealth..u can hide it under ur tr..
2)fold ur ide cable n slip it under ur mobo..put it in between ur mobo n optical drive cage..
3)use some cable tie to tie up some of the cable together..make it like only one cable coming out from the hole at the bottom of ur case..
just my suggestion..tq..

about the gc, mybe u can check this out..
@hypermax,im borrowing ur pic as a reference..


This post has been edited by renesisx: Aug 3 2008, 07:53 PM

Cannot la bro or sis...that wire so 'pendek'...

the wire not short..its standard i think..jus u facing 8pin port location..in more to middle mobo not like other near to edge mobo..bro u try sleeve with black sleeve..the route it on ur mobo under ur gfx..make it route nicely

Need Assistant From Professional! I Need to tidy up all the cables. Any suggestion?

9800GT

Upper View

Mobo n Orb

Some Tide Up Cable

Orb With Messi Cable

Inside

This post has been edited by Mayor: Aug 4 2008, 10:32 AM

thanks for the guide... i will try to make it this sunday.

@hypermax, can u show me more closer the graphic card please... wonder how to put the cooler... Thank in advance

This post has been edited by FoxNope: Aug 4 2008, 09:51 AM

spotted few really good stuffs for cable management work guys ..

extension & extension cables for your fans, motherboard connectors like the 8pin & the 24pin atx !

but its available only in singapore now dont know if they gonna bring it in here anytime soon or not ..

http://uvnium.com/uvshop/index.php?cPath=56_84

uglyvamp is the owner ma.. u can try pm him.
