Picture of nice cable management.., - Post ur pics. No cacings pls
|
zubai
|
 Dec 12 2007, 11:28 PM
|
|
This is my setup:
The fan ontop the psu is the side panel fan, i remove it temporarily to take this picture. Just imagine it wasn't there  Things I'm planning next month: i) Get rounded ide cable ii) Maybe change the stock hsf (the weird hsf is actually Acer stock fan and it have a funnel, but I remove it since this casing has no opening for the cpu fan) iii) Change the back and bottom fan to led fan iv) Change PSU, this raptoxx cable is short  I'm open to any suggestion  Thanx Note to self: Don't handle any delta fan while it's running  Cut my pinky This post has been edited by zubai: Dec 13 2007, 12:01 AM |
|
|
|
|
|
zubai
|
Jan 4 2008, 08:28 PM
|
|
|
QUOTE(seanl @ Dec 3 2007, 02:39 PM) this is my modded case(painted the insed flat black), i hide the sata and power cables by cutting a few holes in the mobo tray, and tuck in the rest of the cables inside the 5.25" bays....  i am editing the photos, i'll post more soon.... This is the best cable management I've ever seen  |
|
|
|
|
|
zubai
|
Feb 28 2008, 08:14 PM
|
|
|
» Click to show Spoiler - click again to hide... « QUOTE(hermit23 @ Feb 28 2008, 02:02 PM) got my cm 690 casing at last . . . too many fans, too many wires  , plz comment . . . thanks p/s: pic took woth crap 1.3 phone so not clear [attachmentid=406636] [attachmentid=406637] U could remove the blower and turn the psu upside down. The psu fan is far efficient that the blower. Here's mine.. A bit messy as u can see
This post has been edited by zubai: Feb 28 2008, 08:17 PM |
|
|
|
|
|
zubai
|
Apr 7 2008, 10:27 PM
|
|
|

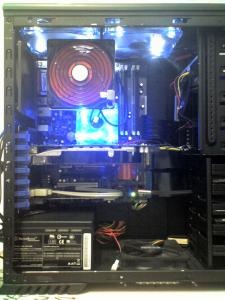

My latest cable management. Hehe.. The psu cable and dvd drive cable really spoiling the view la (but I'm too malas to sleeve  ). The white usb cable really sticking out like a sore thumb dont u think? I humbly seek all suggestions from all the gurus here . |
|
|
|
|
|
zubai
|
Apr 30 2008, 06:56 PM
|
|
|
Obviously, try rerouting the cable at the back of the mobo tray thru the provided hole, tho it aint easy bro.
|
|
|
|
|
|
zubai
|
May 1 2008, 04:48 PM
|
|
|
Here's how I manage my cable » Click to show Spoiler - click again to hide... «

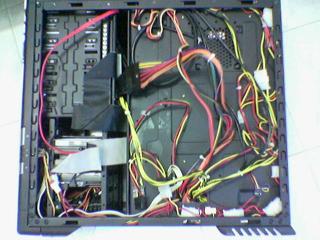

All hell breaks loose back here  |
|
|
|
|
|
zubai
|
Jul 5 2008, 07:39 AM
|
|
|
It seems that the gx2 is blocking the sata port if inserted at the 1st pci-e slot. I tot the 2nd pci-e only for sli?
|
|
|
|
|
|
zubai
|
Aug 11 2008, 11:12 PM
|
|
|
QUOTE(kazairol @ Aug 11 2008, 08:09 PM) » Click to show Spoiler - click again to hide... « [attachmentid=555278] it touch back of the mobo directly, not behind the mobo tray. will the wire melt and short-circuiting the mobo? It's possible, U have to remember that all the capacitor feet are at the back. Some of it could puncture a hole thru the cable and make contact with the wire inside. This post has been edited by zubai: Aug 11 2008, 11:13 PM |
|
|
|
|
