Decided to install CCTV for my home recently. Did some very basic research through Google
and went to meet 4 suppliers in their shop in Bandar Puteri (Many suppliers there).
There were many brands offered such as AVTECH, SUPER GUARD, SAMSUNG, PANASONIC, (Taiwan, Korean, Japanese)
Surprisingly they all offered China's HIKVISION (Wikipedia state that they are the biggest CCTV manufacturer in the world) as an option. It seems that recent years this China CCTV products quality has improved wor.....

Below are the summary of my findings as I understand it....

[/U]Home Surveillance System (Home CCTV)
The stand alone not linked to alarm system or Security Guard providers type.

Types of Suppliers
There are basically a few types of CCTV system suppliers.

1. The Installers
These are people who install CCTV system to homes or offices. They do not carry stock and source them from CCTV distributors. Of course end users can also buy the CCTV System (Hardware) themselves and then get these installers to install them. It goes without saying that level of skill and knowledge of the system varies greatly among different installers.

2. The Distributors
These are people who bring in the CCTV System (Hardware). They sell or distribute these system to installers and some times other distributors (I guess). Sometimes they will choose an installers for you or sometimes they will specifically state that they do not sell to you direct but will introduce their customers to you...which amount to the same thing.

3. The CCTV Solution Providers "Ta Pau Liao"
These are people who brings in the CCTV System (CCTV) themselves, keep stock, have their own in house staff as installers. They usually concentrate on specific brands.

CCTV System
This is big topic and I gave up partway after going through the materials available online, its a freaking huge topic for a laymen like me
Below are my "cha pa lang" summary - No guarantee on accuracy

IP Camera System (Internet Protocol)
These are the newer system that is coming in to the market.
Generally speaking its the newer generation system.
It has better resolution,
Each camera is smarter.
Some model can transmit sound (2 way), pan, tilt, zoom
use internet rather than wires for communication.
The camera can operate individually, record in to its inbuilt SD Card, direct feed to remote view (Mobile Phone outside)
The camera can operate in a group through a Network Video Recorder (NVR)
Potentially less wiring requirement (power lines to camera only)
Damm expensive but prices are coming down
Potential setting issue as Network / Internet setting are more complicated for laymen with sometimes automatic resetting causing potential headache.

Analog Camera System
These are the established most commonly used system
Generally speaking its the old generation system.
It has limited resolution although in the last 2 years it has developed up to HD (720p) and Full HD (1080p) resolution
The camera system is relatively simpler
Some model can transmit sound (2 way), pan, tilt, zoom although rare
Use wires for communication.
The camera operate in a system together with a Digital Video Recorder (DVR)
Damm lot of wiring required (wires from camera to DVR) leading to a need for potentially ugly wire lines.
Damm cheap especially the China Models.
Easier and simpler setup. Potential headache is from the internet setting for remote viewing but still easier compared to IP Camera system.

Note: I went with Analogue Camera System (HD 720p )
Because - Me stoopid, IP camera too complicated
- Me limited $$$$, Cheaper system is Good
- Me not James Bond 720p resolution is good enough, I am not a spy agency that demand satellite zooming.
- Me live in Malaysia, avalaible Internet speed is slowwwww, IP System depend on good internet speed.
- Me found good installer, (good at hiding ugly wires)
- I think if camera rosak can just change easier (camera not that expensive) as long as existing wiring is solid

The CCTV System Hardware
The description here will be mostly for Analog Camera System although I will provide my best guess for the equivalent IP Camera System.

Camera
There are generally 2 main type (other than IP vs Analog).
The Dome Type - usually for indoor
The Bullet type - usually for outdoor
Dome nowadays come without the glass casing as it sometimes interfere with the camera IR system as it cause internal reflection if not fitted right (this is what the guys I see told me).
Bullet type is more intrusive looking thus used outdoor and is easier to position.
Camera work nonstop and only record when motion is detected. That means when you view live, you can see what it sees but it would not start to record until motion is detected. This is to safe space on your memory hard disk (its stupid to record static image anyway)

Video Recorder
This is the command center.
Analog system uses DVR, IP Camera system uses NVR.
It usually comes in a multiple of 4 channels...e.g. 4 Channel System, 8 Channel, 16 Channel, 32 Channel. (1 channel = 1 camera)
It handles remote viewing (linked to a router-it can provide live view and remote playback), Live viewing (connect to a TV or monitor, you can view live or playback what was recorded.) CCTV setting (especially for analogue system) is all set here.
It work like this (I think) , it records all video from multiple cameras (when motion is detected) from beginning (let say from 1 st Jan 2015) until the Harddisk Memory storage is full (let say 15th Jan 2015) then the system will loop back and record over the earliest recording. Thus if you view recorded footage on before 15th Jan 2015, you can still see 1 st Jan 2015 recordings but if you view recorded footage on after 15 Jan 2015, the earliest recorder footage available will not be 1st Jan 2015 as it has been recorder over. ....

HardDisk Memory Storage
Video Recorder works with a Harddisk where all recordings are kept (Western Digital Purple are recommended). The bigger the harddisk the more recordings can be kept. If you want to see further in to the past you will need a bigger Harddisk.

Multiple Port power Supply
This is used in Analog Camera System to distribute power to the cameras.

Things to look out for (My personal list) - for analog camera system

1. Good Installers - You will need a good installers to ensure that they can install the camera system in a solid way and for them not to make the camera look ugly (too many exposed wires -hiding wires takes up a lot of work and skills)

2. The right system for you with room for potential future addition, if you plan to install only 4 cameras, get a bigger channel Video Recorder .. e,g.8 channel system. It do not cost too much extra and it allows you flexibility to add new cameras in the future.

3. FPS (Frame per second). - Usually 30-25 FPS is considered smooth video movement. 15-12 FPS is still good but anything lower than that is like those stop motion picture. Different camera see at different FPS. Different Video Recorder record at diffrent FPS. Make sure your system is getting the FPS you want from individual camera FPS speed for live view and the Video recorder recording FPS.... from what I understand 720p your camera sees at 25 FPS and 1080p at 12 FPS. Ir seems that higher the resolution, the slower the FPS avalaible. ... you have to check out this fact.

4. Camera Resolution. - better resolution just like TV the higher resolution the sharper the picture. but the higher the resolution the more data is generated and faster your memory hard disk space is taken up.
Old system they are using "TV Lines" 400-700 lines per frame.
New HD system they are talking about 720p (1 Megapixels) - 1080p (2 Megapixels)
I understand IP Camera can go higher (James Bond Standard)... 16 Megapixels

Great info!! Looking at installing CCTV and home alarm as well. Mind sharing what you installed and cost? And how do you rate your installer? Can PM me his number?

Thanks in advance

Happy that you find this useful. I try not specifically recommend any specific brand or supplier in this thread.
I expect to be upload the instalattion pictures later, you can take a best guess on which people I chose from the clues there.
As for the cost, generally from what I gathered
Instalattion/workmanship its around MYR 170- 400 per camera.
Hardware cost diffrent brand have diffrent prices.

Good Luck

@phoenix69
Awesome renovation journey. Going through some renovations myself. Super useful info you have here. Thanks for sharing. Just wondering when you removed the parquet to install the laminated flooring, did you have to level the concrete floor? Or did you just installed the laminated flooring?

This post has been edited by reanimation_84: Oct 8 2015, 11:41 PM

Been reading from Post #1, I have to admit, for first time owners or newbies in renovation thingy, definitely an eye opener to the process (& hidden costs too )

Kudos TS, you have my deepest respect. Hoping to see the CCTV process too.

This thread deserved to be pinned though

Yes, You have to level the floor. The floor level guy must be a sifu to acheive a good level floori.
Good Luck on this, My advise is better use a good Sifu if you can find one, skilled guys are rare.
And also regarding the laminated flooring, Get the expensive grade. A few $$$ more will be worth it as the floor is a non replaceble item especially when tou build a built-in wardrobe over it. (You cant very well change the fllor after that without diamantling the wardrobe.)

TQ for the compliment.

Hey,

Thanks for the reply. Yup already did that. Floors are level. Done by old sifus. My contractors are all Chinese ah peks. hahaha. Which grade did you use? Hardness rating ac3 enough?

forgot liao, I think so. if can go 1 up .... AC3 seems to be the norm if I remember right.

Renovation Extreme Work In Progress - Third / Fourth, lost track liao stage (always more $$$$ stage)

Installing Home CCTV - Part 1

As mentioned in my earlier post, I went for the Analogue Camera System (HD 720p ) - reason stated also in earlier post.

The Hardware

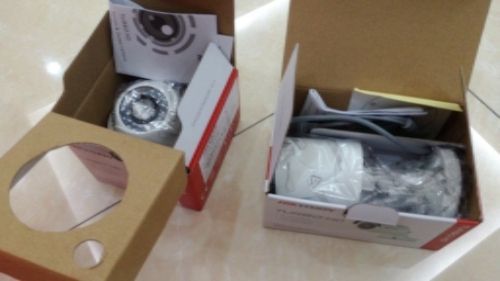

Camera

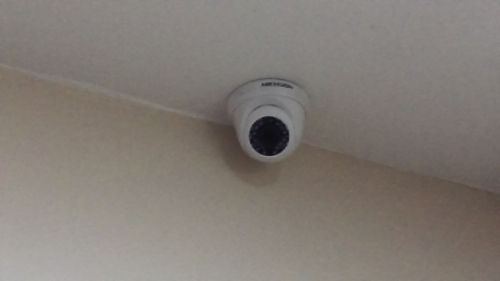

The Dome Type - usually for indoor
The Bullet type - usually for outdoor

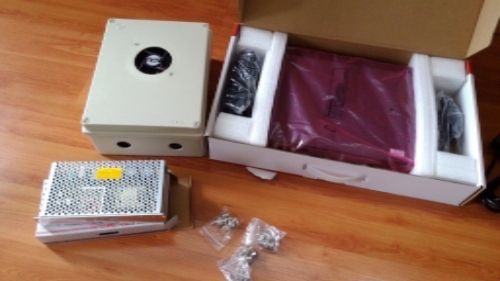

Video Recorder + HardDisk Memory Storage
Multiple Port power Supply




Installation Process (as I understand it)

Determining and setting up the "Command Center" (Where the Video Recorder installed with HardDisk Memory Storage + Multiple Port Supply is set)

In my case the 1st floor (Those who follow this topic closely will know exactly where this is)

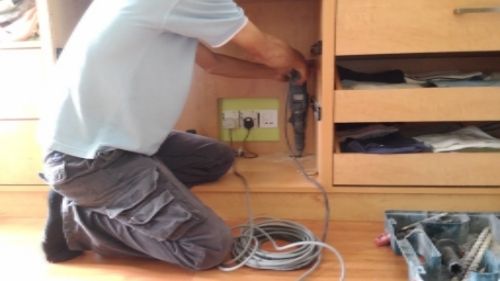

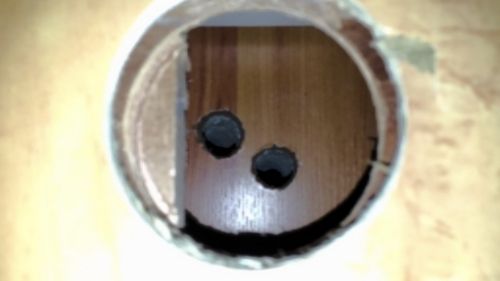

Drilling a hole between the Command Center and Ground Floor for the wires.




Its all the way through between the floors but hidden from view as it is above the ground floor plaster ceiling.

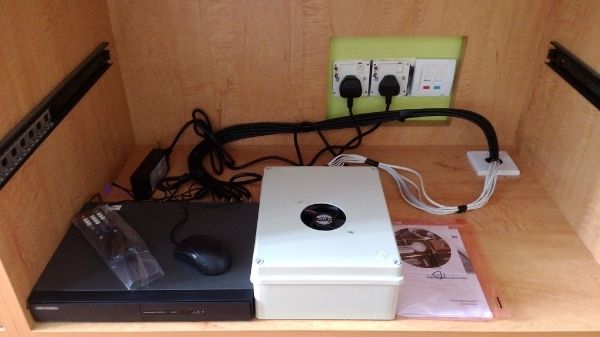

The Completed " Command Center"



This post has been edited by phoenix69: Dec 8 2015, 12:43 PM

Renovation Extreme Work In Progress - Third / Fourth, lost track liao stage (always more $$$$ stage)

Installing Home CCTV - Part 2

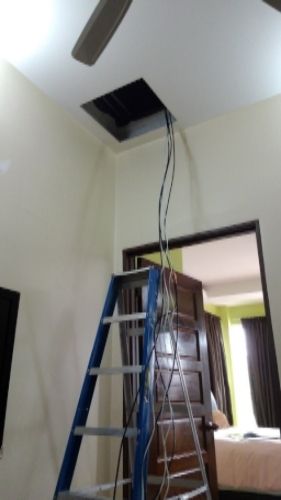

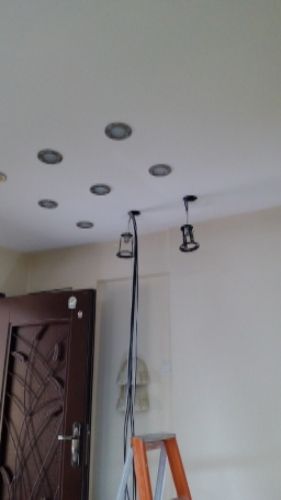

Pulling in the Cables/Wires

Between Ground Floor and 1st Floor

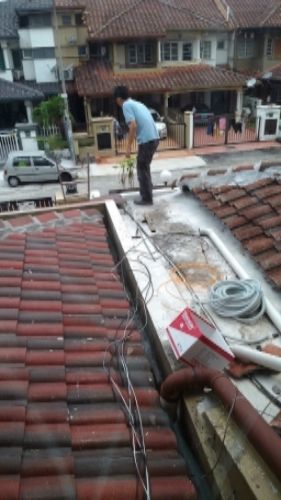

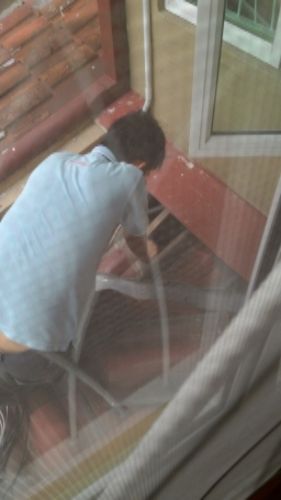

From Outside to Inside

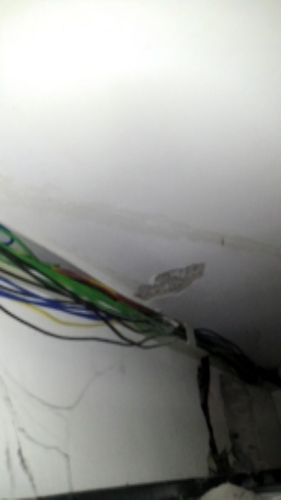

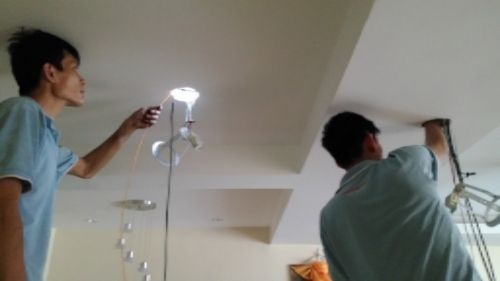

On Top Floor (Between Roof and Plaster Ceiling)

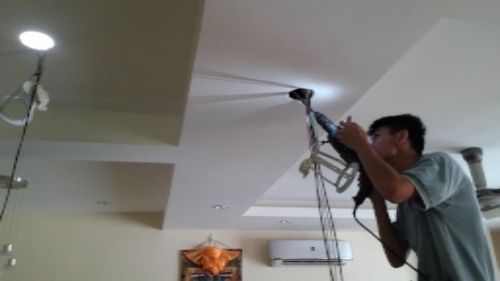

On Ground Floor (Between Ceiling and Plaster Ceiling) - Drilling through concrete column/frame)

Renovation Extreme Work In Progress - Third / Fourth, lost track liao stage (always more $$$$ stage)

Installing Home CCTV - Part 3

Installing the Camera Unit

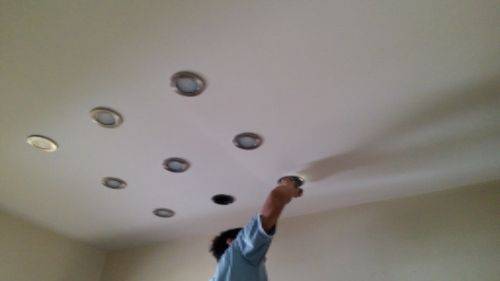

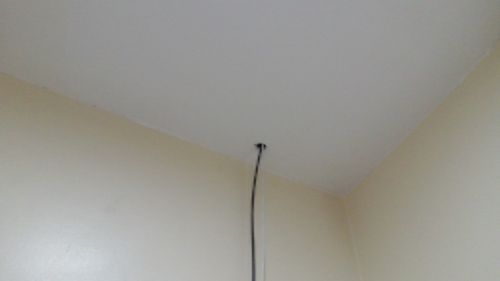

A hole for the cables



Setting the camera base

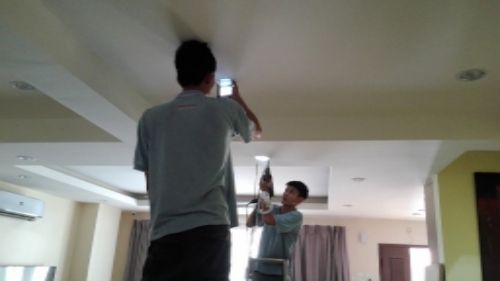

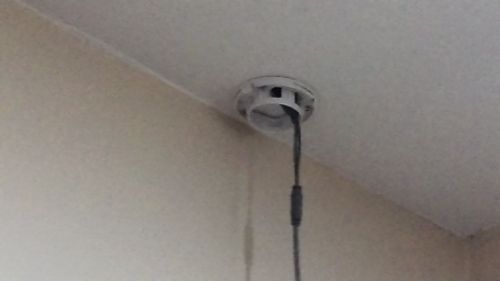

Fitting and connecting the camera




As it can be seen , it takes a LOT of effort to set the cables and wires if they are to be concealed from sight
(Drilling between Floors and Drilling through concrete frames)

That it, CCTV Installed

The rest is just software setting linking to your
1. Display
2. Computer (online Viewing)
3. Mobile Phone (with data plan)

This post has been edited by phoenix69: Dec 8 2015, 12:59 PM
