Well, here goes another try to post & share my latest exploit...adventure?
Yup, to put in a 3rd party paper-type aircon filter...for better filtration of the cabin air in our BLMs/FLs...

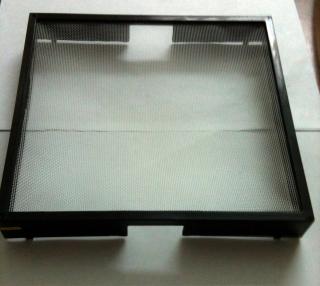

First is a repeated pic posted earlier re the Ori aircon filter with its own plastic box frame : Pls hv a good look at the VERY COARSE mesh...
» Click to show Spoiler - click again to hide... «

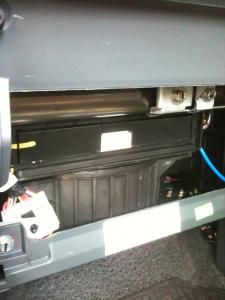

Next pic shows the Aircon Filter Box above the Aircon Blower Unit...located behind the Glove Compartment/Glovebox....
The Ori Aircon Filter goes into the space in the Aircon Box.
» Click to show Spoiler - click again to hide... «

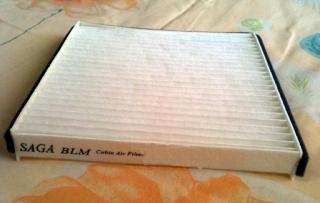

This is the 3rd party Paper-type Aircon Filter that I'd chosen to use out of 2 that I'd bought. At first (2 months ago), I'd installed ONLY the new filter alone ie w/o the Ori Filter BUT somehow felt that it was not a proper fit...
» Click to show Spoiler - click again to hide... «
So what I did today was hopefully to improve on that...tried different ways to put in the Ori AND the New Filter into the Filter Box. At first few tries, the New Filter just would not stay & fit nicely.
Then with careful manipulation of BOTH filters simultaneously, I managed to fit in BOTH & with the New Filter sitting nicely + firmly just below the Ori Filter!!
Pic shows both inside the Filter Box...
» Click to show Spoiler - click again to hide... «
This last pic shows the Filter Box front cover refitted onto the front of the Filter Box.
» Click to show Spoiler - click again to hide... «
Phew! Finally posted....Eureka!! TQ for reading...

Added on July 14, 2011, 10:24 pmps. Feel reason for posting failure due2 too large JPEG files!!

Me reduced the image size using Photoshop & it worked!!
