 Sandy Bridge Overclocking V1, 2500K/2600K/2700K | LGA1155 P67.Z68.Z77

views

cstkl1
post Apr 15 2011, 01:05 AM

Look at all my stars!!
Group Icon
Elite
6,799 posts

Joined: Jan 2003

i run mine at 1.4v at bclk 105.6
TSowikh84
post Apr 15 2011, 06:25 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(FiragaZ @ Apr 14 2011, 12:47 PM)
hi, does any1 adjust cpu pll voltage manually?
*
i set mine at 1.68v, core temps drop a lil bit nod.gif
FiragaZ
post Apr 15 2011, 12:01 PM

No Pain No Gain
******
Senior Member
1,745 posts

Joined: Aug 2010
From: Kuala Lumpur


QUOTE(owikh84 @ Apr 15 2011, 06:25 AM)
i set mine at 1.68v, core temps drop a lil bit  nod.gif
*
default 1.8v rite? i heard drop it will lower temp when set around 1.7v, but it doesn work for me, i set it 1.7v. My bios setting just let me set 1.5v, 1.6v, 1.7v, 1.8v, cant 1.71 or 1.82.
clawhammer
post Apr 15 2011, 04:26 PM

///M
Group Icon
VIP
8,788 posts

Joined: Jan 2003
From: Kuala Lumpur




QUOTE(FiragaZ @ Apr 15 2011, 12:01 PM)
default 1.8v rite? i heard drop it will lower temp when set around 1.7v, but it doesn work for me, i set it 1.7v. My bios setting just let me set 1.5v, 1.6v, 1.7v, 1.8v, cant 1.71 or 1.82.
*
It doesn't matter and this value can be reduced safely. I suggest you to read some Sandy Bridge overclocking guide and it's very informative smile.gif
FiragaZ
post Apr 15 2011, 10:43 PM

No Pain No Gain
******
Senior Member
1,745 posts

Joined: Aug 2010
From: Kuala Lumpur


QUOTE(clawhammer @ Apr 15 2011, 04:26 PM)
It doesn't matter and this value can be reduced safely. I suggest you to read some Sandy Bridge overclocking guide and it's very informative smile.gif
*
yea, actually i google alot and ask here biggrin.gif
kuntawakaw
post Apr 17 2011, 12:53 AM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....


hello guys..new here

wta, is there any issue if using rams that not certified for sandy?
i mean the ocing.
cuz i found my rams wont do any good with sandy divider ( >1600 )

eg : 1600 6-8-6 , 1.5v hyperpi 32mable
1866 7-9-7 any volt wont do.. even loosing up not helping so much

btw, spec
2600k
msi P67A-GD65
gskill eco 1600 7-8-7 1.35v

anything i missed, pls enlighten me cuz im too noob in intel tongue.gif
TSowikh84
post Apr 17 2011, 01:14 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(kuntawakaw @ Apr 17 2011, 12:53 AM)
hello guys..new here

wta, is there any issue if using rams that not certified for sandy?
i mean the ocing.
cuz i found my rams wont do any good with sandy divider ( >1600 )

eg : 1600 6-8-6 , 1.5v hyperpi 32mable
1866 7-9-7 any volt wont do.. even loosing up not helping so much

btw, spec
2600k
msi P67A-GD65
gskill eco 1600 7-8-7 1.35v

anything i missed, pls enlighten me cuz im too noob in intel tongue.gif
*
try 2133 8-10-7-27 at 1.65v
kuntawakaw
post Apr 17 2011, 01:21 AM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....


QUOTE(owikh84 @ Apr 17 2011, 01:14 AM)
try 2133 8-10-7-27 at 1.65v
*
i dont think it capable of doing that.. a quick try 2133 with auto timings = not bootable.

but, thanks.. i will try again my luck with the timings u stated..

pst..any eco user here?

edit:

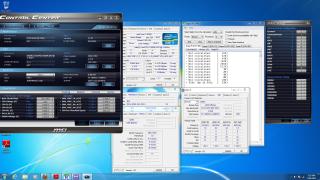

Attached Image
updated with ss.
only 32m att cuz in learning process.. other stress tools will take more time.

any misc voltage should i increase in order to gain higher ram clock?
tfaw stocked at 50...but i changed to 30..should i leave at 50 or better to tightening?

sorry for these questions.. still cant find a good guides to read.

This post has been edited by kuntawakaw: Apr 17 2011, 01:40 AM
davidbilly87
post Apr 17 2011, 05:24 PM

On my way
****
Senior Member
513 posts

Joined: Jul 2007



Guys, What is Default/Stock Voltage for the I7 2600K?
TSowikh84
post Apr 17 2011, 06:17 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(kuntawakaw @ Apr 17 2011, 01:21 AM)
i dont think it capable of doing that.. a quick try 2133 with auto timings = not bootable.

but, thanks.. i will try again my luck with the timings u stated..

pst..any eco user here?

edit:
updated with ss.
only 32m att cuz in learning process.. other stress tools will take more time.

any misc voltage should i increase in order to gain higher ram clock?
tfaw stocked at 50...but i changed to 30..should i leave at 50 or better to tightening?

sorry for these questions.. still cant find a good guides to read.
*
Found THIS for ECO.

QUOTE(davidbilly87 @ Apr 17 2011, 05:24 PM)
Guys, What is Default/Stock Voltage for the I7 2600K?
*
1.24-1.26v under load.
davidbilly87
post Apr 17 2011, 06:45 PM

On my way
****
Senior Member
513 posts

Joined: Jul 2007



QUOTE(owikh84 @ Apr 17 2011, 07:17 PM)
Found THIS for ECO.
1.24-1.26v under load.
*
AsRock Pro3@I7 2600K 4.0@1.2v will BSOD when running the LinX , Temp 70~73C mad.gif
TSowikh84
post Apr 17 2011, 06:51 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(davidbilly87 @ Apr 17 2011, 06:45 PM)
AsRock Pro3@I7 2600K 4.0@1.2v will BSOD  when running the LinX , Temp 70~73C  mad.gif
*
which type of BSOD?

QUOTE
BSOD codes for overclocking
0x101 = increase vcore
0x124 = increase vcore
0x0A = unstable RAM/IMC, increase QPI first, if that doesn't work increase vcore
0x1E = increase vcore
0x3B = increase vcore
0x3D = increase vcore
0xD1 = QPI/VTT, increase/decrease as necessary, can also be unstable Ram, raise Ram voltage
0x9C = QPI/VTT most likely, but increasing vcore has helped in some instances
0x50 = RAM timings/Frequency or uncore multi unstable, increase RAM voltage or adjust QPI/VTT, or lower uncore if you're higher than 2x
0x109 = Not enough or too Much memory voltage
0x116 = Low IOH (NB) voltage, GPU issue (most common when running multi-GPU/overclocking GPU)
0x7E = Corrupted OS file, possibly from overclocking. Run sfc /scannow and chkdsk /r

davidbilly87
post Apr 17 2011, 06:59 PM

On my way
****
Senior Member
513 posts

Joined: Jul 2007



QUOTE(owikh84 @ Apr 17 2011, 07:51 PM)
which type of BSOD?
*
Erm...just Whole Window Hang then restart @@ , my MB debug Code , when in window will auto close light, is it when it BSOD will show the code agian? smile.gif


Updated : That C3 and C6 State , need enable ? or disable for OC icon_question.gif

This post has been edited by davidbilly87: Apr 17 2011, 07:21 PM
TSowikh84
post Apr 17 2011, 07:30 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(davidbilly87 @ Apr 17 2011, 06:59 PM)
Erm...just Whole Window Hang then restart @@ , my MB debug Code , when in window will auto close light, is it when it BSOD will show the code agian? smile.gif
*
BSOD code can only be seen in win.
try increase vcore to 1.3v, later when got into win slowly decrease vcore.
take note that LLC will either increase or decrease vcore during load depends on settings.
C states are related to power saving, noth to do with ur BSOD
full specs of PC would be helpful. doh.gif
davidbilly87
post Apr 17 2011, 07:40 PM

On my way
****
Senior Member
513 posts

Joined: Jul 2007



QUOTE(owikh84 @ Apr 17 2011, 08:30 PM)
BSOD code can only be seen in win.
try increase vcore to 1.3v, later when got into win slowly decrease vcore.
take note that LLC will either increase or decrease vcore during load depends on settings.
C states are related to power saving, noth to do with ur BSOD
full specs of PC would be helpful.  doh.gif
*
This is my Spec :

Proc : I7 2600K 3.4@4.0 v1.25
CPU Cooler : Intel Stock
MB : AsRock Pro3 P67 - Bios : 1.80
GC: Asus DCU 460GTX 1GB
PSU : SilverStone ST56F 560W
SC : Creative Titanium PCI-EX
HDD : WD Blue 640GB,Samsung F3 1TB
Ram : KVR 4GB 1333@1600 1.5v x2


The Safety Voltage for Intel Stock Cooler is? i will change it at next month.


Where to see those code? is it while BSOD? smile.gif

The LLC need close? smile.gif

Which Cooler is best on I7 2600K ? Corsair H50? or others suggest within rm 250 tongue.gif Thanks .

This post has been edited by davidbilly87: Apr 17 2011, 07:41 PM
TSowikh84
post Apr 18 2011, 07:10 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan



QUOTE(davidbilly87 @ Apr 17 2011, 07:40 PM)
This is my Spec :

Proc : I7 2600K 3.4@4.0 v1.25
CPU Cooler : Intel Stock
MB :  AsRock Pro3 P67 - Bios : 1.80
GC:    Asus DCU 460GTX 1GB
PSU :  SilverStone ST56F 560W
SC  :  Creative Titanium PCI-EX
HDD : WD Blue 640GB,Samsung F3 1TB
Ram : KVR 4GB 1333@1600 1.5v x2
The Safety Voltage for Intel Stock Cooler is?  i will change it at next month.
Where to see those code? is it while BSOD?  smile.gif

The LLC need close?  smile.gif

Which Cooler is best on I7 2600K ?  Corsair H50? or others suggest within rm 250  tongue.gif  Thanks .
*
Intel stock cooler is best at 4.2GHz only at stock voltage.
eg. BSOD 124:
» Click to show Spoiler - click again to hide... «

LLC depends on cpu/mobo reaction to voltage scaling. I always set to extreme for 5GHz+ due to my sucky 2600K.
more Asrock OC guides pls refer to THIS
Asus goes to THIS
H5O should be able to handle up to 4.7GHz, which is as good as VenomousX
Noctua NH-D14 for RM270?
acther
post Apr 18 2011, 05:16 PM

Casual
***
Junior Member
317 posts

Joined: Jan 2009
Found out one thing, if CPU PLL Overvolt is disabled, more vcore is needed if reduce the CPU PLL voltage.

Sandy is quite boring compare to the x58 & to my daily usage i found my 990x previously is much better than the current SB T_T
clawhammer
post Apr 18 2011, 05:28 PM

///M
Group Icon
VIP
8,788 posts

Joined: Jan 2003
From: Kuala Lumpur




QUOTE(acther @ Apr 18 2011, 05:16 PM)
Found out one thing, if CPU PLL Overvolt is disabled, more vcore is needed if reduce the CPU PLL voltage.

Sandy is quite boring compare to the x58 & to my daily usage i found my 990x previously is much better than the current SB T_T
*
Sell off and buy the 990X again biggrin.gif
acther
post Apr 18 2011, 05:38 PM

Casual
***
Junior Member
317 posts

Joined: Jan 2009
if im like u so rich ok lor.. but but but poor ppl like me cant lor..
OC4/3
post Apr 19 2011, 10:18 AM

.
Group Icon
Elite
4,746 posts

Joined: Dec 2007
From: Speed rule


QUOTE(acther @ Apr 18 2011, 05:38 PM)
if im like u so rich ok lor.. but but but poor ppl like me cant lor..
*
You sure are rich whistling.gif
Get back the 990X man,Hexa Core + HT whistling.gif
