Things are getting interesting, going DIY now.

Haha, looks like you've reeled in your nephew into flashlights! Nice DIY. I see there's a transistor? How would it know to terminate at 4.2v ar?

EDIT: oops, the handphone charger meant for 3.7v (4.2v) right.. ok..

This post has been edited by pseudoblue: Mar 26 2010, 09:20 PM

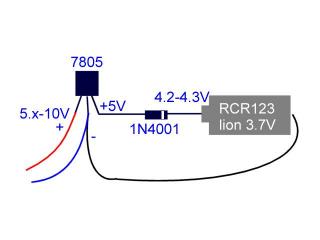

Haha, don't expect someone actually interested, attached is the simple drawing.

I used the 7805 regulator , the output is always fixed at 5V (regulated), and it can take input from range of 6-10V++, so most HP charger should be in this range. If it rated 5V output, then it can be used, because usually their unloaded voltage is 5.5V and above.

Then from the 5V, I uses a diode 1N4001 to further reduce the voltage to about 4.2-4.3V. guys, no fix here (its depends on various condition), so I recommend to use a protected li-co, unless you do your know timer and DMM to check lar.

I tried to use a zener to limit to 4.3V, but result not good, will try improve if have time.

Actually there is an IC LTC4054 to charge liOn battery, but in low volume its priced at RM15++, but my idea is to minimized the cost. Or you can use those universal cellphone battery charger, they have the circuit inside, quite good. But I can get it around RM10, and need more modification.

I tested, it will charge real slow to 4.2V, it means the charger no need to hold at 4.2V and detects the current drop like those intelligent rapid charger for termination.
Specs say if you slow charge to 4.2V, its full when it reach 4.2
It may go slightly higher than 4.2, but it should be ok, and the protected lion should cut if its triggered.

This post has been edited by susuman: Mar 28 2010, 01:33 AM


Attached thumbnail(s)

Hey thanks for the info and specs!

It looks like different battery (with different internal resistance) might be terminated at different voltages from your explanation. Perhaps your nephew should use the same type of batteries for this charger since it is terminating at 4.2v safely?

EDIT: If reduce to ~ 4.15v also still better i think

This post has been edited by pseudoblue: Mar 27 2010, 04:05 PM

haha, i re-attached the drawing, 1st 1 failed but i didn't notice.

Yeah, it could mod to charge up to 4.15V, but it won't full charge then.

helping strinq ordered a SKYRAY S-R5 Cree XPE-R4 5-Mode 320-Lumen Memory LED Flashlight (1*18650/2*16340)
http://www.dealextreme.com/details.dx/sku.32749

and compare to the Lumens Factory's Seraph

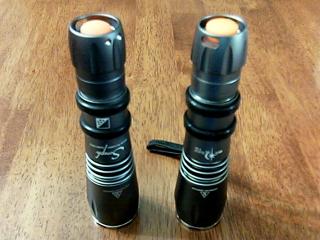

TWINS
