i suggest u use cable tie + mounting base to make ur cable tidy..
------------------------------------------------------------------------------------------------------------------------------
So,here also i want to share mine


This post has been edited by fiedozs: Dec 18 2010, 12:56 AM

how many hour u spend to manage the cable?mine make me wanna campak my psu

hmm~ how long eh.. around 1hour ++ lah.. juz simple cable management, using mountain base & cable tie..

wow. not bad. i try to retie my cable. but need buy fan for my case first.
yours PSU cable got uv?

my psu got uv sleeving service bro easier if ur psu modular..

but the default 1 very fat and keras. hard to band.

Here's mine.


. It's not the best, but I like it. Just finished re-working it 10 minutes ago.

This post has been edited by TDUEnthusiast: Dec 22 2010, 03:02 PM

this is another thread that I've been lurkin and never posted anything ( the other being Workstation pic & desktop pic ), so here's mine :




can improve if PSU isn't pre-sleeved


( gettin new exhaust fan and LEDs to make 'red-themed' pc )

hvin problem wit:wacko: :
- sata cable's length
- hv only 1 pcie 'rail' and its length

thinking of covering it or get the normal 12v molex -> pcie converter to extend its length so easr to route it. too lazy to proceed tho


btw casing is cheapo Encloxure wizard.

my cable management..

kan bagus if use psu modular

I just completed assembling this CM HAF 912 Advance . Strained my back working over the cable and 2 screw nut under MOBO became loose too ( the screw do not fit the nuts properly )
Anyway, i like to share with all forumner and welcome any suggestions.

k62 casing?

y all of got nice skill eh..haha..btw..clean ur casing abit la~got dust(like mine)

bro...nice cable management...hahahhaha...need time to thinking to hide all unused cable...hahahahhaha...some more you're made some modded....

i like your rig, clean look. i notice you dun use much fans for cooling i.e. rear exhaust plus another one for the cooler? aircond room? what's d cpu temp like?

---

Added on December 31, 2010, 11:42 pmbro, u can try to tuck all the cable under the mobo. Mine used to be like urs but i redo it 3 days ago...a bit of effort and pain to unscrew the mobo

This post has been edited by sonymorita: Dec 31 2010, 11:42 PM

thanks actually there is 1 exhaust fan and another intake on side panel

whoaa red led..., now your pc look HOT....CM fans??

nope, fans @ the front and back r the fan tat came with the casing, feel kinda cheap I must say good thing is tat they r prty silent
but LEDs on both fans died after a few months of usin, so I replaced em wit red

i'm using 5 CM fans for my casing:

2x 200mm & 1 120mm CM fans comes with the casing. i add another 2 more cheap (but rocks) 90CFM!! 120mm CM LED fans. Cost only rm24/ pc.

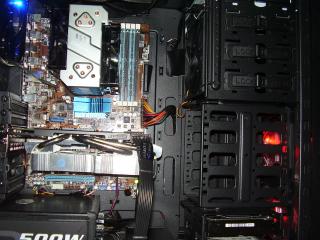

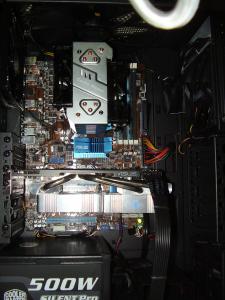

This is my rig with cable management.. How i wish i could afford Pc cases like u guys, i can do wonders with it
This is my cheapo Coolermaster elite 430 but i pimp it out the best i could

This post has been edited by thong123: Jan 9 2011, 01:51 PM


Attached thumbnail(s)

very nice and neat

Uploaded with ImageShack.us

Any possibility I can do it better?

This post has been edited by Sky.Live: Jan 17 2011, 12:08 AM
