ummm, is that a H220?

Yes, good eye sight

the way you mount/put your radiator...
better don't touch the hdd if can.

Ya, I know that, it has 1.2mm clearance between them. I'll upload my work log by this week. Check it out later

if only the psu cable cover can extend from front to back then it would look nicer

Installed 240 radiator into 5.25" bays. Nice

Cover PSU with plastic cover will slightly increase the temperature of PSU. Am I right?

Ace meimei shows up

You mean, cover the whole psu?

Not really for my setup, i got a fan blowing in HDD bay all the way to psu.

Something like this would give a cleaner look


btw, is it safe to just screw ur H220 in one front fan slot? Stable enough ka?

This post has been edited by ntw: Sep 18 2013, 03:43 PM

Oh, but i prefer to show off the PSU to match the color theme, hehe... Well i got my way to secure it

neat .. love to see your design on gc..

Thanks, more to come later, as I'm running in the hardware only

I mounted my RX240 with 1 fan slot only, if its in vertical position usually no problem. If horizontal might be a little flex but still alright, something like h100 or ex240 should be alright since they are thinner compare to RX240 which is very thick & heavy

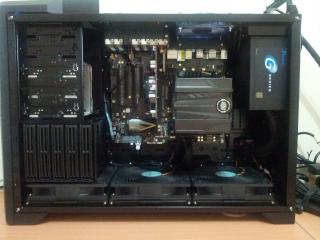

reporting...






now waiting for SST-CP06 order, for better cable management.

haha so far so good...

some small changes:


1. change sata power & sata data cable
2. some cable route changes

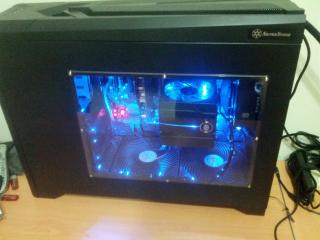

3. add LED kit cable and light turn on


4. LED kit and fans LED light off

Clean look ...how many set of that kits you use for this rig?

only 1 set.

NZXT sleeved LED cables wouldn't it be better if the LED cables be mounted onto the side panel instead? that way when you open the side you'd not have the cable hanging in the middle

Yes, I did considered this way too. but just lazy to disconnect the LED cable from PCI controller when every time open the side panel.



BTW, I still looking for On/Off switch to control my LED fan light. already try luck PMed APES for any old BitFenix Hydra Pro stock left but no more . any other alternative?
