after fixing for many times, here's my most satisfied result:

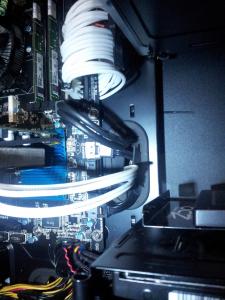

how i route my 24pin extension behind the mobo

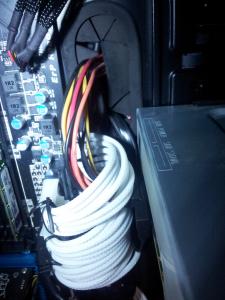

and how i route my ODD power connector THRU the 24pin


This post has been edited by ntw: May 17 2013, 04:44 AM

look how i mount my ssd. then i'll have another slot for HDD d

i have seen those too, but too bad 300r doesnt have that kind of mount at the back.. unless i drill some holez

then cannot show off d but seriously? side tapes are strong enough to hold?

i was using cheapo black double tape before, cannot even use to hang some 1 piece cloth hanger..

your build is so awesome, even messy abit also worth it =)

he's using the extension cables. cyntrix have their custom made ones. apes/ideal tech have the bitfenix ones =)

if only the psu cable cover can extend from front to back then it would look nicer

Something like this would give a cleaner look


btw, is it safe to just screw ur H220 in one front fan slot? Stable enough ka?

This post has been edited by ntw: Sep 18 2013, 03:43 PM

neverending buy-sell-buy loop

ingenious BTX modding? flip the picture

This post has been edited by ntw: Nov 30 2013, 12:48 AM

Damn clean weyh!! :thumb:

Dp

This post has been edited by ntw: Jan 16 2014, 09:30 PM

nice leh, featured by Asus ROG Malaysia summore!!

let me guess, the Avexir Core is red led?

what case is that? it looks classy, your excess cable are hidden pretty well. my suggestion is to ditch the bar in the middle, its blocks the view on your awesome setup and try to tuck the USB3 and SATA cable behind the tray instead of letting it hang out lidat

try drivenheat

yes yes... now it looks much better. and do something about the GPU cable (dunno what to recommend cuz doesnt seem to have any way to hide them)

This post has been edited by ntw: Mar 8 2014, 02:21 PM

very clean!

I use zip ties

Anyone tried these GPU power connector 180deg adapter from taobao? Seems like it can help to hide the GPU power cables nicely



Also, whats the thought on those custom modular PSU cables from taobao? Is it safe to use?

Thanks sifu for sharing the evga ones. Prefer these chinese ones because it can keep the cable parallel on top of the gpu, looks nicer than cables coming out from the side of the gpu.

Ordered a set to test. Finger crossed the quality is good and won't burn my gpu
