yea, opt for AIO watercooler

why i still got the feeling of "insecure" to migrate using WC, haha

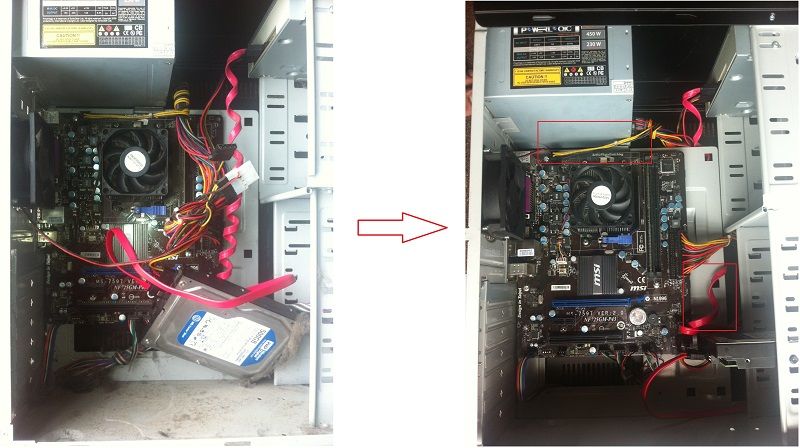

Just sharing my brother office's PC after and before cleaning
He asked me to check if can upgrade his PC a bit faster
When i open and saw the "left picture" condition



I just notice 4pin and sata cable can be 'hidden' more better after i came back to my uni

This post has been edited by shah93: Mar 30 2013, 11:34 AM

Rubber grommets installed !
Credits to Corsair for providing the rubber grommets

Need help with my case

really bad at cable management, what should i do and if there is anything need to be added for suggestion please let me know

using nzxt vulcan


Overall still looks messy



this side i spent my time more than 2 hours but still look like this :/


the 4pin atx power cable looks really bad like that @@
do i need extension for it or is there a trick?



This post has been edited by CheaTeRz: Apr 2 2013, 06:56 PM

my small system's cable routing
the 24pin is hard to hide

y no try show the pic n let us c

today try to tidy it up abit.

still look ugly to me T_T




Attached thumbnail(s)

Try route the SATA cables under the motherboard instead of thru the holes

And the 8pin power cant be hidden behind?
Try look for extension then

1. I see, im not sure whether its safe for the cable to be route under the motherboard? since you suggest it, so i guess it is, will try it when i i have the time.
2. yeah well, ive tried and it can, the cable is too thick to be route behind the mobo and the spacing is too small. well i manage to tidy it up by carefully route it on top of the mobo and under the graphics.

ill snap a picture later when i had a time.

thanks!

may i know what casing is that?

As for the SATA, you just have to make sure it doesnt interfere with the board or flexes it. Otherwise its okay to proceed

NZXT Vulcan


got it, will see later if it could be done

a bit update with my setup

somehow got no time to reroute my Sata cable and 8pin power cable throught the back of mobo, so this is the current view of my interior.

the cabling does seem nicer already, still got room for improvement but good job nonetheless.

but I notice your CPU cooler fan is blowing into the chassis from the back??

Thanks!

emm, imma bit confuse regarding that myself, looks like it but when i feel the air physically it does blowing out to the back of the case.

and i manage to ge temperature oft 35-39 degree on idle, so it is good right? or no @@?

well if the temps are like that then it's good enough then

will update when i had the time to route the sata cable at the back of the mobo tray and when i had the 8-pin extension.

thank you

Want to share my not so call cable management from my HTPC.
Case CM Elite 120 Advance.
[attachmentid=3409160][attachmentid=3409161][attachmentid=3409163]
Any suggestion to hide excess supply cable?

Tis is my cable management for HAF X. Feel free to comment
