Need help with my case

really bad at cable management, what should i do and if there is anything need to be added for suggestion please let me know

using nzxt vulcan

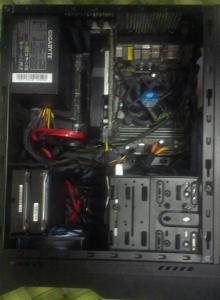

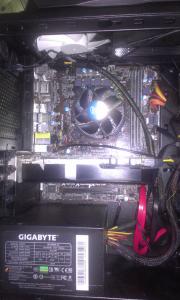

Overall still looks messy

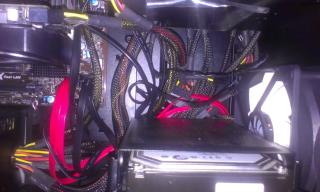

this side i spent my time more than 2 hours but still look like this :/


the 4pin atx power cable looks really bad like that @@
do i need extension for it or is there a trick?



This post has been edited by CheaTeRz: Apr 2 2013, 06:56 PM

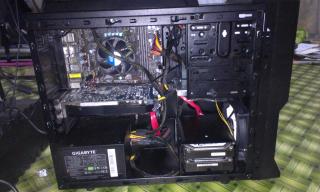

today try to tidy it up abit.

still look ugly to me T_T




Attached thumbnail(s)

1. I see, im not sure whether its safe for the cable to be route under the motherboard? since you suggest it, so i guess it is, will try it when i i have the time.
2. yeah well, ive tried and it can, the cable is too thick to be route behind the mobo and the spacing is too small. well i manage to tidy it up by carefully route it on top of the mobo and under the graphics.

ill snap a picture later when i had a time.

thanks!

NZXT Vulcan


got it, will see later if it could be done

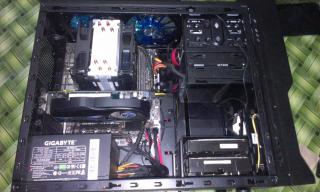

a bit update with my setup

somehow got no time to reroute my Sata cable and 8pin power cable throught the back of mobo, so this is the current view of my interior.

Thanks!

emm, imma bit confuse regarding that myself, looks like it but when i feel the air physically it does blowing out to the back of the case.

and i manage to ge temperature oft 35-39 degree on idle, so it is good right? or no @@?

will update when i had the time to route the sata cable at the back of the mobo tray and when i had the 8-pin extension.

thank you

you really like to give people free lesson aren't ya.

I might need help with mine over this semester break

oh?
you're going somewhere?

i can set up my friend's PC on mid tower case pretty well,
but when it come to my own Vulcan setup, still look like a mess lol.

This post has been edited by CheaTeRz: May 13 2013, 05:35 PM

that was neat..
too neat

are you sure you have connected all the cables needed?

weeee. bought my seasonic G550 last week and the item arrive today.

just finish assembling

BEFORE:


AFTER:



NOTE
* Sold of my GC in preparation for 7950 / GTX660 Ti hence the emptiness
** Total of 4 drive, 2 black Sata 3 cable and 2 red Sata 2 cable, all free cable lol. Later thinking of getting UV reactive cable XD
*** also i changed the position of the CM212 for top exhaust since back exhaust got no fan

This post has been edited by CheaTeRz: May 19 2013, 05:59 PM

well, didn't think bout it, still the hot air outtake from GC is through the back of the case right, should I add another 80/92mm fan as exhaust?

well i guess ill see how much the difference when the GC is on. If the difference is just around below 10 degree then ill just let it be XD

currently running temp:

idle - 35-39 degree
normal usage - 43-55 degree
100% load INTEL Burn test - 70 degree.

oh well. mostly because of my laziness

will change its position when im getting the new card most probably

awesome small beast you got there

any UV reactive?

you cut it yourself?

want to change my vulcan mesh side panel to acrylic window, not sure how much it gonna cost :/

but need to change the cpu cooler too since hyper 212 is too tall for flat acrylic window, and im thinking of getting geminII instead

i dont have my cash right now
planning to get it end of june lol

definitely interested
but not at this moment, later i buy then im going to eat dust for a month XD

dammit, even at the back look clean as hell. my management on the back is the worse ;(

anyway, what casing is that, almost look like mine, + the velco strap already the same as mine

what the freaking fish
dat routing plate

yeah i totally digging the strap, since if I failed to route properly can always take it off and use it back XD.

*still my back of mobo cable is so mess, i didnt even dare to open the case.
no idea how to do it lol

This post has been edited by CheaTeRz: Jun 2 2013, 01:06 PM

yeaaaaa.. i guess so :/

need to buy the extender ffs >.<!
and its going to cost me too. argh

will get it when i got the cash
