but once u start doing it...it will get more interesting ^^

Will try but dunno can do or not... LoL...

Just a cheap & casual setup, made a little servicing yesterday Flipped the casing over, how convenient design to do so... but cable management is HARD... (Aerocool VS9)



Rear:

Just wanna ask this casing make your mobo upside down yah?

I turn the casing upside down... roof become foot, foot become roof (they are both identical mesh anyway)

Whooaa ! ! This casing can make thing like that? Awesome ! !

Dear Brothers and Sisters ...
I am about to assemble my RIG soon ...

After some study and to fit my budget, I have finally decided on Aerocool casing
The one that fits my liking and good cable management is Aerocool Strike-X GT
BUT hor, I much much prefer Aerocool Strike-X design xD
(Too bad Malaysia dont have Advance Red !!!)

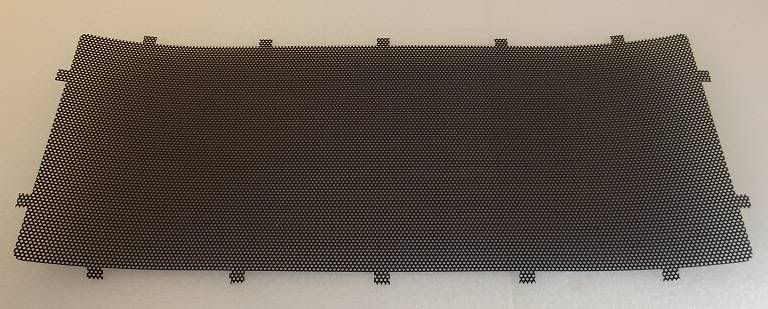

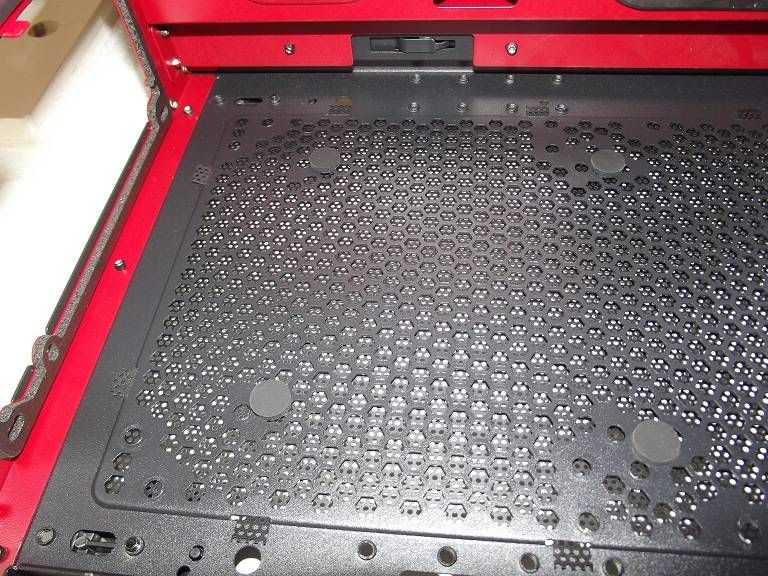

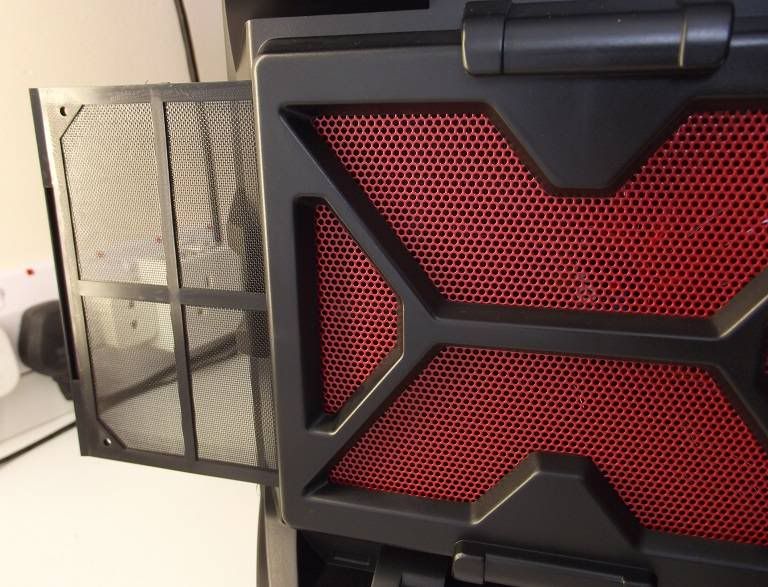

So now, would like to ask, where can I find the dust filter, like these? Please click SPOILER


Also ... Nowadays the CPU Heatsink becoming bigger and bigger ...
If our casing allow, we have an option to mount Heat Sink all the way to the Casing, correct?
(I really dont know, because I read casing description, looks like got such option)

Also ... The GPU now already commonly come with big big heatsink and fan ...
Some more the heatsink is facing downwards ... Over time, will it cause damage?
Its metal + gravity ... and how to counter this?

Thanks Bro for the idea ... How to drill the hole ... I wonder ...

This post has been edited by tcheric: Apr 6 2012, 12:38 PM

and you'll be happy one you c your neat cable managed

i have a aerocool casing..but no hole for cable management...
difficult to hiding cable...
im thinking to use cable casing from elecrtical@electronic panel..
anyone here use that?

the little monster NEW setup part 2...
WAIT for part 3 very soon

This post has been edited by Zzorro: May 2 2012, 02:22 PM


Attached thumbnail(s)

Red color theme very nice.... I'm now slowly transforming my rig... busy with work untill no time to dust out my rig

Some gpu power connector is beside the side panel and some of them facing the hdd rack, my hd6790 using 2x 6pins pcie connector, how to manage that 2 cable? Using gigabyte powerock inside cm usp100

Just did cable management on my rig yesterday
Took me total of 2 hours++ to plan, re-route and tie up the cables.. looks much neater now
The part that I hate the most is the SATA cables due to the length of cable









This post has been edited by polarzbearz: May 5 2012, 01:55 PM

Nice effort bro...too bad your 24 ATX pin is located on left side. By the way, what casing is that?

The 24-pin ... yeah. Some more the cable so short + damn hard to twist..

The casing is CM 690.. bought 2nd hand from friend tho, he sprayed the casing and..

Just bought some new case fans and installed them
More fans = more cables to manage
[attachmentid=2828319]

sory i'm noobs in here

this my simple rig and cable management









spek:
-phenom II x2 555be @4ghz
-jw a870t-uc3
-team xtreme dark 4gb @1333 cl7
-wd blue 500gb + 80 gb sata
-vantec aero flow fx 12
-sapphire 5850 extreme edition
-fsp hexa 500w
-samsung 22x
-infinity g-50

This post has been edited by k1forc3: May 7 2012, 04:42 AM

take a picture of the inside too so we can see the cable management

where can I get 4-pin ATX 12v extension...
the cable from the PSU is too short...
anybody know where to get it?

ok sory my bad picture







This post has been edited by k1forc3: May 7 2012, 02:16 PM
