 Cable Management Thread V2, Share your cabling tricks here

views

unequalteck
post May 5 2012, 02:30 AM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju
Some gpu power connector is beside the side panel and some of them facing the hdd rack, my hd6790 using 2x 6pins pcie connector, how to manage that 2 cable? Using gigabyte powerock inside cm usp100
unequalteck
post May 12 2012, 10:47 AM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju

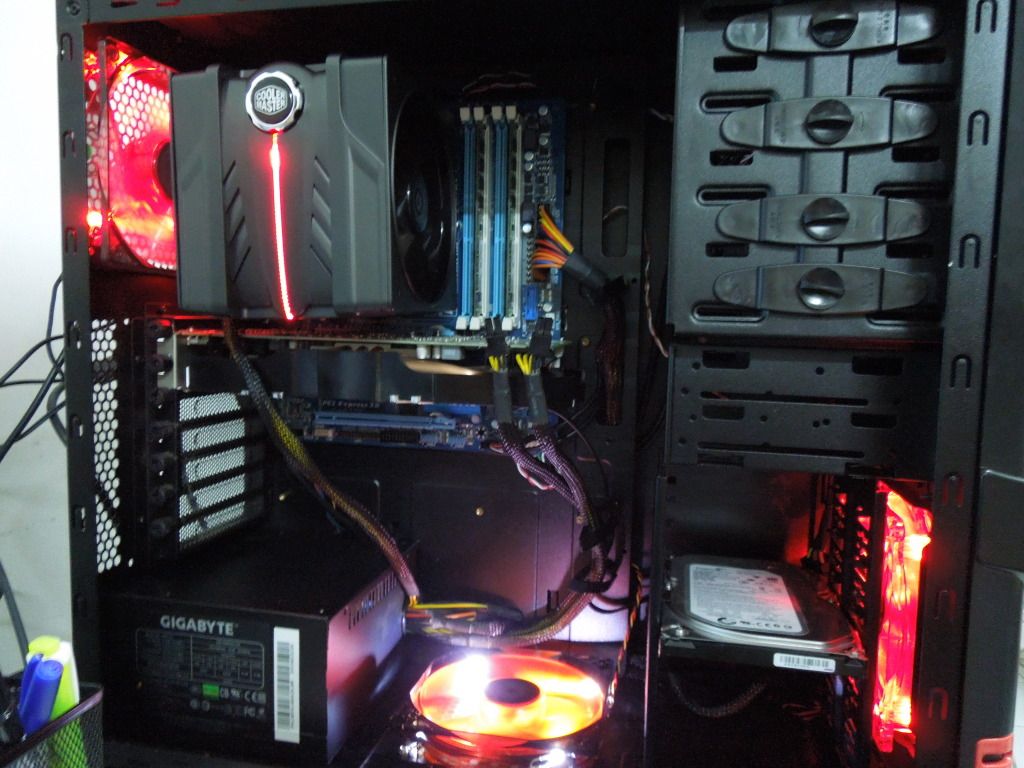

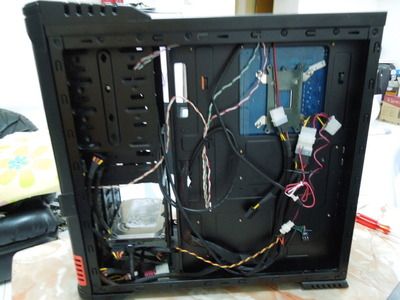

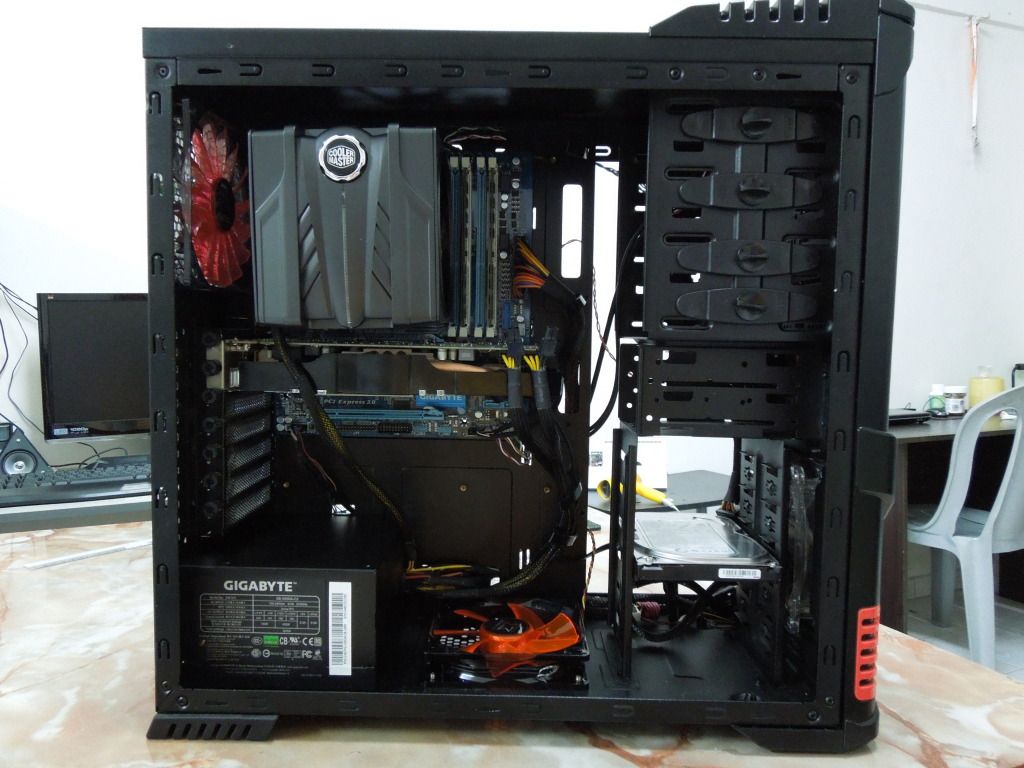

user posted image
user posted image
user posted image

used 2 hours to deal with all the cables and install the HSF
4 pin ATX cable not long enough to go from back
have to buy from nicholasteoh

This post has been edited by unequalteck: May 12 2012, 10:50 AM
unequalteck
post May 12 2012, 11:18 AM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju
QUOTE(RonalBaker @ May 12 2012, 11:06 AM)
lol why the vgt look like bengkok one?
not proper install eh? u still need to improve ur cable manage skill
looks pretty bad there. got 1 cable hole not used there.
*
lol behind the harddisk that one i too malas d
pcie and 4pin ATX will buy extension, got any recommendation?
haha this is my 1st time doing cable management
unequalteck
post May 12 2012, 01:34 PM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju
QUOTE(M1X @ May 12 2012, 11:25 AM)
The CPU cooler is "senget"... er... not aligned properly. Make sure you screw it in tight and don't move easily.
Especially the motherboard 4-pins 12v rail need to find a different way instead of flying across your graphic card. It looks short, yes extension will works.
You can route ALL the default cables from power supply to the back of your casing (with the nearest hole possible), then get a bunch of extensions (mobo 12v, 24-pin, graphic card 6-pin/8-pin, .......), or better-> sleeved extensions  that will immediately makes your casing looks better. I'm not sure if there anyone selling NZXT pre-sleeved extensions kit around here http://www.nzxt.com/new/product.php?series=13 But there are a lot of people can make you any extension cables with any sleeve color anyway, try check around garage sale.

Well, just my 2cent.
*
im already tighten the cooler screw but i applied the thermal paste make it ait slippery, already align center the cpu cooler, so its better if i get all the extension from seller then all the psu cable put behind the mobo?
unequalteck
post May 12 2012, 02:09 PM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju
QUOTE(M1X @ May 12 2012, 01:55 PM)
Well, you can DIY of course if don't want to buy directly. It is all matter of aesthetic (beauty) if you decide to put a few more dollars into it. But one usually thing is, always hide as many exposed-skinny-cables as possible  tongue.gif  Since you're already on Blue+Red maybe the sleeved cables should combine red+blue too? Although not many do that combination.  sweat.gif

I usually visit him for stuff: http://forum.lowyat.net/index.php?act=Sear...ult_type=topics

Well I'll probably do like this... Don't need to follow this, use your own style. Was thinking of getting some sleeved extensions this morning too, tired of those skinny-cables...  hmm.gif  Not sure how much they will cost.
» Click to show Spoiler - click again to hide... «

*
Lol actually im doing red but the mobo comes with blue, maybe in the future i will paint my front casing become blue, so maybe i will getting whole black extension from nicholas. thanks for ur figure haha, 4pin atx 24pin and pcie as same as what im thinking, but why the hdd wan to flip over?
unequalteck
post May 12 2012, 02:18 PM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju
QUOTE(M1X @ May 12 2012, 02:11 PM)
Haha, my personal thing, because the back side is black, not white/silver stickers.  biggrin.gif But seriously it doesn't matter if you keep the door on.
*
Yea smile.gif the door covered the hdd already. but might modding the side panel soon, the cpu cooler already touched the side panel window. btw, thanks man!
unequalteck
post May 13 2012, 06:25 PM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju
QUOTE(kherel77 @ May 13 2012, 03:28 PM)
CM Elite 311

» Click to show Spoiler - click again to hide... «


Black interior is next step.. nod.gif
*
bro u bought the 24pin cable?
unequalteck
post May 14 2012, 11:27 AM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju
QUOTE(kherel77 @ May 13 2012, 09:59 PM)
yup, 24-pin & 4-pin...and sleeve from bro Toppazzatale...
*
can i know how much u bought it?
unequalteck
post May 14 2012, 03:03 PM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju
QUOTE(kherel77 @ May 14 2012, 11:37 AM)
24-pin RM13.00
4-pin RM7.00

Around 25cm but with white connector...
*
quite cheap man, u know the difference between toppazel extended cable and nicholasteoh NCTC extended cable?
unequalteck
post May 14 2012, 04:17 PM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju
QUOTE(kherel77 @ May 14 2012, 11:37 AM)
24-pin RM13.00
4-pin RM7.00

Around 25cm but with white connector...
*
REMOVED

This post has been edited by unequalteck: May 14 2012, 04:17 PM
unequalteck
post Jun 1 2012, 01:19 PM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju
will the cable look more tidy if i use a 3.5inch adapter and put in 5.25inch bay?
unequalteck
post Jun 13 2012, 11:42 PM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju

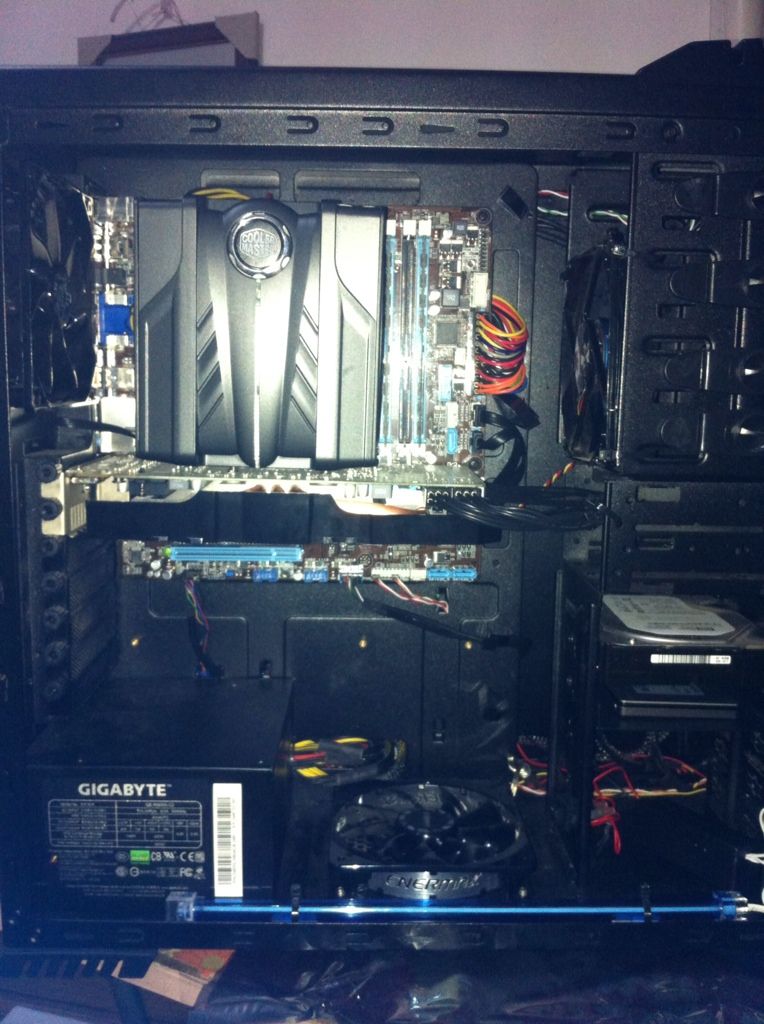

user posted image
still waiting cable extender from topazzatale
all the psu cable too short and thats the best i can do
unequalteck
post Jun 23 2012, 03:09 PM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju
Any hole for the cable go from behind?

Added on June 23, 2012, 3:11 pm
QUOTE(Jackzz9011 @ Jun 23 2012, 01:10 AM)
This is my cable manage for my computer case.. The case itself not gud in cable management.. aikss.. My casing thermaltake armour a90 is hard to do the cable management.. This the best for me  to that..

user posted image Uploaded with ImageShack.us]My Webpage[/URL]
*
Any hole for the cable to go from behind?

This post has been edited by unequalteck: Jun 23 2012, 03:11 PM
unequalteck
post Jul 2 2012, 12:53 AM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju
QUOTE(kherel77 @ Jul 2 2012, 12:45 AM)
LingLoong Thread Post #4
*
this one i asked lingloong few times d, he don have ready stock.
have to wait a period to get it
unequalteck
post Jul 2 2012, 07:57 PM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju
improved smile.gif

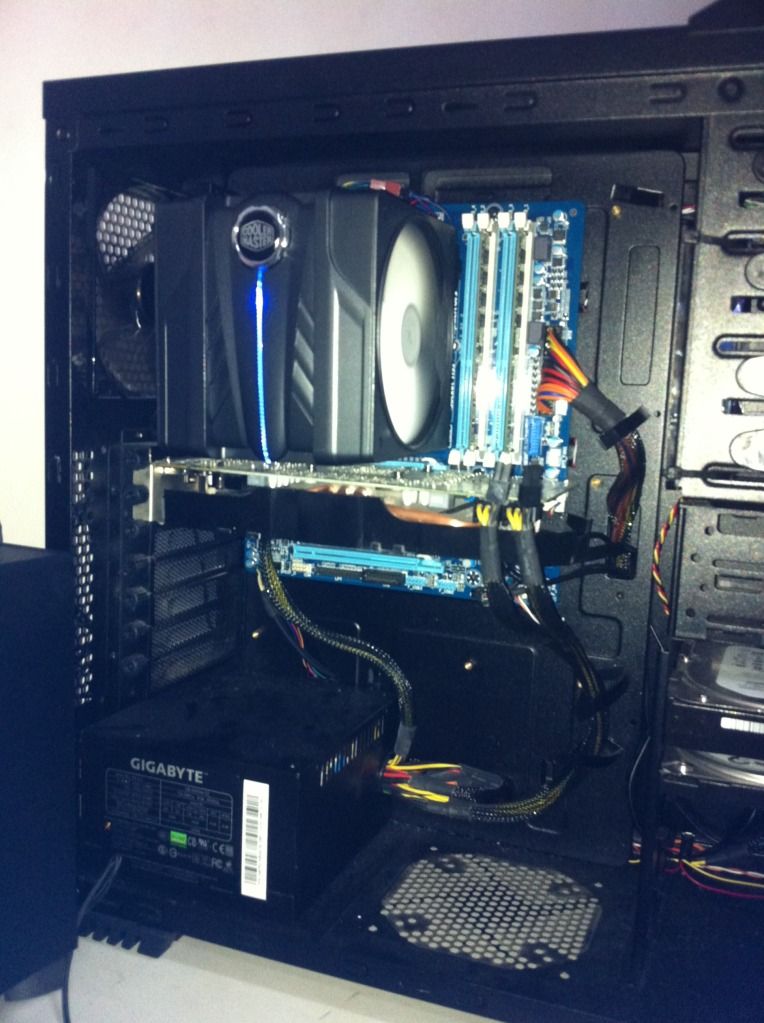

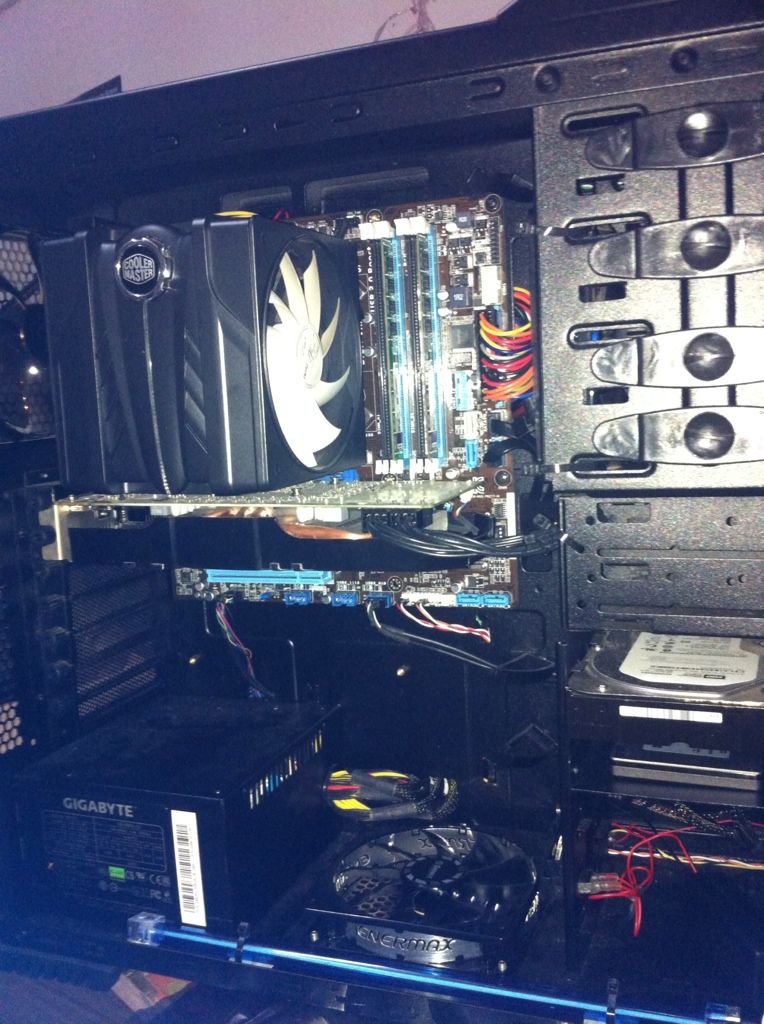

user posted image
user posted image
unequalteck
post Jul 17 2012, 05:10 PM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju
user posted image
just done sleeving job for my 24pin ATX extension smile.gif first time yo!
unequalteck
post Jul 17 2012, 10:09 PM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju
QUOTE(diaBoliQu3 @ Jul 17 2012, 10:07 PM)
She so sexy! DiY?
*
yea DIY haha smile.gif
unequalteck
post Jul 17 2012, 10:32 PM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju
QUOTE(diaBoliQu3 @ Jul 17 2012, 10:15 PM)
Nice job... I wonder how long it took you. But aren't sleeving the psu will void the warranty? Or only for certain brand?
*
thanks man! haha a few weeks, my first order for the sleeve not long enough, then wait for 2nd batch from china, but the actual progress just took me 4-5 hours. i just sleeve the extension smile.gif not the psu
unequalteck
post Jul 18 2012, 12:48 AM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju
QUOTE(rc2x @ Jul 17 2012, 11:41 PM)
Which sleeve you use? Pretty good for first time.  thumbup.gif
*
i think is the cheap one, i just bought it RM4-5 for 10meters lol. not really good, i broke 1 of the metal contactor, just order from niclasteoh wanna wait for that
unequalteck
post Jul 18 2012, 01:49 AM

Custom member title
*******
Senior Member
2,690 posts

Joined: Dec 2008
From: Kota Kinabalu Current: Wangsa Maju
QUOTE(rc2x @ Jul 18 2012, 01:04 AM)
The sleeve ok eh, quite dense. You order the sleeve from niclasteoh?
*
nope smile.gif the sleeve directly order from taobao
