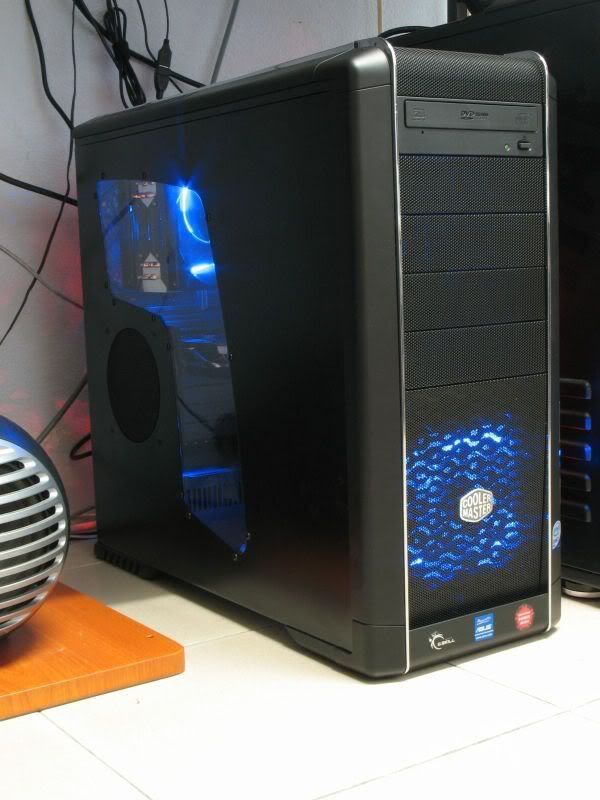

just help my friend build 1 new gaming RIG with cm690 and hyper 212 with 2 CM90cfm19db fan
core2duo E7300 2.66ghz OC to 3.6ghz
asus p5q-pro
g.skill pi black ram 4gb kit 4-4-4-12 1.9v
gainward 4850GS 512mb
enermax FMA II 535w PSU (dun like the way the sleeve the 8pin atx power and 2 pci-e power together... setup look messy just because of that cable... anybody know where can find 8pin atx power extension.. my HAF 932 comes with 1 only really wanna clear up that cable mess)

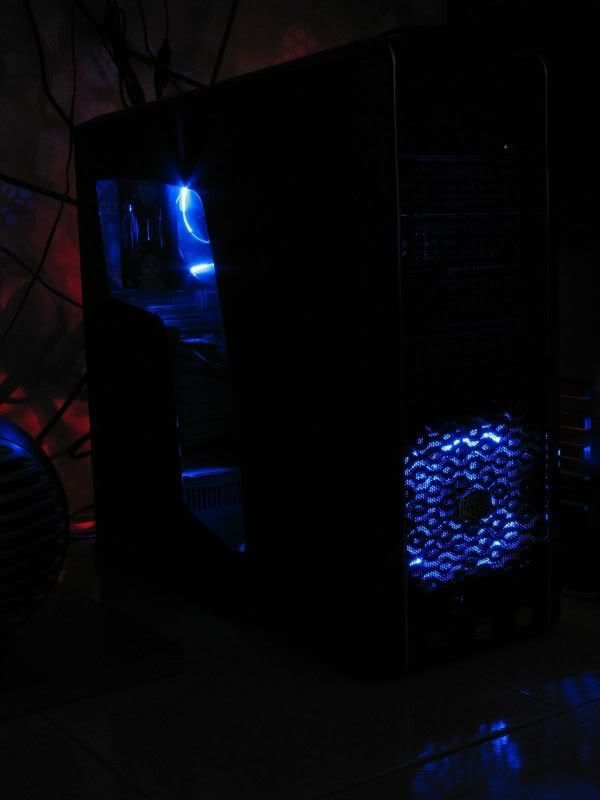

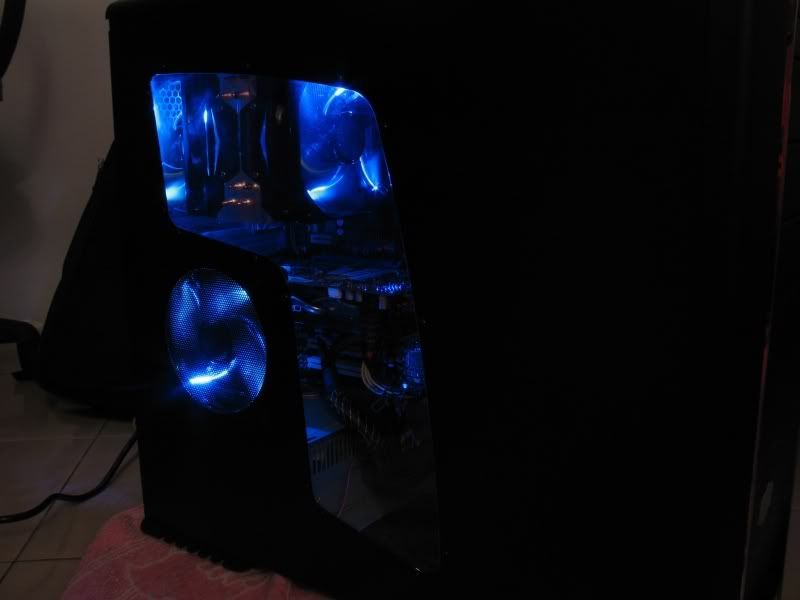

in the dark

side by side with my HAF932


side by side they look much like siblings

errr what do u mean? the front intake blue fan of the CM690 is attach to a filter 1st the attach to the case de.

ooo the front bazel design is liddat 1 hahah. it bend it a bit. some ppl oso confuse about it. but IMO if it doesn't bend in and flat down straight it wont look nice lor. at least some curve hahaha

@mataro
nice cable management for those who dun hide the cable at the back.. thumbs up!
i7 X58 setup!!!! wad cpu cooler is that?

OMG i7 965 extreme @@
u got it retail or employee purchase through intel? they actually bundle nicer HSF for extreme huh

as from what i posted yesterday the PC i help my friend build

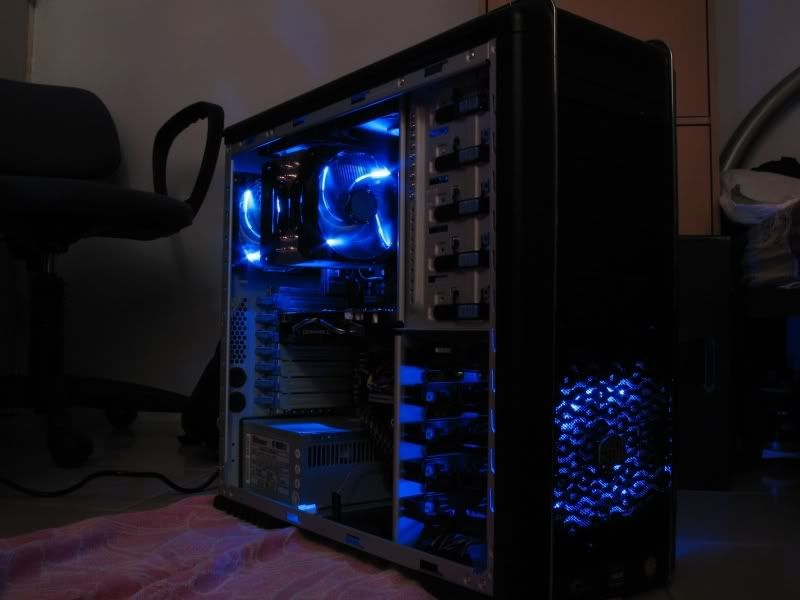

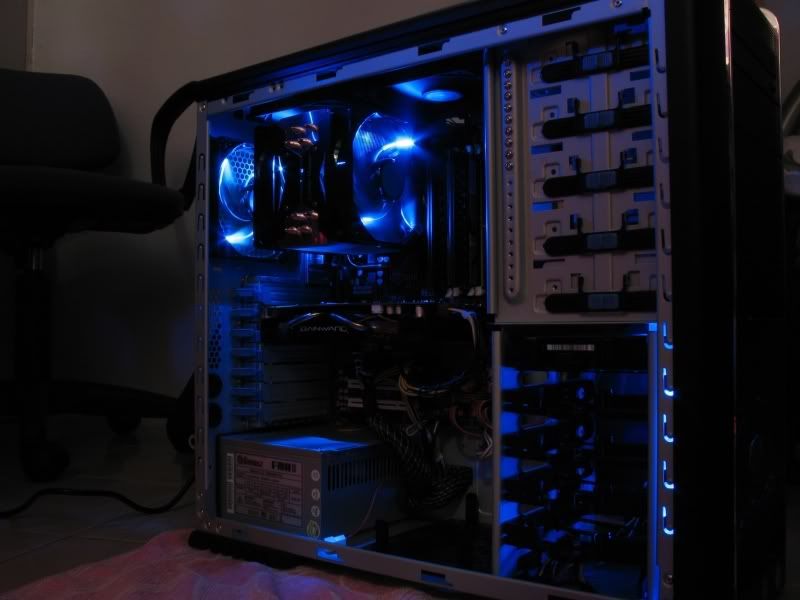

today got another 2 CM90cfm fan and did some cable management...
enermax FMA II 535 psu is a pain in the a**. they sleeve the pci-e power plug with the atx 8pin power.... i dun have extension so end up kenot hide it at the back...

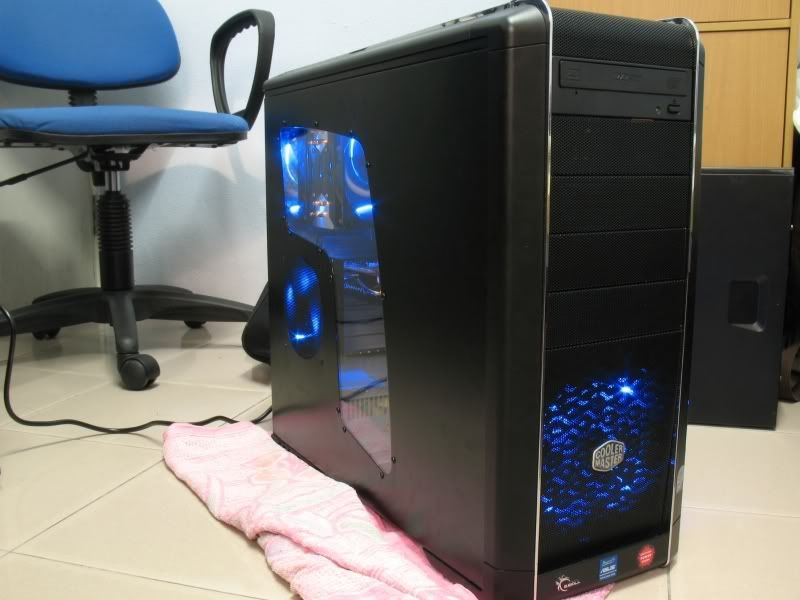

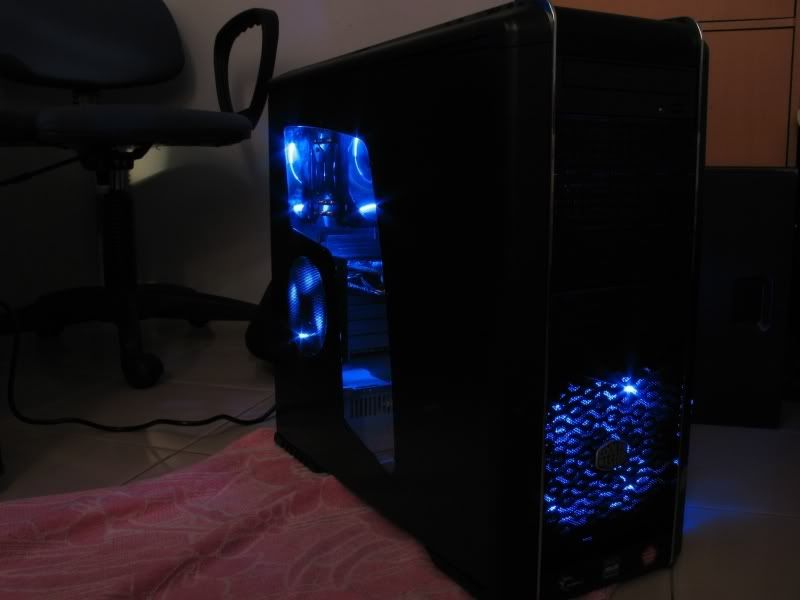

i let the photo do the talking



i consider this quite an achievement =D pretty happy with it

i dunno how to do hardwire modding ler...

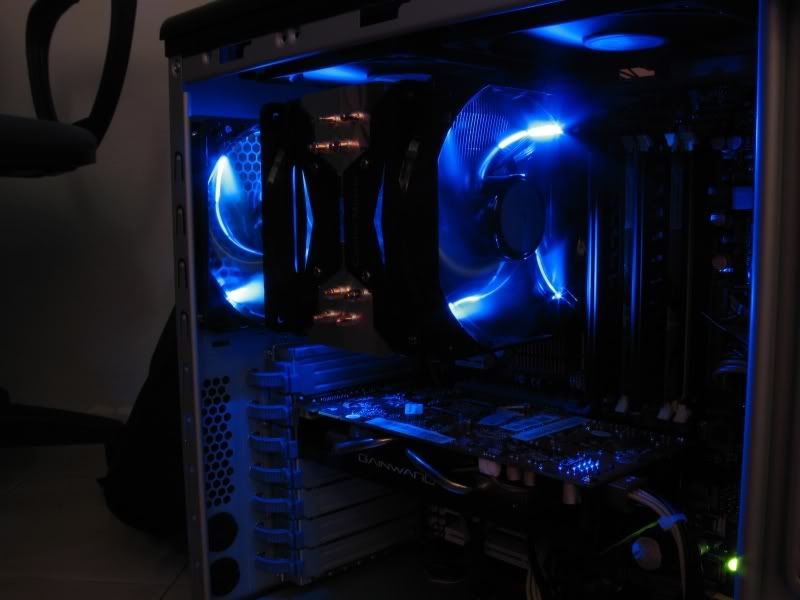

CM hyper 212 lor

yea the air flow with 2 CM90 cfm fan is insane... and it's not noisy at all with both fan at 1900rpm
for RM130 is really good and additional RM30 for the extra fan
and it's quite a looker. u gotta admit it look nice.

and no.. V8 are more expensive and way more fin radius and more heatpipe. hyper 212 center is actually blank. it's a 2 small tower design.
i dunno about CCF
CCF to me kinda ugly =D but the performance from review are really good.
Deepcool KillerWhale look very nice tho almost the same price as CCF from wad i know


This post has been edited by hahn87: Jan 14 2009, 09:03 PM

V8 not that heavy lar wont break the mobo and V8 is one of the best performing cooler in the market. perform par or not better than the thermalright ultra 120 extreme.

the only cooler out there that is capable of breaking the motherboard would be the thermal right ultra 120 extreme copper =.= which the whole cooler is made out of copper.. extremely heavy.... 1.8+kg. they even put a warning paper in the box for consumer lol so u wont get to sue them if ur mobo break ahhahah. best install on vertical setup

and yah.. those led on the case fan not really powered by the molex power.. they light up as the fan spins.. lol i just found out when i cleaning my fans with vacuum cleaner as they spun and the led dimly lid

This post has been edited by hahn87: Jan 15 2009, 12:13 AM

=.= where got such thing as higher air flow suck out the air b4 the heat is transfered 1.
higher air flow = more friction to the alluminium surface and the heatpipe surfice thus transfer the heat faster. hyper 212 if u use only 1 fan the air will go in the hit the heatpipe and find and stray the heat all over the back of the case. the 2nd fan actually help the airflow maintain in 1 direction thus improve the overal case temperature and also the cpu temperature.
what bubuchai said to me actually make no sense at all =.= where got ppl wan the air to flow slower and heat up 1. they key is to keep the heatpipe at the top and the fins cool. if u ever remove ur heatsink for washing and dry it with hair dryer u will know. u hold the fins and blow hot air with hair dryer to the base. after few second the fins will heat up but if u touch the base it remains cool. same thing vice versa. blow the finds and few second later u get a very hot base. this is the way heatpipe works. so for me it is more sensible so have great ammount of air go thu the fins to keep them cool.
the E7300 i oc to 3.6ghz 1.272vcore on room temp no air cond room with hyper 212 with 2x 90cfm cm fan are kept cool at 27C (core 1=29C core 2=29C) measure by everest. and under load 51C (core 1=55C core 2=55C)

@acther
Gulp*.. damn.. i wan ur rig!!! GTX295... rampage extreme.. anyway how is the hyper Z600 doing haha. too big heh.. i see ur fan have to fit at top.. no way on fitting it at the bottom to blow upwards? not enuf space in between the cooler and the audio riser arh?\

talk about big and fat cooler.. nothing beats the hyperZ600 lol

anyway V8 performance is comparable to thermalright ultra 120 extreme which is is the king of air cooling heatsink. they both currently rank top at air cooling. not to mention the thermalright IFX4.
hyper212 belong to more a midrange cooler. but price for the performance really good oso =D

too bad my fren use CM690 if i wanna remove his hyper 212 and test with 1 fan it would mean removing the motherboard all together... =.= which is a pain.. i also wanted to test on my system and compare the performance with my Arctic Cooling Freezer Extreme which is way expensive than hyper 212. rm130 vs rm199. the air flow on my Freezer Extreme are quite low but the plus side is.. virtually no noise at all =.= my 4ghz overclocked QX9650 1.42++ vcore max load on room temp no aircond actually went sky high at 87C. Puzzled just by looking at it... sometimes i wonder my arctic cooling freezer extreme is even worth it=.=

fren exam finish tomolo and he coming to pick up the PC. i no time to test jor hehe

This post has been edited by hahn87: Jan 16 2009, 08:51 PM

who using hyper212 here mind to do a test with a screenshot with core temp using 1 fan and 2 fan.
need this to be clarified

note: all software base temperature monitoring are NEVER chun.

@bubucai
my everest and core temp giving me same reading so what else do u suggest arh... =.= at least got rough figure can ady
not to say u talk cock or what just talking fact and logic. everybody have their own opinion. u just feel free to PROVE me wrong.

that's wad i say. need this to be clarified

lol pekies.
not very geeky lar pretty straight forward explanation

then the good thing about hyper212 is the heatsink fan actually align with the rear chasis fan so having that 3 fan in 1 line is like the air flowing in tube lol

i can try to explain =D

Blowing in air with both ways .. | ->H<------bad idea, air trap inside heatsink
not a good idea since air blow in both side means it will escape from the fins through top and bottom and also the top of the heatsink (the top fan mounting area ada lubang) airs goes top nvm since top got exaust fan for CM690 and other case with top fan mounting. but blows down to GC and out from the top the hot air will circulate around the case which is bad. also it also means that ur rear case fan have to be an intake
this method Major NONO

Sucking air out from both ways .. | <-H->--------bad idea, no air to suck out ( just my imagination)
not really a bad idea.. Correction here... got air suck out. it can come in through the top and bottom fin and the mounting area. but with this top can fan have to be in intake position just like Pekies setup. the thing is....this..[/color]->hot air blows to the drive bay. u can set up a drive bay fan to exhaust it through the front of ur casing. and the top fan below that area should be removed. the bad thing is. if ur CPU runs really hot.. hot air blows to ur ram and it also become hot as well. worst if u have a ram cooler install. LOL

Sucking air out to rear | <-H----also bad idea, this one i dunno how to explain.
not very bad but less effective since there will be less friction between air and the fins.

they are can or should be tested... just for the fun of it
but what xelnamikaze listed should be tested out so that everybody can know how they should or can set up their fans

original setup. take not the air does circulate inside taking heat it pass thru straight.. anyway is the vizo fan higher CFM than the orignal CM90cfm19db fan? just curious.. i know it's for cosmetic

i saw both of them in the box lol
rm159 for the N520 and rm199 for N620 at gadgetzone prangin mall penang

anyway guys.. need an opinion... what do you guys think about.....
blue fans on HAF932. i am talking about CM90cfm19db blue fans.. on HAF932.. 4 at the side panel. 1 at rear exhaust. 3 on top exhaust and maybe another on the bottom intake... just wondering if the blue will match the case.. with the red intake fan... red and blue anyone?
i know i blend this once on CM690 but this is a bit different since the front is going to be red and the side and top all blue out

or maybe i can go like... odd even.. like top exhaust 2 red 1 blue... side intake 2 blue 2 red... rear exhaust blue.. and bottom the orange (since i got one xigmatek xlf fan..)
or one xlf fan on top with 2 red.. side 2 red 2 blue. rear blue and bottom blue...
i am so confuse...
i just think that the my red is too bright and not strong enough..
the thing with this HAF932 case is.. a lot of air flow.. and yes a lot of dust... but if u have enuf fan for exhaust and fast enuf air flow in the case.. most of the dust really got suck right out =.=. up till now.. my motherboard is practically dustless.. just my CPU heatsink and my 4870GS heatsink and fan. and my PSU surface... so now i really want extra air flow... and dimmer lights.

hope CM got make the 90CFM fan with red LED like the one that is in the V8 cooler... current LED red CM fans are just around 40CFM and honestly... after a few months... i do think it's kinda too bright lol...

dilemma.....

edit: urgh just check on CM site.... they already have the red and green 90CFM fan released!!!!! I WAN!!!

This post has been edited by hahn87: Jan 22 2009, 07:18 AM

the n series i sure can nego... i am kedah ppl just staying in penang coz i study in penang. practically consider myself a penangnite ady
lol.
i doubt any sniper owner wanna change fan with my lol. to be honest not really many casing can blend with red... last time i totally red out my CM690 not really that good. the side look nice but the front just dun really cut it... now that i know the 90cfm fan are available in red... i more or less wanna hunt that lol. just thought my side panel a bit too bright. and i wan more powerful fans..

me in KDU penang

hmm loads of idea..overall i just wanna change the colour and make them less bright at the side.. i dun mind brighten up the top of the case. taking down notes =D

those who dowan to attach the fan at the drive ban with cable tie can buy the 3-4 bay conversion. it's around 70+ or cheaper depending on where u get. can attach 1 fan on it
