DFI Lanparty Series OC Journey for Intel and AMD, DK, JR, LT and UT users are welcomed !!
|
|
 Nov 29 2008, 10:55 AM
|

Senior Member
2,547 posts Joined: Oct 2007
|
QUOTE(huzai @ Nov 29 2008, 03:28 AM) guys, any tips tweaking DFI LT X48 TR2 with Q9400 proc? try to OC as far as u can by pushing with vcore 1st.... if adding vcore doesnt help, then only u ask here for solution.... pls let us know ur voltage settings too when asking |
|
|
|
|
|
Nov 29 2008, 05:36 PM
|
Junior Member
197 posts Joined: Apr 2005 From: Shah Alam
|
QUOTE(tkh_1001 @ Nov 29 2008, 10:55 AM) try to OC as far as u can by pushing with vcore 1st.... if adding vcore doesnt help, then only u ask here for solution.... pls let us know ur voltage settings too when asking
currently, I set fsb to 400 and leave Vcore to auto and, where can i get the fsb modifier in windows |
|
|
Nov 29 2008, 06:30 PM
|

Elite
8,545 posts Joined: Aug 2006 From: 224.0.0.6
|
SetFSB
You have to know the clock generator for this. -pWs- |
|
|
Dec 3 2008, 07:21 AM
|
Senior Member
2,042 posts Joined: Jan 2003 From: KL
|
LANPARTY P45 T2RS JR user reporting in. Hopefully same mobo user can share oc experiences.
 |
|
|
Dec 4 2008, 07:09 PM
|
Senior Member
1,991 posts Joined: Jan 2007 From: Seri Kembangan
|
QUOTE(huzai @ Nov 29 2008, 05:36 PM)
currently, I set fsb to 400 and leave Vcore to auto and, where can i get the fsb modifier in windows any other dfi x48 ut/lt user here using quad? i need help Added on December 4, 2008, 10:44 pmfinally get 3.5ghz 10 loops pass on IBT after tuning on the gtl ref  dfi x48 lt is really tricky for quad overclocking anyone using these board pls share me the gtl ref for quad at 450fsb and higher, thx alot  This post has been edited by hengmy: Dec 4 2008, 10:44 PM |
|
|
Dec 5 2008, 02:04 AM
|
|
Elite
8,545 posts Joined: Aug 2006 From: 224.0.0.6
|
Loosen the Performance Level 1st.
 -pWs- |
|
|
|
|
|
Dec 5 2008, 07:24 AM
|
|
Senior Member
1,991 posts Joined: Jan 2007 From: Seri Kembangan
|
QUOTE(-pWs- @ Dec 5 2008, 02:04 AM) Loosen the Performance Level 1st. what pl u running? when 450fsb i usually set to 8/9 pl,i not sure is it my psu holding me back when i try to oc to 3.6, it pass IBT few loop then restart -pWs-  |
|
|
Dec 5 2008, 09:11 AM
|
|
Elite
8,545 posts Joined: Aug 2006 From: 224.0.0.6
|
I m using different board from you.
But can try using PL 10 1st. -pWs- |
|
|
Dec 5 2008, 10:17 AM
|
|
Senior Member
1,991 posts Joined: Jan 2007 From: Seri Kembangan
|
QUOTE(-pWs- @ Dec 5 2008, 09:11 AM) I m using different board from you. but pl 10 look like to loose But can try using PL 10 1st. -pWs-  i have tried on pl6 on 3.5ghz, its able to stable as well.. but on 3.6ghz, 450fsb, pl8, i will never boot into window if i dont touch the gtl ref, after i trying to tune the gtl ref for few hours (because i dont know how to determine the correct gtl ref, so i use try and error), it able to boot into window and pass IBT 3-4 loop then restart, i wander is my psu problem? cause it will come out sound after i OC to 3.5ghz onward  anyone know how to determine the gtl ref for this board with a 45nm quad? |
|
|
Dec 5 2008, 10:34 AM
|
|
Elite
8,545 posts Joined: Aug 2006 From: 224.0.0.6
|
QUOTE(hengmy @ Dec 5 2008, 10:17 AM) but pl 10 look like to loose Try loose PL 1st. Once you get stable clock only try to tighten it. i have tried on pl6 on 3.5ghz, its able to stable as well.. but on 3.6ghz, 450fsb, pl8, i will never boot into window if i dont touch the gtl ref, after i trying to tune the gtl ref for few hours (because i dont know how to determine the correct gtl ref, so i use try and error), it able to boot into window and pass IBT 3-4 loop then restart, i wander is my psu problem? cause it will come out sound after i OC to 3.5ghz onward anyone know how to determine the gtl ref for this board with a 45nm quad?  For GTL, there is no exact setting for this. You hav to try n error.  -pWs- |
|
|
Dec 5 2008, 10:36 AM
|
Senior Member
1,281 posts Joined: Dec 2004 From: MoRza Boulevard
|
im JR user too..its been long time i havent play mine..gonna start soon
|
|
|
Dec 5 2008, 05:33 PM
|
|
Senior Member
1,991 posts Joined: Jan 2007 From: Seri Kembangan
|
QUOTE(-pWs- @ Dec 5 2008, 10:34 AM) Try loose PL 1st. Once you get stable clock only try to tighten it. oic. For GTL, there is no exact setting for this. You hav to try n error. -pWs- but the gtl can be determine like % right? the bios do know show the gtl ref in %, but in number, so i would hope someone who know how to convert the cpu vtt with % into the number that need to set in bios. it is hard for me to try and error from 1-999 for 3 gtl ref |
|
|
Dec 6 2008, 08:22 PM
|
Senior Member
558 posts Joined: Jun 2006 From: KL Sentral - Segamat
|
introducing...
DFI LANPARTY UT X58-T3eH8  » Click to show Spoiler - click again to hide... « Pics » Click to show Spoiler - click again to hide... « LANPARTY UT P45-T2RS  » Click to show Spoiler - click again to hide... « source: DFI USA This post has been edited by dro: Dec 6 2008, 08:25 PM |
|
|
|
|
|
Dec 8 2008, 01:40 PM
|
Senior Member
835 posts Joined: Sep 2004 From: LYP@Bintang Walk
|
New LP JR P45 user reporting in

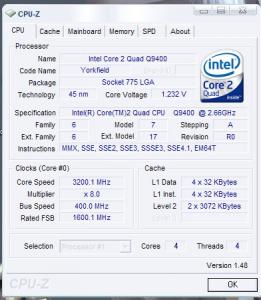

 My 1st test using E8400 E0 Attached thumbnail(s)
|
|
|
Dec 8 2008, 02:18 PM
|
|
Elite
8,545 posts Joined: Aug 2006 From: 224.0.0.6
|
@rlhc17
Is it in aircond room? You are having good PWM temp. -pWs- |
|
|
Dec 8 2008, 02:32 PM
|
|
Senior Member
835 posts Joined: Sep 2004 From: LYP@Bintang Walk
|
QUOTE(-pWs- @ Dec 8 2008, 02:18 PM) @rlhc17 my home no aircond Is it in aircond room? You are having good PWM temp. -pWs- using 12cm on top |
|
|
Dec 8 2008, 02:49 PM
|
|
Elite
8,545 posts Joined: Aug 2006 From: 224.0.0.6
|
QUOTE(rlhc17 @ Dec 8 2008, 02:32 PM) my home no aircond I see. using 12cm on top Mind easily can go beyond 60C  Thanks for the feedback. -pWs- |
|
|
Dec 9 2008, 01:09 AM
|
Elite
4,746 posts Joined: Dec 2007 From: Speed rule
|
QUOTE(rlhc17 @ Dec 8 2008, 01:40 PM) New LP JR P45 user reporting in I think you can do like 9.1's-9.2's with that clock,keep trying My 1st test using E8400 E0  I think 5ghz is doable  |
|
|
Dec 9 2008, 02:02 AM
|
|
Senior Member
2,547 posts Joined: Oct 2007
|
madness chip
 ini chosen out of 100 chip ka ?  |
|
|
Dec 9 2008, 02:17 AM
|
|
Elite
4,746 posts Joined: Dec 2007 From: Speed rule
|
QUOTE(tkh_1001 @ Dec 9 2008, 02:02 AM) madness chip It is start to become common that E8400 E0 is capable of doing 5ghz ini chosen out of 100 chip ka ?  Look at some XS post,siao |
