I dont have others colour already but i got red, and i dont know can route where.
Cable management thread, Share your cable management here
|
|
 Nov 12 2008, 10:55 PM
|

Senior Member
2,991 posts Joined: Jun 2007 From: Johor
|
I dont have others colour already but i got red, and i dont know can route where. |
Quote|
|
|
|
|
Nov 12 2008, 11:25 PM
|
Senior Member
844 posts Joined: Aug 2007 From: land below the wind (KK<--->KL)
|
He mean is don't pusing the sata cable. Anyway nice casing
 spatially ur cpu cooler.  |
|
|
Nov 12 2008, 11:33 PM
|
Junior Member
10 posts Joined: Oct 2005
|
 help me!!!!:help: i donno how to make the wire inside look more tidy.... may b my case is too small n too much things inside.... Attached thumbnail(s)
|
|
|
Nov 12 2008, 11:51 PM
|
|
Senior Member
844 posts Joined: Aug 2007 From: land below the wind (KK<--->KL)
|
your casing is big Enough just to many unnecessary cable inside your casing ( like the extra usb slot at the bottom of ur case, i know there are 3 of them there. If you are not useing , just remove it.
This post has been edited by aBc!!: Nov 12 2008, 11:51 PM |
|
|
Nov 14 2008, 08:09 AM
|
Senior Member
894 posts Joined: Feb 2008
|
This is the best i could do now... maybe might change PSU in the future to make things more tidy/clean

|
|
|
Nov 14 2008, 10:47 AM
|
|
Senior Member
844 posts Joined: Aug 2007 From: land below the wind (KK<--->KL)
|
Nice and clean , nice job bro.
|
|
|
|
|
|
Nov 14 2008, 11:25 AM
|
Junior Member
95 posts Joined: Apr 2008 From: ipoh+taiping+kampar
|
QUOTE(cyloh @ Nov 14 2008, 08:09 AM) This is the best i could do now... maybe might change PSU in the future to make things more tidy/clean » Click to show Spoiler - click again to hide... « how did u manage ur extra serial power connector?? can u post some pic behind da mobo tray.. |
|
|
Nov 14 2008, 12:39 PM
|
All Stars
10,530 posts Joined: Nov 2004 From: Petaling Jaya & Mid Valley
|
QUOTE(cyloh @ Nov 14 2008, 08:09 AM) This is the best i could do now... maybe might change PSU in the future to make things more tidy/clean wat makes u think that changing PSUs will make it cleaner??? ur still gonna be routing the cables the same way...  |
|
|
Nov 14 2008, 12:48 PM
|
All Stars
14,037 posts Joined: Nov 2004
|
cyloh, very nicely done already. Ample of open space
 . But even going modular, I doubt it'll change much though.Man, those motherboard with that angled sata connectors really make life easier for the sata >.< Too bad mine came with the standard style . |
|
|
Nov 14 2008, 02:35 PM
|
|
Senior Member
894 posts Joined: Feb 2008
|
QUOTE(aBc!! @ Nov 14 2008, 10:47 AM) Nice and clean , nice job bro. Wuu huu thanks bro... QUOTE(1001010 @ Nov 14 2008, 11:25 AM) [/spoiler] Mmmm I will snap a pic of my mobo back soon... how did u manage ur extra serial power connector?? can u post some pic behind da mobo tray.. QUOTE(mADmAN @ Nov 14 2008, 12:39 PM) wat makes u think that changing PSUs will make it cleaner??? ur still gonna be routing the cables the same way... Possible to reduce abit at the HDD side maybe?  QUOTE(celciuz @ Nov 14 2008, 12:48 PM) cyloh, very nicely done already. Ample of open space Thanks alot . But even going modular, I doubt it'll change much though.Man, those motherboard with that angled sata connectors really make life easier for the sata >.< Too bad mine came with the standard style . Huhu... will try harder clean things up next week. P.S : No one notice my intel stock HSF is fully black in color?  |
|
|
Nov 14 2008, 02:49 PM
|
|
All Stars
14,037 posts Joined: Nov 2004
|
LOL, didn't notice it before you mentioning. You sprayed it black? Not afraid it might affect the cooling performance?
|
|
|
Nov 14 2008, 03:21 PM
|
Senior Member
698 posts Joined: Jun 2008
|
use modular la...easier management
|
|
|
Nov 16 2008, 12:49 AM
|
Junior Member
251 posts Joined: May 2008 From: no life.
|
QUOTE(owikh84 @ Sep 20 2008, 05:02 PM) Here's mine in case if u wanna follow for CM690 setup nice setup respect Front:  Back:  Dark:     and u see the mobo heatsink anti-dust  is really highly maintain |
|
|
|
|
|
Nov 16 2008, 01:10 AM
|
|
Senior Member
2,465 posts Joined: Sep 2007 From: Kuala Lumpur Status: Freeride not dead
|
QUOTE(wonghanjiang @ Nov 16 2008, 12:49 AM) nice setup respect Dont quote the pictures ! and u see the mobo heatsink anti-dust is really highly maintain |
|
|
Nov 16 2008, 03:30 PM
|
Senior Member
1,632 posts Joined: Oct 2007 From: Sea
|

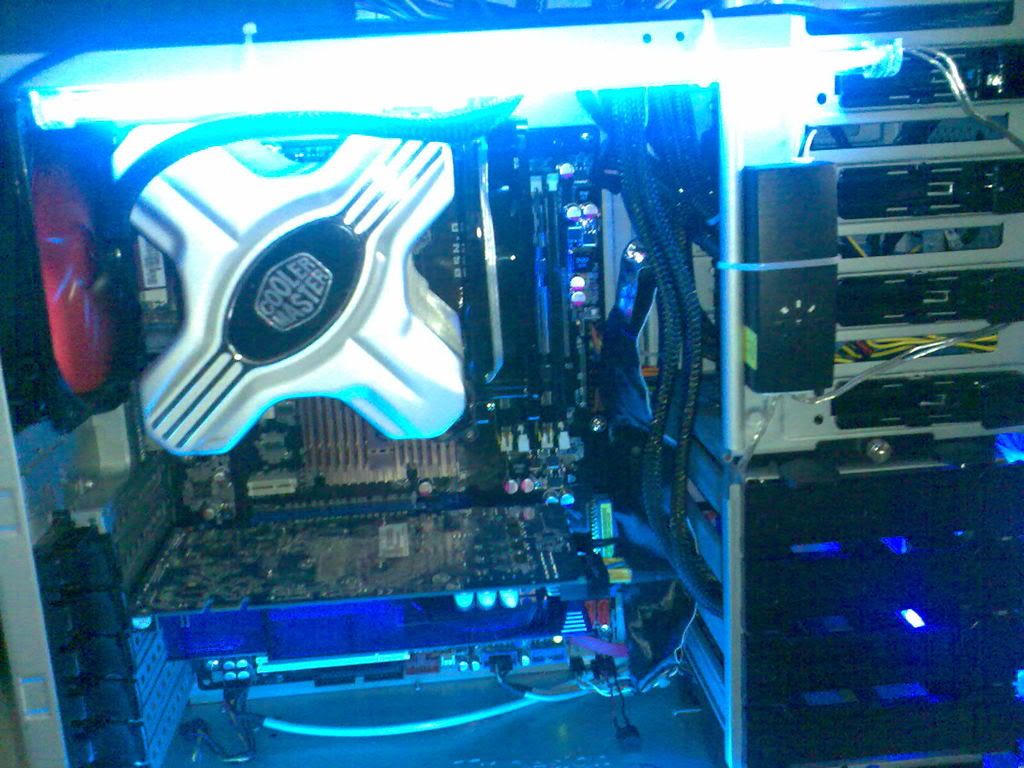

my armor management....a bit messy....
 quite bit blur image waiting my cable ties arrive  This post has been edited by subrok007: Nov 16 2008, 03:43 PM |
|
|
Nov 16 2008, 03:40 PM
|
|
Senior Member
844 posts Joined: Aug 2007 From: land below the wind (KK<--->KL)
|
wow nice cooler.
|
|
|
Nov 16 2008, 03:51 PM
|
Senior Member
2,524 posts Joined: Jan 2003 From: Beneath the starry night
|
QUOTE(wonghanjiang @ Nov 16 2008, 12:49 AM) nice setup respect What you mean mobo and heatsink antidust? and u see the mobo heatsink anti-dust is really highly maintain |
|
|
Nov 17 2008, 08:58 PM
|
Senior Member
3,890 posts Joined: Feb 2007 From: Kuala Lumpur > Kuala Ketil > Kuala Muda
|
new setup for my 2nd rig....replace ThermalTake Big Typ 120VX with Sunbeam Core Contact Freezer
...   |
|
|
Nov 17 2008, 09:23 PM
|
Senior Member
891 posts Joined: Jul 2007 From: Klang
|
I m loving your mobo... Hehe... was wondering, did u play with SLI before with ur rig with the SC... I m having a problem with my Abit mobo... Noise on my soundcard... Lolxx... Sorry for off topic
|
|
|
Nov 17 2008, 09:31 PM
|
Senior Member
1,350 posts Joined: Feb 2008
|
wat case is tat?
tats a lot of space man~ |
|
