LOL... u are funny

I was think to mount the 80mm fan as exhaust to, but would like to try to see any good if mount that way.

The other side space is pretty tight, and when I close the side panel the front cables are not vissible, maybe I'll try to route them again. Plus I mounted a 120mm fan as intake in the empty rom cage so if hide cable inside the airflow will be disturbed.

---

Added on September 20, 2009, 10:54 am About the ram cooler thingy, I know is not neccessary but that's the spirit of modding.
And for the graphioc card, I moved it because the sound card sits very close to it and therefore the heat from back of graphic card is absorbed directly by the sound card (the BLACK emi shield somemore) but after relocated it became more worse so have to move back lor Think my sound card will have to be the heat absorber...

This post has been edited by TitaniumZ: Sep 20 2009, 10:54 AM

how come there is a 4 pin molex on your mobo?

additional power for pcie card

biostar done that since p965 age

before..

after..

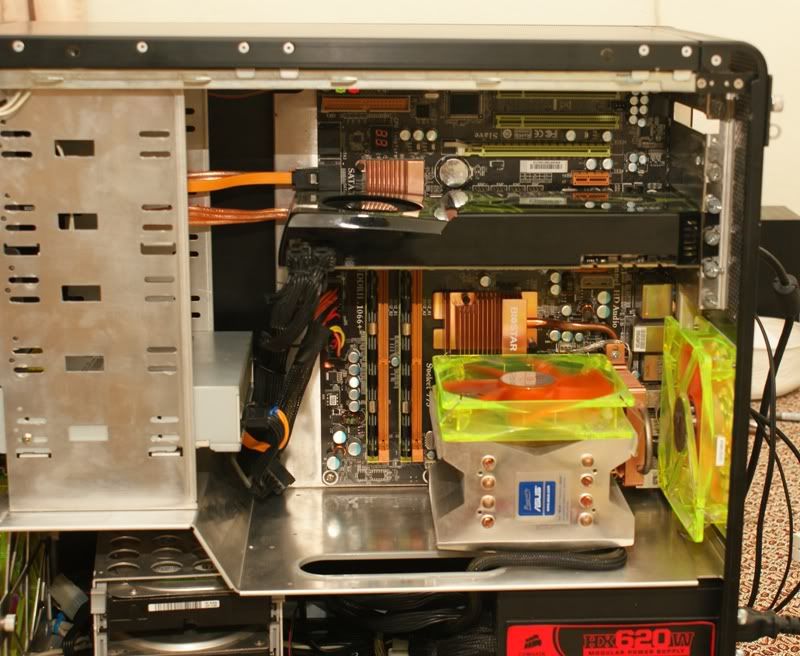

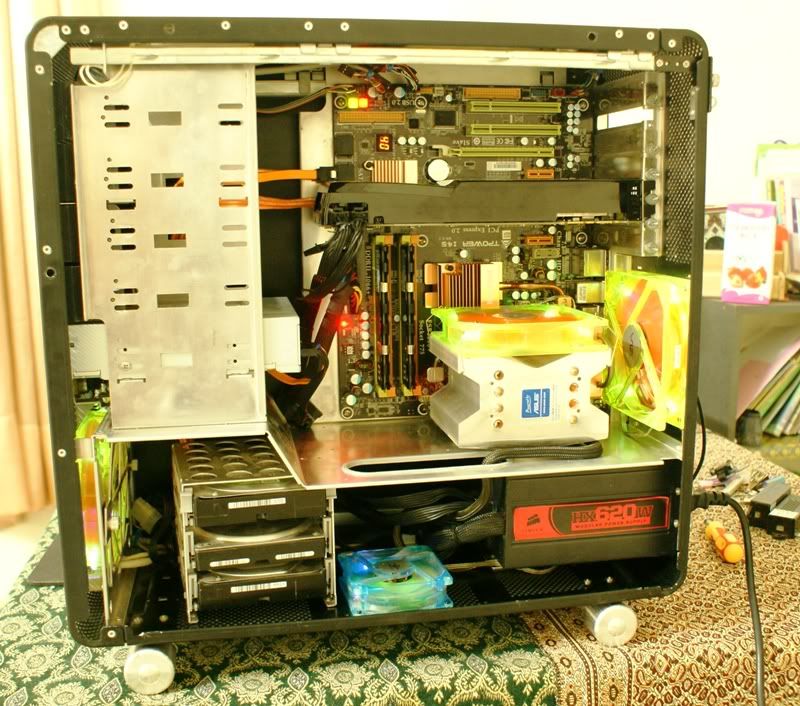

plz judge my cable management.. i think the black interior help me cover most of the cables..

after an hour







This post has been edited by irienaoki: Sep 26 2009, 12:05 AM

wooo case baru ble repair lagi tu bro utk atx cable ngnsata cable kot..sata cable xble ke route bwah mobo tray?

need to do some modification for that
cant route the cables behind the mobo tray
to tight.the side panel will burst out when u wanna close it.
the atx cable oso short

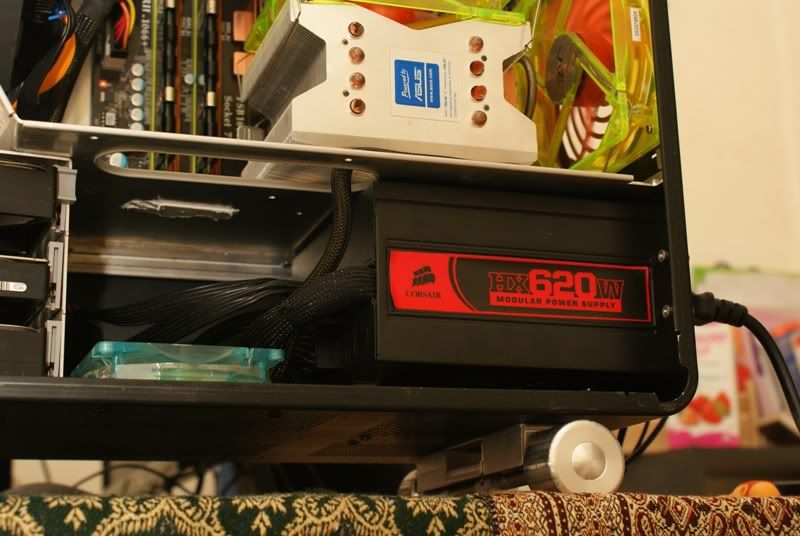

u can see the position of the psu
i put like that because the middle floor prevent the intake air for the psu
need to find xtension cable if and reroute it



This post has been edited by irienaoki: Sep 26 2009, 02:28 AM

HAF932 pujaan hatiku

nice thread!

nice cable management,

i believe still can do more rite?


and

wow... nice camera (or skill )

---

Added on September 27, 2009, 11:22 pmeh, sorry i dont know how to spoiler that

This post has been edited by nkarul85: Sep 27 2009, 11:22 PM

Just a basic casing ^-^ : heres mine..


where to hide all those cable huh ?? my casing dont have mobo tray lah.. elp me on hiding those crazy seeing cable guys



This post has been edited by Sarbath: Sep 29 2009, 08:29 PM


Attached thumbnail(s)

ur casing no mobo tray??? then what do u call that thing u screwed ur mobo on?

sorry my mistake, actually wanna explain branded casing got their own piece of mobo tray and behind it has a gap of the other side panel casing cover.. so easy to pull the cable from front to back of the mobo underneath the tray.. ^-^ but my one dont have ^-^ ..

ur mobo tray is the right side panel right?

yuppy ^-^

@sarbath
i think u misplace ur exhaust fan... should be exhausting hot air outta ur case.. unless u got a fan on top or ur front fan acts as an exhaust fan..

mind posting the other side of ur panel, so sifus here can easily assist u..

Sarbath casing is special... i saw this kind of casing b4...

that casing design is.. only the LEFT side panel can open.. the LEFT side panel and the Top panel is actually stick together as 1 piece(made from 1 piece of metal)

so, the mobo tray screw is on the so call LEFT panel

Definitely riteeeeeeeeeeeeeeeeee.. .. thats why so hard to do some cable hiding stuff.. so any SIFU got any idea how to chillin up my casing a bit ^-^

u need cable ties and cable tie base.... those will at least help to keep ur cables in order.
