Cable management thread, Share your cable management here
|
|
 Jan 13 2009, 03:38 PM
|

Junior Member
148 posts Joined: Nov 2006
|
QUOTE(seng87 @ Jan 13 2009, 07:01 AM) Wow... Core i7 rig...? Specs....? Core i7 965 , Gigabyte EX58-UD4 , KINGSTON DDR3 1333Mhz 3GB , Asus GTX285, SilverStone OP1000. Added on January 13, 2009, 3:40 pm QUOTE(M1X @ Jan 13 2009, 01:39 PM) You guys surely rich .... As sson as I see that TRIPLE-CHANNEL-RAM, I know that's i7 ... I hope this is my specs also but it is my friend's computer.This post has been edited by motaro: Jan 13 2009, 03:40 PM |
|
|
|
|
|
Jan 14 2009, 12:10 AM
|
Senior Member
5,694 posts Joined: Apr 2008 From: Kuala Lumpur
|
QUOTE(E-J@1 @ Jan 11 2009, 10:12 PM) how u measure the air flow? what device did u use? sampai ada percentage of air flow lg tu enlighten us i didn't use a device. i just use my hand to gauge the airflow going through, that's why i use percentage... hehehe... give or take 5%-10% variance.  the difference between with/without filter & door open/close is so severe that you can actually feel the difference with a hand, that indicates something, doesn't it??? |
|
|
Jan 16 2009, 10:52 AM
|
Junior Member
78 posts Joined: Jan 2009
|
Here is my virgin casing without any cable management in place at all...
Hope all sifu here can give me some guideline how to hide those hideous connectors and cables.  |
|
|
Jan 16 2009, 03:41 PM
|
Senior Member
3,890 posts Joined: Feb 2007 From: Kuala Lumpur > Kuala Ketil > Kuala Muda
|
QUOTE(brendanc @ Jan 16 2009, 10:52 AM) Here is my virgin casing without any cable management in place at all... huhuhu..look too hard to do cable management...unless you want to chop chop your casing Hope all sifu here can give me some guideline how to hide those hideous connectors and cables. » Click to show Spoiler - click again to hide... «  |
|
|
Jan 16 2009, 03:51 PM
|
|
Junior Member
78 posts Joined: Jan 2009
|
QUOTE(nidzamputra @ Jan 16 2009, 03:41 PM) huhuhu..look too hard to do cable management...unless you want to chop chop your casing Chop?  But I did notice there is holes behind the mobo which I think can be use to hide those cables from the PSU. |
|
|
Jan 16 2009, 04:59 PM
|
Senior Member
2,980 posts Joined: Jan 2007 From: Mount Chiliad
|
what casing u use?
|
|
|
|
|
|
Jan 16 2009, 05:08 PM
|
|
Junior Member
78 posts Joined: Jan 2009
|
|
|
|
Jan 16 2009, 06:59 PM
|
|
Senior Member
3,890 posts Joined: Feb 2007 From: Kuala Lumpur > Kuala Ketil > Kuala Muda
|
QUOTE(brendanc @ Jan 16 2009, 03:51 PM) Chop? just do a bit some modification only...not hardcore..just make 2 or 3 hole to hide your unnecessary cable.. But I did notice there is holes behind the mobo which I think can be use to hide those cables from the PSU. |
|
|
Jan 17 2009, 01:08 AM
|
Senior Member
1,991 posts Joined: Jan 2007 From: Seri Kembangan
|
any one using gigabyte aurora 3D 570?
can show some sample of cable management? thx  |
|
|
Jan 18 2009, 10:42 PM
|
Senior Member
1,164 posts Joined: May 2006 From: Somewhere
|

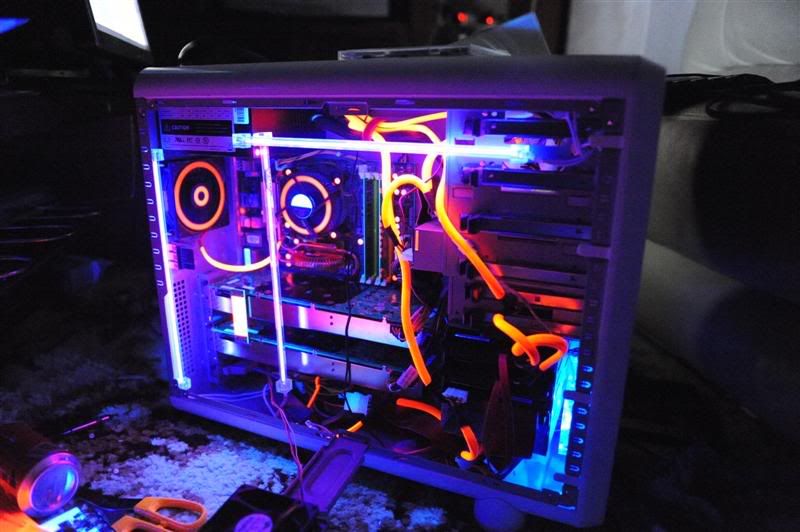

Do you think if my cable management can improve if I change into CM690?
Or it is good enough now?  |
|
|
Jan 18 2009, 11:59 PM
|
|
Senior Member
3,890 posts Joined: Feb 2007 From: Kuala Lumpur > Kuala Ketil > Kuala Muda
|
yes of courae..but no UV reaction anymore..
|
|
|
Jan 19 2009, 05:50 AM
|
|
Senior Member
5,694 posts Joined: Apr 2008 From: Kuala Lumpur
|
you can try to extend some of your cables so you can hide them in corners or consolidate them together so they don't look like they are all over the place...
it might help... |
|
|
Jan 19 2009, 06:36 AM
|
|
Senior Member
1,164 posts Joined: May 2006 From: Somewhere
|
I plan on doing a lot of things like removing my IDE HDD, and a CD drive.
So that it will look neater that way which is based on my thinking. |
|
|
|
|
|
Jan 19 2009, 02:12 PM
|
|
Senior Member
2,334 posts Joined: May 2007 From: Kuching
|
Actually that messy looks, also nice though. Just hide your CCFL somewhere else. Cuz you don't overwhelme it, that's nice.
|
|
|
Jan 19 2009, 05:36 PM
|
Senior Member
1,180 posts Joined: Feb 2007 From: Earth of Alone
|
UV reaction need messy cables
 |
|
|
Jan 19 2009, 05:43 PM
|
Senior Member
3,593 posts Joined: Feb 2005 From: ***Penang***
|
QUOTE(sukatra_aicaca @ Jan 19 2009, 05:36 PM) UV reaction need messy cables I dont quite agree |
|
|
Jan 19 2009, 05:49 PM
|
All Stars
10,530 posts Joined: Nov 2004 From: Petaling Jaya & Mid Valley
|
i disagree as well...
my old UV setup can barely see any cables oso... |
|
|
Jan 19 2009, 08:43 PM
|
Senior Member
4,060 posts Joined: Dec 2007 From: クアラルンプール > 日本
|
WTH..now Intel stock fans tuning got blue light? so blink blink? i-7 fans really nice
|
|
|
Jan 19 2009, 10:28 PM
|
Senior Member
1,632 posts Joined: Oct 2007 From: Sea
|
i think only for extreme series retail box....cos i also saw got blue lights wan in LYP
as motaro mentioned, i7 965 is extreme series.. This post has been edited by subrok007: Jan 19 2009, 10:31 PM |
|
|
Jan 19 2009, 11:18 PM
|
|
Senior Member
1,164 posts Joined: May 2006 From: Somewhere
|
Only extreme retail i7 cooler got bling bling d(
 )bWell, I gather up suggestions at some other forum, like here, they prefer Messy cable for CCFL and there are some who also disagree. Maybe I should try harder to Hide em kekeke. EDIT: Oh yah and, I removed the Floppy drive and a CD drive, It should look neater. I upload picture tomorrow again. This post has been edited by sakurakinomoto: Jan 19 2009, 11:19 PM |
|
