A very much long awaited dream will come true for me very soon. I will be builiding my AV / Home Theatre room!!! Yay for me rclxms.gif . After almost a year of designing and redesigning the room, I finalised the designs about 2 months ago. The contractor just finished fabricating the parts, cabinets dewign accents and started bringing them over to my house.

But first here is a glimpse of my AV Room before the build..... actually I have the electrician doing some wiring already.

The room is situated on the 3rd floor, has a funny shape, but it is generally rectangular staircase (see black grille) and an access door on one side. The staircase picutred leads to the 2nd floor. The door leads to a flat roof where I place the water tanks, air conditioner compressors and water filters for the house. The wall with a lamp will be where the screen will eventually be placed.
Attached Image

This next picture shows the other end of the wall where the screen will be placed.
Attached Image

This picture is of the rear of the room. I will be placing build in display cabinets here and the Epson projector will be housed at the top of the cabinet just below the Air Conditioner. I have a dedicated fuse box for the AV Room. Notice the black grille, thats part of the staircase that leads to the 2nd floor.
Attached Image

A closer look at the wiring mess... The suqare box you see in tis picture is my DIY 12" servo subwoofer.
Attached Image

More wiring mess
Attached Image

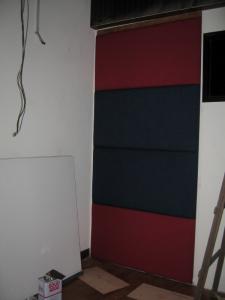

And the contractor brought the fabric wall panels... somehow the reds did not turn out as dark as I had wanted..
Attached Image

Base for the screen housing
Attached Image

Cabinets...
Attached Image

And yet more cabinets...
Attached Image

I'll take more pictures and go thru the build as the contractor starts work tomorrow. I'll keep a close eye on them to make sure everything is doen up to my standards.
