[Final update - replacement list]

Absorber Link / Satay Pin x1 pair
Absorber Mounting x1 pair
Absorber Bearing x1 pair
Absorber Front x1 pair
Lower Arm x1 pair x 2 units (original from SC x1 + Sankei 555 x1)
Stabilizer bar bush x1 pair

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Symptom: pass hump around 20-40km/h got knocking "krak krak" sound , usually happens during heavy rain or after heavy rain when undercarriage is wet. This is key point

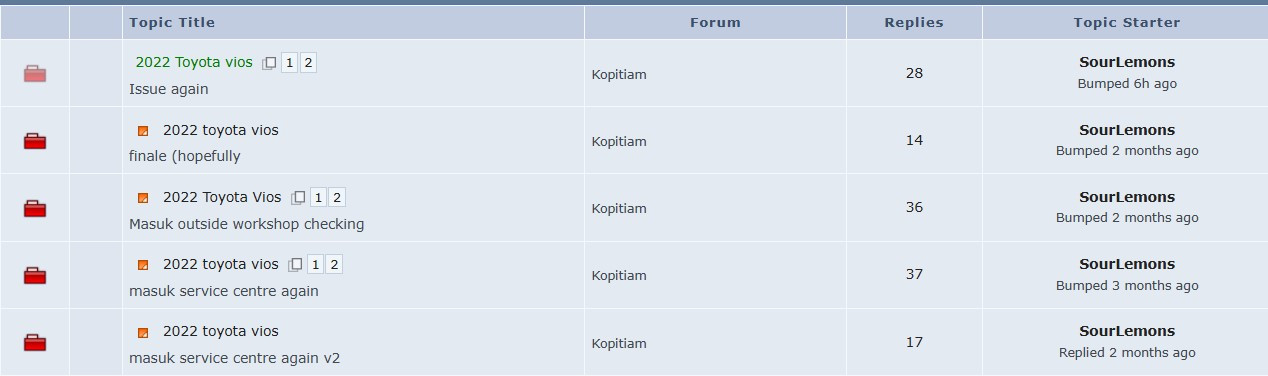

17/9 - Pusing steering got sound - https://forum.lowyat.net/index.php?showtopic=5539696&hl=

22/9 - masuk sc round 1 - https://forum.lowyat.net/index.php?showtopic=5540290&hl=

25/9 - masuk sc round 2 - https://forum.lowyat.net/index.php?showtopic=5540762&hl=

27/9 - masuk outside workshop to troubleshoot + drop off SC (3rd round SC) - https://forum.lowyat.net/index.php?showtopic=5540904&hl=

2/10 - masuk sc round 4th time - https://forum.lowyat.net/index.php?showtopic=5541546&hl=

So far managed to claim from SC @ 3rd year 20k km

Stabilizer bar bush
Lower arm

18/11

Then 1 month later still got knocking sound

So I changed stabilizer link (satay pin)

But still same

So halfway through after pass a hump today, I open bonnet. Lo and behold

Passenger side


Driver side


Since suspension warranty ended after 3 years, settle outside. change both side absorber mounting and bearing

24/11/2025 5PM

Sound still same

Go another shop check is absorber

Replaced absorber

Still same issue

Now I'm going to carsome to sell the car

24/11/2025 9PM

carsome giving only max RM54k, considering to sell directly online or continue this blackhole

25/11/2025 11AM

CONTINUE ON...buy 555 lower arm to replace the Toyota lower arm (although they gave new lower arm)

25/11/2025 5PM

Sudah pasang , but no rain . Will report again when rain + pass bump

27/11/2025 2PM

purposely go over puddle of water then pass a bump - still same sound. Will try sell the car now.

27/11/2025 4PM

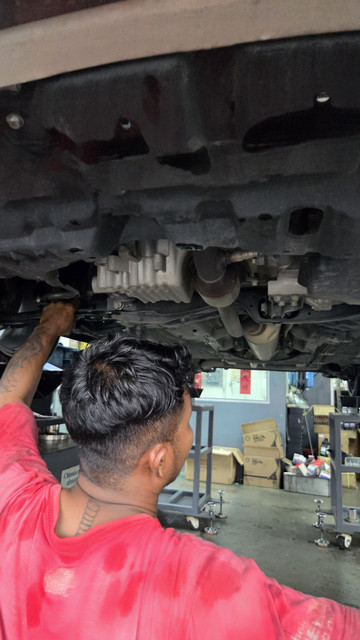

update: do shaking machine - retorqued the lower arm

still same sound. will sell the car now, don't recommend me anymore thing tq


Found some users complaining same thing

https://www.facebook.com/groups/28146655280...22154692066376/
https://www.facebook.com/groups/50595475318...96920937423396/
https://www.facebook.com/groups/50595475318...64389307343222/
https://www.facebook.com/groups/50595475318...10455872736562/
https://www.facebook.com/groups/50595475318...49210765527748/
https://www.facebook.com/groups/50595475318...48346362280863/
https://www.facebook.com/groups/50595475318...85767645205394/

This post has been edited by SourLemons: Yesterday, 09:33 PM

Upper absorber mounts?

Inb4 consolidate into one tered

absorber mounting gone both

Never seen it fail like that

Bushing+absorber mount.

Gila 3rd year bushing and mount suda koyak yini machem.

1st ownere everyday go thru potholes and bump filled pelabuhan klangmbia kaaa

This post has been edited by max_cavalera: Nov 22 2025, 01:10 PM

kesian TS bought an abuse used Vios.

Kek... UWM
Better get OEM liek this

2 things here

1. you're not supposed to go through speed bumps at 30-40KM/H
2. parts today isn't as good as last time anymore

i also recently change my rear absorber bushing because got metal clanking sound...turns out it's the rear mounting bushing since there is no visible damage at all(absorber still works as intended)

This post has been edited by MR_alien: Nov 22 2025, 01:17 PM

U bought used? Haiyo should have ask mechanic check properly. Your vios maybe previous owner use inside kebun

driver and passenger brapa BMI

1st owner probably used as workhorse car carrying heavy stuff in the boot is woso possible.

Coz i used my old honda kity as workhorse woso. carry heavy2 big carton of those drinks for my vending machine part time biz.

Bushing and mount woso can gg faster.

i'm not sure how does this work?
the round rubber thingy should be mounted to chassis one. it was glued on it or what?

How much does it cost to replace for this vios?

Myvi Ori can range from rm 130 for cap ayam to rm 300 for Ori.

so many suspension issues, the previous owner drove it like land cruiser masuk hutan ka?

rubber will disintegrate over time due to many factors

the rubber is between the chassis and the absorber, absorbing much of the impact and load
the material and quality of the rubber will determine how long it last

Get silicone mounting and bushing.
Anyway, not expansive.
Btw it is top part and can diy.
Gao dim.

the absorber is bolted to the rubber.
i dont understand how they fix the rubber to the chassis, i didn't see bolts.
it is glued to the chassis? it cant be like this.

Y'all comprehension fail?

Where in the blue hell did TS say it's a used car? Tiba2 1st owner this 1st owner that. Fools living in a fantasy.

Lubricate caliper pin see if thats work

Its always trial and error until you find the source

the rubber is bolted to the absorber = yes
but the absorber is bolted onto the chassis...and that makes the rubber in between

This

Walawei. Baru 3 yrs liao

I tot Toyoda god car?

Labour and alignment rm100

Cip cip!

PM workshop.
I need it too.
Spongy squeak after 1hr drive while going thru condo mini bumps.

Everyone here knows TS bought it used.

I thought 2022 Vios is Daihatsu? Why this one is NCP150?

Seluruh dunia /k know TS bought seken hand. U sohai je dunno.

And according to /k toyoldah kan invisible no problem geh? Inb4 seken

Can consolidate into 1 tered or not?

u didn't stick TRD decal la.

No need pm la, any workshop can do. I sendiri self trouvleshoot and diagnose. The workshop I go always follow my instructions je

either 1st owner or 2nd owner. based on TS thread on how he drives, should be 2nd owner...

This post has been edited by brkli: Nov 23 2025, 12:47 AM

But but but....ini teknoloji jepun lehhh...better than ccp

Either previous owner really trash it gao gao or Toyota spare parts quality deteriorate

My friend punya vios 2022 also claim one steering rack during warranty

24/11/2025
Sound still same

Go another shop check is absorber

Replaced absorber

Still same issue

Now I'm going to carsome to sell the car

Serious shit bro? How many days u own it? Got 2 months? Estimated rugi how much?

Topkek this is toyoda weiii

Buy one time use 20 years….

Shud be long lasting one

Tyres 4x rm1k
Insurance 1.5k (this is ok can refund)
Suspension all in about rm1k
Service 20k rm300 ish
Misc etc

This post has been edited by SourLemons: Nov 24 2025, 05:08 PM

Give you 30k cash for it
Take it and go.

My one before warranty claimed one time
Afrer warranty topkek spoiled again
NCP151 really problematic

Weight of the car too heavy for the suspensionand chassis set up

Haiya aged Toyota car notorious of Kluk Kluk undercarriage noise, many years ago family bought old Altis 1.8 ZZE122 I think, replaced lower arm, steering rack end, 4 pcs absorbers and absorber mounting, absorber links, anti roll bar bushes etc, still Kluk Kluk after 1-2 weeks, every time seek workshop repair something the noise will disappeared for a while which we thought finally it's fixed, but just false hope

Even that power steering rack (hydraulic type) mounting we also let the workshop dismantled and sent to machine shop replaces the bushes

This post has been edited by voscar: Nov 24 2025, 05:54 PM

Got feeling is umw Toyota issue

TS punya 3 years aje.Apa Aged? Either qc suks or previous owner trash it.

This post has been edited by kcchong2000: Nov 24 2025, 06:25 PM

Yours is previous gen right? my friend is driving latest gen Vios AC100

You need to go to those workshops with the chassis goyang machine.

Ask to sit inside while they goyang the car.

My Yaris also problem. Complain until now I have to pay myself to settle it. Support sub assembly and bumper sub assembly the front pair. Rm1k. After done no more sound from the absorber.

Rip

suspension knocking noise? sounds like a Mazda to me owai..

ps, still better than Honda got kuk kuk steering rack issue though

at least with honda you know it's steering rack, can replace and it's resolved, this is worse lol

This post has been edited by SourLemons: Nov 24 2025, 09:12 PM

cukur my 200k km 2019 cerato still kicking. just change front shock and lowerarm.

Toyota quality now not like last time

Suspension, usually when when sakit - all eventually fall sick also.

Change all the suspension parts to ori first...

fark ori , i'm planning to change the 2nd lower arm they gave me to 555 brand punya lower arm

555 is good brand. Famous Thai brand

U sure is ori Sankei or not first...

Absorber mounts, absorber stopper, engine mounts also change. Not sure if your drive shaft still ok, if mech kata ok can maintain.

Btw nothing beats ori shock mounts.

This post has been edited by MishimaZ: Nov 24 2025, 10:08 PM

I feel you bro. My proton x70 2025 experience almost similar to you.

I go to SC almost every single week since I bought the car but only more problems pop out instead of solving the existing problems.

Second hand car dealer only offer me 60-70k after one year.

Trying hard to let go the car as it give too much of problems

this one i no kesian u , ktard already say buy 2 units if buying that car

Haiya isn't the recent new BMW 3 series also got the infamous Kluk Kluk undercarriage noise also. Biasa mar modern day build quality defects

OK ini I laff

555 OK brand

Give you 35k cash

Thanks! That's very kind of you man!

Yesterday emosi terganggu

Today continue - replace lower arm

since u already spent around RM1k to fix the issue, why not continue using it until next year or year 2027? afterall u beli RM62k, sell RM54k, within less than half year rugi RM8k

Lucky my ncp42 no kakalanchow.

I suspect that service center really sial

Can't see

At workshop now

best vios = 1st & 2nd gen

Have to agree , real solid tanks

See how after settle lower arm

still alot roaming on roads..
still can get ori spare parts easily. LOL

AC100 ok. Quite light. Suspension and chassis can support. Should be more tahan then previous Gen

Sankei 555 no gap



Toyota got a gap (used about 1k-2k km)

I guess most likely an intentional design choice



This post has been edited by SourLemons: Nov 25 2025, 03:48 PM

What is this part? Lower arm?

I hope you officially nailed it and fixed it, not after 1-2 weeks noise come back again haunting...

No. We all should suspect which service center really takut to claim UWM.

Thumb of rules after being take over, settle it with every possible technician can. Else check the warranty tnc.

Depa buat mcm benda yg nak claim tu cuba elak kalau boleh

Yup, solid mini tank.😅

My 2018 NCP150 using 2NR-FE like yours, 2 month stock then pasang 7jj rim & lowering spring.

Until my 7th year only got squeaky sound and annoying steering rack groan.

Quote from a workshop on the wear and tear:

NCP150/NSP151
-Absorber original toyota
*Front 2pcs RM500
*Rear 2pcs RM330

-Absorber mounting heavy duty 2pcs 300
-Absorber cover 2pcs 120
-Satay link 2pcs 90

-Absorber bearing ori 2pcs 120
-Upah pasang depan 60, belakang 60


NCP150 dan NSP151 2014-2021

-Steering Rack Rebuild RM550
Warranty 3 bulan or 5,000km

or/atau

-Steering Rack OEM Thailand V2 improved quality RM950
Warranty 6 months or 10,000km

or/atau

-Steering Baru Original Toyota RM2750
No warranty

Tie Rod End OEM Thailand 2pcs RM160
Lower Arm Heavy Duty Thailand 2pcs RM600
Stabilizer Bush PU 2pcs RM90
Satay Link Heavy Duty PU 2pcs RM90

Upah pasang steering rack & lower arm RM150

Sendiri calculate.

And they said as long Engine tahan can liao

Yep recommended to replace in pairs

You need to do your due diligence to see whether the original parts last or not

In my case , I die die won't buy back original Toyota lower arm since I suspect got defect.

Steering rack / absorber if original lasted you 7 years then I feel can buy back original

Steering rack non original seriously hit or miss. Ok to buy aftermarket if it's your 2nd car

Personal opinion, if you can buy parts with 555 sankei brand, go for it

This post has been edited by SourLemons: Nov 25 2025, 05:20 PM

heard x50 rear passenger very tulan with weak rear air con vent tarak cukup sejuk, is that true?

Honda kity woso same what?

Purposely went through water and test back on pass hump

Still got same sound

beside fuel consumption, but not too bad

the car still work baik2 + aircond sejuk

so far no family member company that.
i did notice it slightly low air speed and higher temp compare to front airvent. but i think probably due to only 1 single blower at front doing all job.
and the cold air running thru the duct too far away.

Full tank I get about 400km, stop go traffic.
Rarely drive that car, dalam sebulan 1 tank petrol pun tak habis.

All tip top condition, next month gonna sent for repaint and change head light, yellow dy.

Actually its my sis car, she go oversea kerja so car dump at my place, sebagai abang u panai2 lor kasi redo everything.
Ive changes quite a lot of things on that car.

What ? do so many things, visit so many workshop still cannot settle that sound ah ?

Got go those workshop where they have the equipment to shake the car not ?

malas already

Sell. Buy new car kaotim.

Issue yg mula-mula tahun 2022 launching ialah Painting too thin.

Yini. Ts sila pergi. Bayar suruh check saja lar dulu. Tengok apa part bisink..

Okla I go now
