[Final update - replacement list]

Absorber Link / Satay Pin x1 pair
Absorber Mounting x1 pair
Absorber Bearing x1 pair
Absorber Front x1 pair
Lower Arm x1 pair x 2 units (original from SC x1 + Sankei 555 x1)
Stabilizer bar bush x1 pair

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Symptom: pass hump around 20-40km/h got knocking "krak krak" sound , usually happens during heavy rain or after heavy rain when undercarriage is wet. This is key point

17/9 - Pusing steering got sound - https://forum.lowyat.net/index.php?showtopic=5539696&hl=

22/9 - masuk sc round 1 - https://forum.lowyat.net/index.php?showtopic=5540290&hl=

25/9 - masuk sc round 2 - https://forum.lowyat.net/index.php?showtopic=5540762&hl=

27/9 - masuk outside workshop to troubleshoot + drop off SC (3rd round SC) - https://forum.lowyat.net/index.php?showtopic=5540904&hl=

2/10 - masuk sc round 4th time - https://forum.lowyat.net/index.php?showtopic=5541546&hl=

So far managed to claim from SC @ 3rd year 20k km

Stabilizer bar bush
Lower arm

18/11

Then 1 month later still got knocking sound

So I changed stabilizer link (satay pin)

But still same

So halfway through after pass a hump today, I open bonnet. Lo and behold

Passenger side


Driver side

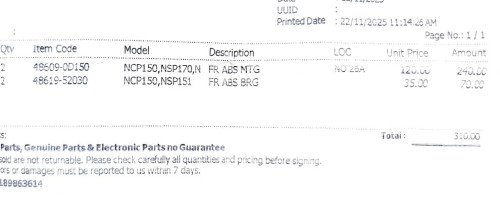

Since suspension warranty ended after 3 years, settle outside. change both side absorber mounting and bearing

24/11/2025 5PM

Sound still same

Go another shop check is absorber

Replaced absorber

Still same issue

Now I'm going to carsome to sell the car

24/11/2025 9PM

carsome giving only max RM54k, considering to sell directly online or continue this blackhole

25/11/2025 11AM

CONTINUE ON...buy 555 lower arm to replace the Toyota lower arm (although they gave new lower arm)

25/11/2025 5PM

Sudah pasang , but no rain . Will report again when rain + pass bump

27/11/2025 2PM

purposely go over puddle of water then pass a bump - still same sound. Will try sell the car now.

27/11/2025 4PM

update: do shaking machine - retorqued the lower arm

still same sound. will sell the car now, don't recommend me anymore thing tq


Found some users complaining same thing

https://www.facebook.com/groups/28146655280...22154692066376/
https://www.facebook.com/groups/50595475318...96920937423396/
https://www.facebook.com/groups/50595475318...64389307343222/
https://www.facebook.com/groups/50595475318...10455872736562/
https://www.facebook.com/groups/50595475318...49210765527748/
https://www.facebook.com/groups/50595475318...48346362280863/
https://www.facebook.com/groups/50595475318...85767645205394/

This post has been edited by SourLemons: Today, 09:33 PM

Labour and alignment rm100

No need pm la, any workshop can do. I sendiri self trouvleshoot and diagnose. The workshop I go always follow my instructions je

24/11/2025
Sound still same

Go another shop check is absorber

Replaced absorber

Still same issue

Now I'm going to carsome to sell the car

Tyres 4x rm1k
Insurance 1.5k (this is ok can refund)
Suspension all in about rm1k
Service 20k rm300 ish
Misc etc

This post has been edited by SourLemons: Nov 24 2025, 05:08 PM

Got feeling is umw Toyota issue

Rip

at least with honda you know it's steering rack, can replace and it's resolved, this is worse lol

This post has been edited by SourLemons: Nov 24 2025, 09:12 PM

fark ori , i'm planning to change the 2nd lower arm they gave me to 555 brand punya lower arm

this one i no kesian u , ktard already say buy 2 units if buying that car

Yesterday emosi terganggu

Today continue - replace lower arm

At workshop now

Have to agree , real solid tanks

See how after settle lower arm

Sankei 555 no gap



Toyota got a gap (used about 1k-2k km)

I guess most likely an intentional design choice



This post has been edited by SourLemons: Nov 25 2025, 03:48 PM

Yep recommended to replace in pairs

You need to do your due diligence to see whether the original parts last or not

In my case , I die die won't buy back original Toyota lower arm since I suspect got defect.

Steering rack / absorber if original lasted you 7 years then I feel can buy back original

Steering rack non original seriously hit or miss. Ok to buy aftermarket if it's your 2nd car

Personal opinion, if you can buy parts with 555 sankei brand, go for it

This post has been edited by SourLemons: Nov 25 2025, 05:20 PM

Purposely went through water and test back on pass hump

Still got same sound

malas already

Okla I go now
