I want to change my wall socket from 1 hole > 2 hole.

So when I open up the wall socket. There is 3 colours wire.

The usual black/green/yellow.

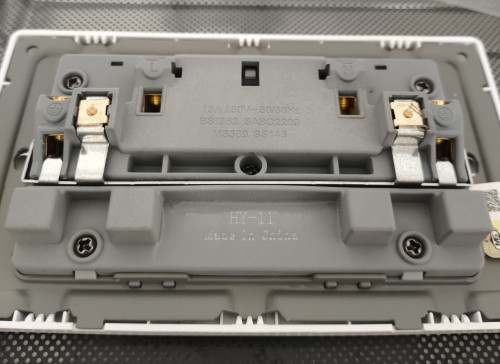

But the 2 hole gang socket I bought got 4 holes.

So I confius which cable go which hole.

Is there a cable I need to separate the current? Or there is hole that I could ignore?



Update - mission successful


This post has been edited by KitZhai: May 31 2025, 10:16 PM

Got L and N
Then 2 ground

L for live cable (red, blue, yellow) neutral N is always black, and that terbaik tree symbol is for earth green color

This
1 ground pun cukup

can ask the wiring and cctv guy to help. - better get the pro

dont be smarty. do you have the right tools first? if not. Contact MBE Engineering for service.

https://www.youtube.com/@MAHBayuEngineering/videos

Any risk will deem self harm and injury if not done by competent person.

That means the ground cable, I install on which hole also will do? Just leave 1 empty?

you come to kopitiam ask about wiring, sure people will ask you connect the L to N.

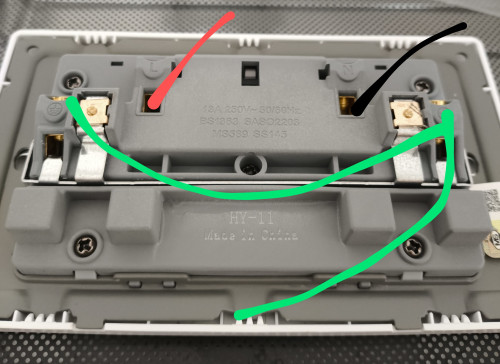

U connect the main ones to one hole then loop it to the second hole.



This post has been edited by Rorschach85: May 29 2025, 03:59 PM

Any one with do since it's linked with that rod in the middle
Yes leave the other empty

UK plug? mcm lain pulak

yes, there is steel plate loop there.

I just use test pen just now because the colours are all weird

Unless it's a black and white combination

The black is not necessary neutral

Yeah remnants of old time can have black as Live wire also

contact cctv and wiring guy in /k.

highly recommended

Where is the fourth hole?

Only see earth , L and 1 unlabel hole each side

Welcome to my show and tell.

Today i am going to show you this fine specimen known as B40.

They are characterized by repeated pattern of making choices that is high risk and low reward. They are compelled to make such poor (pun intended) choices are due to limited options, which ironically, are often limited due to their poor financial capability and the inability to gauge the risk and benefit involved. Poor choices will lead them to deeper difficulties, which in turn force them to make similar choices again. To escape this cycle would require drastic and costly changes which again ironically, moves that are typically impossible precisely because of the consequences of earlier bad decisions.

Now let's come back to the case here by TS. what do u think is the risk involved, and how much benefit he can reap by taking those risk. Thoughts?

Single to twin gang socket is it?

Did you take a picture of the old one with the wires still attached?

A lot of Malaysia punya electrician don't follow the colour code one, so be becareful

Risk: Fire/possible death
Benefit: Save money/knowlege

Or even worse, two black wire for L/N and Green for Earth
