3. OLT and PPPoE-AC QoS optimize for Skyworth 2.5G,

Hi, want to ask, in the last free speed upgrade 2023, those with 800Mbps got speed bump to what speed? 1gbps or 2 gbps?

My SWU 3.0 contract end in Oct 2025, but Unifi allow me to renew SWU 5.0 with no penalty, new contract will start from May 2025 instead of Oct 2025. Die die ask me to take Unifi mobile, gonna cancel it next week.
Request to change my BTU unit as well as my BTU already 10 years.

I suddenly recall TM used to cheat speedtest by prioritizing its traffic.
Maybe in the new HQoS change they forgot to prioritize it anymore hence your speedtest is showing the true speed you are getting.

but, somehow I can use Internet without PLOAM Password, only my PON Stick Serial Number (NIJK prefix)

Guys my dlink black modem now in ppoe bridge mode. Any guide on how to update the firmware? Can’t access it.

how come ntv7 is not viewable in unifi tv?

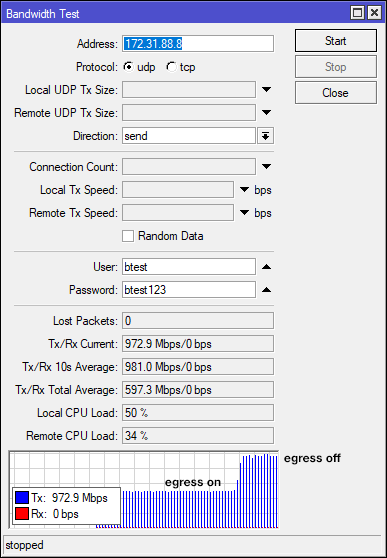

in Mikrotik Bandwidth Test,
Download 2200,
Upload 1110 Mbps
Supposed this Monday,
I wanna kill VEIP cause D-Link in Router mode cannot use
Push all PPTP because it's simple

I also tweaking Realtek SDK for my V2.0 PON Stick, due tc command not fit into SoC, Realtek has own ASIC Flow Control and Egress



I try egress 512Mbps and it works, I making own patches now

there will be 3 mode:
0 = disable
1 = 2488/1244
2 = 2048/1024

this all ONU I have tried, even I get that Skyworth crap before TM giving me, later I have two more crap to play with.

I retry again PLOAM without Password, just S/N.

ONU that can change S/N:
Huawei HG8240H5
D-Link DPN-FX3060V A1
D-Link DPN-FX3060V B2

ONU can Auth without PLOAM just S/N
Huawei HG8240H5 ❌
D-Link DPN-FX3060V A1 ✅
D-Link DPN-FX3060V B2 ✅
D-Link DPN-FX3060V B2 as Huawei HG8240H5 with ME 350,370&373 ✅

this is something, D-Link pretending as Huawei works without PLOAM but not Huawei it self 🤣

later I try change my PON Stick S/N +1 eg: NIJK24000002 see what happend

and then, force TM to solve slowness of IPv4 traffic?
I try ask TM to check their BNG and move mine to something better or use backup BNG

I can guess MTU 1492 is considered as fixed, if that case, I just bother speed issue on IPv4

later I try change my PON Stick S/N +1 eg: NIJK24000002 see what happend

Found any config deep in any ont about anu/ont type? Set it to 10g/10g if available. Also upstream bandwidth to max 9535488 (kbit/s)

** I think SN auth only working for ur service port, not ur neighbors or area OLT.

When your next bill showing this, then confirmed you have STD20.

daam why you did used someone Skyworth  daam they can check easy detected lol

how about you did tell PPPoE disconnect ??? during upload max non stop suddenly PPPoE disconnect

have you ask about VOIP ATA devices for that you got linksys and other brand about VOIP configuration to get successfully

skyworth I have is a gift, he said something weird happen, ask me to look if malware already inside, but I use for test, no time to tinker around like D-Link

PPPoE disconnect, disconnect when 1 missed LCP echo, and cannot change, that Huawei vBRAS default settings

and no RFC4638 support with Huawei vBRAS <- stupid and dumb
their VRRP and VXLAN MTU need to increase and cause wide network down, unifi cannot afford that

about VLAN400 tagged at LAN1, HBC wont pickup phone
even I hear guy just wake up and pick the call, and talk like shit
I didn't know HBC acted like this???
only HBC can modify OLT VLAN

after mistakenly set VLAN400 at LAN4,
using default GPON Mode, TEL not working, because VEIP no longer have VLAN400

and this hanging...

just, HBC treat us like monkey, this is unacceptable hsbb
I use MACVLAN to just mess with it

yea this what do to have custom mac address
sfp-sfpplus1 < vlan500 < macvlan < pppoe-out1

I even put OUI 00:00:5e just to mess with VRRP

gonna apply some leave to visit TM point, but no damansara outlet, not sure on PJ where can try

hsbb kwss tng55

The stick I use, Rx Power are much nicer, I tried to ask my friend to compare with neighbor, I getting -15dBm


verify with my other ONU, I did get -20dBm like others

like this, who has bad Rx Power, can use to make OLT happy

mine house FDP very near neighbor FDP BOX like ++25 or ++30 meter
i can't check rx range lol for 500Mbps

i using Huawei BTU not ONR

that device where you did purchase
got lazada or shopee for Original not fake
