Sorry bro, busy yesterday didn't try out.

So far my F3 get 3.4GHz stable.
No time to fine-tune yet.

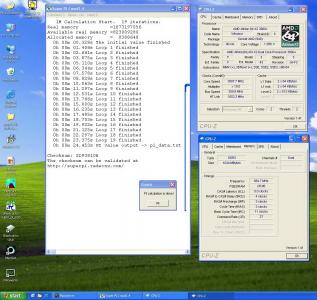

Latest update 3800+ F3 @3.5G 1.55V Super PI 1M result attached.


bro PWS, pls add me in the AM2 list, 32M PI SS attached.

3800+ X2 Windsor F3 | ongbs | Abit AN9 32X | Micron DDR800 512MBx2 | Thermaltake Silent Water



This post has been edited by ongbs: Oct 20 2007, 03:02 PM


Attached thumbnail(s)

3800+ X2 Windsor F3 | ongbs | Abit AN9 32X | Micron DDR800 512MBx2 | Thermaltake Silent Water

Photo show actual running test of the following Super PI 32M, after Vdimm mod from 2.30V max to 2.65V.
Actual Vcore is 1.55V, Vdimm 2.60V
just curious why PI result not good enough!

My ugly rig photo attached :

don't shot me, no time to fix it nicely
busy OC....

although ugly, but i still feel better than bro dblooi's super ice water colling rig...damn dangerous


WOW, at last, I managed to Vmod my Abit AN9 32X Vdimm from 2.3V Max to 2.65V now



This post has been edited by ongbs: Oct 20 2007, 04:00 PM


Attached thumbnail(s)

really tight on time, just fix the WC last night ....busy finding way to Vmod the Vdimm!
some more this setup will remain for less than 24Hrs, gonna test another WC setup tonight

ice cool ah....no lah, later my pump kong and F3 fried susah woh!


This post has been edited by ongbs: Oct 20 2007, 03:40 PM

haha bro, this is my "virgin" trial on WC setup, my 1st ever setup
been using air cool for last 15 yrs

about the 32M PI timing, I just can't firuge out yet, it should peforms better@ CPU 3446MHz, DDR 1350MHz.
Maybe x9.5 multiplier is not good for this setup, or maybe just a bug in CPU-Z reporting?

This post has been edited by ongbs: Oct 20 2007, 03:47 PM

Temp for all ppl quite different depends on casing ventilation and ambient temp.

I am currently test run Super PI 32M on my Winsor F3@3.0G rig, Vcore is 1.25V.
with Thermaltake Silent Water (WC), pump is running but I switch OFF the radiator fan.
Just curious will it pass 32M PI

haha...it just passed 32M PI with max load temp about 60C

This post has been edited by ongbs: Oct 21 2007, 01:54 AM


Attached thumbnail(s)

sorry bro, some bugs between CPU-Z and my mobo, actual Vcore is 1.25V

no lah, confirm CPU-Z voltage reading problem, mobo BIOS ok.

Daily use may fix at 3.2G or 3.3G, will decide later

not sure yet, because haven't try my CM Gemin II on this F3.

bro, when is the release date?

not just WC but Iced WC@3.9GHz....

This post has been edited by ongbs: Oct 23 2007, 01:16 AM

bro, what is copywaza?

bro, teach me how to do it then I will enter 23s reion

bro, yr 3.5G F3 need how high Vcore and Vdimm?
Nice 32M PI bench u got there, can postyour memset timing?
btw, what is the PI 1M reselt @3.5G?

This post has been edited by ongbs: Oct 24 2007, 12:49 AM

bro, i mean this PI 32M

bro....respect you can runn so many test at once

haha...I thanks br dblooi a lot too, sadly I am from Ipoh and no chance to meet him....
so if you meet him pls belanja him lunchX2 ah.... 1 from me but you pay

This post has been edited by ongbs: Oct 24 2007, 01:41 AM

i like this setting

Vcore@1.375V, Vdimm@2.3V




Attached thumbnail(s)

it is from DFI mobo bundle.

This post has been edited by ongbs: Oct 24 2007, 04:41 AM

hi bro,

yr F3 back to action now?
I will fix at 3.2G@1.28V, DDR2 at about 1000MHz for daily use

Walau eh, another crazy nut busy for whole night, SPI 1M result only improve 1s (Iced WC - infected by our OC Guru - bro dblooi )

Max 3800+F3 speed that able to boot into XP and passed SPI 1M test was 370x10=3.71GHz, DDR2~1250MHz, PI 1M = 23.687s.

Mobo: Abit AN9 32X, Am2 3800 F3, mod WC with Thermatake Waterblock
+ Thermaltake 400L/h Pump + Swiftech Radiator (able to mount 2x120mm fans but this time fans were taken out to soak the radiator into the iced water).

Refer to photo attached, radiator coolant during action was around 18C. CPU under load still >40C@1.6V.

Previously with WC alone this rig max speed passed SPI 1M was 3.5GHz@ 24.453s. Can't go any further, I judged the max speed limit by the F3 proc.
The purpose to carry out this test is to confirm the previous max speed 3.5GHz was limited by the F3 proc not the Abit mobo.

But I am not like our OC Guru bro dblooi, brave enough to pump iced water directly into waterblock (i just soak the whole radiator into iced water )

The max speed 3.71GHz achieved at Vcore= 1.6V, Vdimm=2.3V, DDR2~1250MHz 5-5-5-5-12 (need to borrow 10th Anni Crucial from bro db liau )
refer the attached photo for detail.

Sorry I didn't attached CPU-Z screeny cos it keep on crashing with the Abit Guru program

This post has been edited by ongbs: Oct 30 2007, 05:57 AM
