Local kid further study in country with 4 seasons. Comes back as an architect and designs house based on foreign designs. Ends up with house that is designed to withstand winter.

Old house below has lower temperature.

Yes. Old house more practical. Modern house now if no aircond you will get roasted.

Apa different old vs new house?

Must be the inside.

The outside looks the same.

No new house design for comparison?

Old houses have better clay bricks and clay roof tiles.

i install exhaust fan in kitchen. at least functional to temove trapped heat and odor from cooking (if not yet caught by hood), and to also move wind from front to rear.

not foolproof though as it depends on volume transferred.

the ventilation of the hollow bricks?

Some old single story has air well

... and those bricks with holes installed on top of windows.

Air vent . Old house got void for natural air vent.

new home with concrete roof top is the worst.

Materials used.
Srs.

Ini kena tanya /k architect tu
Sapa dia

Those bricks with holes are absolute nightmare to clean & paint though.
Plus it let bugs in.

Probably a different design that solves the issues would be better.

Global warming is a bigger issue.

Weather so hot nowadays

my experience is different, new house is cooler than old house. You just bought wrong project and wrong developer

This one favourite entry for nyamuk and cicak.

where the new house design.

the house without bumbung wan, im pretty much sure hot.

Old house got batu angin that helps to regulate room temperature

Malaysia is very outdated one la. Even Thailand is already using rockwool insulation and mechanical ventilation.

Natural ventilation is only OK if the air around you is clean (mountain for eg). So whenever I see some supposedly high end ID doing natural ventilation for a house located in the middle of the city I straight facepalm.

Different batu bata.

Old house mostly use clay brick. Modern house use white brick as cheaper.

White brick made from sands, and usually will retain heat. House hot until night yo. Sure need aircond.

Red brick, air well in center, the ventilation bricks on the top part of the wall

Idk man, I went to a few old houses all hot. Unless kampung wood those. My modern house and condo colder can no need aircond.

old house with wood or red brick also hot nowadays. ventilation good but dusty too much in city.

You could fix netting outside to prevent insects entering into your home

This post has been edited by twosocks: Oct 21 2022, 07:19 PM

Old house got lingering spirits, that’s why you feel chiller when they flew by….

Talk onli la, anyone here dare to live in rumah kayu like Malay kampung or like Orang Asli?

You see all the houses in urban areas are all based from Western design?

High rise with glass wall trapped the most heat.

May I know why during sunny afternoons, the upstairs can be super hot while downstairs can still be quite cool? All the hot air rise up there and cannot vent??? That's the reason?

Reno my house. Use the sand brick while ori wall used red brick. Both wall facing the sun. You can feel the heat from the wall with sand brick.

Suddenly everyone in /k are expert architects lol

Old house design have holes or fins style opening at the bottom of the door for air intake and high ceiling for hot air to escape. Nowadays all is shut for security reasons.

Solar heat gain from the roof exposure.

this, I damn regret not putting in taller stair well for ventilation, now need to figure out mechanical way to vent

hot air rises, and heat from roof stored in your ceiling

But can see. Old house like this, the road higher than the car porch. Banjir laa if raining heavily

must ask malay people lah... see how their wooden house design

suitable for this climate

most OUG type houses are like that. PJ Old town also like that.. Very good ventilation.

azarimy?

Yes. Which is why some people install those spinning roof turbine ventilator.

Most are marginalised.... Most can only afford pipit box nao... And theyre buying....

I install foldable glass door at kitchen area . Now no more such problem

yesss?

Can paint the roof white?

When you say modern, what do you mean exactly?

And by the way, Malaysian architecture education has been around since before WW2. Although trained by British architects, these architects have been around in Malaysia, design building in Malaysia considering Malaysian climate.

We only began studying overseas in the late 70s, when the economy is better and people can afford studying abroad. By then, Malaysian architecture has already took its current form.

If you ask me, the issue about hot houses are multifaceted. One, it could be caused by architects not aware of local climates. But I have to tell you, even if you study 10 years overseas, you'll come back and MUST practice with local firms, where there will be architects with local tropical experiences.

Most of the time I blame developers. Not many developers are even trained in built environment. They got rich doing something else, then decided to venture into property development. Then they pay architects who would design the way they think appeals to the rakyat. And of course, rakyat being susceptible to advertisements, starts spending money on inappropriately designed houses.

And there's also the problem of kontraktor cuba buat kerja arkitek. This is very common, as home owners think that architects are just some glorified chef, and can save cost by NOT paying architects. So sekarang rumah kau panas, rasakan.

Wont be as effective as installing insulation under the roof tiles.

Cost must b very high

Heat trap true.

But if you keep your windows open now in the city area, expect all the dust and dirt to come in.

Air now not the same as 40 years ago.

Thst is why cold is better than heat.
It is easier to heat the air than cool them.

nearly all terrace house got air well,.. my house 50 years liao also got,.. no need to air cond the whole house,..

This post has been edited by Cincai lar: Oct 21 2022, 09:34 PM

You dont have this problem if you stay in condo

Not as high as continuous cooling bills for the next 20 years.

The house design you showed owes most of its origins to southern China

Ventilation, air-well, fresh air changes all mentioned in UBBL / CIDB mah.
If building not up to code still can pass CCC means what?

Got one housing area in premium place in kalabg valley. Got heat trap .design failure .no air vent to channel hot air . The developer compesate by gave 3 econ fir each house. Cant ammend coz it related to many law and design that already sign up in snp

Different time, different design.

Old houses used to have high ceiling and high windows for good ventilation. The problem is that it is difficult to clean the high ceiling and those high windows can be entry point for burglars.

Modern houses abandon this design and assume owner will put AC. Some new houses don't have ceiling fan point but come with AC points.

Designer house has lots of glasses that would turn sun ray into heat. Also western house design likes to trap air in house without air circulation out to increase amount of CO2 to heat up temperature. The right local oriented house would divert air into house and circulate out so that there won't be concentrated CO2.

Install air con

Modern problems require modern solutions

Not only poorly engineered, but also poorly designed aesthetically. Featureless facades similar to the featureless faces of the designers and architects who design them.

It can be up to code but still insufficient. UBBL was not written based on the science we have today.

paskal come bg nasihat



Sos https://forum.lowyat.net/topic/5146856/+20

insulate the roof
install the air ventilator

I see... Can follow best practices, no need UBBL to tell minimum opening must be 10% of flooor space.

I blame greed. Profit over everything else.

Modern design suka pakai glass that is y hot + floor quality they like to give u shit quality.

If houses don't trap heat, how TNB want untung atas angin ?

This post has been edited by Roman Catholic: Oct 21 2022, 11:51 PM

Ang Moh house use big glass to replace wall…. Malaysia also follow…. last last waste more money for curtains……. Too HOT

R value, wrong material in wrong design. End up use more energy to cool off

meanwhile me staying in shoebox flat high-rise very cooling no aircond needed

Ang moh’s glass all double glazed with low U value and SHGC.

Here we use normal glass not knowing how much heat it brings in lel

msia electric too cheap

Put up glasswool or rockwool insulation beneath the roof, and support the insulation with woven aluminium sheet.

I spend rm6k for the entire roof insulation, and now paying around rm150 for electricity.
5 aircond, 5 toilets, 1 garage full of high powered tools

more holes/more windows = dust. especially if your house is facing busy road.

if you have air vent on the roof, proper placement has to be made to prevent rain coming inside.

i have 4 turbine ventilator on my roof, my house just feel not that hot.

If your house hot and also got high electricity bills, use solar panel. Reduce some heat go to inside your house.

Boleh kan?

modern problems require modern solution,

Yes, that is correct

Reduce heat buildup between the roof n ceiling

Ya ktard what also expert...terrorism expert, military expert, geopolitical expert + driving mercedes e class etc etc....padahal b40 unemployed really topkek

Anyway, if anyone wanna install solar panels for home or business, kindly dm me lol

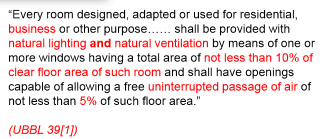

UBBL provides baseline. Meaning it tells you for certain space, it must have minimum opening for lighting and ventilation. This prevents idiots from designing low-cost housing with absolutely no windows to 'maximize profit'.

But, the minimum opening size defined by UBBL is not the optimum size. Refer below:



10% of floor size? That's really small. A typical 3x4m room is 12msq. Meaning the minimum size of the window is 1.2msq, which is about 1m x 1.2m. This is what most developers use as a standard. However, we now know (through science) that ventilation needs inlet and outlet. Providing just opening on one side of the wall does not guarantee air circulation.

And having a 2msq window pun tak guna if it opens to an airshaft that barely gets any light (like in some apartment/flat designs).

TBH old design use those swing open horizontally windows but not practical in strong wind/heavy rain scenario as the window pane friction is insufficient to brake

Then I went SG
already using sideways sliding windows since decades ago.

No need study THAT hard to know black traps heat more than lighter colours


This post has been edited by ceo684: Oct 22 2022, 09:40 AM


Attached thumbnail(s)

Ya. Floor to ceiling glass windows are dumb in
Malaysia. Literally a living in a greenhouse

Like this. Bukak.

Kasi maximize space utk buat umah

Designer or architect dont give a shit about the weather

This refer to new house right ? Most new house I notice got this trend to have a huge air well in the middle of the house for ventilation and natural light. Nowadays ppl design with high ceiling as well.

What is this shit

Don't you need at least a foot air gap

Developer being generous by using same window size for other smaller sized bedrooms and kitchen.
The door opening could serve as outlet to provide cross ventilation?

That 6.5 room needs air-con, kitchen/yard and bathrooms opens to same air shaft. Maybe high floor no need.

Higher ceiling and air vents. Now all want look nice lower the ceiling with board sure heat can’t go far. My old houses in Pg with this design rarely use air con at jight cos cooling. In KV new design with developer made lower ceiling jibai kena use aircon from 6pm.

Developer being generous?

If developers are being generous, they'd pay the architects' fees in full and follow whatever the architect recommends.

Architects just translate client's brief.

Its the structural engineer holding it up...

And also the govt officer where u need their approval for the plan and CCC lol

Ummm no.

Let's just say that could be solved with some encouragement.

Reason being almost all with same layout.
Recycling building plan?
