congrat...look like we hav new Frankenstein member soon Muahahhahaha....

---

Added on September 20, 2007, 10:55 pmOK how do I explain this on..I'll try my shot k
tot31 if u read this back me up ok..

OK do u know ATI latest high end graphic the HD2900XT(do search on the internet about this latest beast)..Well the GPU of this baby is almost the same as the GPU on the XBOX360 unit
the different is the ATI HD2900XT can render DX10 but on the XBOX360 it can render only DX9..but as for the raw power there are almost the same

as u can see on the ATI HD2900XT a large heatsink is place on it to cool down the GPU and they use fan on this
which is for XBOX360 the M$ people use a very cute little heatsink to cool down the GPU and also use under power fan and that little cute heatsink is not even enough to
cool down the GPU inside the BOX.not even the new improve heatsink on Elite is enough.People in Singapore already become a victim for 3ROD in Elite unit.And one of
them claim the play it for only one week..Suwei Gile lah tu

That is why people realize that the GPU need to be cool by other method..that is by water cooling it.Which is the Best and Risky solution for now.



This post has been edited by lksing78: Sep 20 2007, 10:55 PM

As far as what I read at the various forums, all X360s that are modded with watercooling haven't been hit by 3ROD. Even some people who changed the x360 case to a PC case, putting a lot of 120mm fan also hit with this dreaded deases.

I was looking for a watercooling kit that can be fitted nicely into x360 and found out the Koolance is the best but the price and availability is out of the question. Then came Iksing78 that had successfully installed the CM Aquagate Viva Duo into it and the price is quite reasonable. So I would say watercooling is all the way.

Can't wait to get ny hands on it.

^ Nice finding and nice solution lksing / tot31. Hurry up do run testing for the stability and offer the services to community

yep tot31 i pretty interested if the watercooling solution can solve all the issue on the xbox360 permanently and with the price tag around rm400 that u guy mention it seem pretty good solution.

This post has been edited by squall_12: Sep 21 2007, 10:21 PM

I like to point out that this is not 100% guarantee on solving the 3ROD on XBOX360 but it is the BEST and RISKY(a minor pin hole on the water hose can blown ur XBOX360 to sky high) method to minimize the 3ROD to strike back.

WARNING : Do not bring your XBOX360 to LAN party as it will possibly damage the water tubing while transfer process is being carried out.

Hahahaha just kidding there

Hai It's me again with my next watercool for XBOX360 project

First of all i like to say I'm sorry that I cannot make up step by step tutorial on my project

the reason is because the tutorial is already been written by Guardian himself( ),the only part that change is to change the heatsink to waterblock

If u know how change the X-clamp u don need a tutorial on how to put a waterblock to ur XBOX360

I attach some of the picture of my project...So look carefully and you'll know how's it's done.

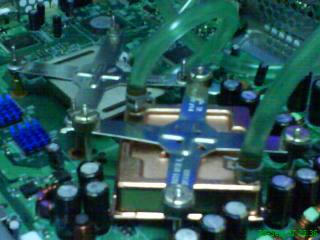

Let me Present to you Thermaltake watercool : Frankenstein V2.0 watercool (24 hrs Leak test begin 10:45pm)

Enjoy the Pic




Attached thumbnail(s)

^ did a good job there

wow... nice neat one there...

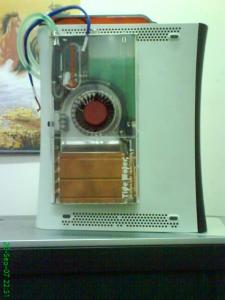

Hai again ,this will be my final part for my project..I have so much fun by sharing my thing here at Low Yat forum.

But it's time to move on...so here are finishing for my watercool project ...Enjoy

Feel free to put on your comment or complain on this thread and if there's any question I'll be happy to answer them for you


Attached thumbnail(s)

^the finished product is really impressive, thanks for sharing your project

the best part is your design makes the x-clamps useful

very nice mod. but if i this apply this mod surely will find a way (ways) to hide the reservoir under the table. looks like the xbox lose it's nilai estetika when the reservoir attached to it

how much u wanna sold ur 360 casing
damn nice wehhh
can see thru inside 360

Priceless...

Ahhh I need to cut....I neeed a fresh BOX ahhhhh...a virgin one perhaps...Ahhh my brain...my brain is exploding with idea...hahahahahahha

lksing78, if u don't write the step by step guide maybe u can post bill of material (BOM) here. at least it will be a guide for those who want to do the diy water cooling mod.

Haik! wa kari mas....the bill is on the sekon (2nd)page on this thread...Is not that i don want to write about it..if u know how to change the X-clamp..u will see that changing the waterblock will be easier..the extra is u maybe need to blow hole for the water hose.Or u can ask me anytime.no problem one.

hahaha. sorry dude. missed that post. maybe because it's too long.

if i bring my xbox housing
how much u wil lcharge to mod like ur final product??

erm...water cooling really 100% aviod 3ROD?

So sorry bud but i don hav the time now.busy with work...After Raya OK.

If water cool can 100% avoid 3ROD then I can put XBOX out of business...hahhahaha...just kidding there Bill
It minimize the 3ROD to strike back.

how much would it cost to have you fix a water cooling system on xbox?
including price of hardware (waterblock etc) and workmanship?
