After seeing all the benchmarks around the web, i can only conclude that Ryzen platform is poorly optimized. It's sad to see this as a result of Intel dominating the market for so many years and most software are optimized for Intel architecture. Nevertheless, this is a huge leap from AMD and this will definitely benefit all consumers.
steven789
post Mar 4 2017, 11:25 AM

Casual
***
Junior Member
303 posts

Joined: Sep 2006


G.skill has DDR4 3200 sticks that are verified to run at 3200 4x16GB configuration. Nice!

https://www.techpowerup.com/231204/g-skill-...y-for-amd-ryzen
steven789
post Mar 4 2017, 08:11 PM

Casual
***
Junior Member
303 posts

Joined: Sep 2006


Among the 3 Ryzen models, I can't see the point of buying the 1800x. 1700 can overclock just as high as 1800x (maybe just 100mhz lower). Same 8c 16t and same amount of cache. Perhaps AMD traditionally likes to give 'free' performance to end users, like some Phenom II that can be unlocked to gain extra cores.
steven789
post Mar 26 2017, 11:43 AM

Casual
***
Junior Member
303 posts

Joined: Sep 2006



These RAM can run at 3600 on Ryzen.
steven789
post Jul 17 2019, 11:18 AM

Casual
***
Junior Member
303 posts

Joined: Sep 2006


QUOTE(llk @ Jul 17 2019, 10:54 AM)
Work in progress...
*
Wow, which motherboard is that?
steven789
post May 10 2020, 10:54 AM

Casual
***
Junior Member
303 posts

Joined: Sep 2006


Hi everyone,
I just bought a new system as my old motherboard suddenly died. I got:
- Ryzen 3700x
- Asus ROG x570 Strix E
- Kingston HyperX Predator 32GB 3200MHz CL16 (HX432C16PB3AK2/32)

I'm still waiting for the RAM kit to arrive so I'm wondering if it can easily clocked to 3600MHz. It should be Hynix CJR. I couldn't find Micron E Die in the market now. Samsung b-die are just too expensive.
steven789
post May 24 2020, 10:46 PM

Casual
***
Junior Member
303 posts

Joined: Sep 2006


QUOTE(happymonk @ May 24 2020, 07:39 PM)

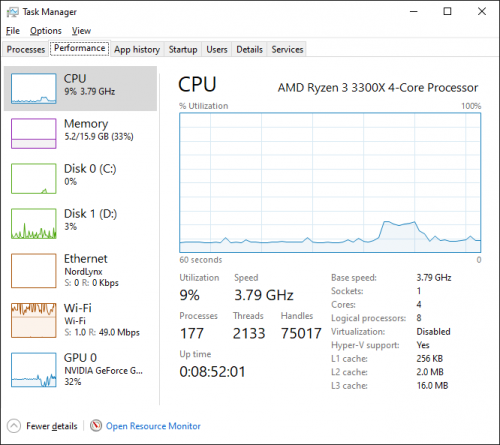

Hi guys, I'm running 3300x with B450m. Task manager (Win 10 Pro) always report the maximum base frequency (3.8 Ghz). I have installed the latest chipset driver and selected Ryzen Balanced. However, the reported frequency when using Ryzen Master are different (4xx MHz when idle & 4xxx MHz when running benchmark). Is this an issue with Windows?

» Click to show Spoiler - click again to hide... «
It's normal for windows to report higher frequency in Ryzen. Just follow what's reported by Ryzen Master.
steven789
post May 24 2020, 11:00 PM

Casual
***
Junior Member
303 posts

Joined: Sep 2006


For the past two days i've been setting up my new 3700x with x570 ROG Strix-E motherboard. I've noticed a strange behavior where if I overclock my RAM speed from 3200MHz to 3600MHz or 3733MHz without touching any other settings (besides increasing the RAM voltage slightly to 1.37V), the processor boost clock will not reach 4.4GHz as advertised (max 4.35GHz only). But if I run my RAM at XMP 3200MHz, the processor will boost normally to 4.4GHz on single threaded workload. Going back to BIOS default and increase the RAM speed again still observe the same boost behavior. How weird.

I'm using the latest April BIOS version and so far I have not overclock the processor. The CPU temperature also never go above 65C on single threaded workload and around 80C on all core.
steven789
post May 26 2020, 05:42 PM

Casual
***
Junior Member
303 posts

Joined: Sep 2006


QUOTE(TristanX @ May 25 2020, 02:30 PM)
Getting max boost is very difficult.

Seems like latest driver prevents mine from getting 4.6Ghz. Mostly 4.55Ghz.
*
After playing around with the CPU and countless reboots, I concluded:
- 3700x will not boost to 4.4GHz in single threaded workload if cpu temperature (Tdie) is more than 60C
- All core boost also temperature dependent and usually can achieve 3950-3975MHz if temp below 70C. If enable PBO, can go up to 4100MHz (I have yet tried more aggressive PBO).
- When PBO enabled, all core load voltage is about 1.30V (CPU voltage set to auto in BIOS).
- Overclocking to 4.4GHz (all cores) @ 1.30V and LLC Level 5 is stable enough to run benchmarks. But unstable after 10min of OCCT. Socket power draw can go up to 130W blush.gif
- Overclocking to 4.3GHz (all cores) @ 1.25V and LLC level 4 is rock stable. Max temp was around 76C with OCCT stress test. Looks like i have a pretty good piece of silicone.

Coming from Phenom II era, this new CPU is very interesting. Performance varies with room temperature and can be shown on benchmarks. rclxub.gif
Very interesting behavior.
