Can zenphone 3 ze 553kl be better then this as the camera is dual lens with zoom. Only thing is will it be sold in malaysia.

This post has been edited by Cobragold: Feb 12 2017, 10:00 AM

I've shared the Asus ZenFone 3 Zoom (aka ZE553KL) SIRIM approval earlier here.


It'll be sold here for sure but unknown launching date (after April before AidilFitri...?). It'll cost more than Honor 8 and close to Galaxy S7 series...

Yippeee...!!!

Managed to complete the nanoSIM + micro SDCard hack...

Below are the tools and steps to complete within 30 minutes.... The difficult part is removing the nano-SIM from its panel...

Apparatus:


Step 1 : Take a pix of the microSD Card serial number (if you care....)


Step 2 : Use sand-paper (P400 hardness or similar...) to thinning the rear of the microSD Card (not compulsory... but for genuine SanDisk microSD card, there is a "bulge" underneath the serial number. We have to remove this "bulge" in order to ensure the tray will not stuck after combined with nano-SIM).


Step 3 : Use sand-paper to thinning the front panel of the microSD Card. This is compulsory in order to ensure we can "easily" remove the SIM tray for future maintenance.


Step 4 : Use lighter/candle to split the nano-SIM chip from its panel. Allow 2 seconds burning is enough. Use two tweezzers to remove the nano-SIM carefully. Have to be quick or else the nano-SIM will get "glued" to its panel again. But you can re-heat slowly again. This is the hardest part of all the steps....


Step 5 : Stick the nano-SIM to the double-sided tape. Some prefer a drop of quick-glue. I prefer double-sided tape for future maintenance (if either microSD card or nano-SIM is damaged, can easily remove becoz of double-sided tape).


Step 6 : Cut the excessive tape to the shape of the nano-SIM. Properly ORIENTATE the nano-SIM so that the "curved" side of the chip-pattern is at the right-hand-side of the microSD card panel. Align and stick the nano-SIM to the microSD card as shown.

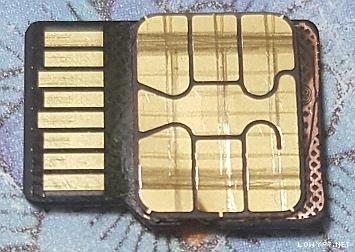

Step 7 : The completed set of nano-SIM plus microSD card.


More reference, refer to YouTube below:


The results:


This post has been edited by azhar75: Feb 12 2017, 02:05 PM

oh big daddy.is that real... you just void the warranty of the expensive Sandisk Pro Micro SDCard

Sooner or later phonemaker may come out with slot to accommodate all

U can use this if u afraid n kelepet the 2nd sim in hp casing


Attached thumbnail(s)

Yup...It's the 64GB U3 card ... Lifetime warranty is gone for sure... Risk taken with positive outcome... Relief...

This post has been edited by azhar75: Feb 12 2017, 03:20 PM

bravo. happiness is all that matters

I'm in the evaluation mode whether I can leave my 15 months old Note5 behind with both my primary and secondary nano-SIMs inside P2 forever.... If everything goes to my expectations, Note5 will be in garage sales soon...

Eh, ts we need to thatvto our sd card o. Coz my mode for s7e, mi max, rn3pro, so fr x perlu mod the sd card hehe

I'm doing "extra" precautions to ensure easy to remove the SIM/Card tray for future maintenance... If don't trim the surfaces of the microSD card, it will be hyper-difficult to remove the tray coz the top & bottom spacing of the tray is hyper-slim...

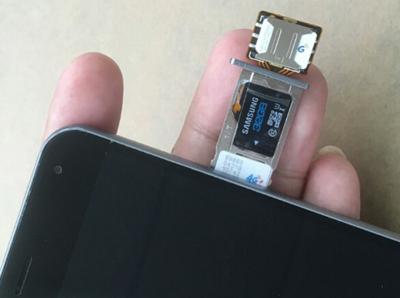

Thanks for sharing... Here's the
nano-SIM extender for those who are interested...



Can cover the extended nano-SIM using TPU Gel case...

This post has been edited by azhar75: Feb 12 2017, 10:17 PM

Similar to kids playing around...? These 1½ month kittens surely run faster than 7 years old kids...LOL...

Icic, so far s7e, rn3pro n mi max not too tight when doing this mod..

Owh icic nice,

I see that the cover doesn't close well with this extender


--------------------
iphone 6 s iphone 7

This post has been edited by standi: Feb 15 2017, 10:14 PM

This post has been edited by azhar75: Feb 12 2017, 11:20 PM

Since p2 x water proof x kisah sgt but imo n/a for my s7e.

Btw audio features thy fix already?

If a person dun mind the "no ori audio' then it's a go..

Aduh..sayangnyaaa sd card tuu
