What is the best overall Heat / Sound Insulation for Car....

1. Front Bonnet

2. Engine Firewall

3. Car Roof

4. Side Doors

5. Rear Boot


Please advice on name, brand, model and price....
Thanks

This post has been edited by WhizzWork2005: Nov 22 2006, 04:57 PM

suggested u take superlon..insulflex's material are harder and it will crack more easily than superlon if expose to high temp(less durable)

Thanks for your advice bro....
Superlon is better than Insulflex?? What's the thickness of Superlon??
I thought both are from same factory?? Pls correct me if i'm wrong....

You know where can buy Superlon?? Expensive or not?
I would like to DIY..... Is it eary to DIY into a Wira??

Thanks for your precious advice....
Thanks

SUperlon has 6mm and 10mm both with and without self adhesive. I had 10mm superlon stuffed inside my door plastic panel, bitumen strips on the metal panel ( you need to take out the weather plastic sheet first), swimmers kickboard on the wheel arch which is atype of closed cell foam too.

basically soundproofing is
soundproofing = sound insulation + sound dapemning

sound insulation - to prevent noise from entering cabin, absorb low frequency and bassy noise ( road noise, other noise)...dampening is to add weight to the metal parts of a car to prevent it from vibrating which could produce hi frequency noise (stones hitiing the chassis, rain drops)

Frankly speaking not sure if there's improvement, but closed cell foam like superlon could mute sound from speaker ( to test a foam's sound isulation property, just cover a speaker with the foam) and water resistant... .. since that wira's already an established model, go get hayness manual to take out the plastic covers without breakign any plastic clips...DIY sound proofing is a trial and error process. take your time to do it.

you could get the superlon from a trader at zerotohundred...i thought both superlon and insulflex are made of same materials.

hypermount.. im juz wondering.. isit possible to apply both sound damping + sound insulation .. (superlon + RAAMmat) to the floor panel of my car.. will it be too THICK?? as the superlon alone is 10mm d..

wow it must be costly to aplly RAAmat to the whole floor..how thick is it? I dun have experience with it. You can always use thiner 6mm superlonby the way.

i dunno how thick is it .. actually im still deciding which one to get.. but i've confirm to do 3 layers ( 2 RAAMmat + 1 Superlon) for my door panel.. as for the floor panel. i have think over and over again .. since RAAMmat not cheap .. is it nessasry to cover the whole floor panel with RAAMmat or juz Superlon will do .. as i think (guess) RAAMmat dun do much help on the floor panel .. thats juz my opinion ... mostly DIY .. so the price wont be that high i guess.. unless for the firewall.. cant DIY i guess

Thanks for your advice...
It helps me a lot in understanding it...
Superlon / Insulflex..... with or without Adhensive is good for bonnet setup??
I mean use Dunlop Glue is better??
or
Use the Self-Adhensive type is better??

Thanks.....

i had done
car bonnet, all 4 doors, roof, floor & back bonnet.

i combine insulfex & bitumen strip

for low budget, better use bitumen strip....according to some dampening product seller, they may say bitumen are made for roof leaking purpose....but actually the bitumen will work...cant say 100% like dampening product..but at least it will make it 70-80% for the same thickness with much low cost......so if got budget then go for real dampening product while low budget, go for replacement product.

insuflex and superlon from same manufacturer? i not sure...but as i know some insulation are made in china and the weight are very light.....usually those material are harder and u can have a feel tat it will crack sometime...

for bonnet, best if u use self adhesive...easier and more durable.....dunlop glue wont last long in such a hhigh temp area.....

btw, y not save ur hassle by buying the self adhesive 1? don't u think dunlop glue will messup ur car and the smell is...............

for floor, the best place to do is the center console area, wheel arch area and the boot area.....

This post has been edited by howiechoo: Nov 25 2006, 01:36 AM

yes, SA is better and less messy...afraid there will be side effect in the future when the glue had contact with metal.

Bitumen won't melt under high temperature..i apply them under my bonnet too.

if you could practically take out ALL the plastic panels in your car, stuff them with those soundproofing stuffs.

insulfex & superlon r same material
just the name different coz manufacture name

if u all in ICE
dont use this coz will absorb yr BASS sound

Yes ^^ get a glass wool based mat to isolated the bass from other noise..the one you can get from brothers.

Thanks for all advice from all sifus....
I now understand more about it already...
thanks again...

glass wool is hazardous to the respiratory system
u should use insuflex or superlon
superlon is just basically the 'branded' version
i'm not sure y ppl say insuflex is harder n can crack n all
used it on my dad's car
its been like almost 10 years
still no prob
just installed it on my car
my bro helped me DIY all
if do urself very cheap
whole car less than 300 for bonnet, firewall, roof, entire floor, booth, and also including tar strips for the door panels
i used 3/8inch for everything except my roof...which was 1/4
the 3/8 comes in a roll...4feet by how long u want
the 1/4 comes in sheets....4x5feet

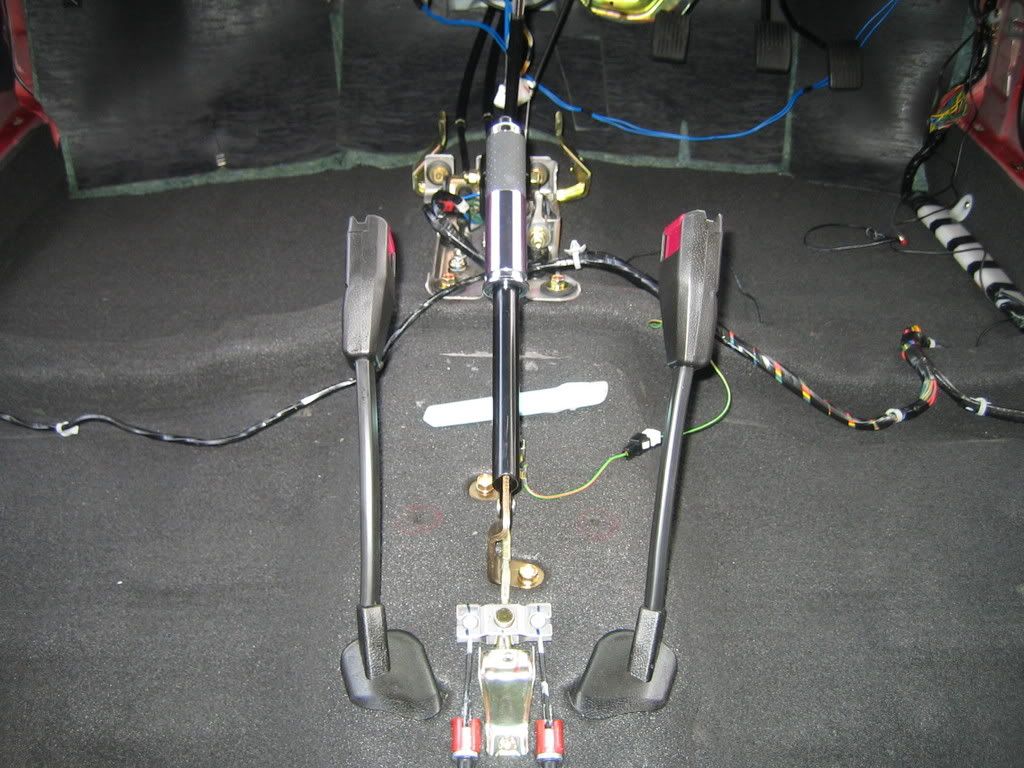

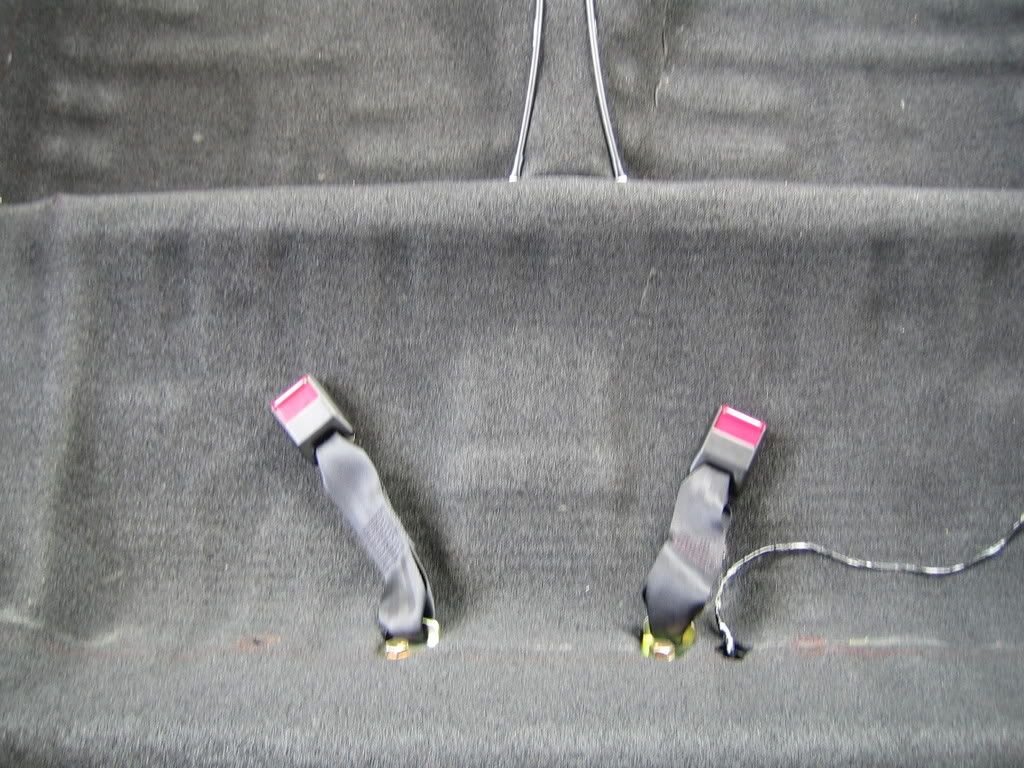

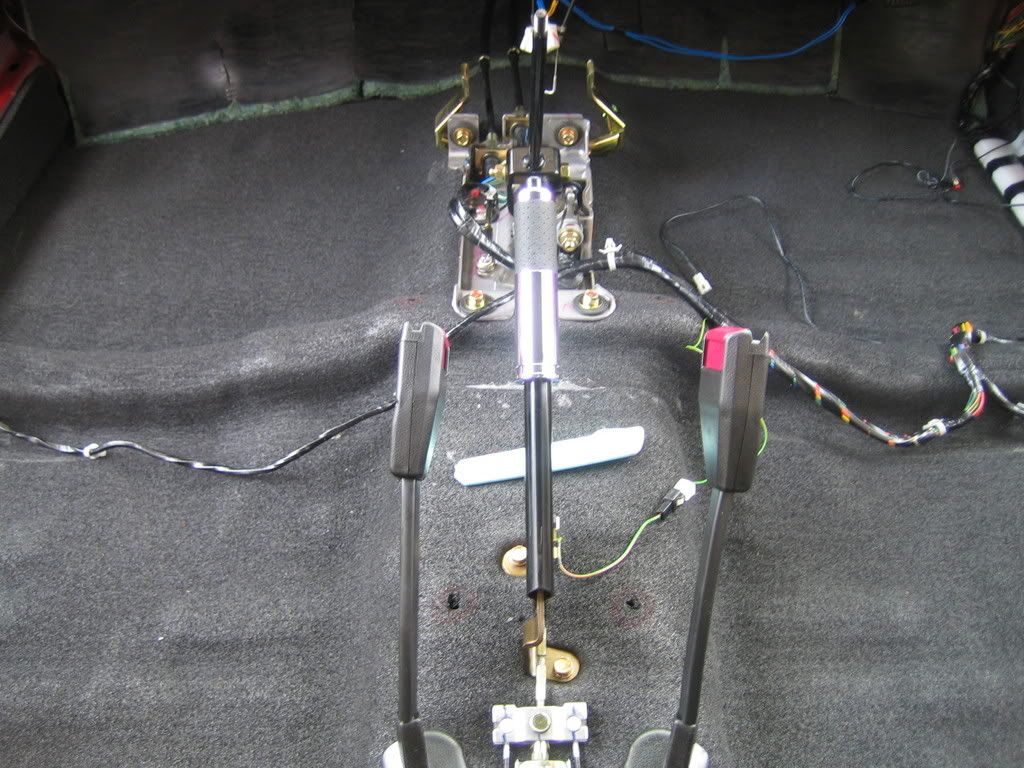

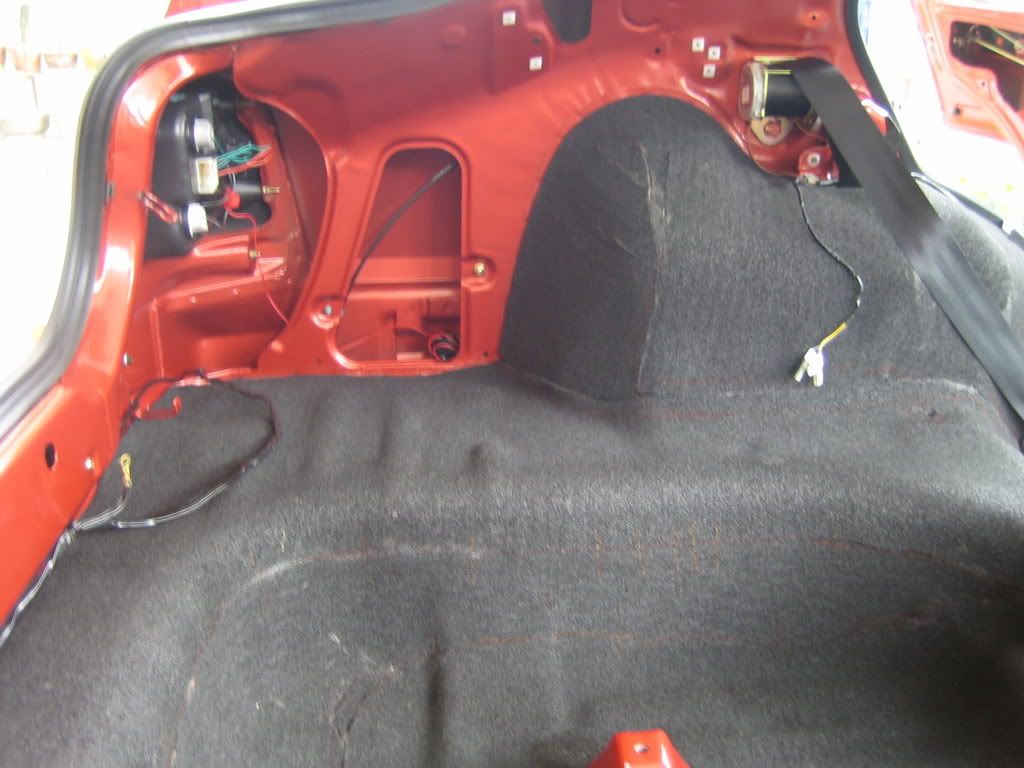

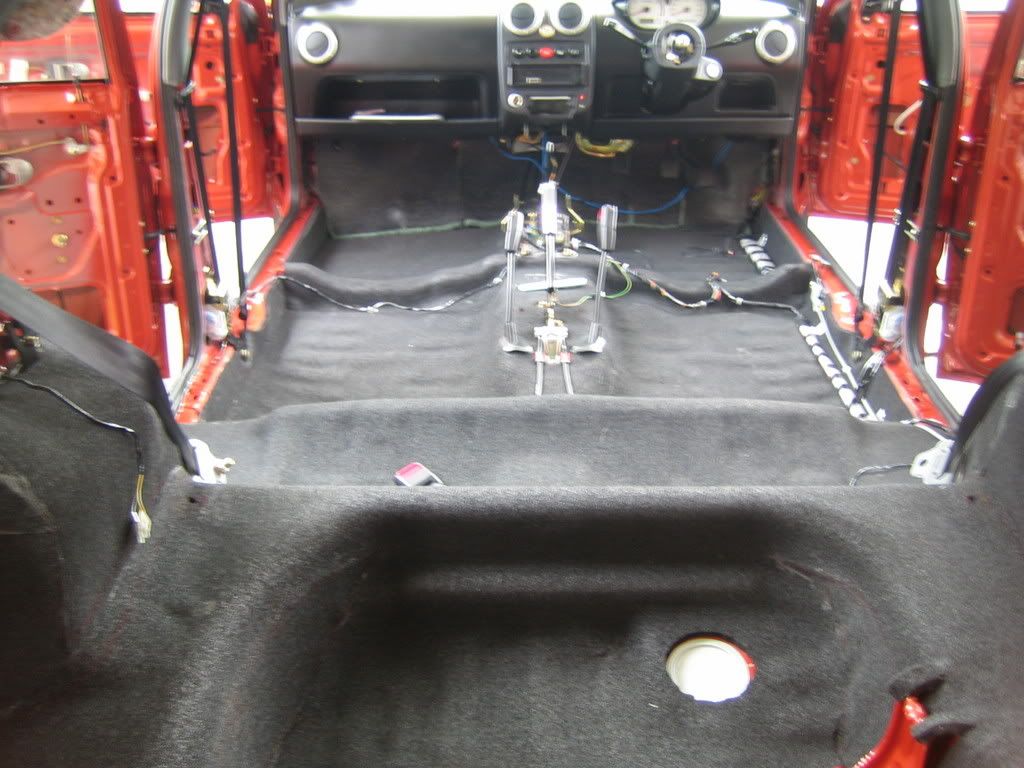

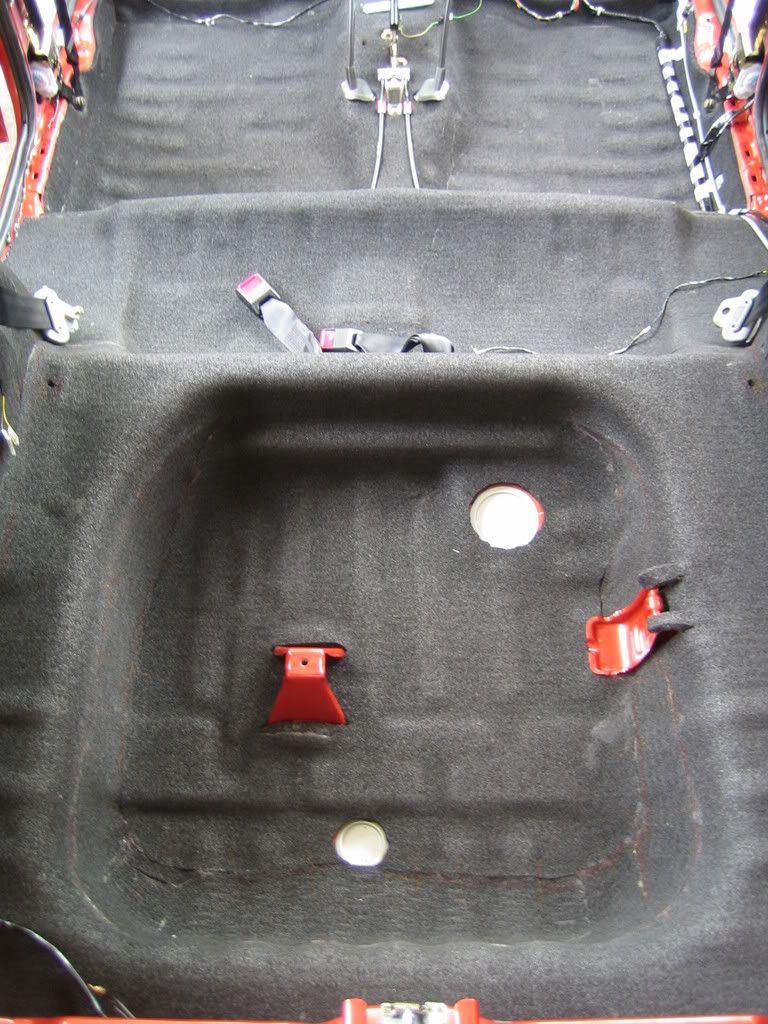

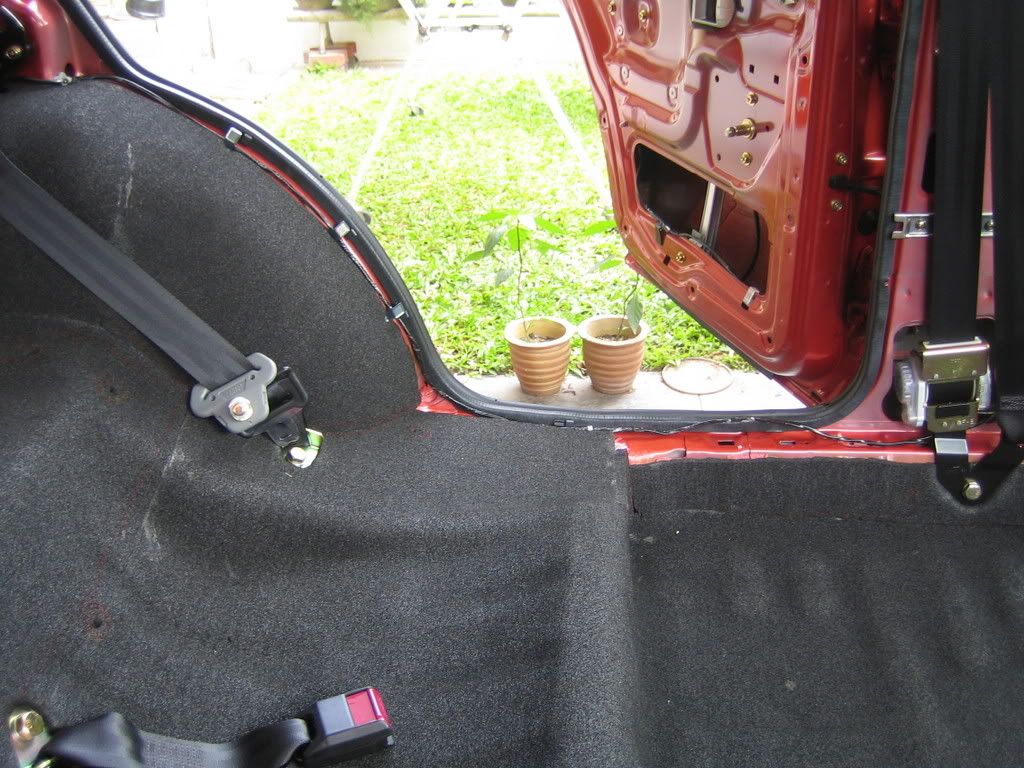

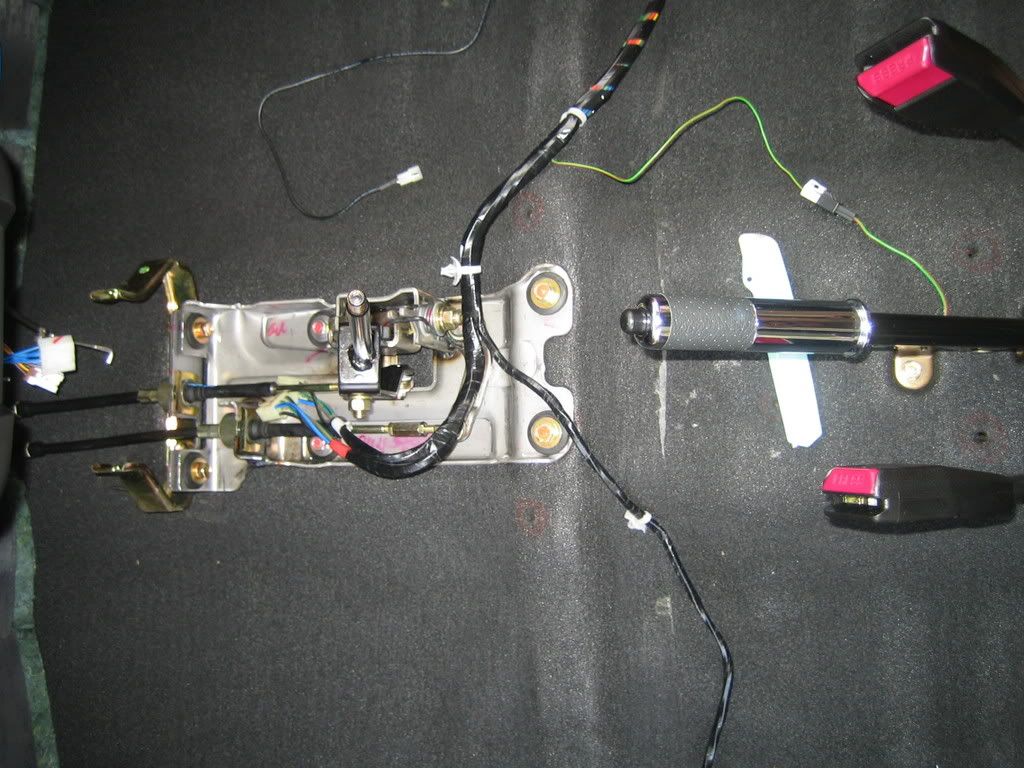

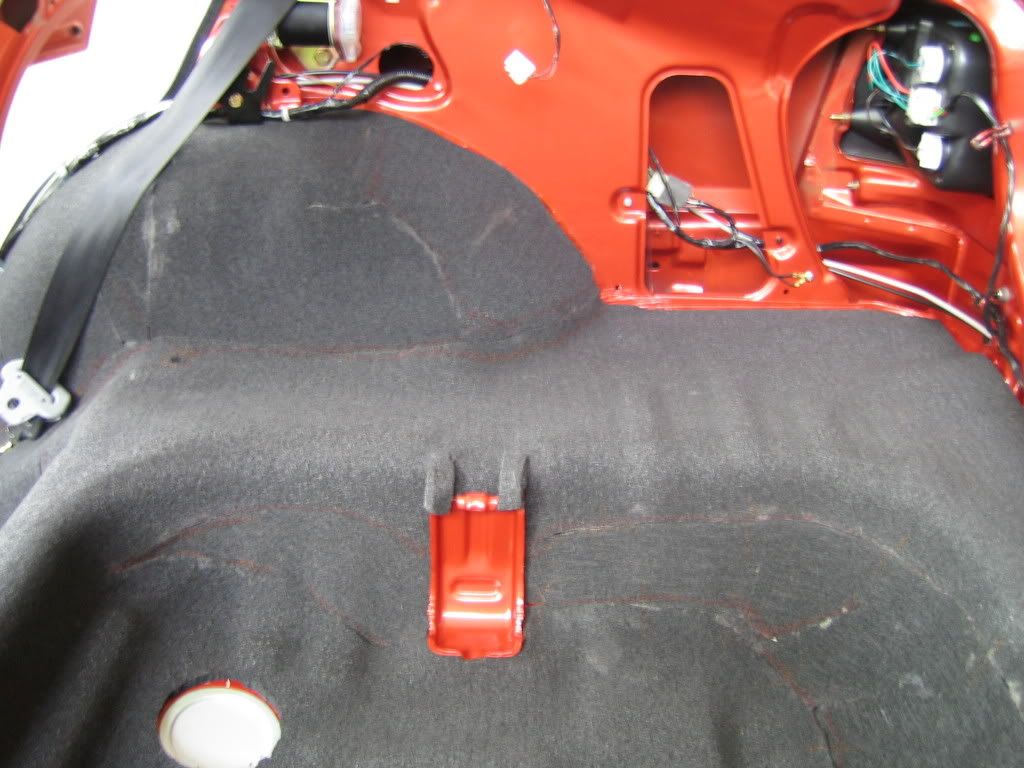

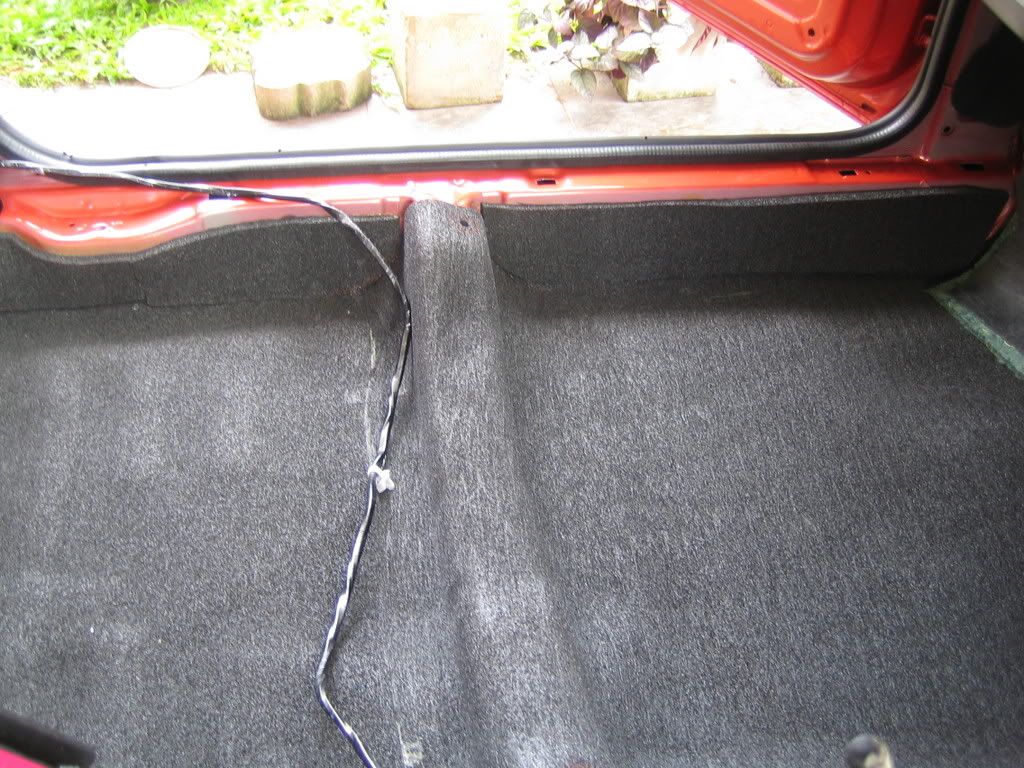

here r some pics of wat i did
i forgot to take pics of the roof
by the time remembered i had fixed back the cover d
didnt want to open it up just for the sake of taking a photo...hahaha
and bonnet n firewall forgot to take too
will take it soon n upload since its all still visible






















This post has been edited by neosaint99: Oct 7 2007, 01:31 AM

bro neosaint99, ur job is impresive man.... care to show the work for ur door and firewall??? i may wan to find 1 day to DIY myself. cheer

the tar strips in the door are behind the panel
taking out the panel is quite a hassle
will take some shots next time i remove em for anything
i just shot the pics for the firewall n bonnet this evening
hvnt copied from the cam yet
hopefully later tonite can get em up

if u plan to do it i dont think 1 day will be enough
u'll need atleast 2 days (with someone else to help too)
going solo for sumthing like this is not advisable
two people is just nice

stripping the car down will take about 2 - 3 hours
then gotta start tracing the bonnet, firewall n roof design with paper
once the paper templates are done can transfer them to the insuflex then onli cut
we took two days ngam ngam
n mine was the 3rd car we did
we've done our dad's car, then was my bro's...n now mine

the interior of the car is done on the fly
basically measure the length lebih kurang,...n cut abit extra....then start glueing from 1 side folowing the contours until reach the other end
then cut off the balance
this is an example where two people are good

imagine jus u alone trying to spread glue for such a large area
sure no time
the glue will be dry by the time u finish anything significant

but i definitely support u doing it
makes A WORLD OF DIFFERENCE!

before did the insulation n door tar the car was like a milo can
now atleast wen close the doors or drive through rain it sounds abit more solid


This post has been edited by neosaint99: Oct 6 2007, 11:03 PM

LOL great work there! dang I haven't had time to do the whole soundproof thing..

Did you strip down the dashboard to soundproof the inner firewall too? cos I see ur steering wheel isn't there wow..

The bitumen/tar strip should be applied to the door's metal panel..it funtions better as a dampener..

not bad for a saga lmst..

yup
i used the tar strips for the doors
2pieces a door
nicely covers the inside
i didnt take out the dash bro
too much work
i installed in the engine compartment je
i took of the steering wheel so i can have more space
much easier to work without it

btw...im not too familiar with all these technical jargon
err..wats a saga lmst? hehe

---

Added on October 7, 2007, 1:35 amhere they are as promised

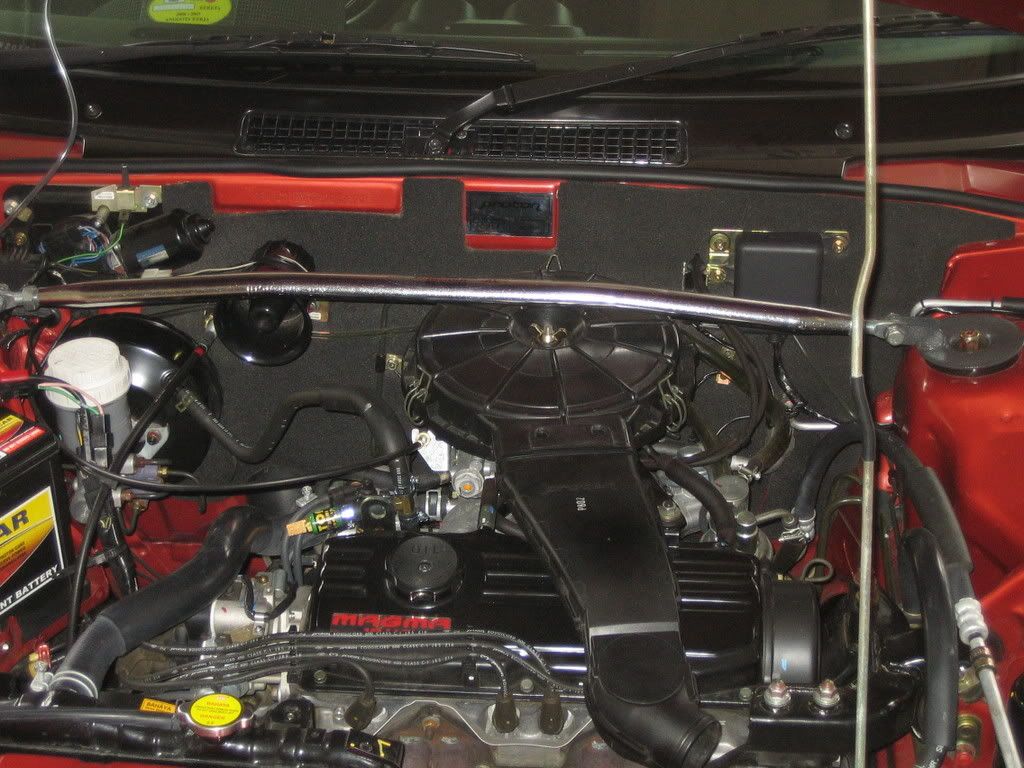

the engine bay firewall is the toughest to do
have to trace slowly slowly with newspaper
easiest is to take off all stuff bolted on to it
then masking tape a heck of alot of newspapers together until its big enough to cover the whole firewall
then use magnets to stick it to the top line
n a few more here n there to keep the paper in place
the slowly use a marker pen n trace the outline
n dun forget to mark where all the holes are too
even inside the car u must remember where all the holes are
if not later u wont be able to find them
n for the holes u will have to burn them out with a hot nail or metal bar depending on their size
coz if you dont n u try to just forcefully screw them in, the insuflex will get caught n start to twist with the screw
and it will then jam your screw and worst case is it will damage the threads of the built in nut which u cant change (i.e. you are screwed)

---

Added on October 7, 2007, 2:01 amif you do the whole car, i.e. whole interior, roof, booth, firewall n bonnet,...bitumen strips will be wayyy more expensive
insuflex is way cheaper
can get it in pj by the roll

dont get the self adhesive for the bonnet
tried that for my dad's car
the glue gives way after a while n we had to used dunlop CA after that
n its lasted
my dad's car is 9 years n counting
its doing just fine in the engine bay (bonnet n firewall)

to diy inside the car u cant use SA
u need the dunlop glue to be wet so you can slide n stretch the insuflex during installation so it will fit nicely
if its SA it will stick on contact n u wont get it contoured nicely
the smell will be there for a few days if you use dunlop
but it goes away pretty fast
after you've done it and reassembled everything, just park your car in the hot sun with the windows down a crack for a few days
n every few hours just come n open the doors n booth for a few mins
it becomes barely noticeable after about 2 or 3 days....and is practically gone after a week

as for the floor, i'd advice to do the whole thing
the floor is one huge sounding board
once you take out the carpet n tap it u'll know wat i mean
same goes for the roof
memang milo tin man that wan
hahaha
a whole car will take about 4 of those big round tins of dunlop CA
they arent that expensive...bout 10 bucks each je...so dont be stingy!!!!!!!
use it liberally or it will dry before you have time to apply the insuflex n get it into place
n the insulation all in all is about 200+
so you can do your whole car for under 300!

This post has been edited by neosaint99: Oct 7 2007, 02:04 AM
