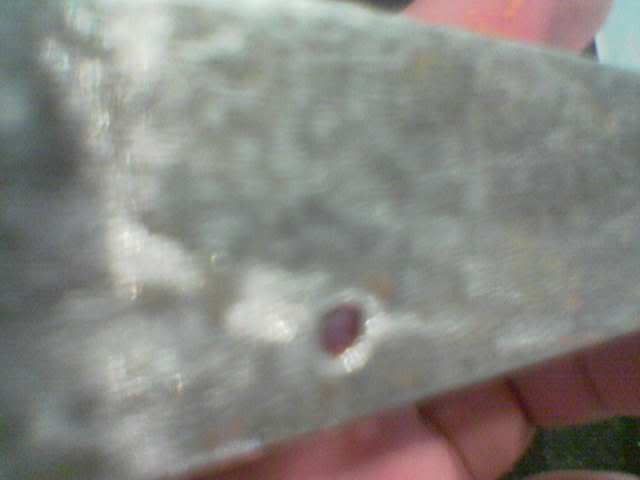

here i scuffed the suface so that paint could adhere to the surface... painted it 3 times before i realised
alu cant be painted on...without prep work....neway i scuffed it with a sanding bit with the drill


painted.....

This post has been edited by lolhalol: Nov 29 2006, 06:05 PM

now i paint the side panel....

i painted this on monday and left it to dry....

we have after 3 coats...

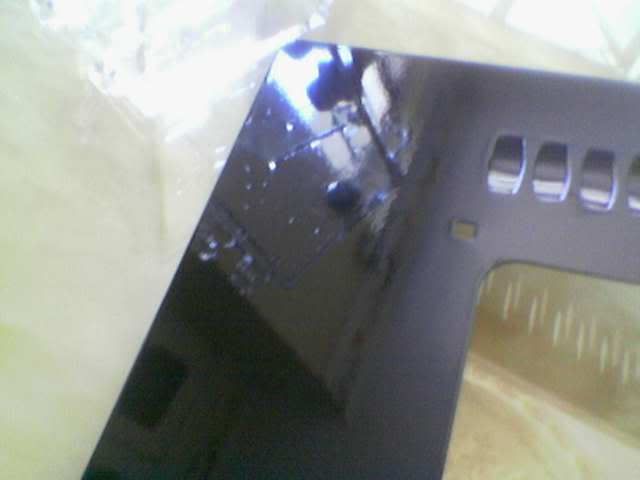

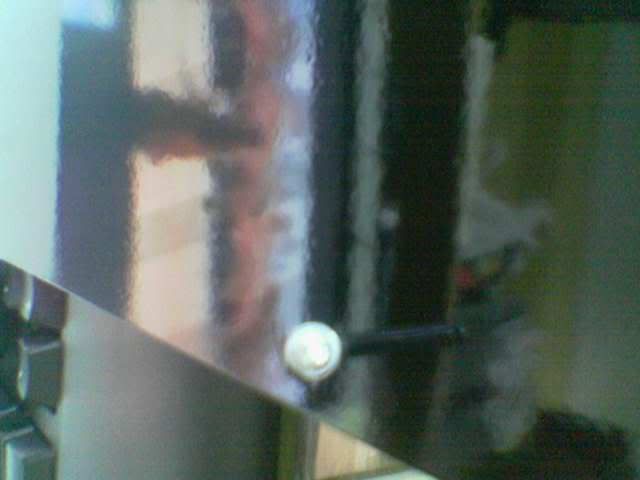

aftere 4 coats... the relflections are unbelieaveble the stupid camera doesnt catch the reflection so well...

anyway
the rason y this mod is called black fire, flame stecills...

first getting the panel orange coat ready....

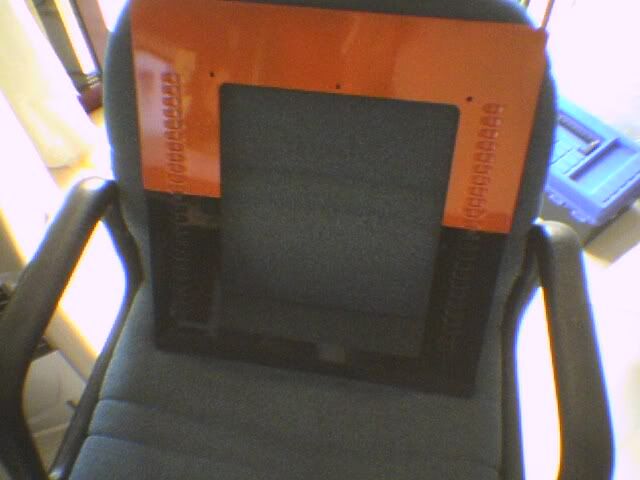

done

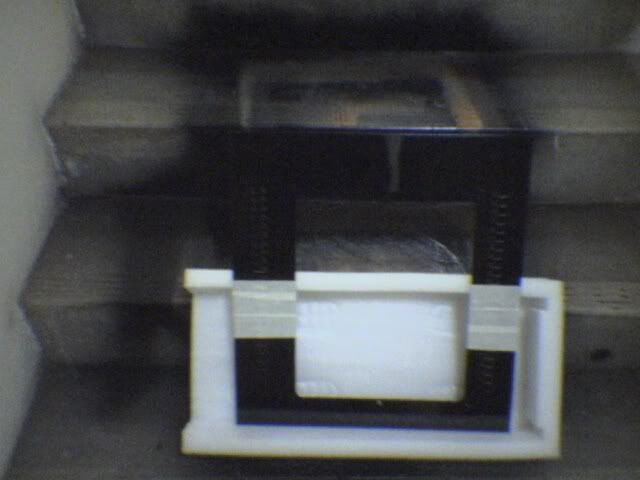

then leave it out to dry....

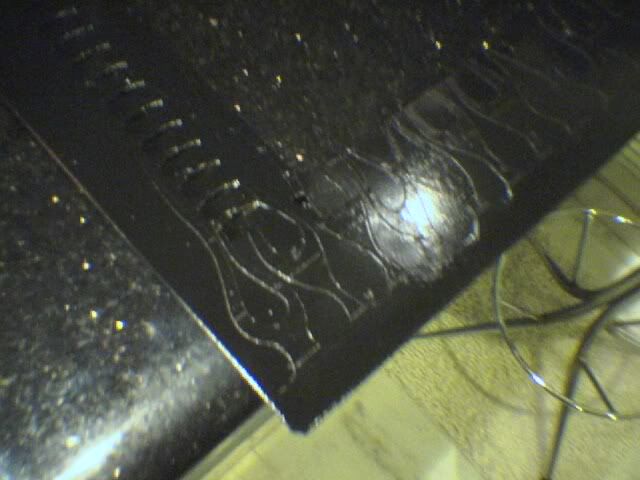

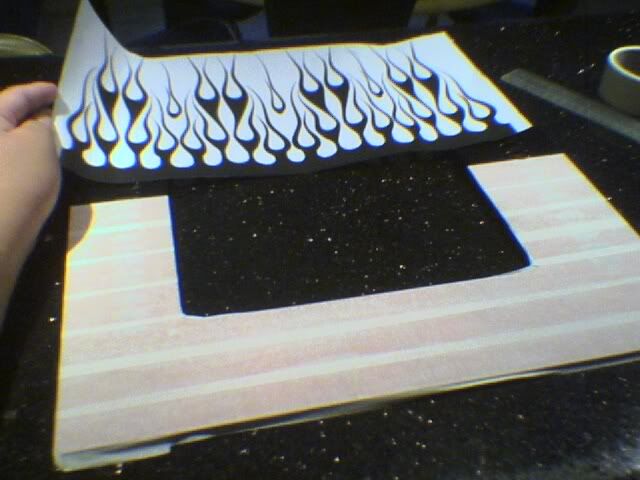

then mask the orange part, and stick the stencil on top and use a knife or blade to cut along the lines....

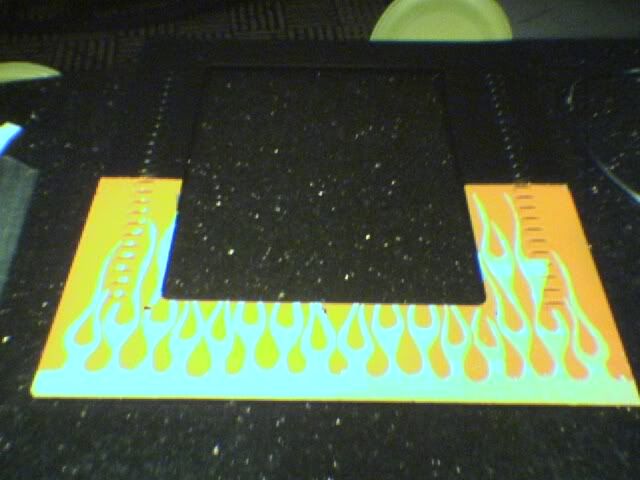

peel of the masking tape and u have this
nice right....

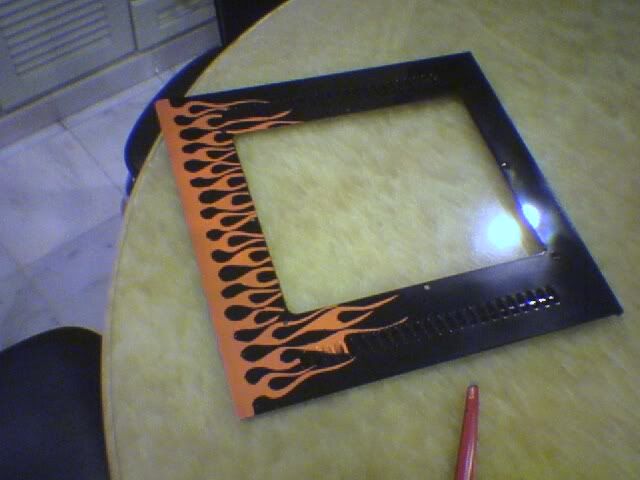

then spray the black over it, and voila u have fire....

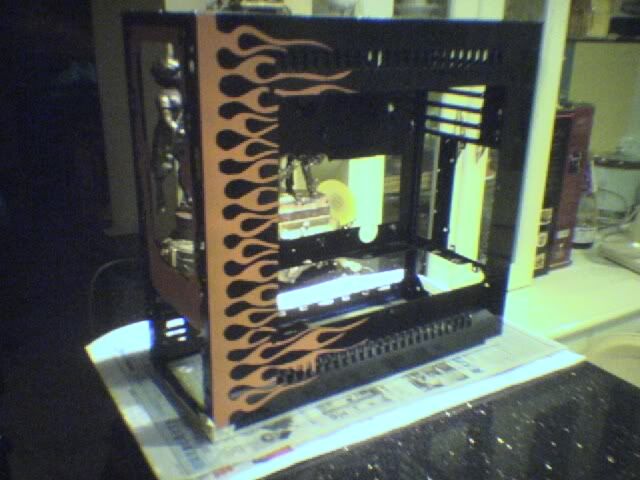

here it is on the case....

then while looking at it , it hit me that i did a stupid mistake i should have painted the other way round.... black first mask off the black and put on the orange part.... i think ill just redo it.,.... neway it still looks sweet thogh....

anyway i put an order through to ppcs
heres a list ... most of the stuffs are self explanatory and is for this mod...
1 x Urethane Bumpers Tapered Square - (Set of 4) - Black
14 x Lian Li Thumb Screws M3 Size - Silver
1 x Vandal Resistant Illuminated Switch - Blue Ring
4 x PVC Rubber Grommets 0.8125" I.D. Hole
1 x A.C. Ryan Toolx(tm) Pin Remover - ATX / P4-12V
1 x Lian Li Replacement Removable Hard Drive Rack Base for PC-6X
1 x Lian Li Replacement Removable Hard Drive Rack for PC-6X
5 x ClearFlex 60 Tubing 1/2" ID 3/4" OD
1 x Ultra All Purpose Computer Assembly Screws
2 x Grommet Edging - Clear
1 x Swiftech STORM Extreme Performance Universal Water-block - Rev 2
1 x Swiftech MCP655(tm) 12 VDC Pump
total=$usd250

should be arriving dis saturday or sunday... im going to go get my camera this weekend too...

neway this mod is stuck for the moment coz i need to go get bondo and sandpaper, and wait for my stuffs..
u can expect a tiny update maybe on friday the earliest....sorry guys....

a funky shot....


This post has been edited by lolhalol: Nov 29 2006, 06:05 PM

k i did some skecthup work and came up with this...

this finish product should be something similar....

neway there is a beter quality one here...


This post has been edited by lolhalol: Nov 22 2006, 11:03 AM

Hehe...I'm just concerned bout the safety of modders. I knw many r simply too eager 2 mod coz it's vry interesting rite�? But nvr 4get 2 take all necessary safety precautions

Regarding the bit, frm my xprience nvr happened so even drill thick steels. Wht u should do is invest in high-quality brands. Or @ least enrobe it w/ damp cloth after evry few drillings

erm... am i the only on who is having trouble viewing his photos ? all i see is user image posted.. Sry if tis is consider spam..

^
I, too, only see 'user posted image'. I guess the website that hosts those pics are down.

Hopefully it's up soon as I'm also curious to see this case's progress

This post has been edited by Aquanox28: Nov 23 2006, 10:16 AM

Maybe server hosting pictures down at moment..
http://img.villagephotos.com

the image host no problem la..... http://www.villagephotos.com/

I can't see any pictures...

TS, care to try hosting those pictures in other image hosting?

I wanna see the pictures of you're mod...

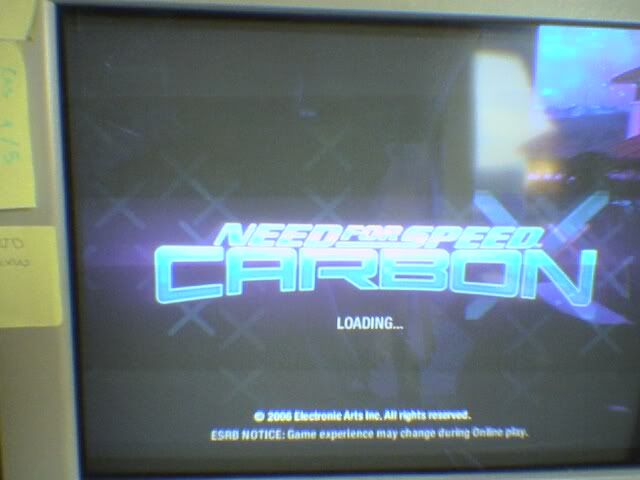

hey guys so sorry bout hte pictures, bt some how i can c all of them... weird eh.... can anyone recommend a good pictures hosting sites...?? thx..neway updates up tomorow, bz playing nfs carbon ...

now i can see them again... haha..
erm.. imageshack.us ????

Photobucket is quite okay i think.

Master Ianho uses photobucket to post all his modding works...

wow from ur sketch the design look real nice.... i like it a lot
keep up the good work dude

lmao pwnage by uncle...

err...kinda newbie question here....what software u use for that sketch??? and where to find that??

yeah i went back to the guy who sold me the bit, he said it is bosch brand i think, i told him bout it breaking, then he also said when the bit become too hot it easy to snap... he say dip th e bit in cool water or damp cloth...

thx bro... finally u post something....

its a program called sketchup, u can get the full version if u pay (mine is full version) or u can download it for free from google coz they bought the company....

k guys..update

got another package today...

hehe Colgate package... thx bombman...

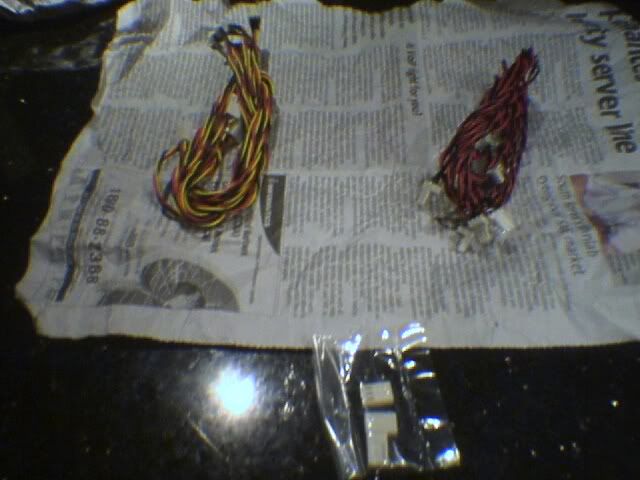

heres what was inside the package....

bt i wanted to add my own touch to it...

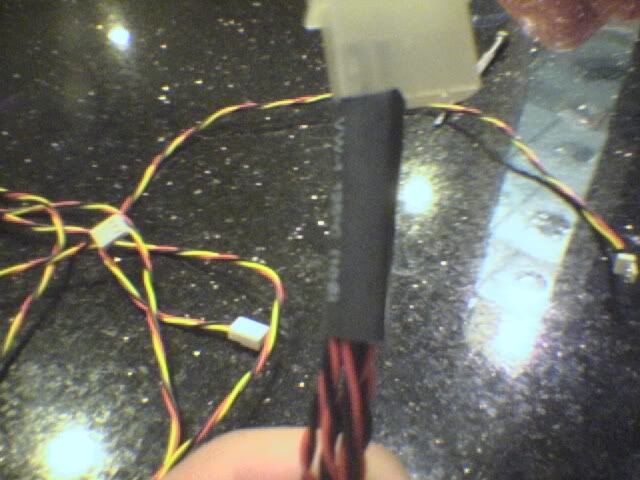

heat shrink the end so that they can take more punishment when pulled...

done



k now back to modding.. so sorry guys bt this update will be very very small.. cant get much done as i need an orbital sander and wait for my stuffs to arrive from ppcs....
neway still i went out to buy some putty(the shop did not have bondo) and sand paper(100grit and 800 grit)...
]

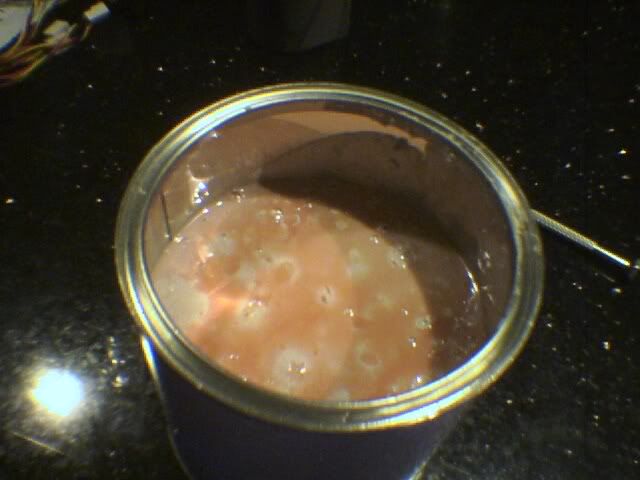

i dunno whats this called , hardener i think....


the putty...


ok where my fingers are pointing at, im gona bondo also the handle thingi on the other side....

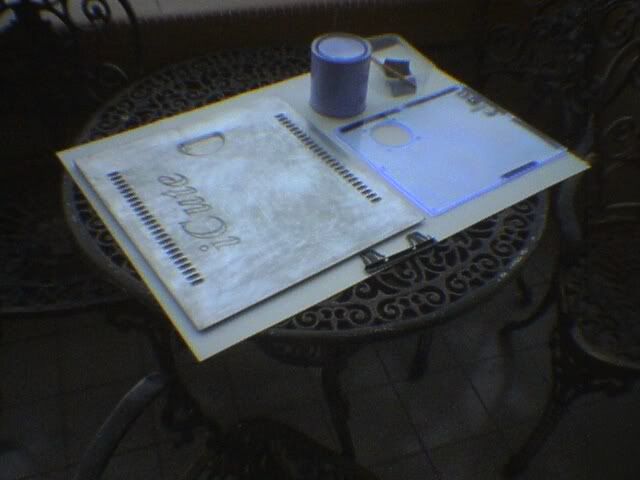

my workspace

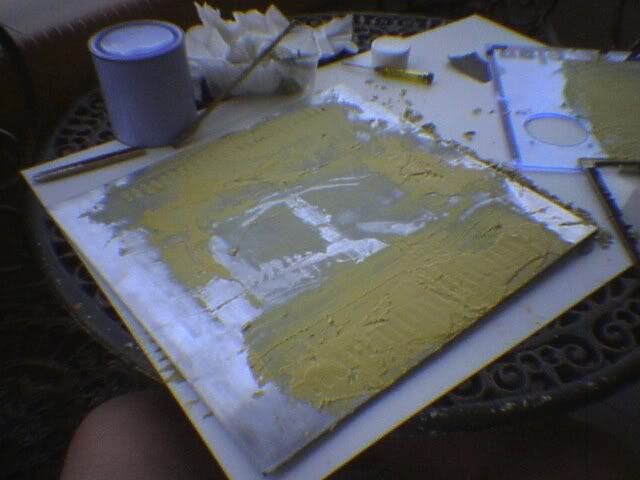

puttied...



edit by mod:Advertising content deleted.

This post has been edited by ianho: Nov 28 2006, 11:12 PM

Disaster

then when i wanted to sand it i realized i put too much putty on , very hard to sand, after one hour i gave up....
so i removed all the putty with a hammer and chisel and we end up here...


i left it alone and went to play




will update again as soon as i get the putty done...thx for reading, and comments are as always welcome, good and bad

Dats exactly why u need the orbital sander. No need lah till wreak the panel like dis. Kasi lingkup

agree with u...just use machine lorr not need to use sand paper anymore..more easier
