 PROTON SAGA BLM, FL & FLX Thread V56, Kuda kuda kuda kuda kuda!

views

lhwj
post Dec 27 2013, 09:58 PM

New Member
*
Newbie
1 posts

Joined: Oct 2010
From: Penang


QUOTE(ruby1288 @ Dec 27 2013, 07:04 PM)
shocking.gif  shocking.gif
siapa ?  brows.gif
*
QUOTE(Mahihi @ Dec 27 2013, 07:58 PM)
our long lost fren,lol.... tongue.gif  tongue.gif
*
lhwj
post Dec 28 2013, 12:08 AM

New Member
*
Newbie
1 posts

Joined: Oct 2010
From: Penang


QUOTE(ruby1288 @ Dec 28 2013, 12:01 AM)
ahhh YAB's FC soulmate  ph34r.gif

If I let u drive my SE, will it be tuned by LC2K ?  brows.gif
result is 0 jerk and 0 semput, FC jump up to 13-14 km/l icon_idea.gif
*
LCK2 tuning only available if you have three pedals whistling.gif

It might work though if you install a clutch pedal for the CVT icon_idea.gif
lhwj
post Jan 1 2014, 03:45 PM

New Member
*
Newbie
1 posts

Joined: Oct 2010
From: Penang


QUOTE(LOGIN @ Jan 1 2014, 03:31 PM)
Hi.. i need help,

Anyone know how to open / take out the whole door plastic panel? my door got dent a bit.
want to try push it from inside.

Thanks in advance
*
Front or rear door? I have taken mine out many many times in the past few weeks trying to solve rattling problem so I've had plenty of practice laugh.gif
lhwj
post Jan 2 2014, 09:36 AM

New Member
*
Newbie
1 posts

Joined: Oct 2010
From: Penang


QUOTE(LOGIN @ Jan 2 2014, 12:55 AM)
anyone?? camne nak buka weh.. rclxub.gif
*
QUOTE(Mahihi @ Jan 2 2014, 01:03 AM)
slide to left,then unpin it..
*
QUOTE(vampirewong @ Jan 2 2014, 01:10 AM)
After you unscrew the screw of the lock trigger, pull the lock trigger out a bit and take a peek inside from the top. You will see a silver rod connect to the trigger and there is black color small plastic securing the silver rod.

Take a test pen and try to separate the small plastic from the rod. Once done, you can take out the lock trigger already.
*
These are your two options. The handle is the hardest part to take out but I've always done it Mahihi's way. After removing the three screws, you need to loosen the clips along the edge of the panel by pulling on the door panel towards you, starting on the bottom and sides. Don't pull the top, because the whole door panel is hooked onto the window frame there. Then with the panel loose, reach inside and disconnect the power window switch socket. Then shake the door handle until it comes loose and then twist it so that it can fit through the hole in the door panel, then push it inside. Then push the whole panel upwards to remove it.

Oh btw did you remove the black triangle trim in the rear corner?
lhwj
post Jan 2 2014, 09:47 AM

New Member
*
Newbie
1 posts

Joined: Oct 2010
From: Penang


QUOTE(billy520 @ Jan 1 2014, 06:22 PM)
ur door got the sound too ya? i too took it out so many times earlier this year and what i found out is i think its the lock, the one u pull up n push down to lock the door, that metal stick vibrating hitting the door metal. i once open it up, hold tight that metal stick and hit the door to create vibration and the sound did not appear. end up i could not do anything cos i cant get anything to hold tightly that metal stick without having the door cannot be locked
*
I finally solved the rattling today! rclxms.gif I practically sponged all the rods in the front and rear door, but it didn't go away. Holding onto the door lock knob and also pulling on the door handle while driving did not help. Even took off the B pillar trim behind the seatbelt but there was nothing loose inside.

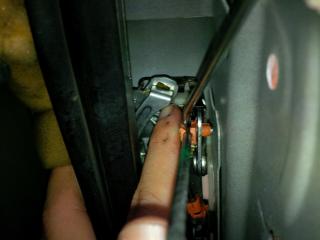

On 31st evening I finally found the cause, which is that part my fingernail is touching. It's the piece that pushes on the lever to open the door when you pull on the inside and outside handle.

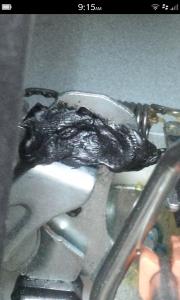

The space inside was tight and I tried tying a piece of sponge but it was still loose. Then I realised the black disgusting stuff holding the plastic sheet could be put to good use tongue.gif

This post has been edited by lhwj: Jan 2 2014, 09:52 AM


Attached thumbnail(s)
Attached Image Attached Image
lhwj
post Jan 2 2014, 11:40 AM

New Member
*
Newbie
1 posts

Joined: Oct 2010
From: Penang


QUOTE(bo093 @ Jan 2 2014, 11:34 AM)
If visor, definitely I will said it is the visor.
I think you missed some keywords on my post  tongue.gif
Here is an image, the black plastic thing on the rear door is circled.

user posted image
*
It's prolly one of the items described as "Quarter panel" in the parts list.
lhwj
post Jan 2 2014, 12:58 PM

New Member
*
Newbie
1 posts

Joined: Oct 2010
From: Penang


QUOTE(bo093 @ Jan 2 2014, 11:55 AM)
Quarter Panel Liner RH? Could be this.
But then, this is part of the rear door. Not the rear quarter panel.  hmm.gif
My mind keep saying is the 'Door rear weather sheeting'
*
The best way to check would be to find a Gaga, (and with the owner's permision) cabut the panel and note the part no. laugh.gif
lhwj
post Jan 2 2014, 02:02 PM

New Member
*
Newbie
1 posts

Joined: Oct 2010
From: Penang


QUOTE(Mahihi @ Jan 2 2014, 01:48 PM)
Hoi, wat is ur hp number? I am stucked in post office now, faster sms me at 0123001933

Who the furk has his number?? Knn I havent lunch yet, many things need to do... vmad.gif
*
Sorry sorry, next time I see you breakfast / lunch / tea / dinner / supper is on me notworthy.gif

This post has been edited by lhwj: Jan 2 2014, 02:02 PM
lhwj
post Jan 3 2014, 02:35 PM

New Member
*
Newbie
1 posts

Joined: Oct 2010
From: Penang


QUOTE(TitanRev @ Jan 3 2014, 12:54 PM)
Since it's 2014....you guys got what 2014 resolution for your car??
*
Find a way to improve Aichi Pockai shifting feel whistling.gif

Any ideas? icon_question.gif
lhwj
post Jan 4 2014, 12:04 AM

New Member
*
Newbie
1 posts

Joined: Oct 2010
From: Penang


QUOTE(TitanRev @ Jan 3 2014, 03:01 PM)
This one you need to ask the blm owners here since I'm using flx mt my shifter feel is different from them. You mean firmer and tighter shifting feel?
*
Have you driven the pockai gearbox before? The shifts are so vague and rubbery doh.gif I don't have much experience with other MT cars but I know it shouldn't feel like this. The only FLX MT I've ever driven was calvin kenni's (a very short one) and it definitely felt better than the pockai.

I'm perfectly all right with the throw length, I don't really need a short shifter though that might be nice. As for ratios I used to moan about 3600 RPM at 110 km/h in those days when I did Penang <-> KL twice a month but nowadays since I hardly leave the Island I'm fine with it. A sixth gear would be nice for those highway cruisers. I think firmer and tighter is a good way of describing the improvement I want in shifting feel and if that could be cured (and after plonk ARB) I can probably say I'm fully satisfied with my Gaga.

QUOTE(Quazacolt @ Jan 3 2014, 08:09 PM)
move on to inspira as daily drive by april/may 2014. plans are underway.

if nothing goes wrong i will be having ASC this weekend, that should kept me covered for most mishaps.
*
Why can't you use the Lala as your daily drive now hmm.gif

QUOTE(kenjilew @ Jan 3 2014, 08:13 PM)
tukar linkage bush...
*
That time I drove your Gaga in Sri Petaling kapak it felt pretty good aldy. You just changed bush only? I wait for davidke20 to review first nod.gif

QUOTE(+Newbie+ @ Jan 3 2014, 03:58 PM)
Mine is stock size 185 60 R14. I pump 35 front 33 rear. sweat.gif
*
Me too. My XM2s still have plenty of thread left after 30k km.

This post has been edited by lhwj: Jan 4 2014, 12:07 AM
lhwj
post Jan 4 2014, 11:37 AM

New Member
*
Newbie
1 posts

Joined: Oct 2010
From: Penang


This is for that guy who asked about the plastic triangle at the rear door corner.


Attached thumbnail(s)
Attached Image Attached Image
