 Haswell, Devil's Canyon, Pentium G3258 OC V1, 4790K/4760K/4770K/4670K/G3258 | LGA1150

views

TSowikh84
post Aug 8 2013, 04:19 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan
Dfordog (Team China) breaks 7GHz Haswell barrier with MSI Z87 Max

user posted image

user posted image
TSowikh84
post Aug 10 2013, 12:08 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan
QUOTE(coolice @ Aug 9 2013, 12:36 PM)
no such 0039 BIOS and it is not downloadable via the link on hwbot
0038 is the latest for now smile.gif

DDR-4404 on M6I tongue.gif
http://valid.canardpc.com/show_oc.php?id=2884680
*
yupe. noticed that the download link is broken.
wow, 4404! that's an older revision of M6I.

This post has been edited by owikh84: Aug 10 2013, 12:10 AM
TSowikh84
post Aug 10 2013, 12:36 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan
Yesterday, five Penang overclockers - kelvinchen, ktek, AceCombat, owikh84 and [Lai] had organized a 12-hour gathering at Swisspac Resources S/B.

user posted image

So we took some mobos and RAMs for a spin under water. One of the OC results are:

Team Xtreem 2666C11 (Hynix-MFR) @ 3466MHz 12-16-15-35-1T @ 1.955v on ASUS Maximus VI Impact | CPU water / RAM air

user posted image

Overall, the gathering was so exciting and enjoyable as we could share with each other our knowledge in overclocking. Hope to see you guys again in near future. thumbup.gif notworthy.gif

This post has been edited by owikh84: Aug 10 2013, 09:59 AM
TSowikh84
post Aug 11 2013, 11:34 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan
this OCF push Samsung sticks like a bawss.. brows.gif

OCF - 2800 9-12-12-17-1T

user posted image

* fixed.. M6I can do 2800C9 at very tight timing as well.

M6I - 2800 9-12-12-17-1T

user posted image

This post has been edited by owikh84: Aug 16 2013, 07:02 AM
TSowikh84
post Aug 11 2013, 11:41 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan
Samsung is sweet wub.gif pushed it higher thanks to great scaling with voltage

OCF - 2870MHz 9-12-12-21-1T

user posted image

Best score from PSC kit at 2600:

OCF - 2600 8-12-8-28-1T
user posted image

Trying 2666 now

M6I - 2666 8-12-8-28-1T
user posted image

This post has been edited by owikh84: Aug 16 2013, 07:03 AM
TSowikh84
post Aug 13 2013, 05:42 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan
QUOTE(stasio @ Aug 13 2013, 02:48 PM)
Bro owi,
did you get your kit 2933 from newegg.my?  hmm.gif
Me...not yet. vmad.gif

Btw,
nice results...up........ rclxms.gif
*
My 2933C12 is not arrive yet ETA next week.

Congratz bro your toys have reached Newegg office safe and sound smile.gif
user posted image
user posted image
TSowikh84
post Aug 14 2013, 09:34 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan
QUOTE(stasio @ Aug 13 2013, 05:45 PM)
Thanks.......yea,they will send me tmr. biggrin.gif
*
Great! Dont forget to share with us how is the overclocking performance of the OC-Force + MFR.
TSowikh84
post Aug 15 2013, 10:54 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan
QUOTE(stasio @ Aug 15 2013, 10:32 PM)
At least my 2933 memory came today....... rclxms.gif
Some results.....not tweaked yet...DDR3-3000......(no time,atm).... blush.gif  sweat.gif
*

Very nice clock bro.
At least it convinced me that this sexy RAM can do 3000 at 1T!! Awesome! thumbup.gif
TSowikh84
post Aug 17 2013, 11:04 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan
QUOTE(slap2begin @ Aug 17 2013, 08:41 AM)
im newbie...anyone can give me guide to oced at msi m power mobo using 16gb 2800mhz ram? really dunno how to set it at bios
*
I don't think if anyone will have the same specs as your rig so can't really give a good guide for overclocking.
There are a few OC Tips & Guides in the first post. Although different mobo, still applicable.

ASUS Z87 OC Guide
ASUS MVIE OC Guide by Shamino
[OCers] 3 Step Guide to Overclock Your i7 / i5 Haswell Platform
[ROG] ASUS Maximus VI Series UEFI Guide for Overclocking
[OCN] Gigabyte Haswell/ Z87 OC Guide
[XS] How to OC Samsung with ASRock on Z87-OCF
[LYN] cstkl1's OC Guide on Stability (Part1)
[LYN] cstkl1's OC Guide on Stability (Part2)
Good luck!

This post has been edited by owikh84: Aug 17 2013, 11:05 AM
TSowikh84
post Aug 22 2013, 07:17 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan
Latest BIOS 1.70 dated 8/20/2013 for

OCF (non AC): http://www.asrock.com/mb/Intel/Z87%20OC%20...ownload&os=BIOS
OCF/AC: http://www.asrock.com/mb/Intel/Z87%20OC%20...ownload&os=BIOS

1. Improve VGA compatibility.
2. Improve memory compatibility.
3. Improve "UEFI Tech Service" function.

BIOS 1.80 dated 8/27/2013
Improve the memory compatibility.
Same links as above.




This post has been edited by owikh84: Aug 30 2013, 07:42 PM
TSowikh84
post Aug 25 2013, 12:59 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan
QUOTE(arerife @ Aug 25 2013, 12:50 AM)
Okay, i want to ask what different using intel burn test and linx?
because now Im using intel burn test, i can hit 4.5Ghz (1.255v) with max temperature 78c
But when im using prime95 it hit 93c.
*
IBT and LinX have the same stressing engine so use either one will do just fine for you.
Your IBT/LinX might be outdated with no AVX instruction to yield GFlops 130+. Try the LinX in the first post which should work well for Haswell.
By rights at the same vCore and CPU frequency, IBT/LinX should generate more heat than Prime95.
Good luck

This post has been edited by owikh84: Aug 25 2013, 01:01 AM
TSowikh84
post Aug 25 2013, 01:10 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan
QUOTE(arerife @ Aug 25 2013, 01:07 AM)
if im using the LinX on the first page you gave.
I need to put maximum problem size and memory?
*
Just click on the "ALL" button:
user posted image
TSowikh84
post Aug 26 2013, 07:12 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan
QUOTE(arerife @ Aug 25 2013, 10:26 PM)
what the ideal vcore range for 4770k?
i thought 1.26 already high on 4.5Ghz.

Edited:
i followed the cstkl1 guide using linpack 11, and i got 100c on core 2 while stressing 4.3ghz on 1.2v
i reduce vcore it wont boot up. But when im using IBT, i only got 93c max temp on core 2. Others seem fine.
*
IBT/LinX in the first post is older eg. 10.3.7.012 and like I reported earlier the IBT/LinX 11.0.5.009 is not working with Haswell i7 (error out within the first run).
Linpack is more stressful because it has a newer library (11.0.5.009).
So, can say that linpack 11.0.5.009 is the best app to stress Haswell atm.
TSowikh84
post Aug 26 2013, 08:39 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan
QUOTE(arerife @ Aug 26 2013, 06:41 PM)
This is my result 4.5Ghz/1.26v noctua NH-U14s Pull configuration
Corsair Vengeance  1866Mhz CL9 - 2400Mhz 11-11-11-30 1.62v / 2200Mhz 10-10-10-27 1.5v
But i dont know why cpu-z keep showed 1.28v. Can someone explain me about this?
Help me if i'm doing it wrong.
*

Nice try. A good start before going to a more stressful stability test such as linpack/LinX/IBT/Prime95.
Welcome to the club mate. brows.gif

btw, AIDA doesn't really stress the RAM at all and the vCore as well that's why I have stopped using it. My 4.5GHz with M6E:
» Click to show Spoiler - click again to hide... «


This post has been edited by owikh84: Aug 26 2013, 08:41 PM
TSowikh84
post Aug 26 2013, 08:47 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan

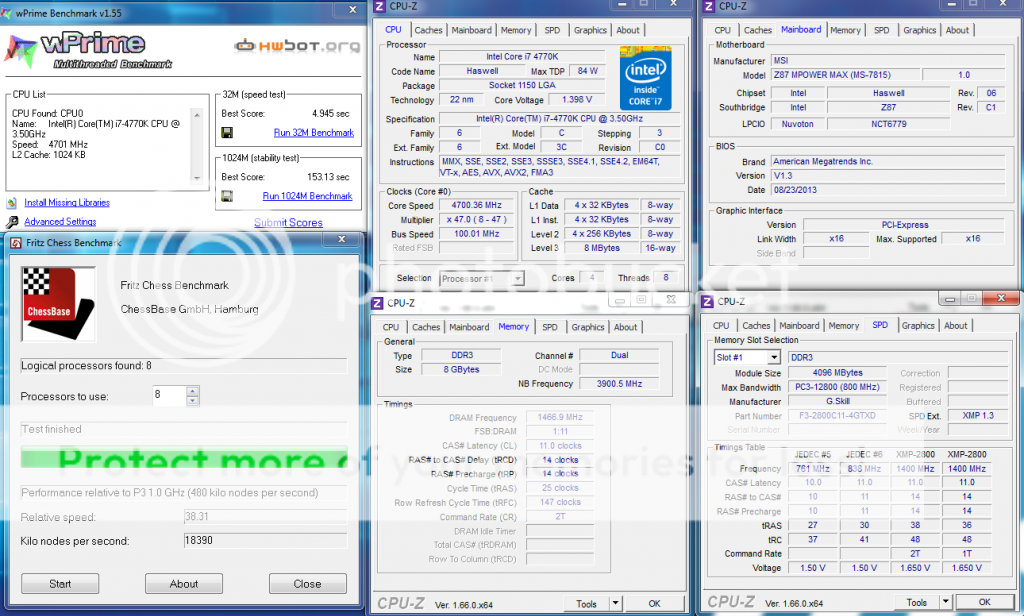

user posted image

Got a tad better with Olive Green theme but still can't reach sub 20s

user posted image

This post has been edited by owikh84: Aug 26 2013, 08:49 PM
TSowikh84
post Aug 26 2013, 10:03 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan
QUOTE(stasio @ Aug 26 2013, 09:53 PM)
AIDA64 must be set,to stress the RAM ......Preference/General/.....Memory Block Size (512 MB,1 GB,2 GB)
as by default is 16 MB only..... sweat.gif

*

Oops missed that. sweat.gif
no wonder my vCore was so unrealistic haha
TSowikh84
post Aug 26 2013, 10:09 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan

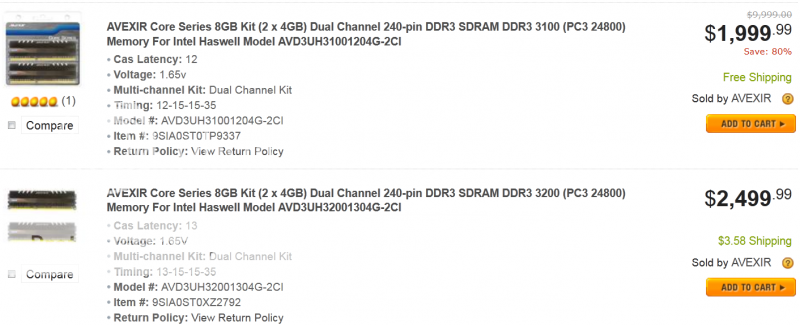

Who's gonna get this/these? brows.gif drool.gif

user posted image

http://www.newegg.com/Product/Product.aspx...=9SIA0ST0XZ2792
http://www.newegg.com/Product/Product.aspx...=9SIA0ST0TP9337
TSowikh84
post Aug 28 2013, 03:09 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan
My 2933C12 has just arrived Newegg MY office expecting to reach me tomorrow thumbup.gif

user posted image
TSowikh84
post Sep 10 2013, 03:51 PM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan
So, the latest LinX 0.6.5 (11.1) is the most stressful test for Haswell.

I will give it a try later.
TSowikh84
post Sep 12 2013, 06:56 AM

i7 Clan
Group Icon
Elite
8,711 posts

Joined: Nov 2007
From: Butterworth, PG / Machang, Kelantan
Today I have the opportunity to play with the MSI Z87 MPower MAX.

user posted image

user posted image

user posted image

user posted image

My first impression: it is a great board with so many overclocking features in the BIOS settings. The yellow color scheme is unique! wub.gif

This post has been edited by owikh84: Sep 12 2013, 07:01 AM
