QUOTE(Quazacolt @ Jan 7 2014, 10:20 PM)

QUOTE(xakarix84 @ Jan 7 2014, 10:37 PM)

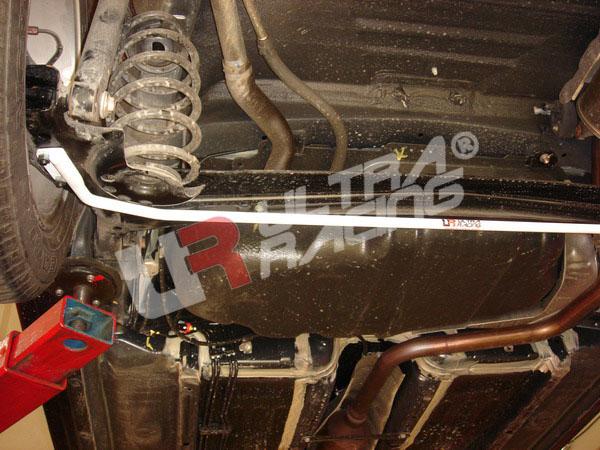

izzit this torsion beam with stabilizer u guys talking about?
[attachmentid=3805361]
btw dudes, did ur lower driver and co-driver seat look like this????
driver side, DAT STEEL!!! no wonder the road noise so obvious!
[attachmentid=3805363]
co-driver, what is this black thingy?
[attachmentid=3805374]
let me check the underseat after work.
for me, the main culprit of the roadnoise resonance comes from your hollow rear boot. Get that fixed and you will feel much more bliss.
QUOTE(davidke20 @ Jan 7 2014, 11:42 PM)
Rox,
Anti Roll Bar main function is to transfer OUTTER wheel lateral force(if turn right, left wheel is outter wheel), twist the force from going down INTO going UP for the inner wheel(in the same right turn, right suspension to be lifted up). In short, angkat kaki so the right side of the car will be glued ON the road surface. In that case, because of higher lateral force being transferred to the inner wheel, infact the higher cornering speed is applicable, hence lateral G will be INCREASE. I wouldn't want to decrease my G reading after all.
For your information, torsion beam itself is a twist bar. With or without an ANTI ROLL BAR, it will still twist.


Having a well designed anti roll bar, it will REVERSE transfer weight from 1 side to the other, to counter the torsion beam twist.
Do take note, the 2 pictures of product I've posted are totally different. 1 is bolted on the spring mounting place, another 1 is bolted with a linkage at the absorber mounting. I'm just saying, the 1 you said common anti roll bar, which indeed common among all UR fans is NOT what I want. I want the 1 that UR only posted for P42. On the other hand, to correct you an anti roll bar does not increase chassis rigidity. ARB is unsprung(situated below spring), so has nothing to do with chassis works. If you want to increase chassis rigidity, this 1 will because it's bolted between the 2 main chassis frame.

My ultimate question is, whether the 3 models of Vios share the same torsion beam. If yes, I can proceed to get the P42 anti roll bar UR produced, and install it on a dugong.
Cheers and no hard feelings please.
very detailed explaination~~
now i understand what you~
