hi, do you believe in love at first sight? i do coz it happened when i saw the prodigy casing.. then i decided to change from tj08-e to this beautiful beast prodigy, i call it the dark G rises (prodi 'gy')

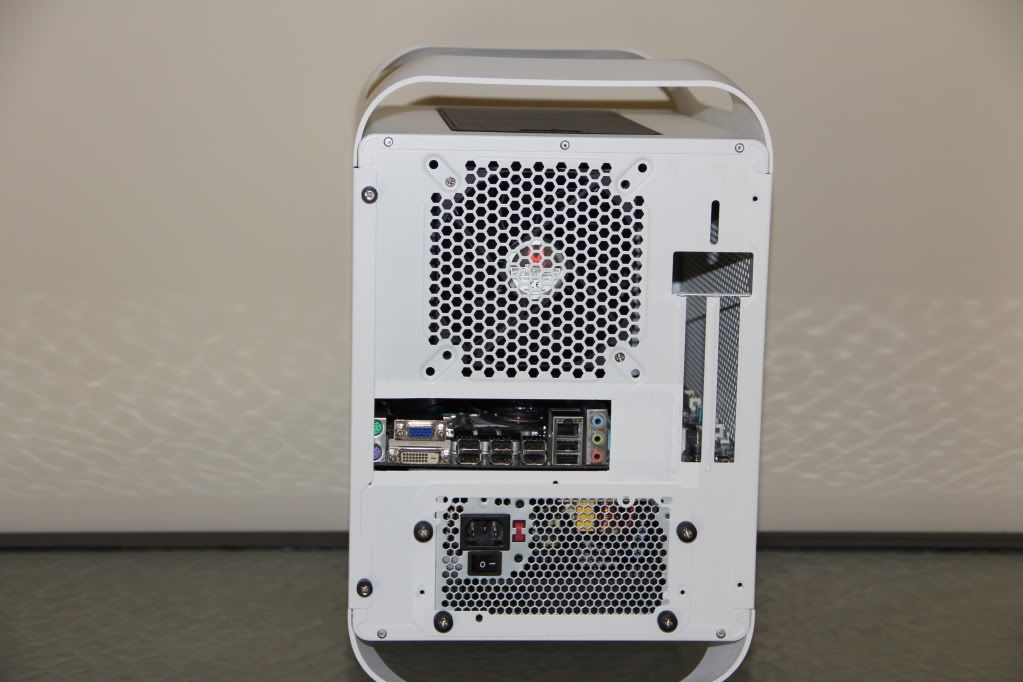

i'm sure u guys have seen the casing before, here's mine



i'm planning to do a custom water cool in this build. i bought the psu



and the ram last night



the purpose of choosing the ax650 is because it can support up to the top gpu currently, gtx690 and itx mobo can only put a single card so no sli/cfx, 650w is more than enough for this build. and another reason is its wording color, gold/white/black, to match with my mobo, asrock z77e-itx (eta next week)

for the ram i chose black is for the same reason, the theme color

below is the unboxing, nothing special

the psu



and the ram



This post has been edited by zerohunter: Jul 20 2012, 01:37 PM

nice RAM .

and about the water cooling parts, what i got are

ek dcp2.2 res + pump combo , ek xt 240 rad, tfc 120 rad, xspc rasa, primoflex black tubing, bitspower fittings, and gt1850 ap-15 fans



i'm thinking to put the 120 rad at the front panel, and the 240 rad on top, this is how it looks at the front panel setup





top panel setup





This post has been edited by zerohunter: Jul 16 2012, 10:38 PM

i'm thinking where do i put the pump,

here



or here



anyway this can be determined later

the clearance between the 240 rad and 120 rad allowed me to do a push/pull on top rad, need to get more fans then



the next thing is i try to put in the psu and see how it goes



first attempt was without the cables and the space is quite tight

and now with cables



it's very small space there so i have to bend the cable real bad to fit it in....

This post has been edited by zerohunter: Jul 16 2012, 10:38 PM

I have read somewhere that Bitfenix gonna sell those PSU extension chassis

oh really? anyway i still can fit in the psu in the case, hehe

haha ..you took the black casing
i've seen many witht the white casing .. i find the black to be much btr though .. i'll be making mine maybe by 3-4months .. hope so

nicely done bro..

Whoa bro....you start really fast huh...Nice looking build

saw at other forum.
tis fella mod matx mobo to prodigy

Why don't u post it Here ???

This post has been edited by zerohunter: Jul 16 2012, 10:38 PM

^ bloody ugly ...
I wont put my M-ATX like that ...

BTW TS .... what gc ? I saw u wrote GTX690 ......
Do you plan to watercool it also ? since u have like 3.120 setup hhaha

ha ? gtx690 ?? can't afford that la.....gpu i'm still considering which model to get....will decide once i get my mobo, hehe

what is 3.120 setup? yes i'm planning to water cool the gpu as well.....

i suggest you reference gtx670. small,cute n powerfull..match the prodigy..ekeke

Yeah, finally a worklog, will follow this build.
Goodluck bro.

yeah 670 reference is a killer for cuteness + with the new heatkiller uni block ... drooling edy ...

3 x 120 rad la ..u got 240+120 ....the front rad are fugly to me ...so I was thinking "if" no watercooled gc ..no need la then hahaha....maybe a slimmer one would be nice oso

very nice one, got the pic of completed rig?

i will consider about that

yeah, can't wait to start with what i have now....

i will wc gpu as well so i guess this rad setup are quite fully utilized , hehe

ah not yet, coz mobo not yet arrive, already booked now waiting ....

currently i have 4x ap15 fans for 240 rad push/pull. do u guys think should i get another 4 pieces same ap15 fans (cost around rm23x) or aerocool shark red fans (cost around rm100) for push/pull 120 rad and 1x intake above the rad and another 1 exhaust at back casing?

BTW are sure ur 2.2 EK pump can handle the water flow ..when u add the gpu block later on ...
