okay, i spent my whole weekend modding all these for the forummers here, i want to thank them for supporting my mods because i incidentally, a lot of these design are new ones and i wont be doing it unless someone wants it.....

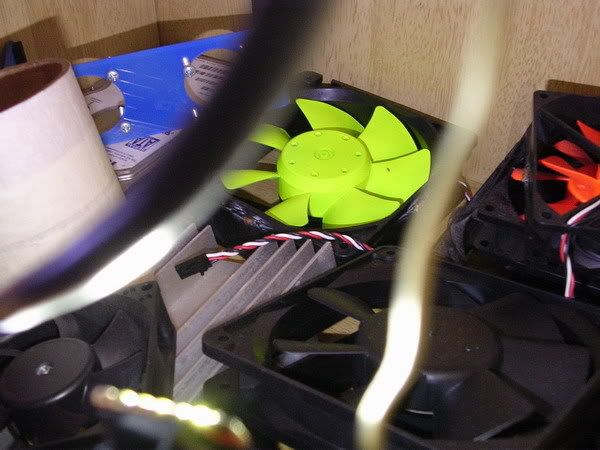

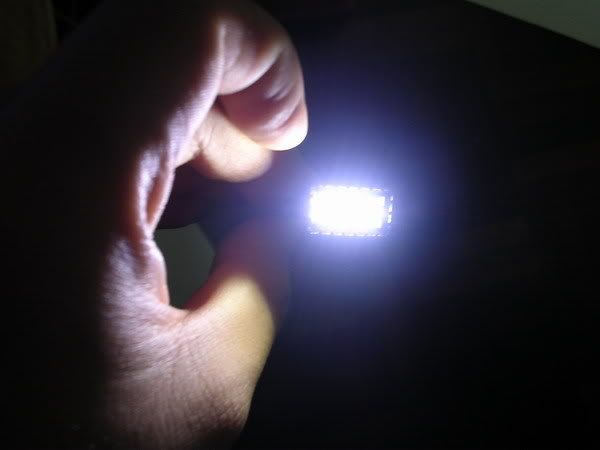

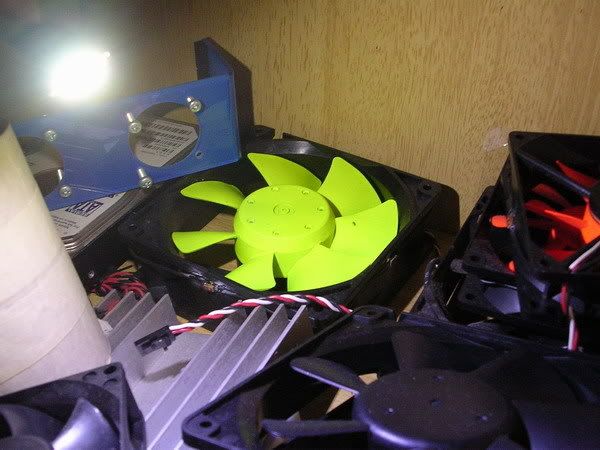

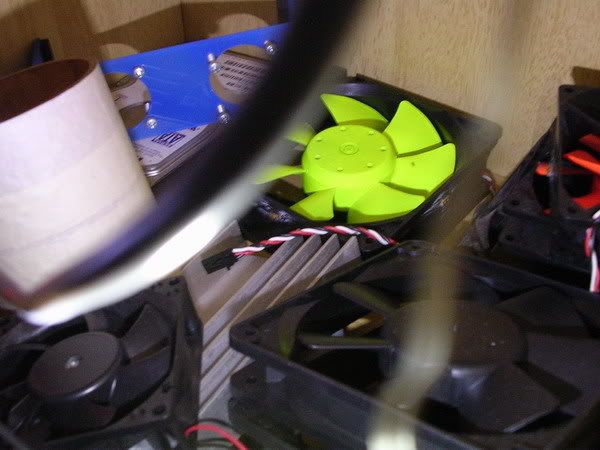

first of all, this is an USB light......the forummer requested this to take his macro shots....
since normal 5mm has got a focussed beam, SMD is more suitable for general lighting because it has a wide angle beam....

there are a total of 20pcs of white smd led on the pcb, and it's USB powered

so enjoy the pics !@









This post has been edited by AllnGap: Nov 15 2006, 11:42 PM

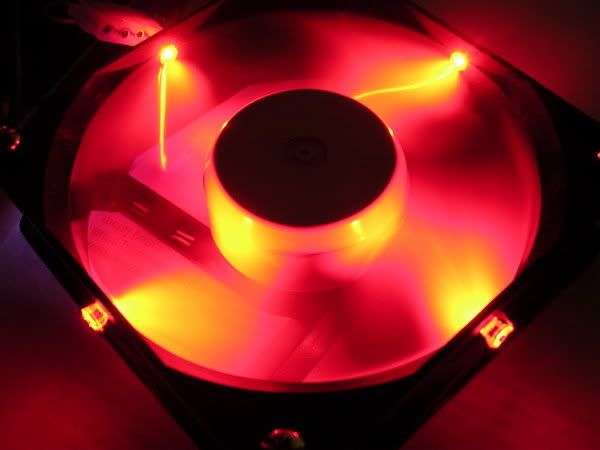

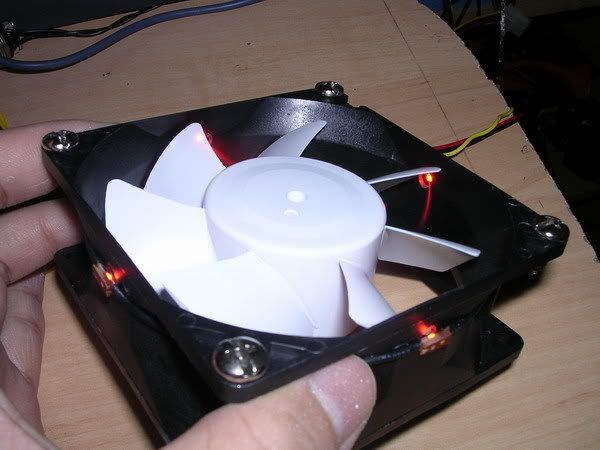

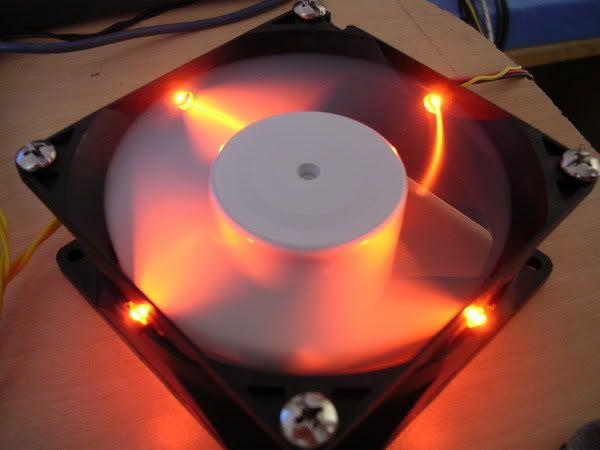

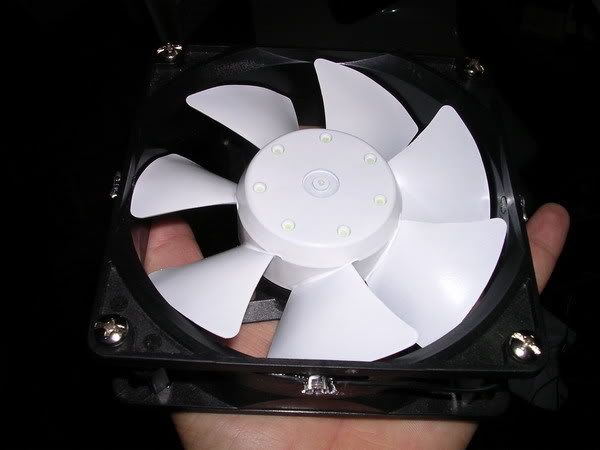

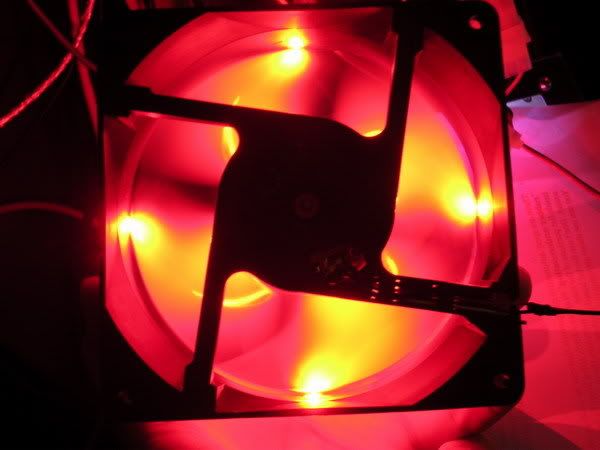

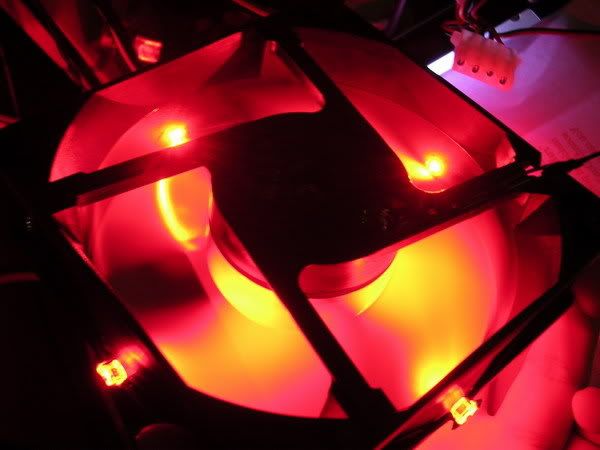

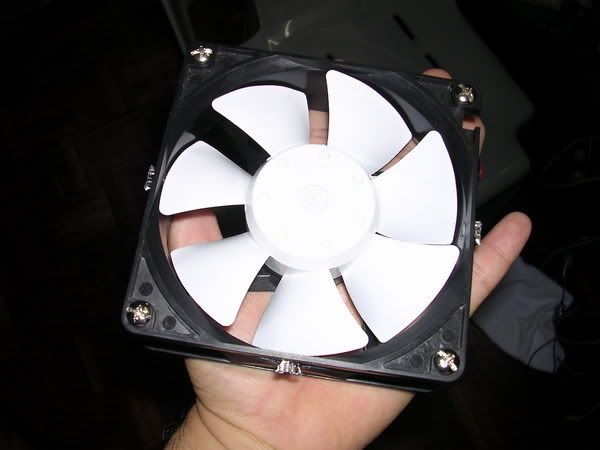

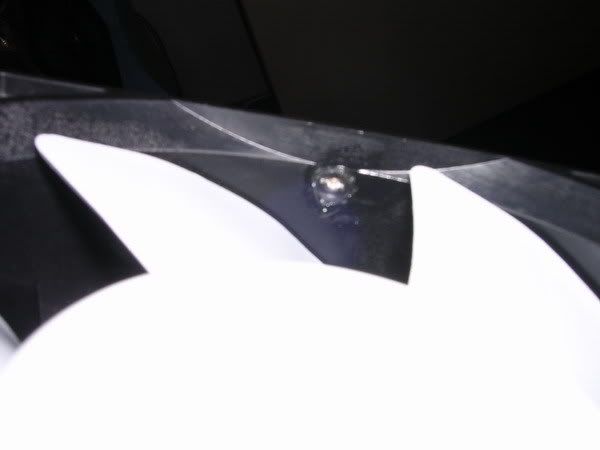

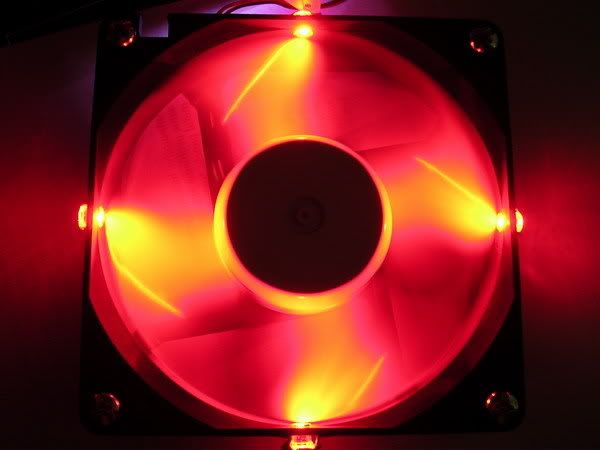

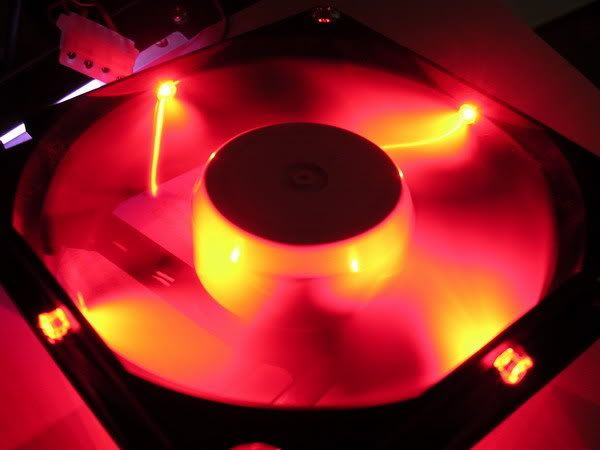

this is a bling bling 120mm NMB with fire theme......used super bright red for the 4 corners and sprayed the blades to white to maintain maximum tone from the red light......

i've even modded the 5mm LED myself to obtain this kind of effect.....due to the 5mm dome shape, the light will form a line on the blade instead of the effect you see now....
so, i've reshaped the epoxy cover to make it flat so that light can come out at all direction, giving the flood effect you see now

hope you guys will love it !

btw, it's also for a forummer here.....hope he likes it too











This post has been edited by AllnGap: Nov 15 2006, 11:46 PM

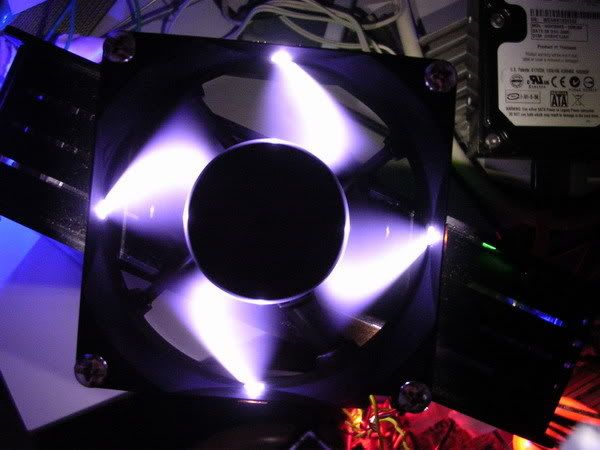

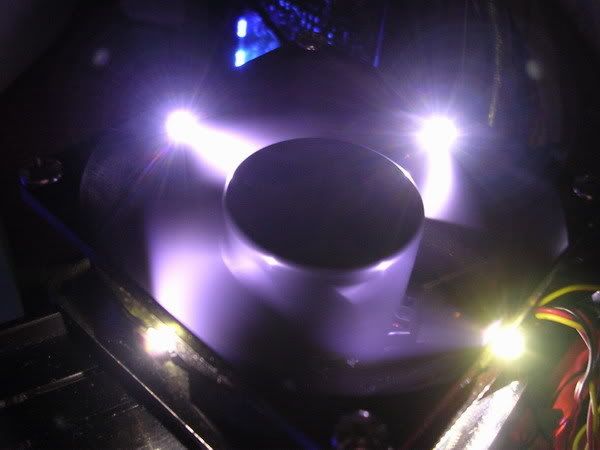

this is a modded 92mm Nidec Beta V with white SMD LEDs.....130cfm fan with bling bling




This post has been edited by AllnGap: Nov 15 2006, 11:49 PM

this is probably the nicest theme......the forummer ask me to mod this after he saw what i can do with the sanyo denki........
design is great, good airflow and powerful fan.....just perfect !!!!!
i'm using 3x of these fans for my incoming pc












This post has been edited by AllnGap: Nov 15 2006, 11:50 PM

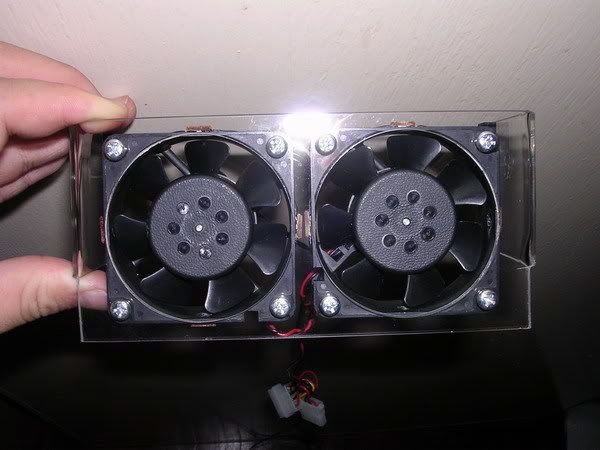

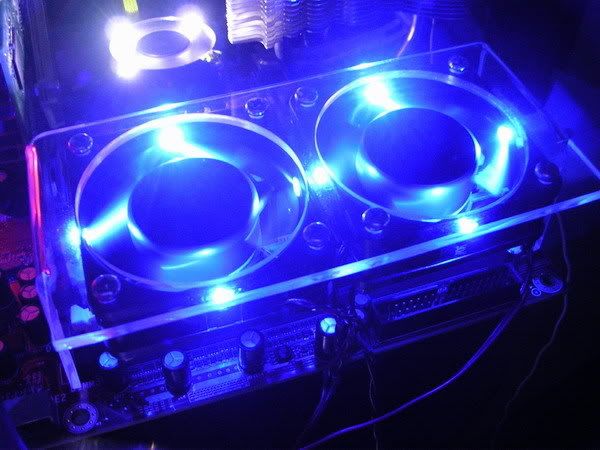

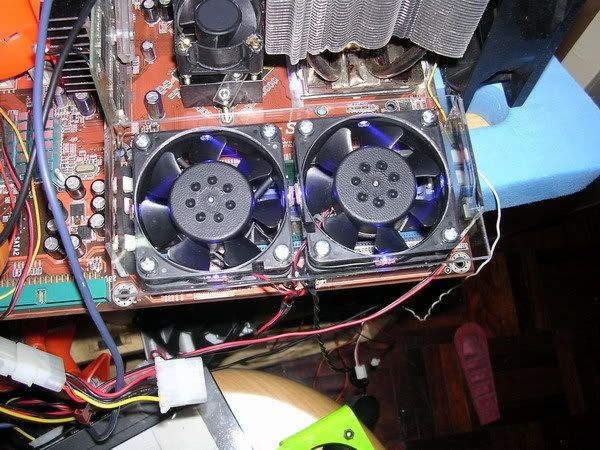

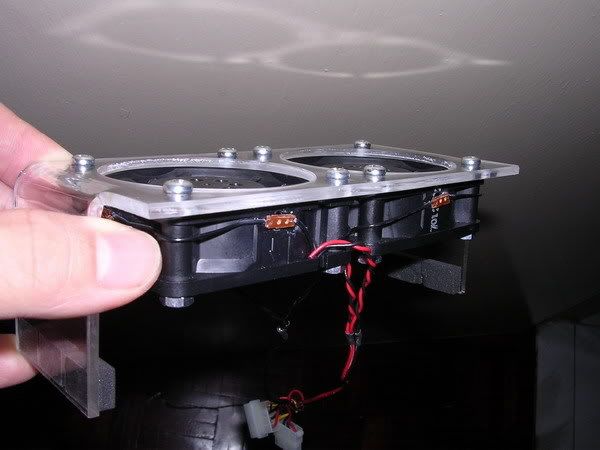

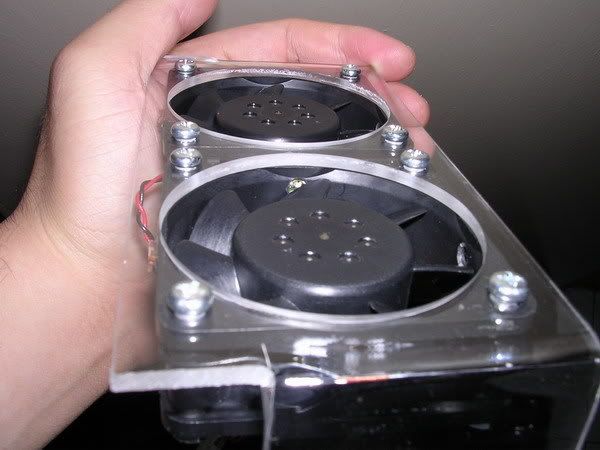

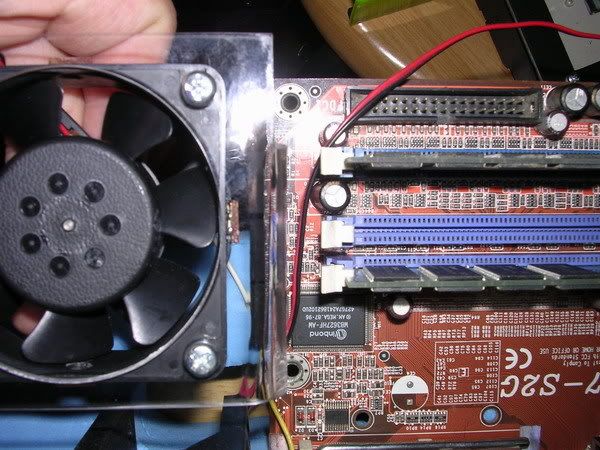

this is the 60mm ram cooler with fan speed controller option......the ram cooler is capable of covering 4 ram slots and capable of doing at least 23cfm per fan










This post has been edited by AllnGap: Nov 15 2006, 11:51 PM

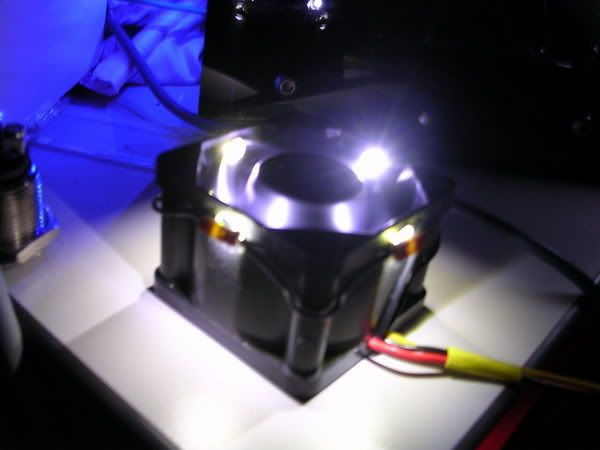

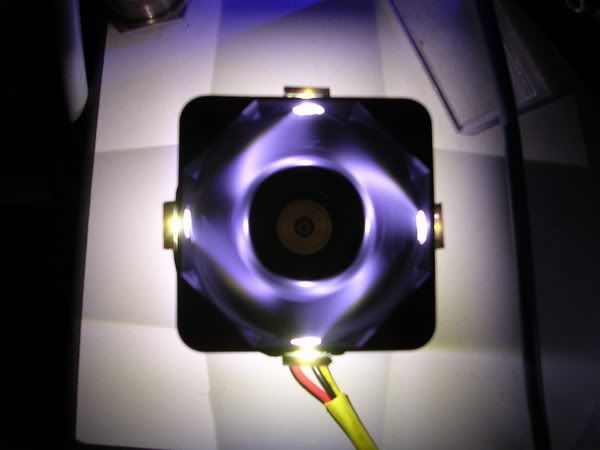

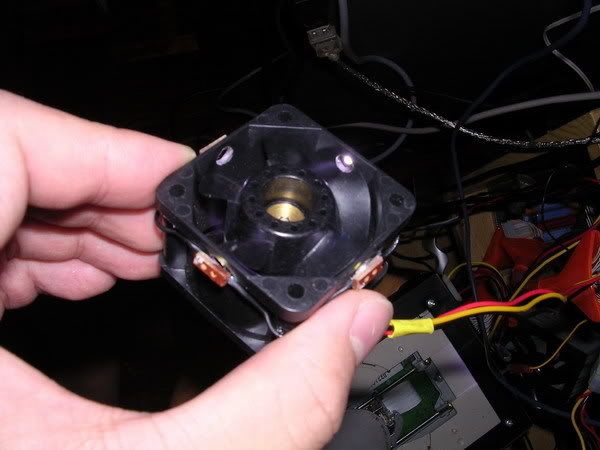

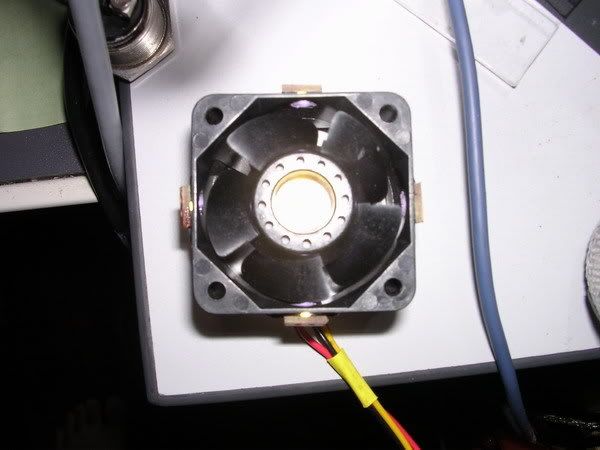

this is also originally a dull Sanyo Denki 40*40*28mm, 10+cfm, 10k rpm fan.....
so added some SMDs to brighten things up.....






This post has been edited by AllnGap: Nov 15 2006, 11:52 PM

This post has been edited by AllnGap: Feb 27 2007, 12:34 AM

fafasfas

This post has been edited by AllnGap: Feb 27 2007, 01:04 AM

This post has been edited by AllnGap: Feb 27 2007, 01:03 AM

This post has been edited by AllnGap: Feb 27 2007, 01:02 AM

This post has been edited by AllnGap: Mar 2 2007, 04:07 PM

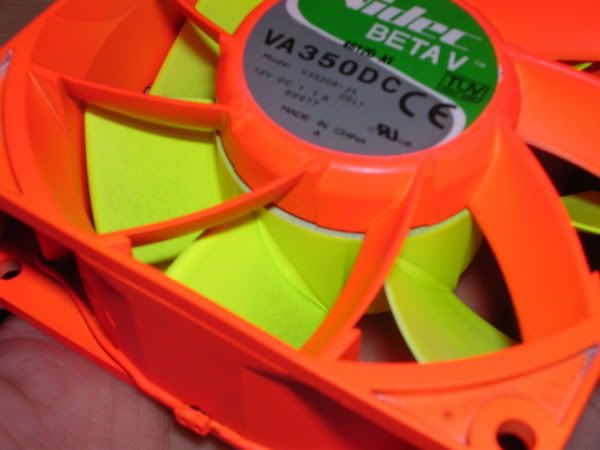

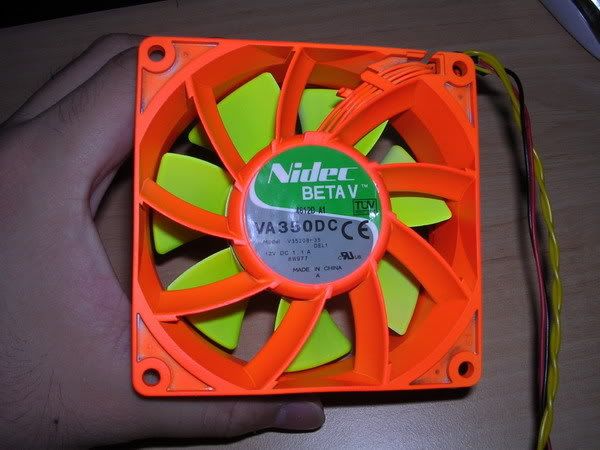

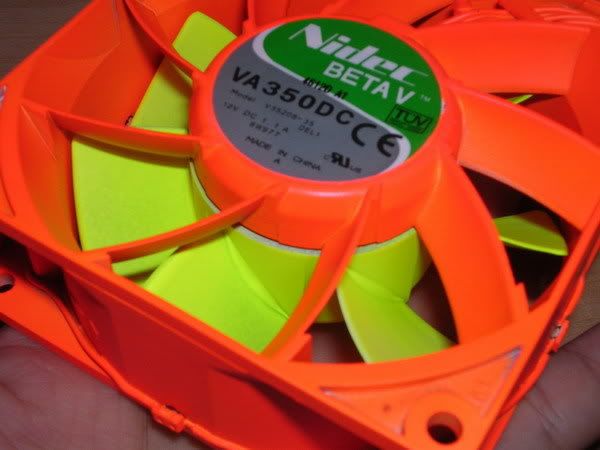

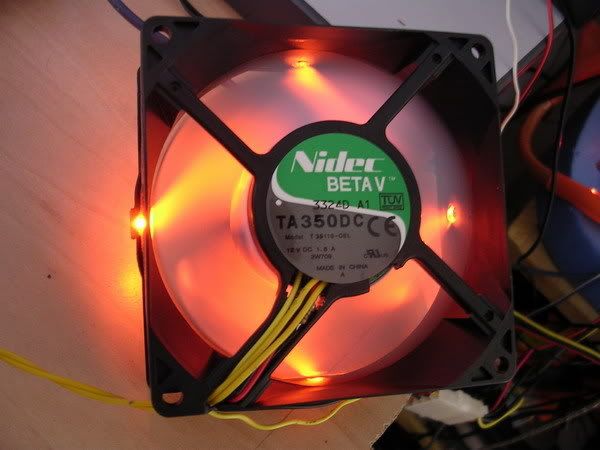

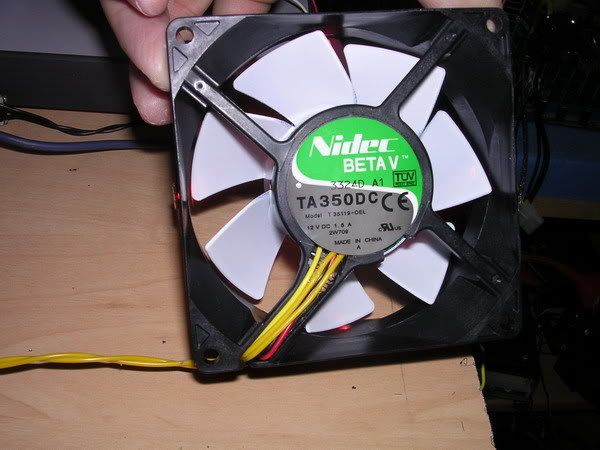

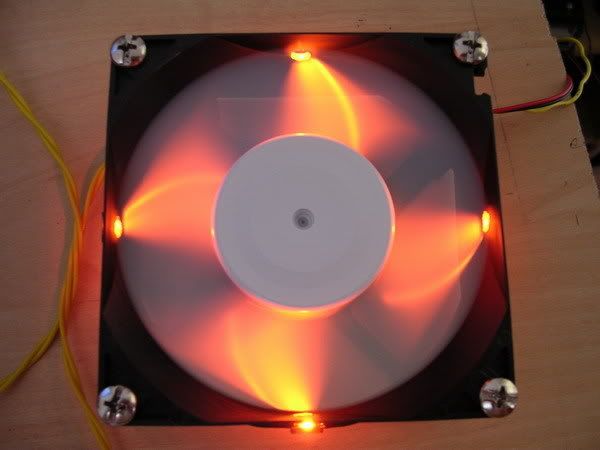

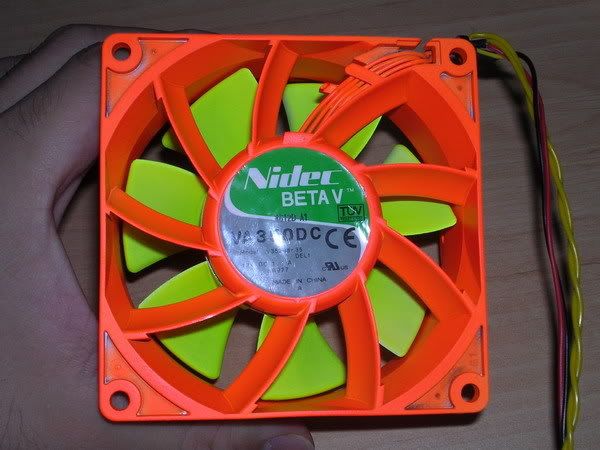

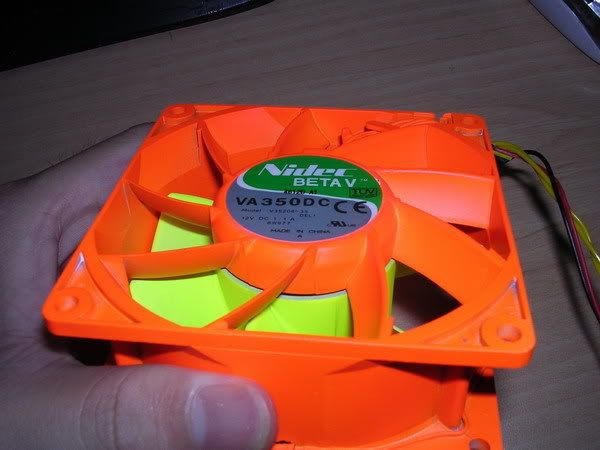

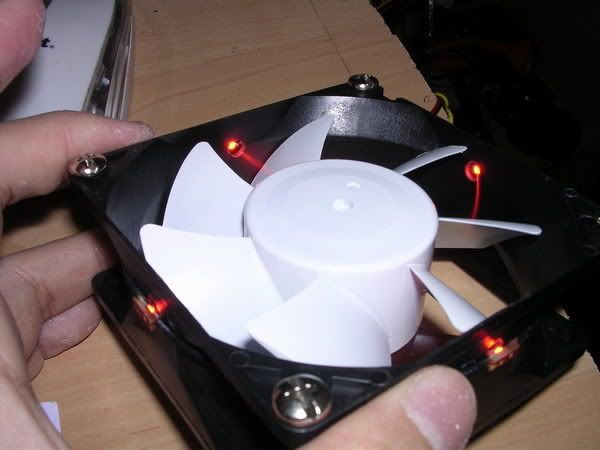

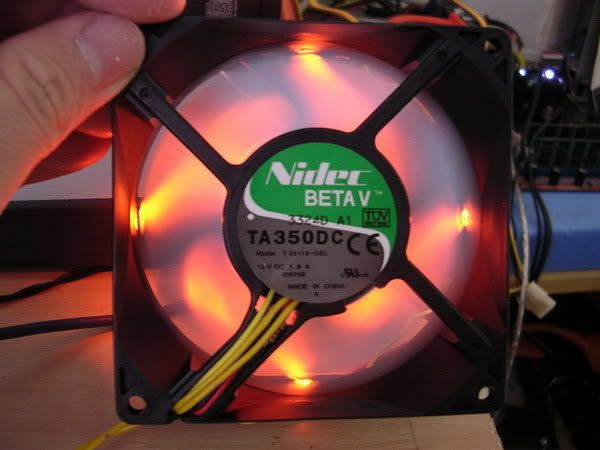

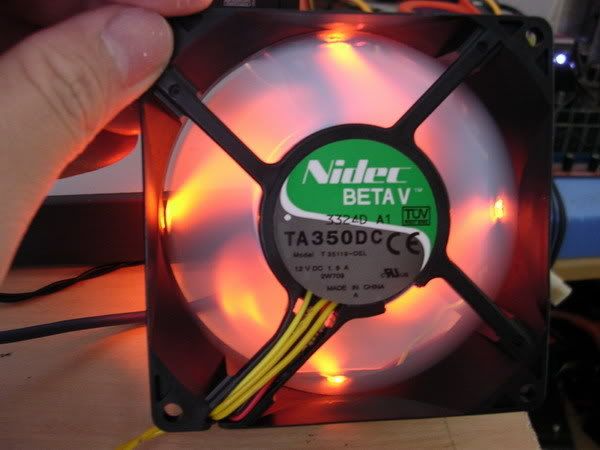

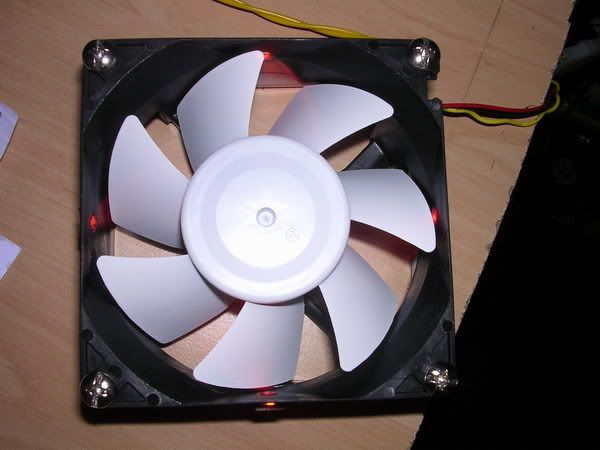

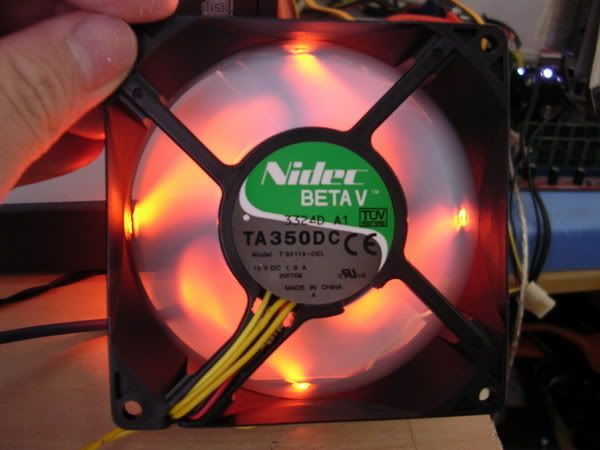

This is another modded fan, Nidec Beta V, 92*92*38mm, 130cfm, 5700rpm, 50+dB

since the motor spins at 5700rpm, the spray on the blades cannot be too thick.....so got to be skillful when it comes to controlling the spray.......

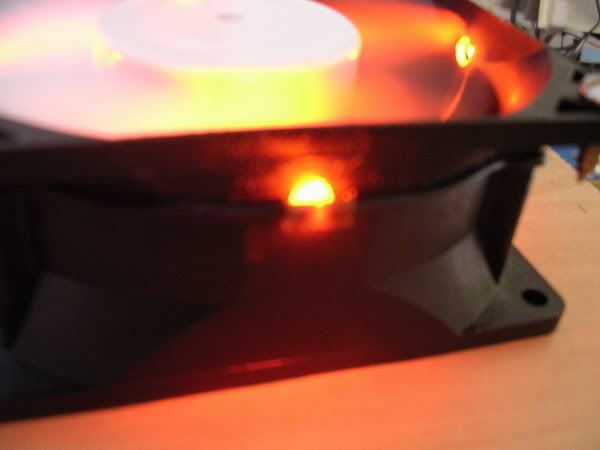

btw, i've added orange SMDs on the side.....hope you guys/gals will like them













This post has been edited by AllnGap: Mar 2 2007, 04:12 PM

nice nice.....but lack of orange colour...............

this is the latest " Dark Shawty " version ram cooler, custom made it for Shawty, and it really looks cool in black and orange combination as well.....

i've even used chromed nuts to hold the fans and it also comes with controller to enable the speed to be controlled.......the fans are NMB fans, which are capable of pushing 23cfm per fan at full speed (roughly 2pcs 80mm case fan airflow on the performance rams)

hope you'll like the taste of the darknesssss

---

Added on June 30, 2007, 7:54 amKinda busy these few month, so i'll upload what i've modded for the past 2 months in one shot

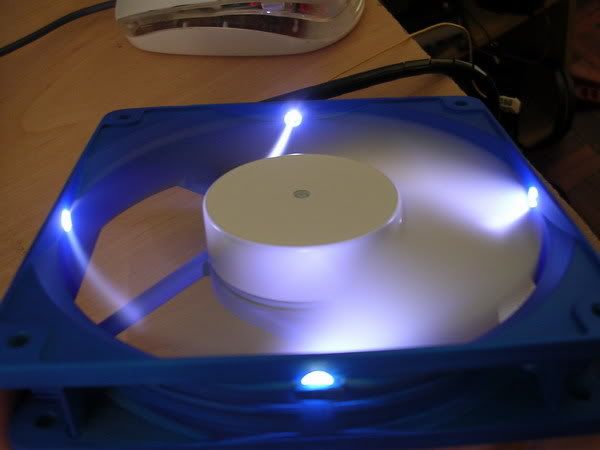

this is a modded 120mm ADDA fan...






This post has been edited by AllnGap: Jun 30 2007, 07:54 AM

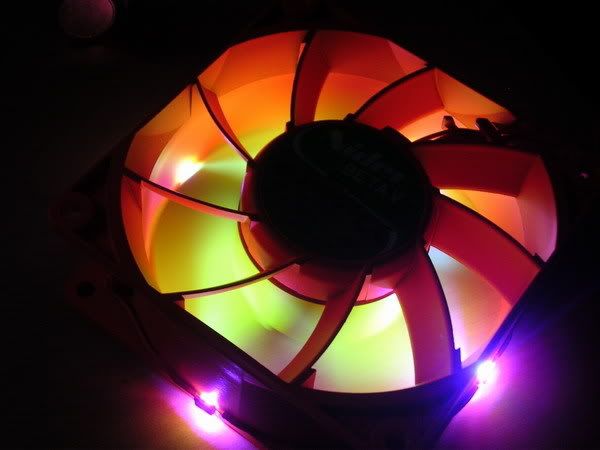

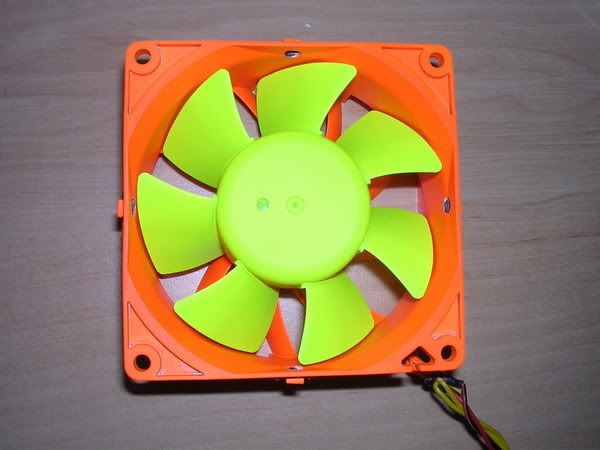

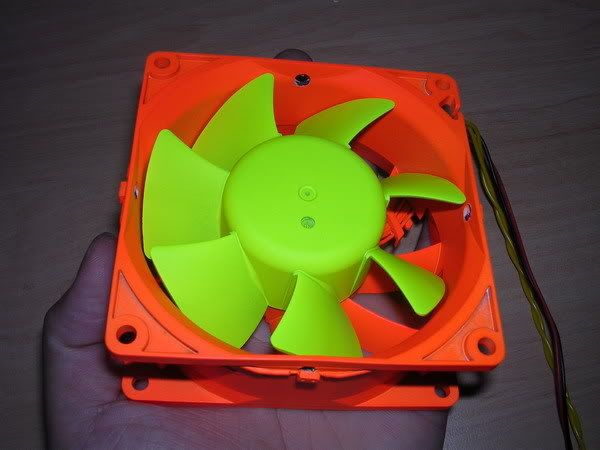

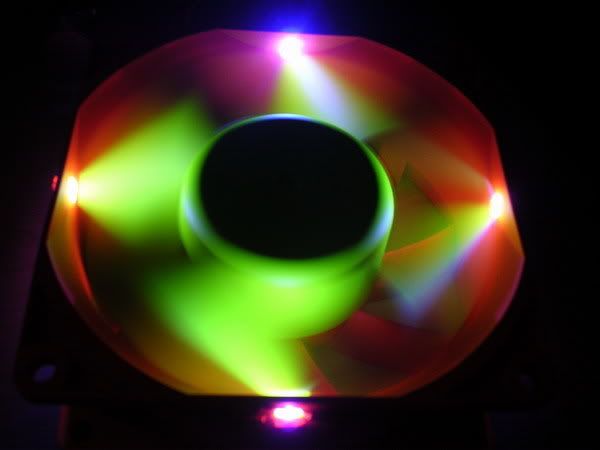

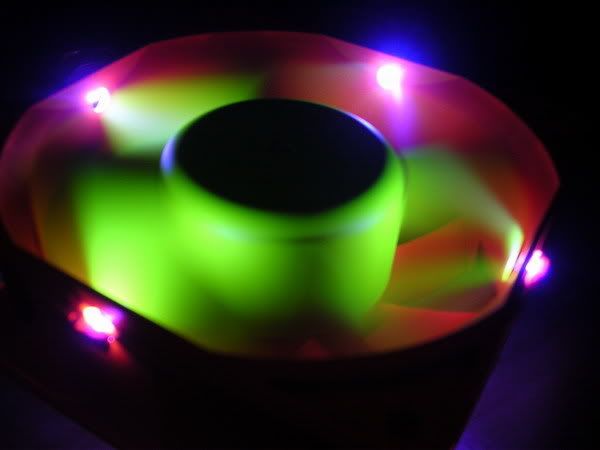

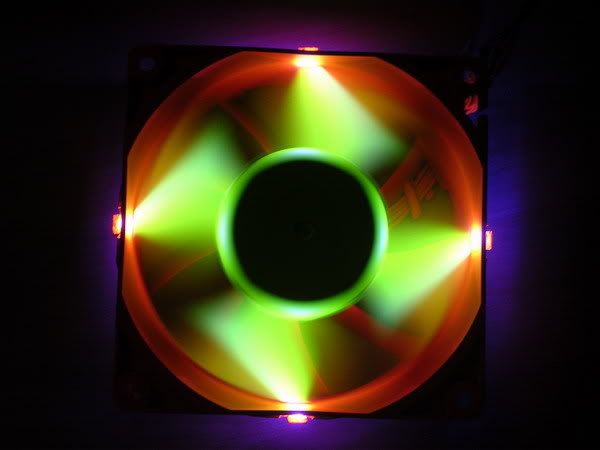

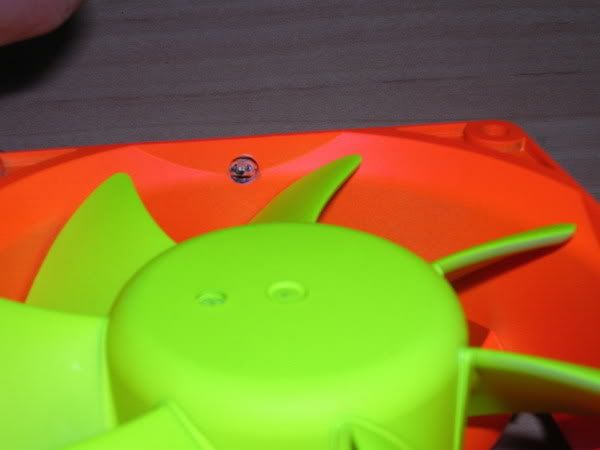

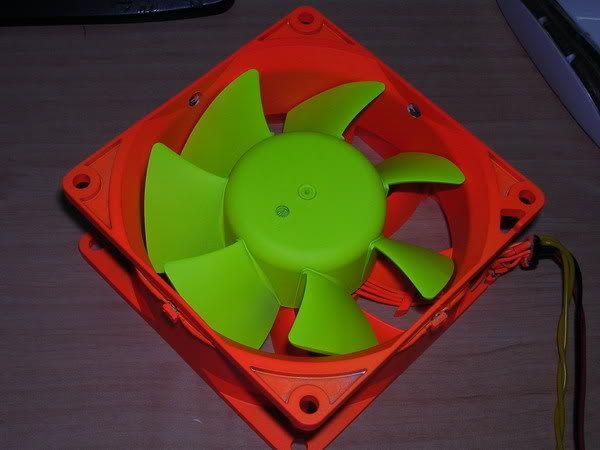

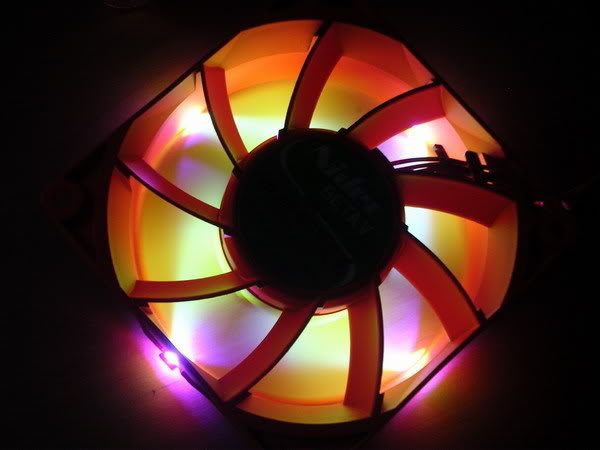

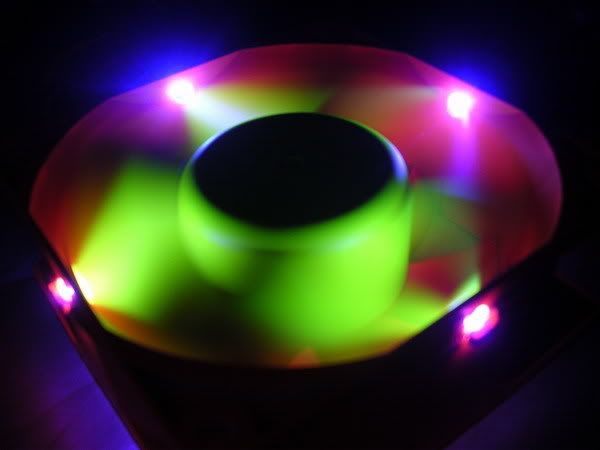

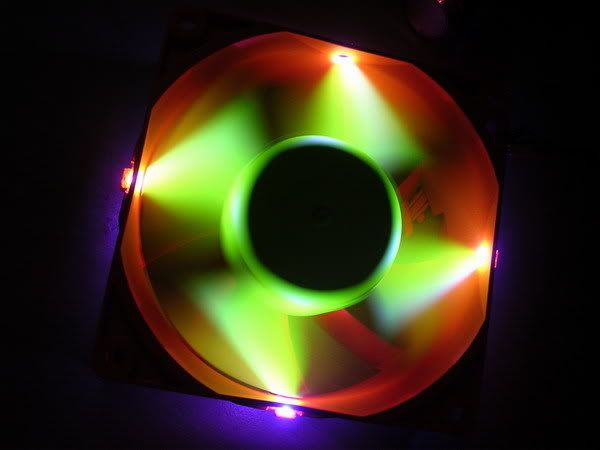

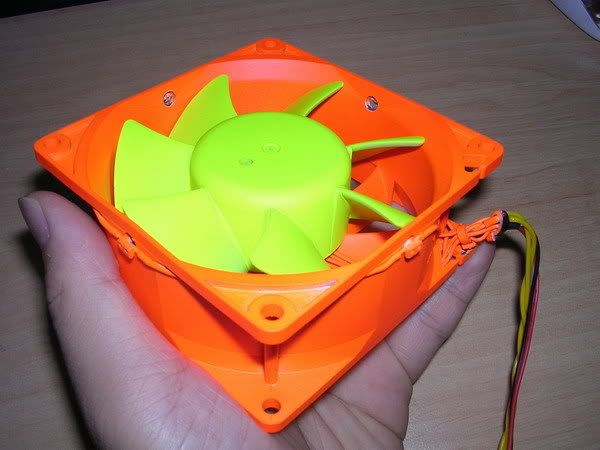

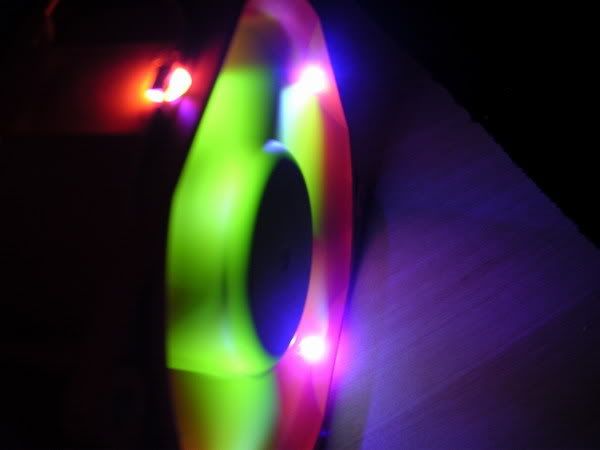

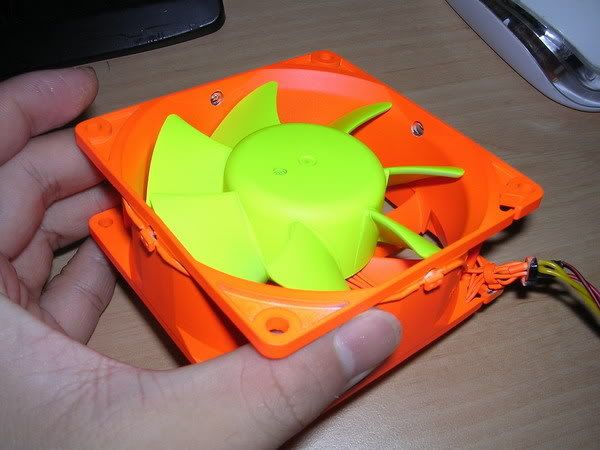

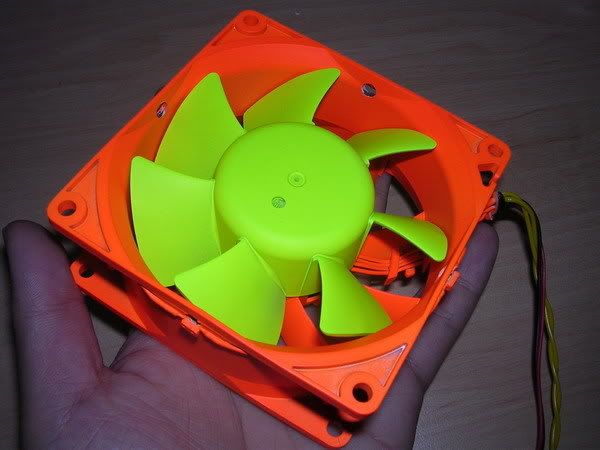

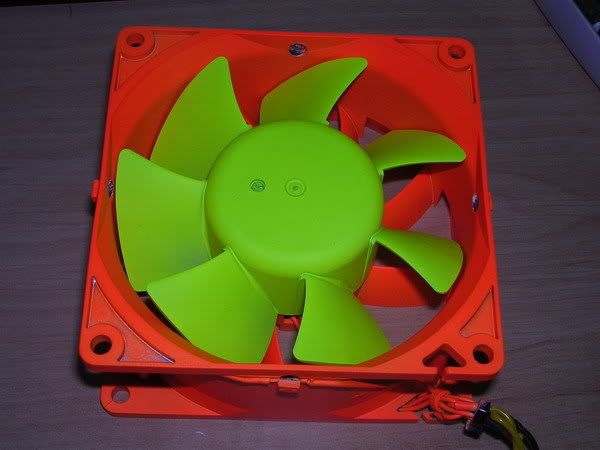

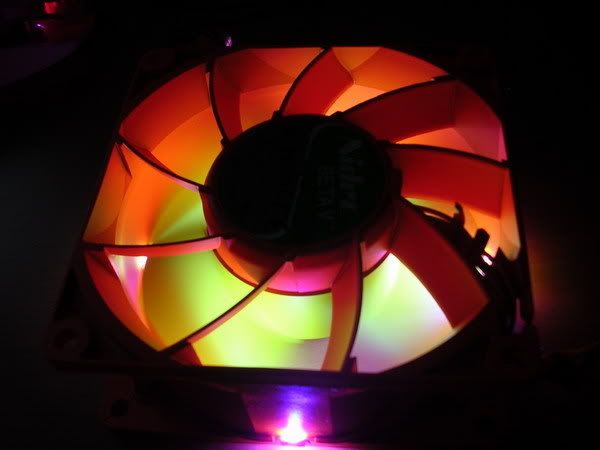

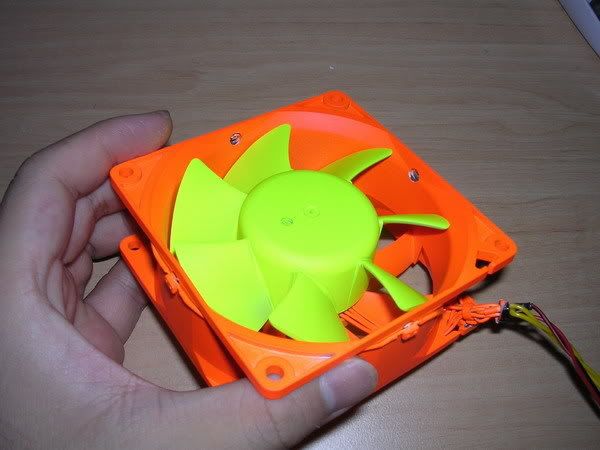

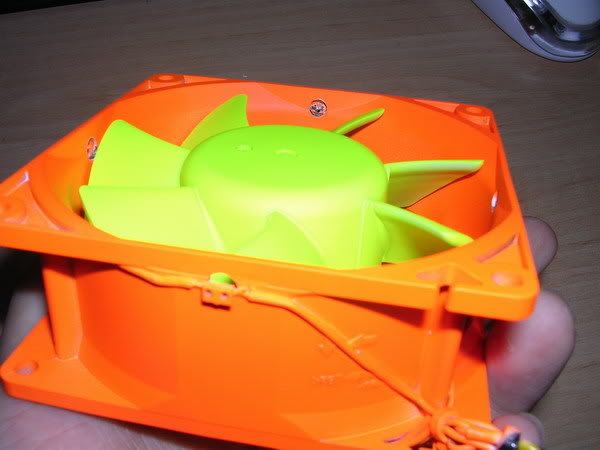

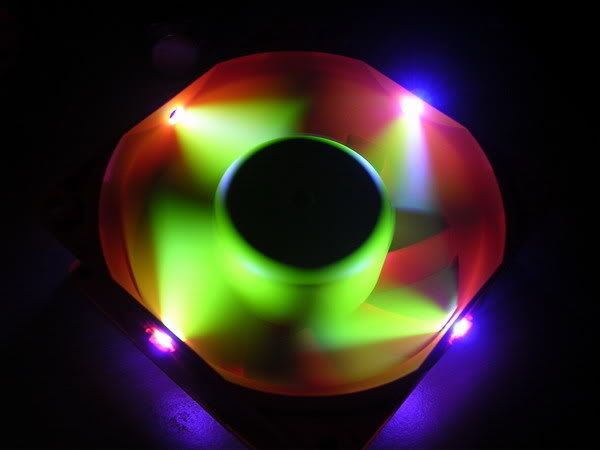

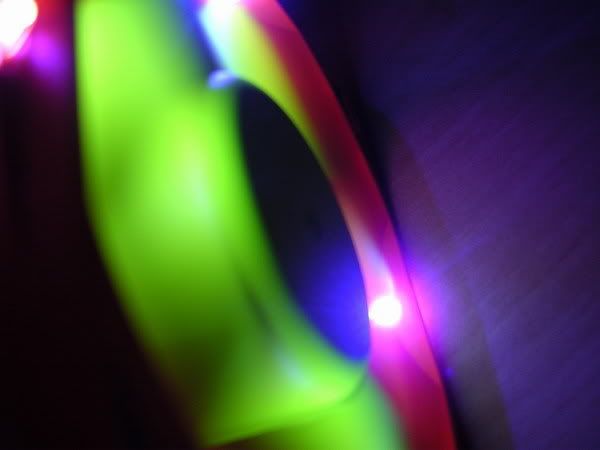

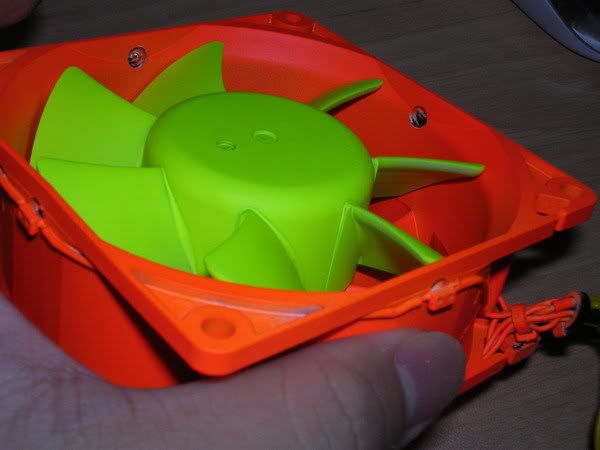

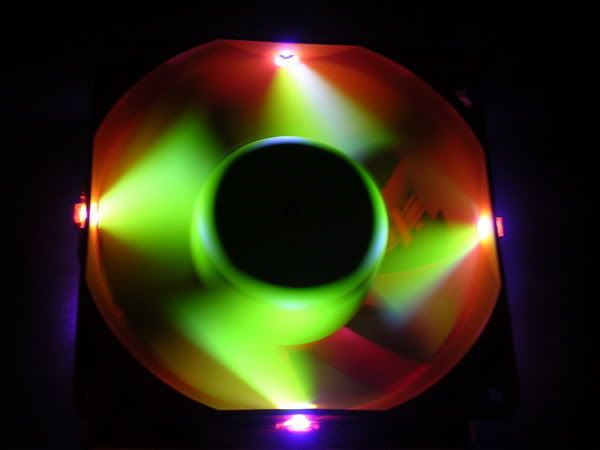

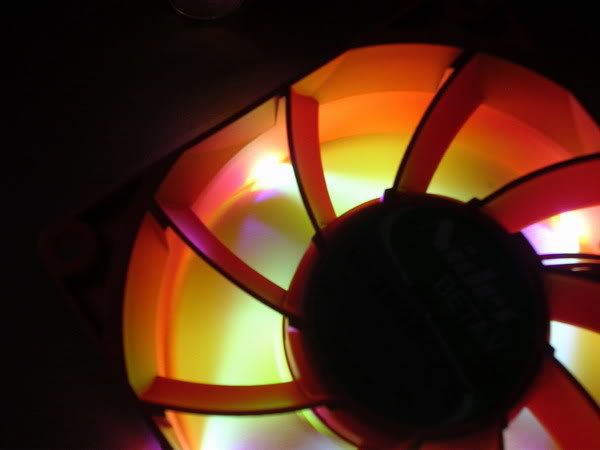

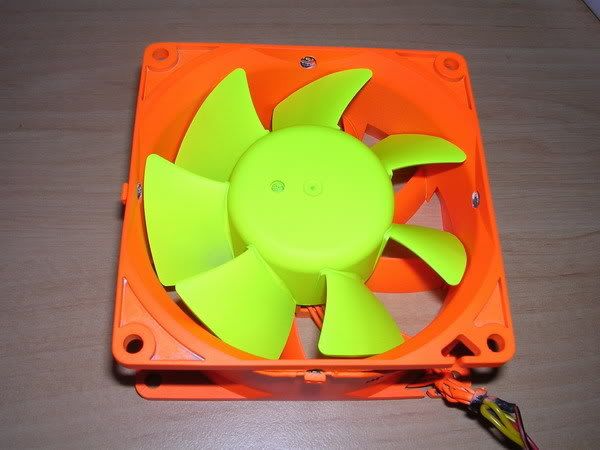

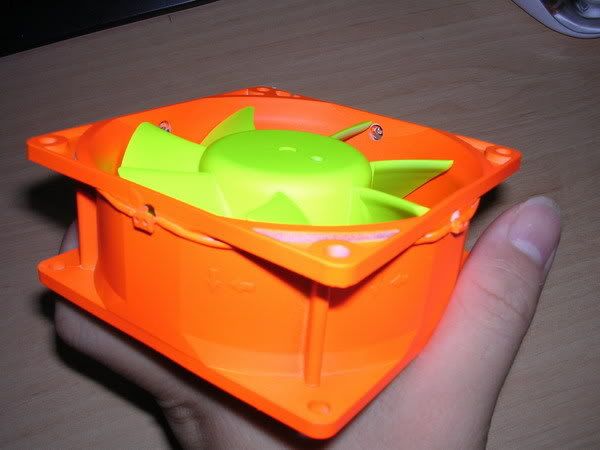

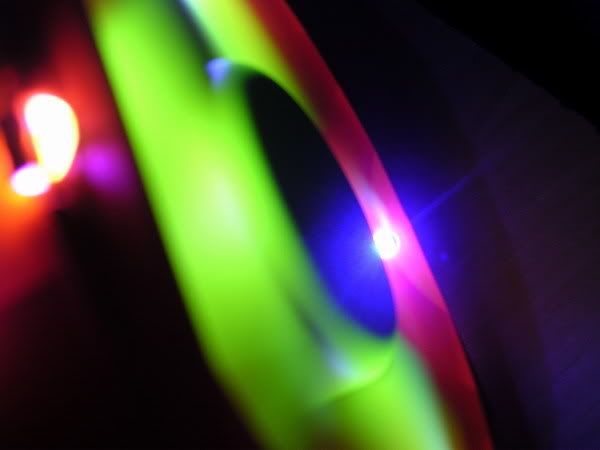

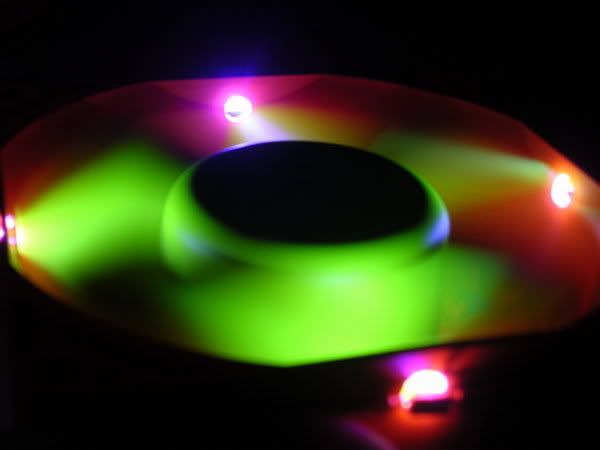

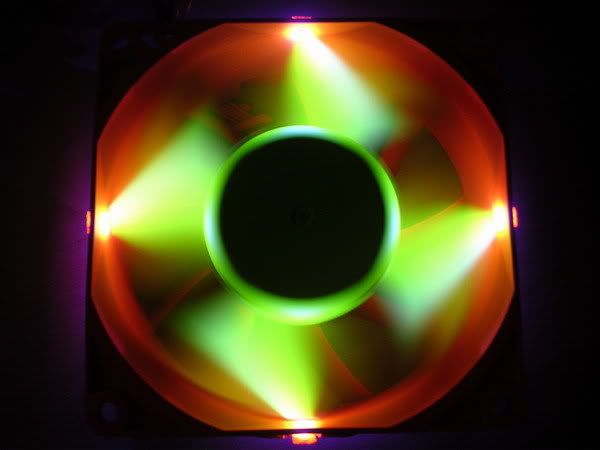

another modded fan, 92mm Nidec Focus Flow fan, 110cfm with bling bling mod !

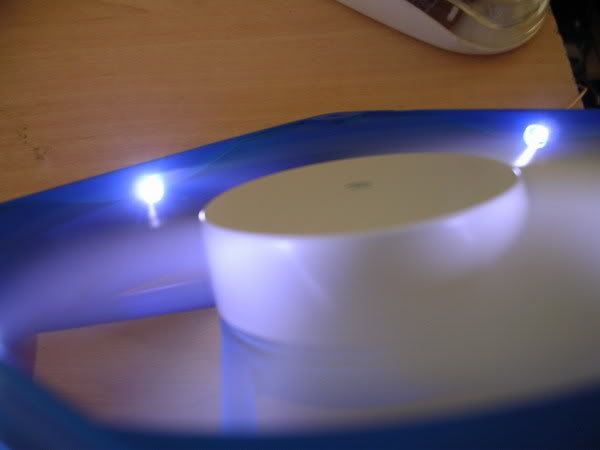

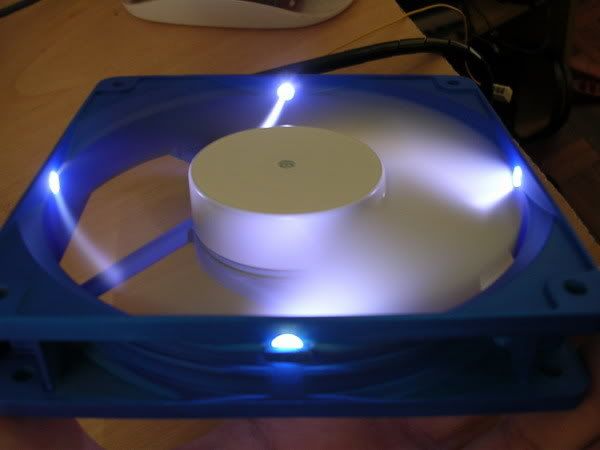

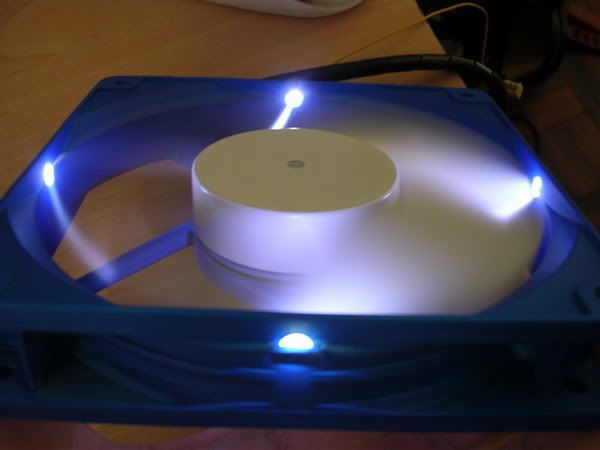

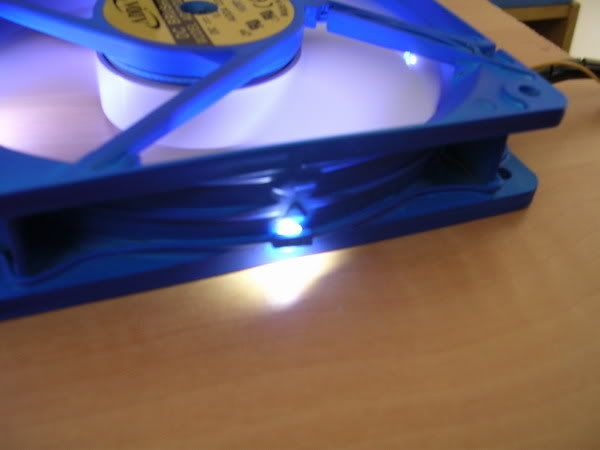

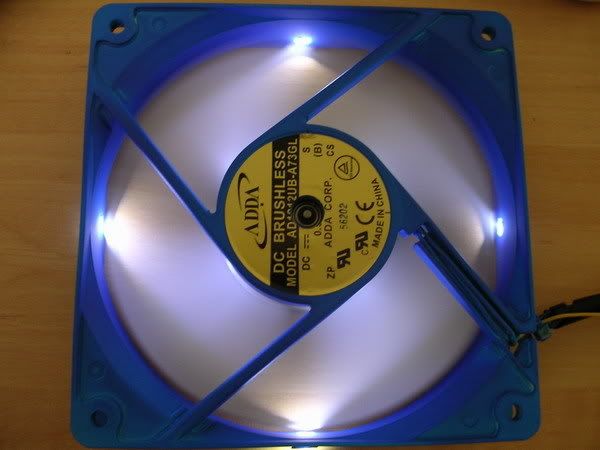

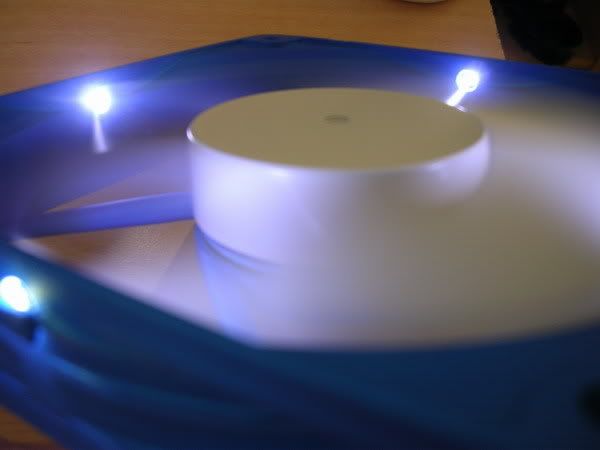

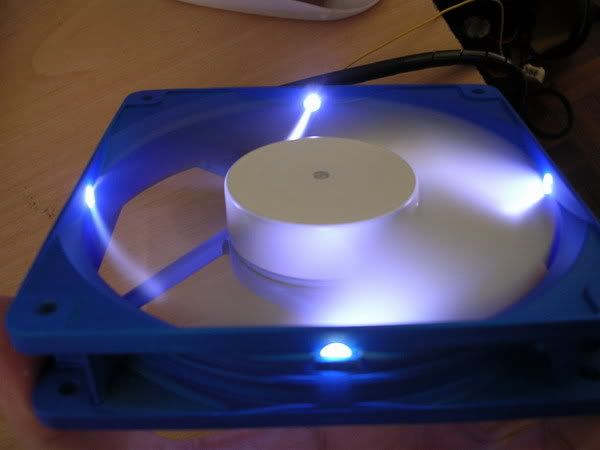

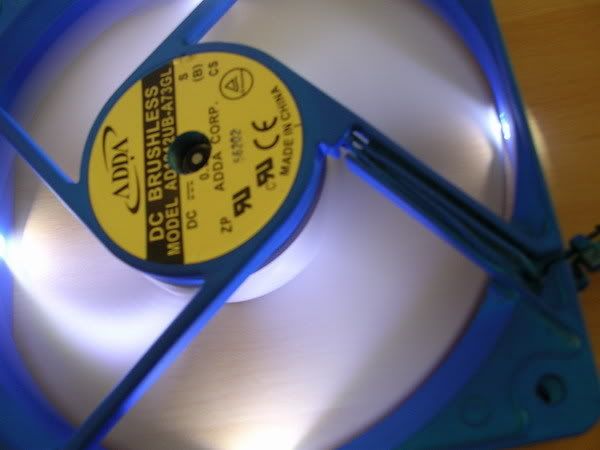

another theme for the 120mm ADDA, this time with blue UV frame, great fan with low noise characteristics, near to zero motor noise, speed control options, rpm monitoring....










This post has been edited by AllnGap: Jun 30 2007, 08:02 AM

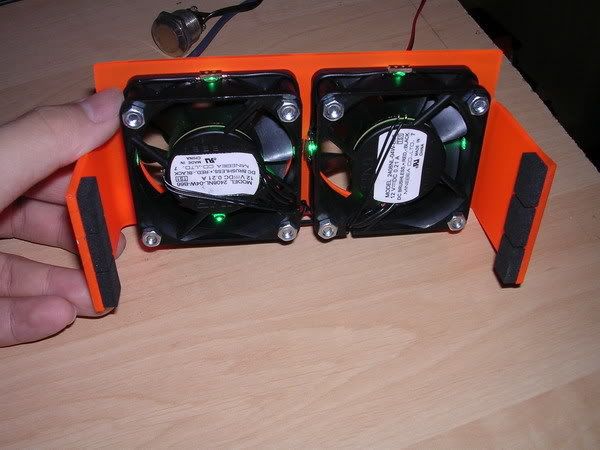

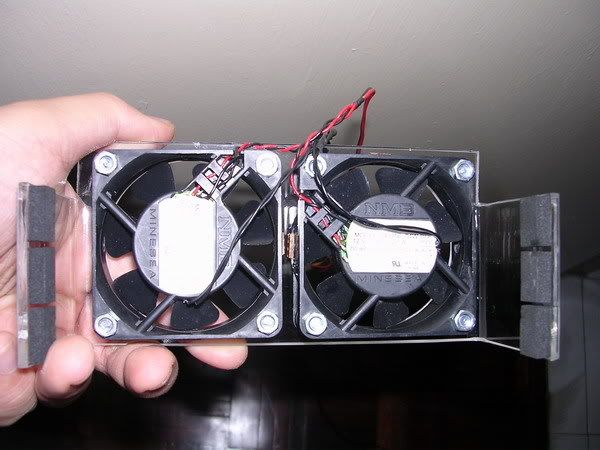

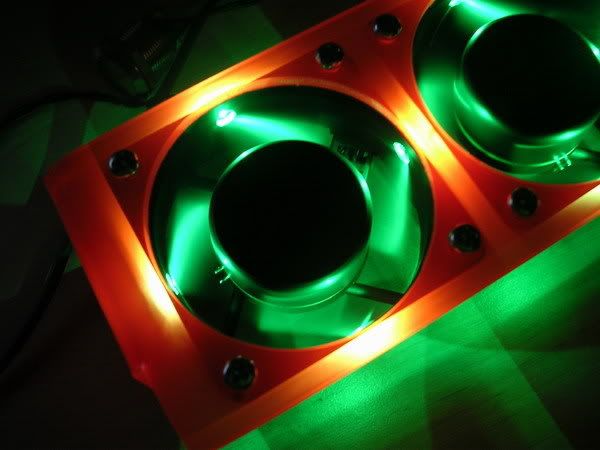

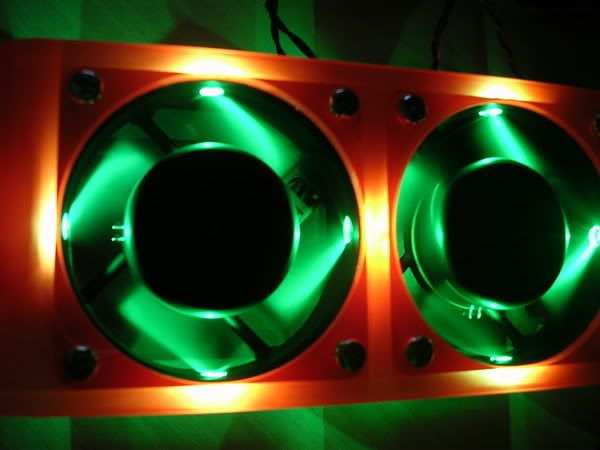

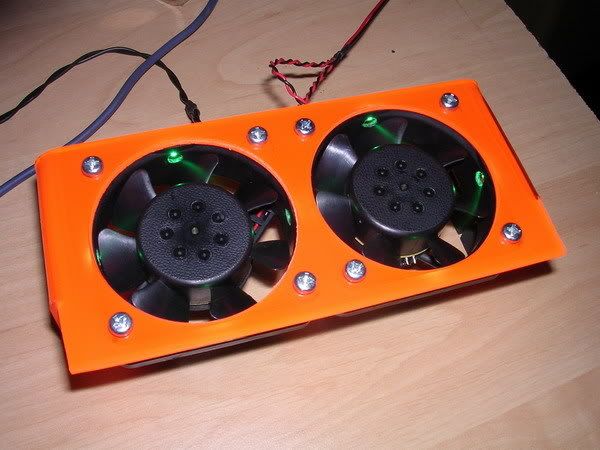

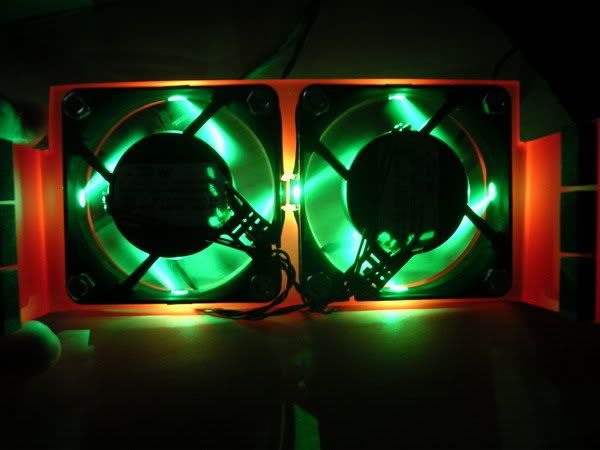

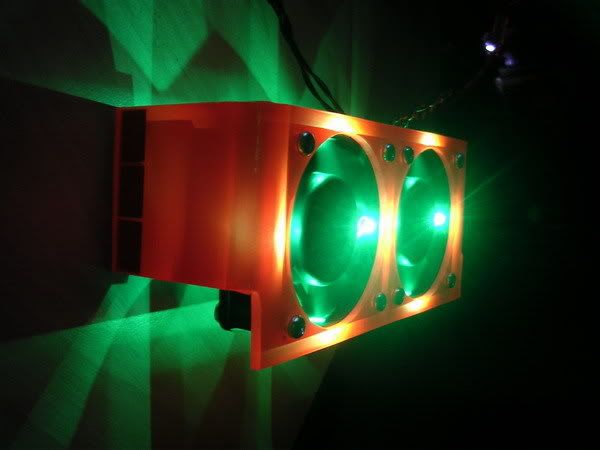

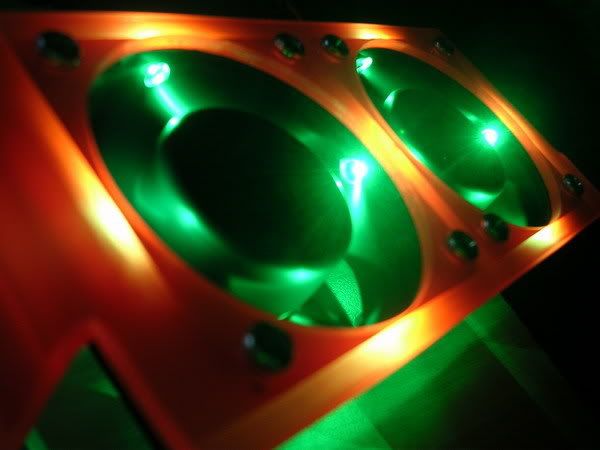

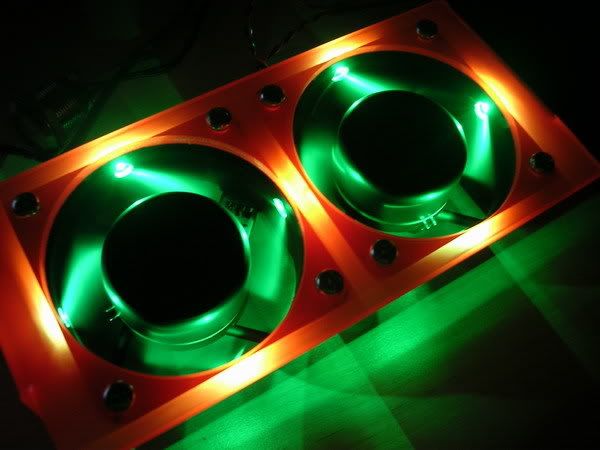

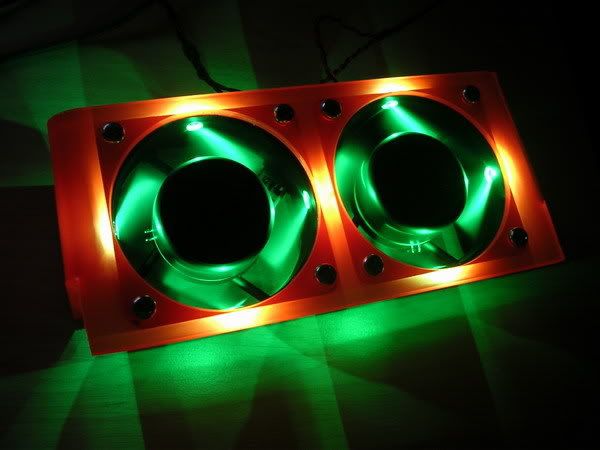

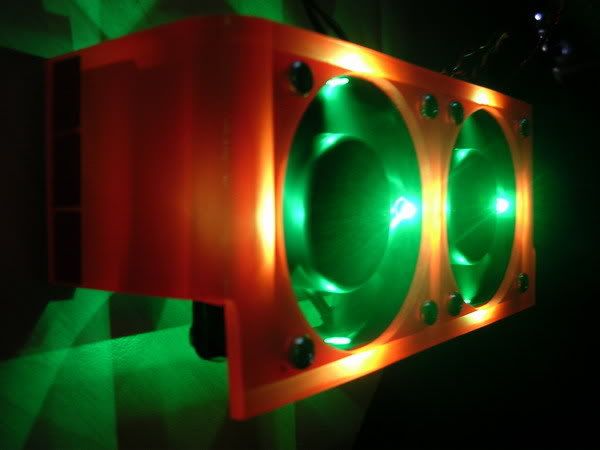

this is another version of my ram cooler, dual 60mm version....

note that the pattern on the fans is different because of the blade shape





















This post has been edited by AllnGap: Jun 30 2007, 08:24 AM
