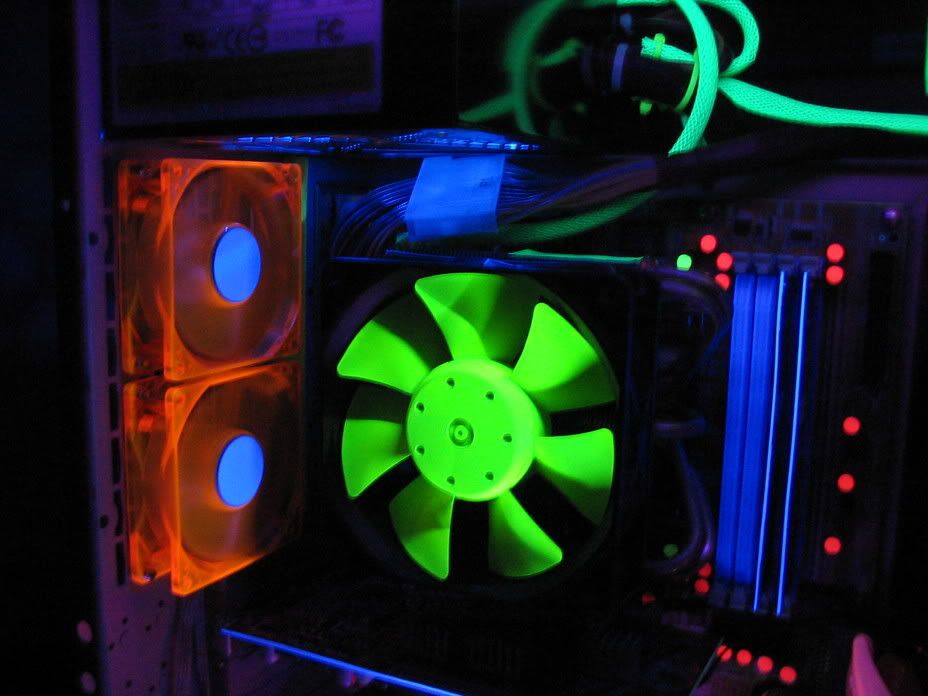

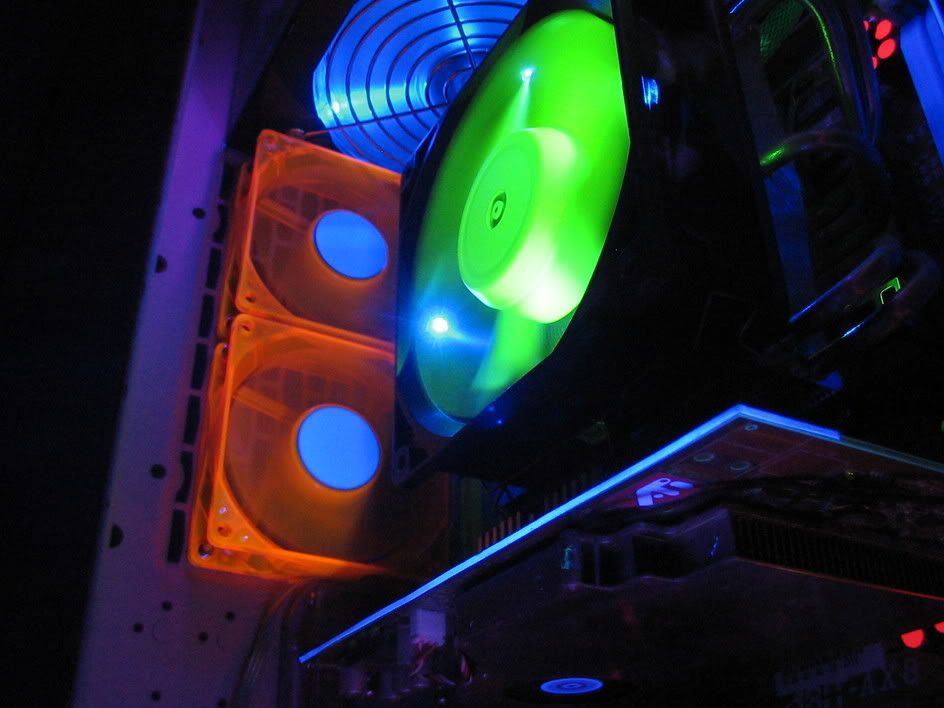

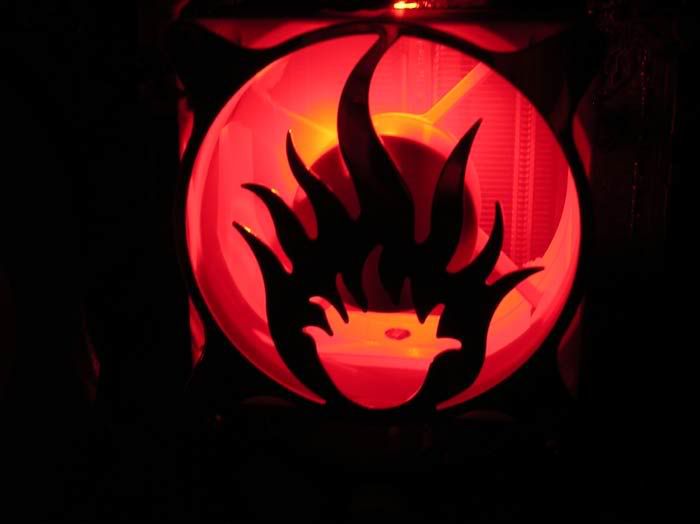

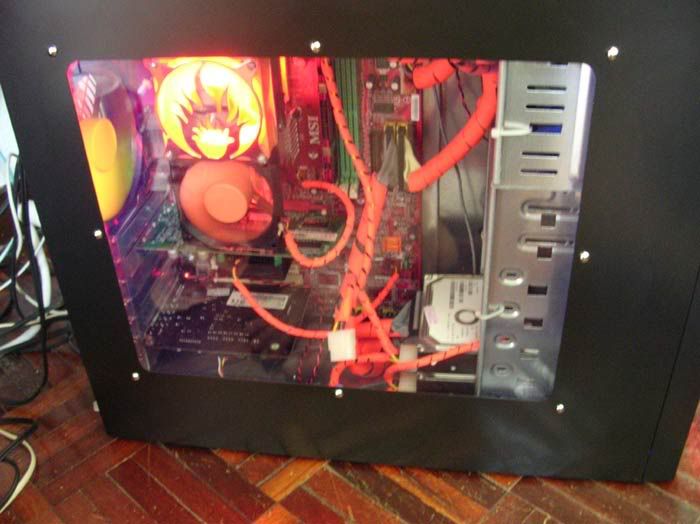

my modded fan on LittleLinnet's PC

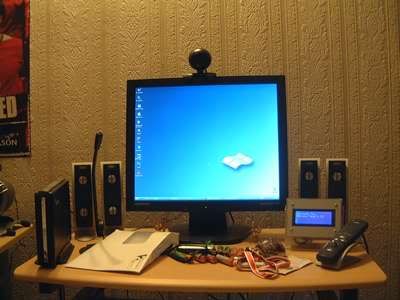

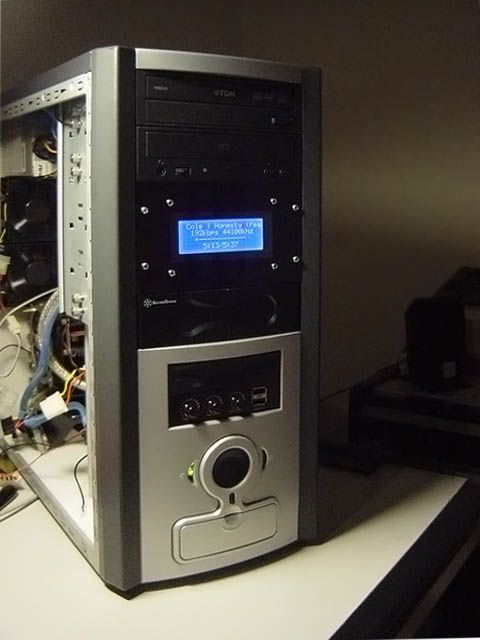

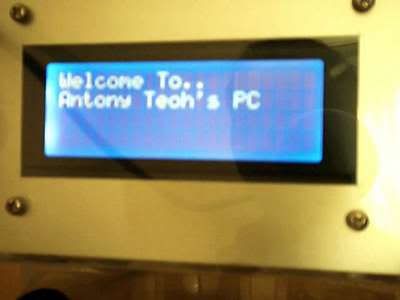

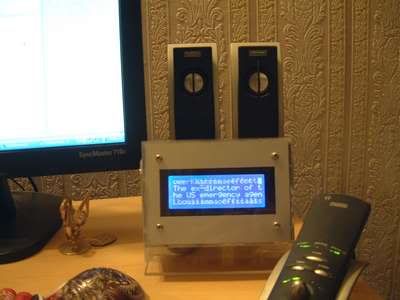

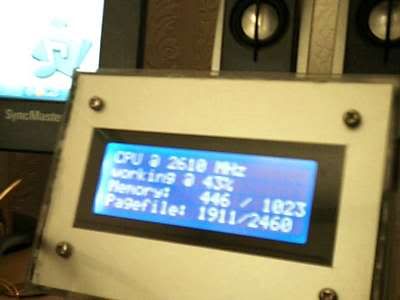

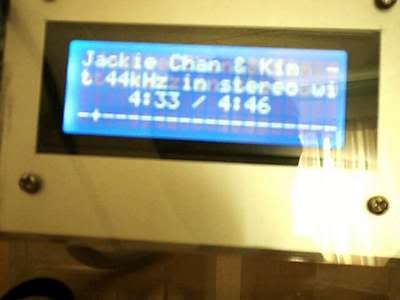

character LCD mod

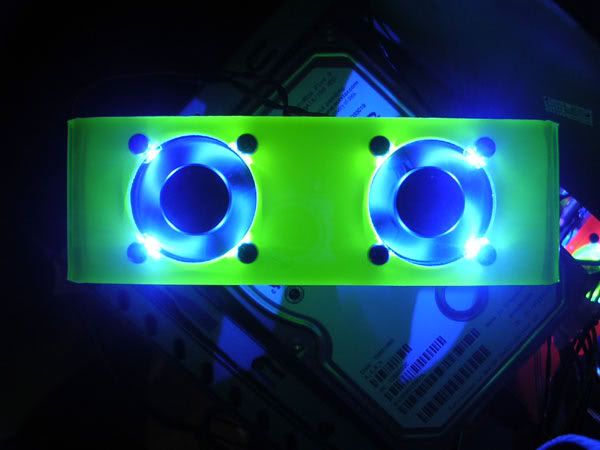

character LCD and ram cooler for my other friend

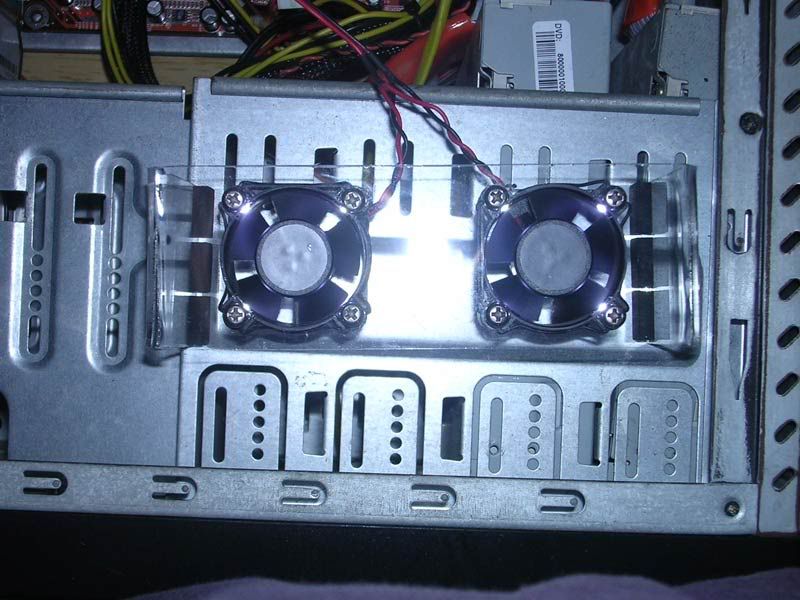

ram cooler metal edition.

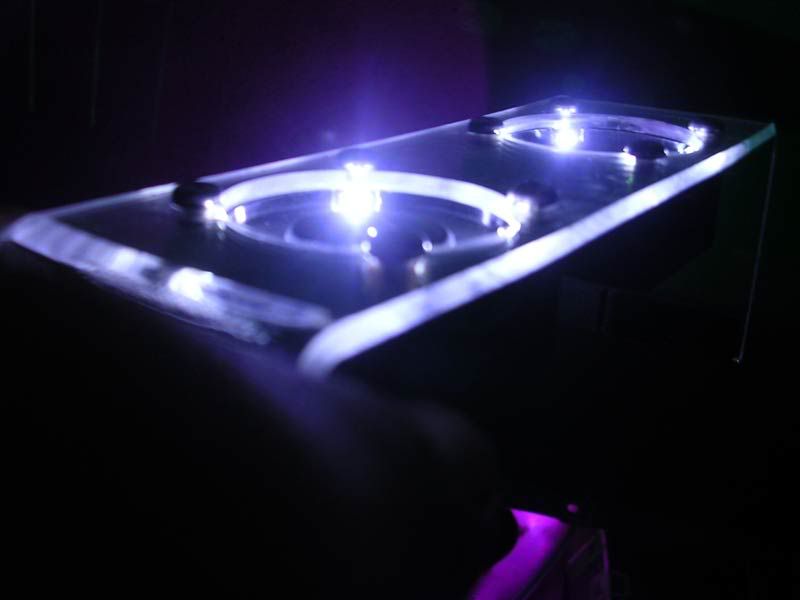

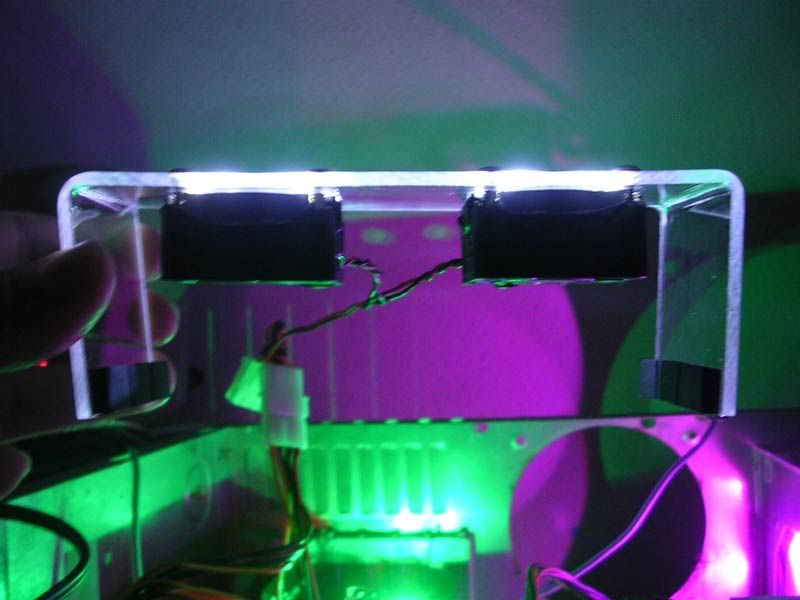

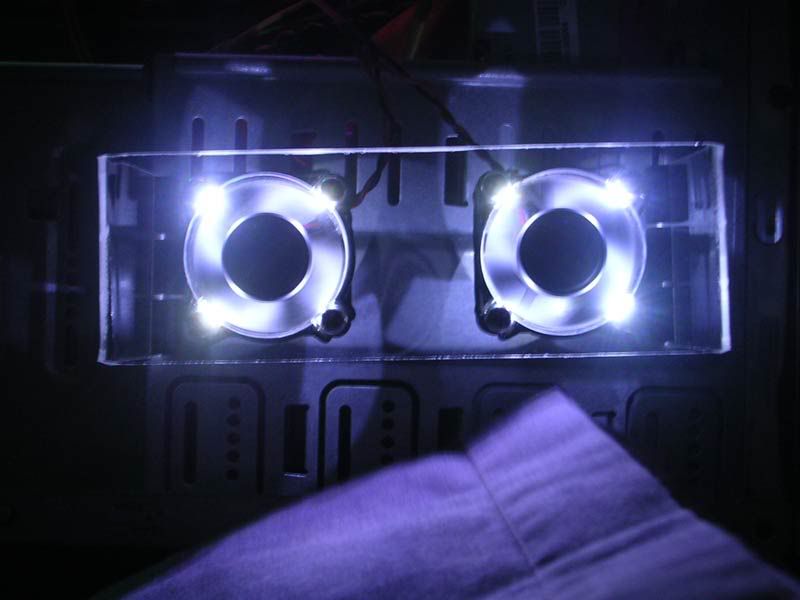

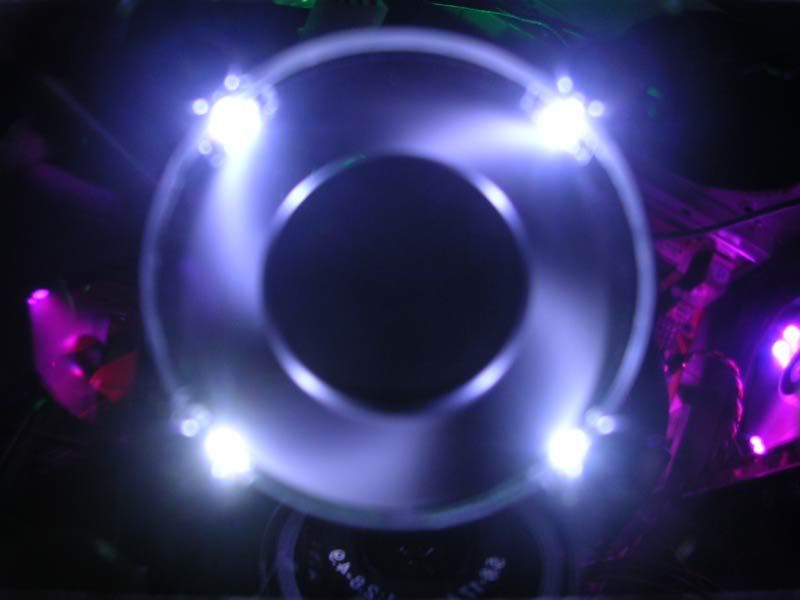

ram cooler white LED edition

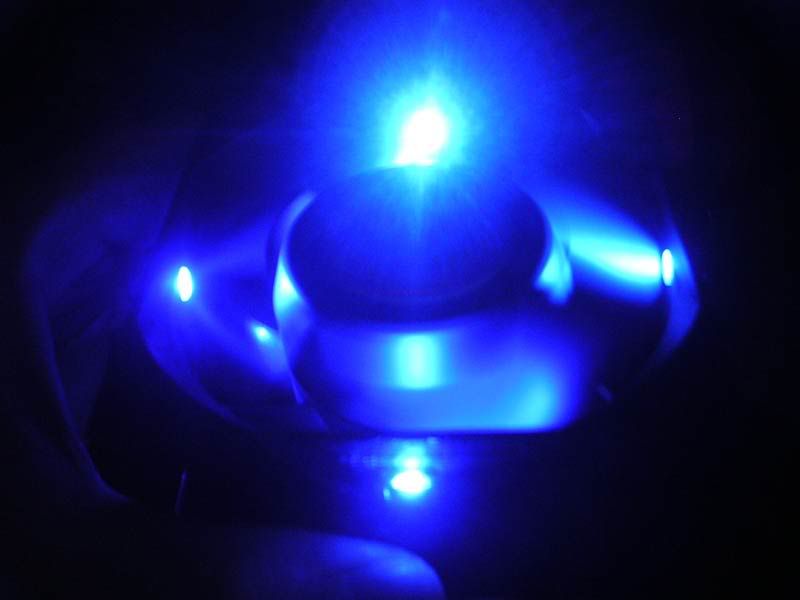

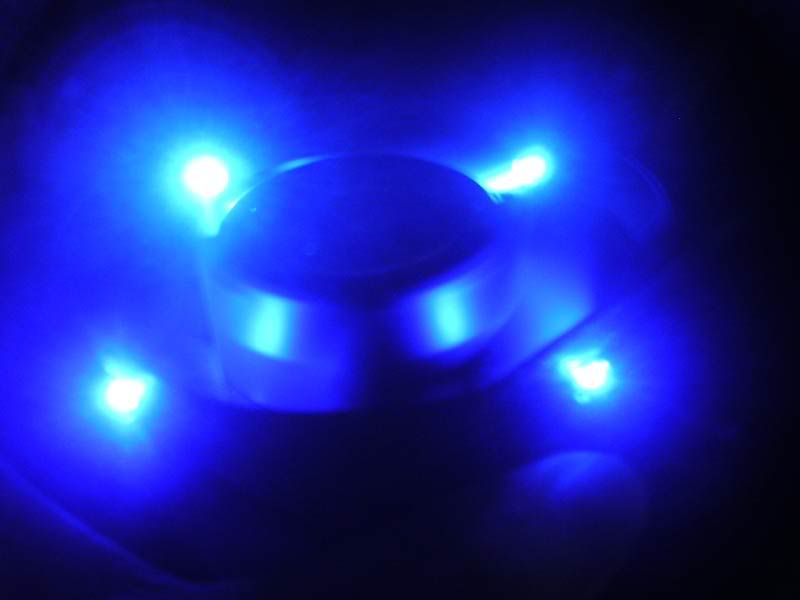

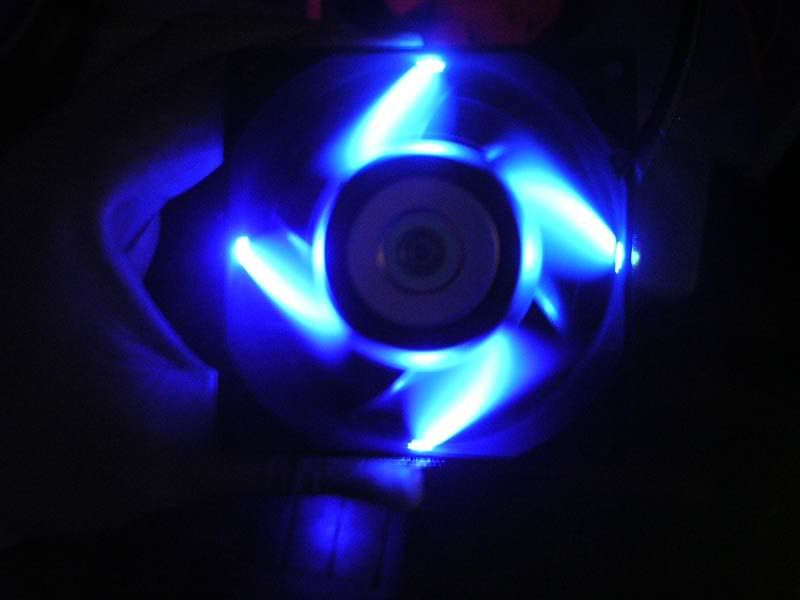

80mm Delta FF with blue SMD LEDs

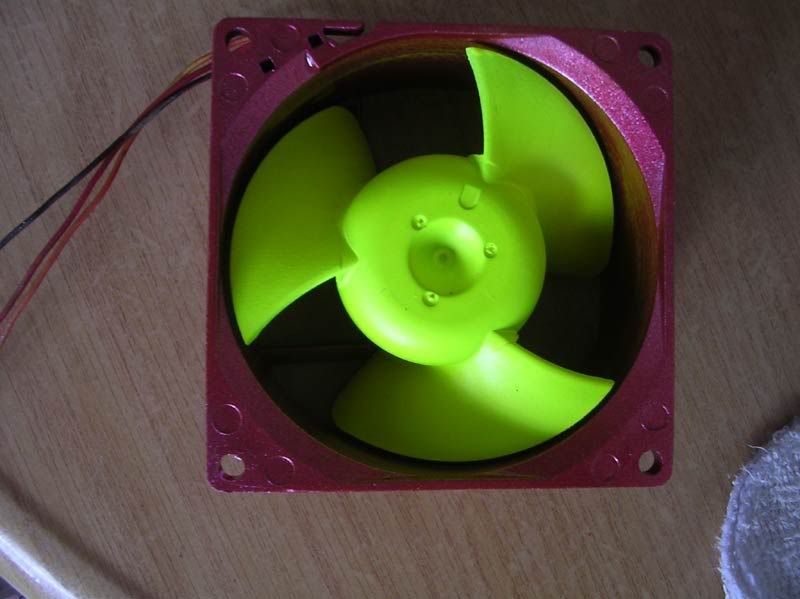

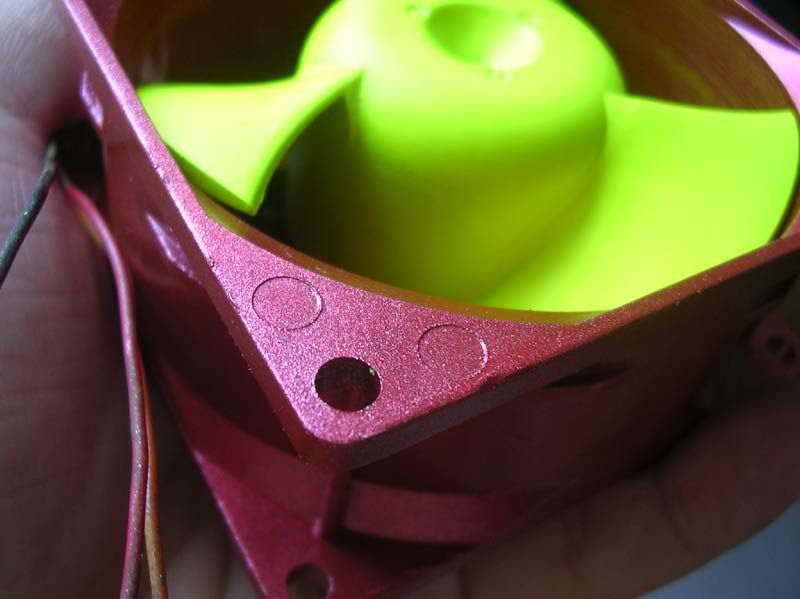

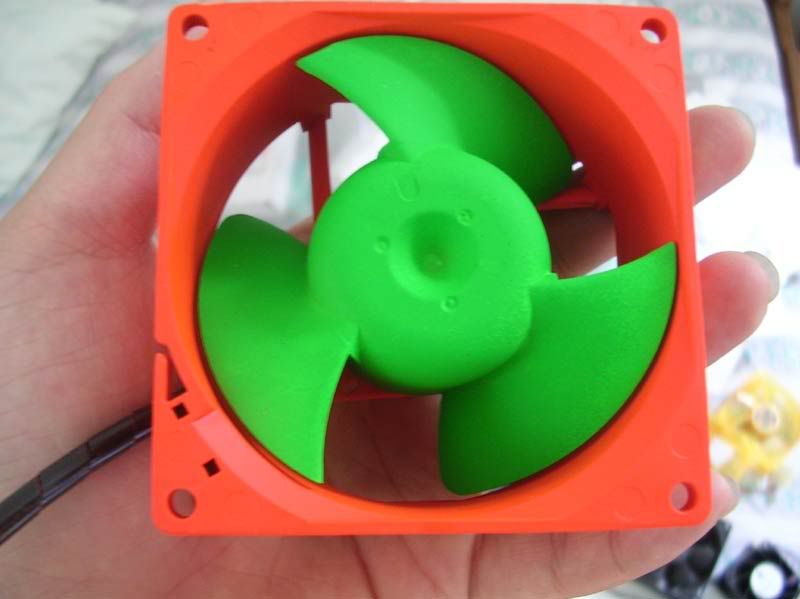

Delta 80*80*38 tri-blade



Delta 80*80*38 tri-blade

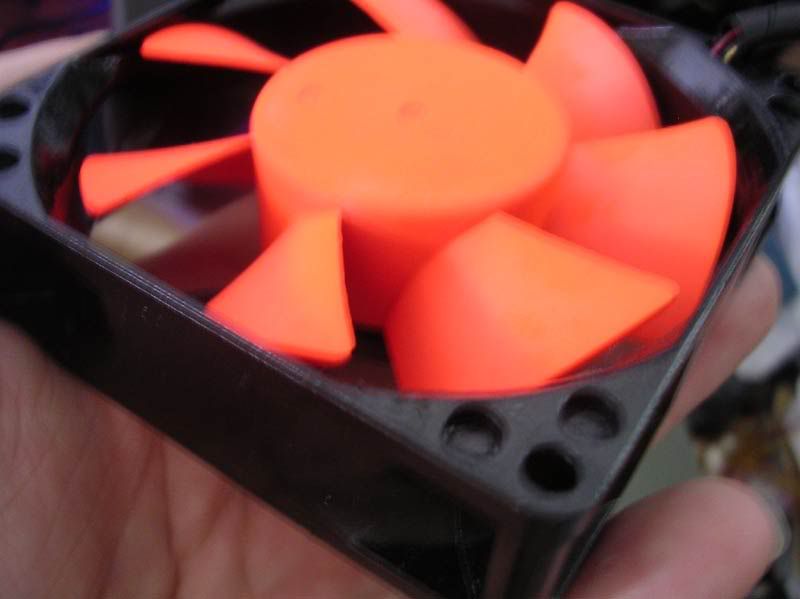

TT Smart case fan 80mm to UV version

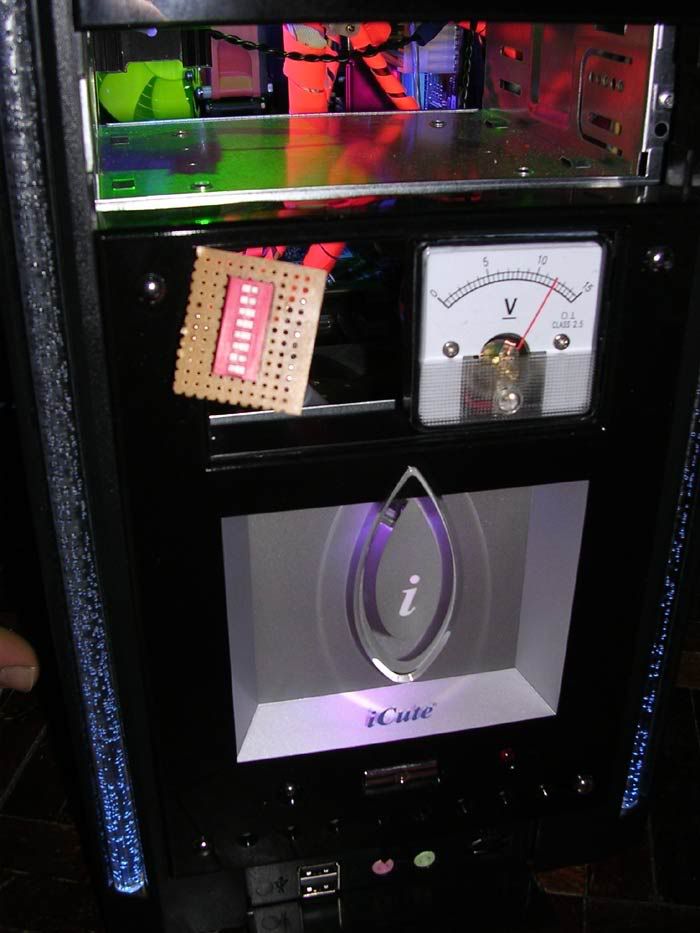

120mm ICUTE

quicktime video file


Attached File(s)
 DSCN1251.MOV ( 2.46mb ) Number of downloads: 10415

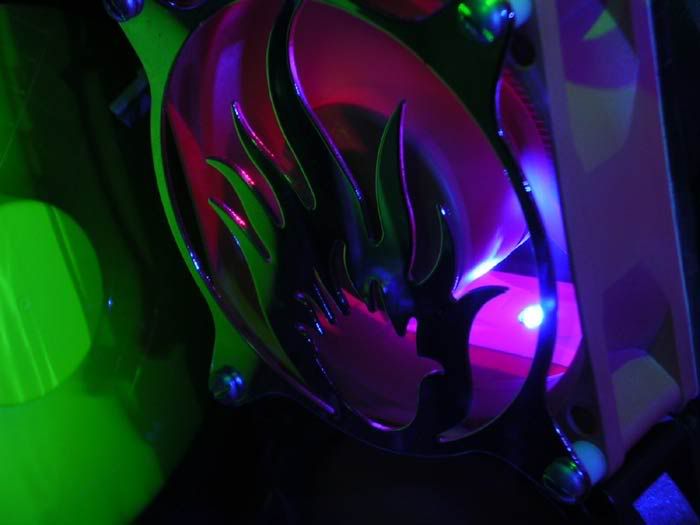

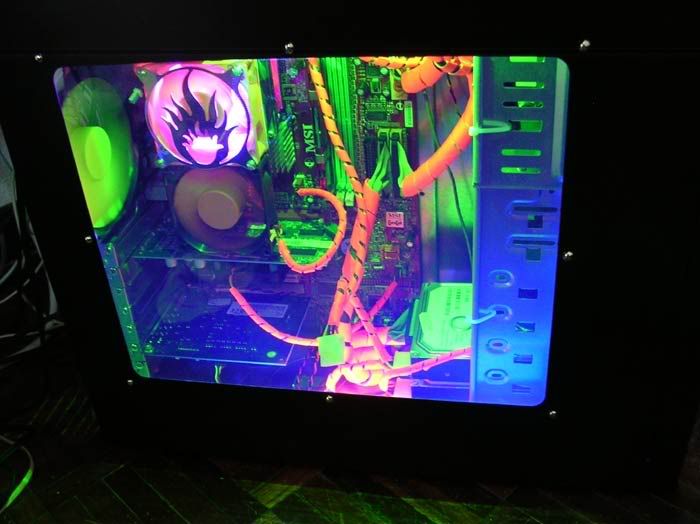

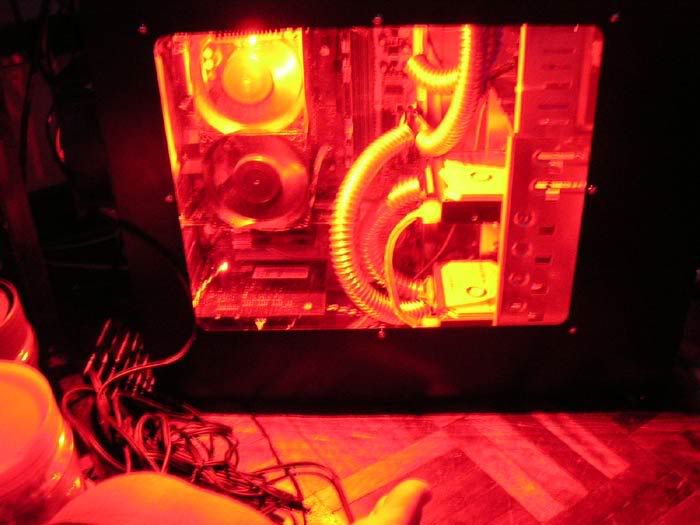

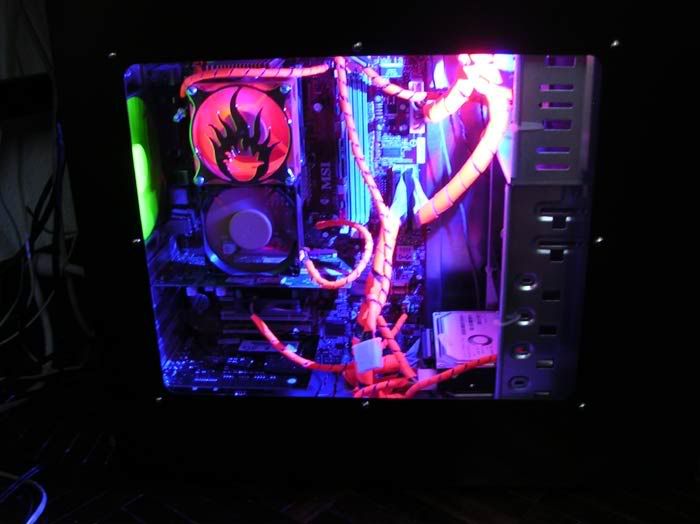

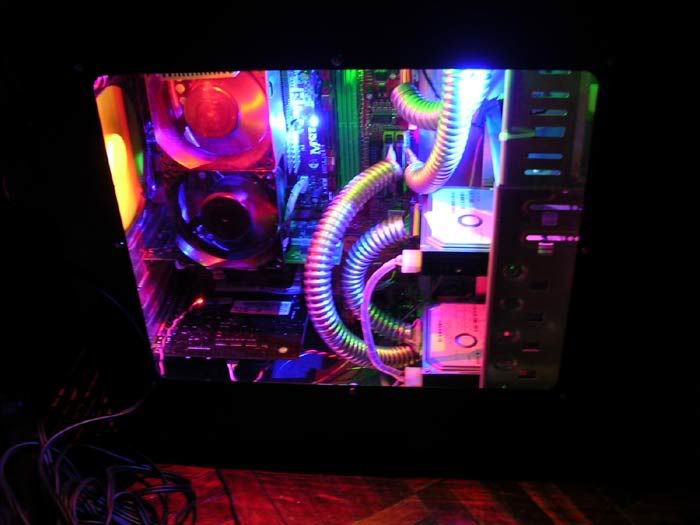

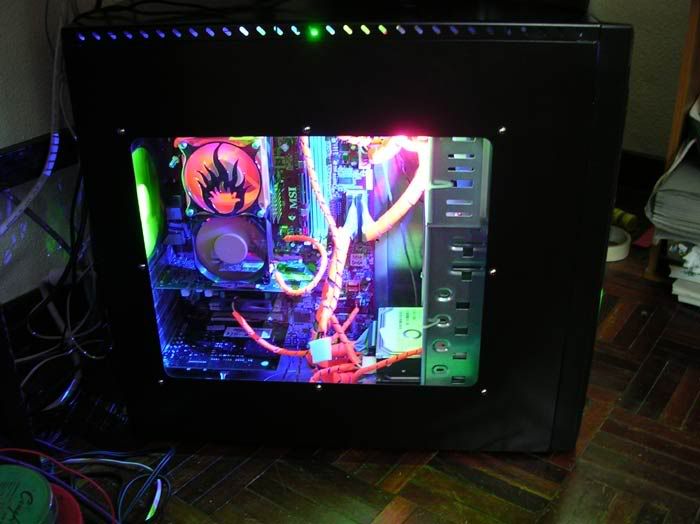

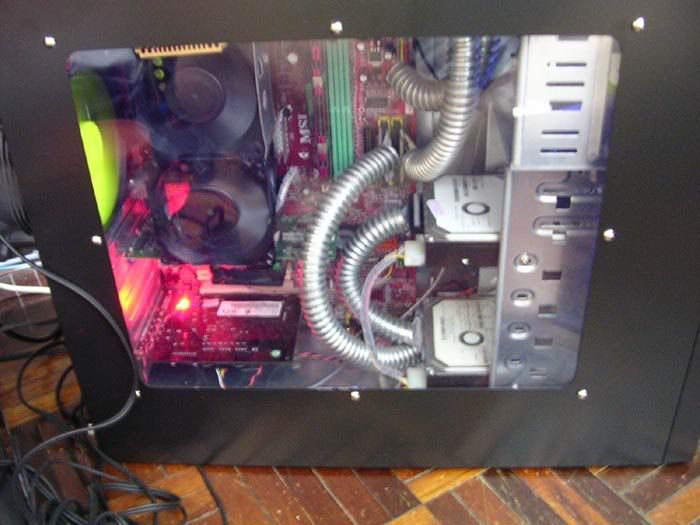

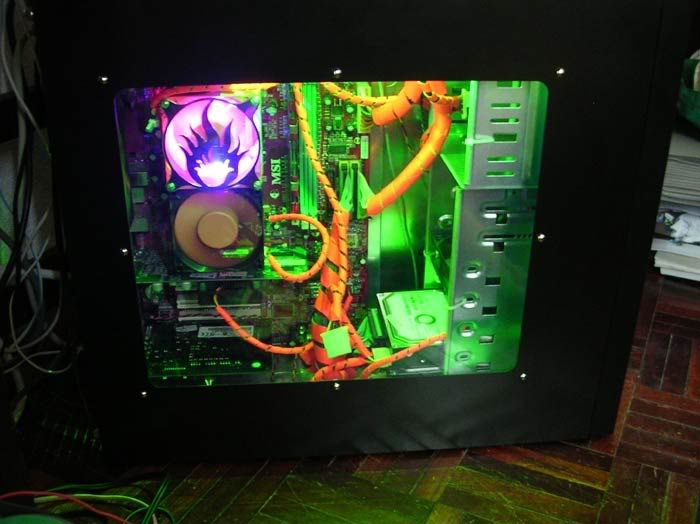

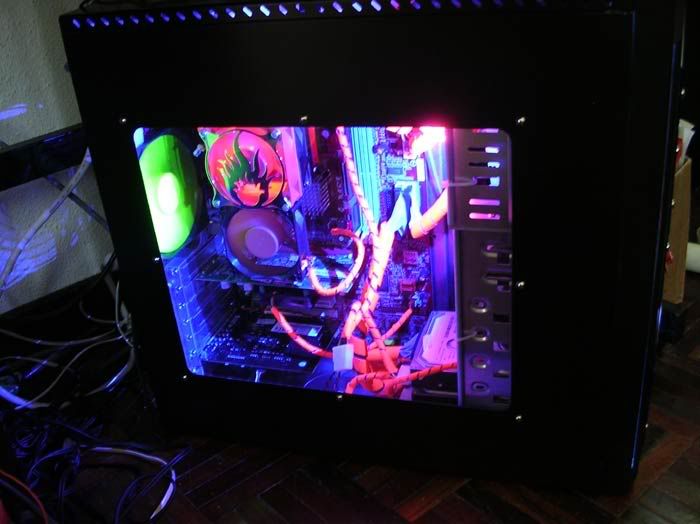

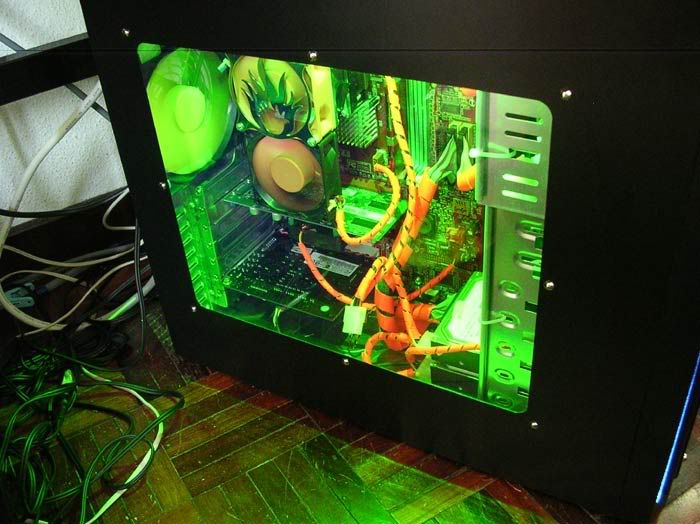

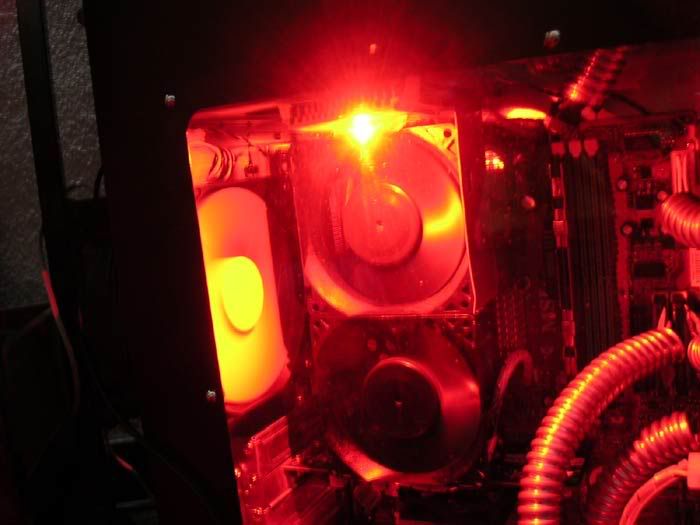

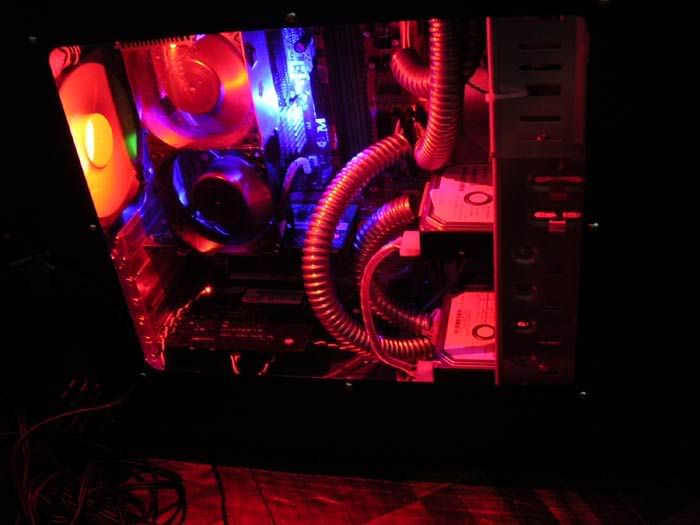

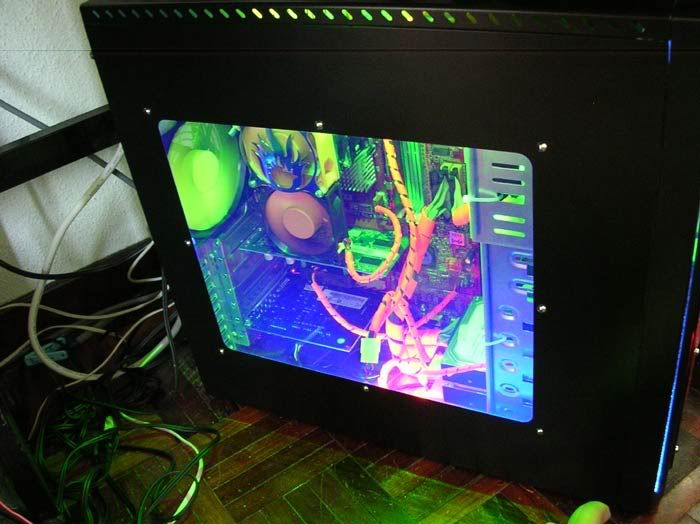

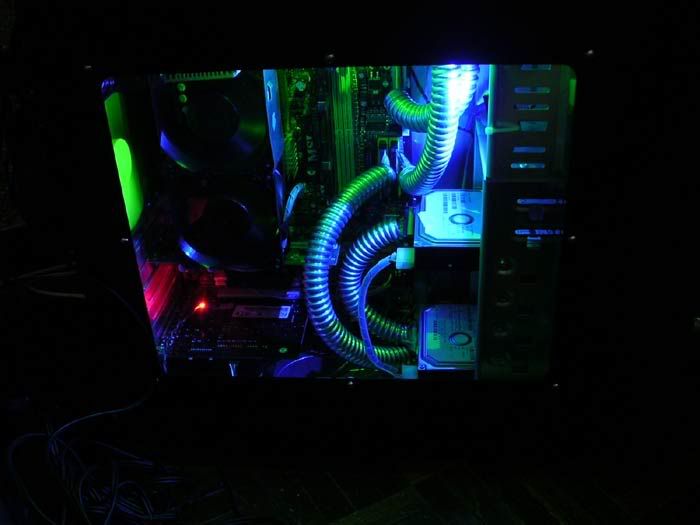

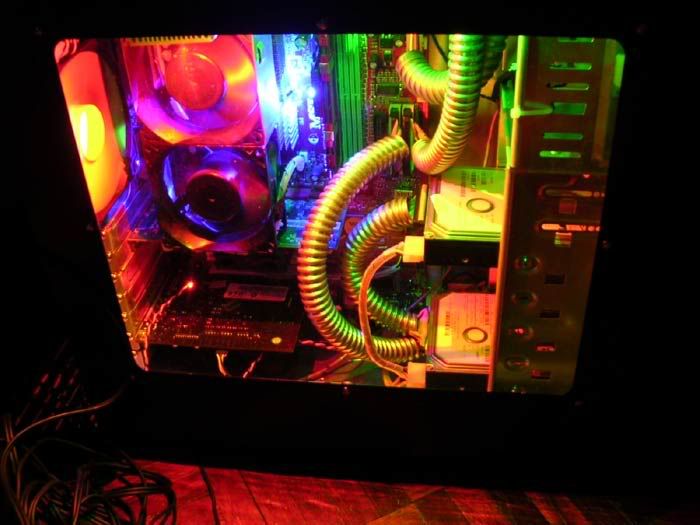

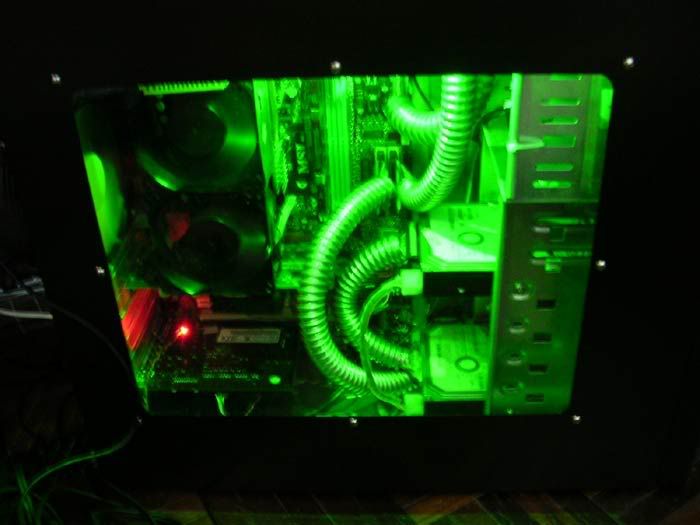

my first mod....around 2 years ago if not mistaken, mounted with Luxeon LEDs.
one green on the top panel, one blue behind the CDROM area, one red and one blue in the fan duct.
all the pictures differ because this i want to show the combination of the colours













This post has been edited by AllnGap: Dec 1 2005, 02:39 AM

This post has been edited by AllnGap: Dec 1 2005, 02:51 AM

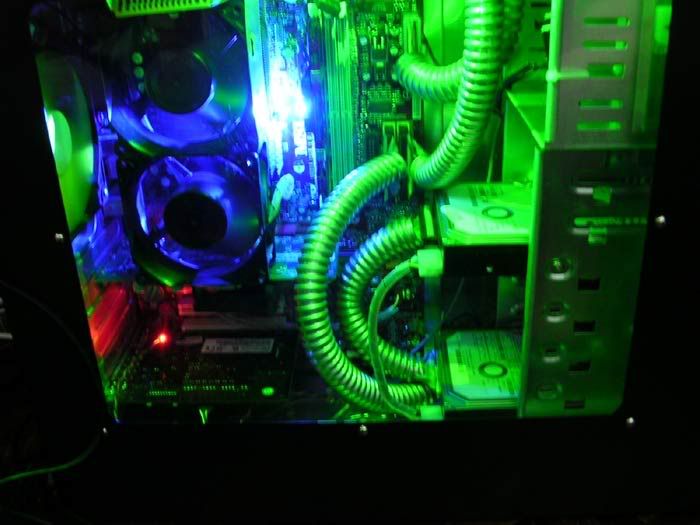

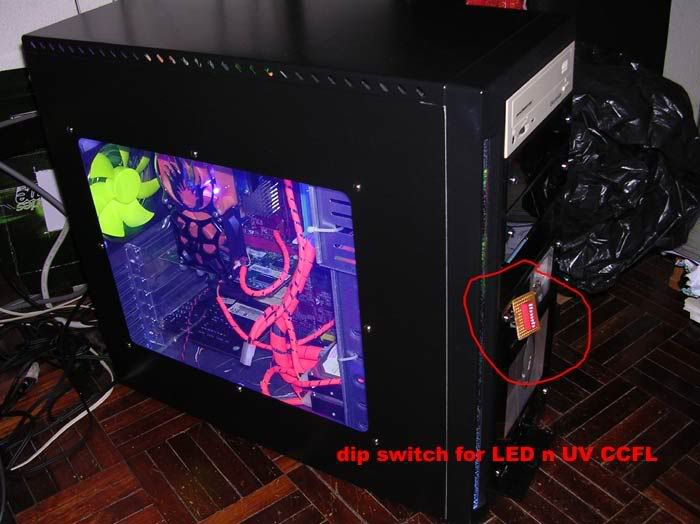

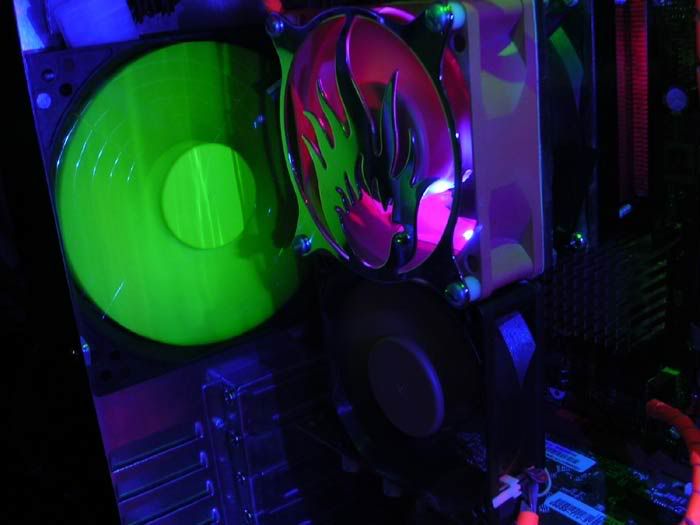

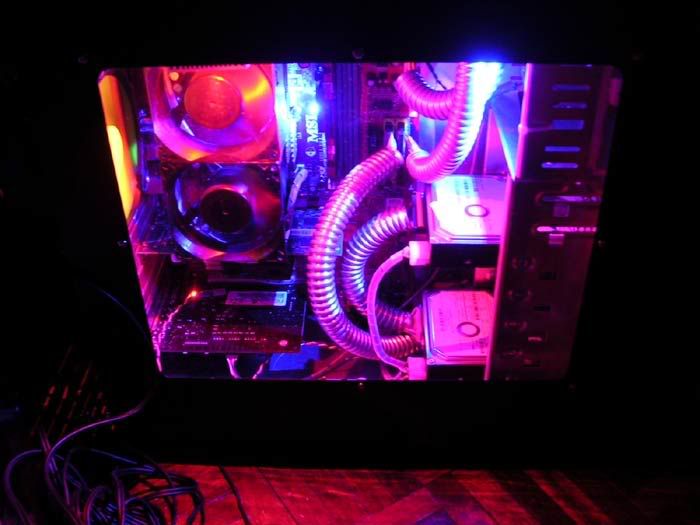

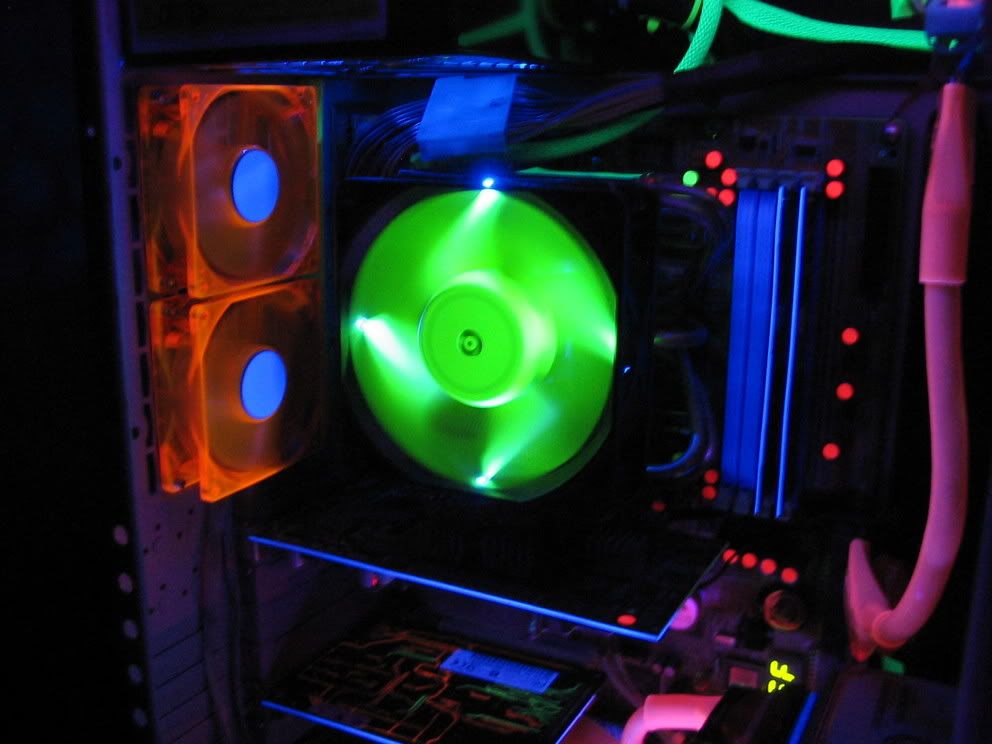

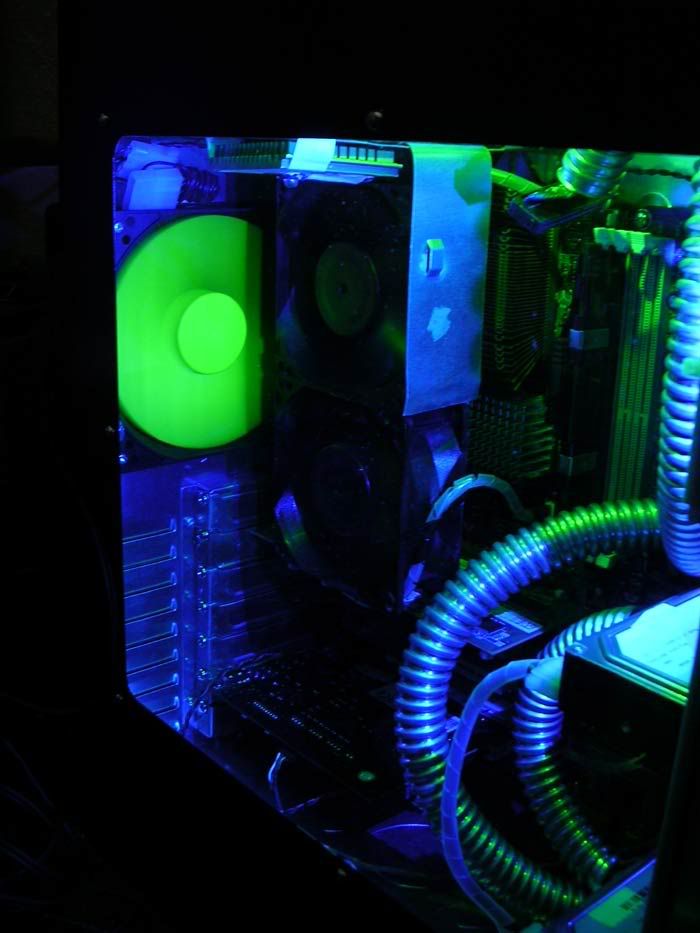

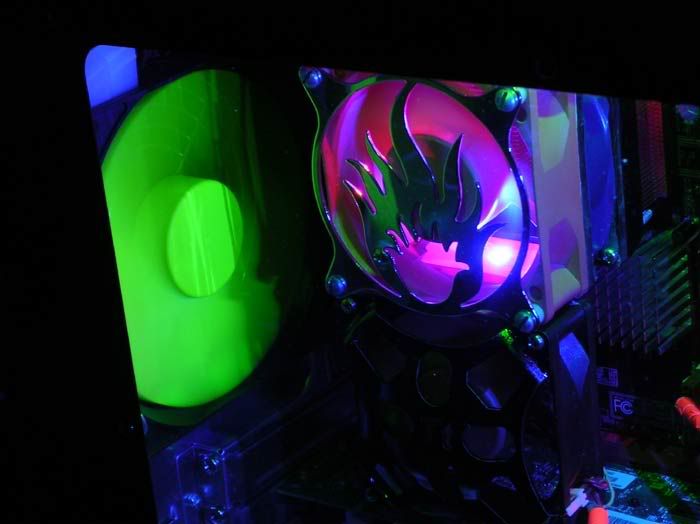

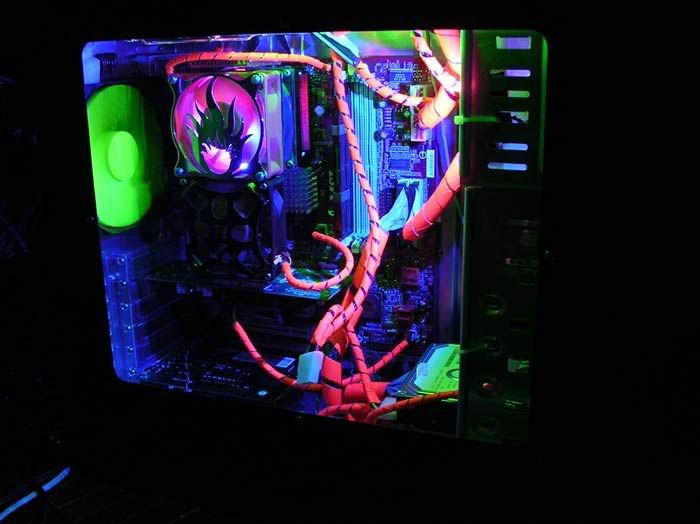

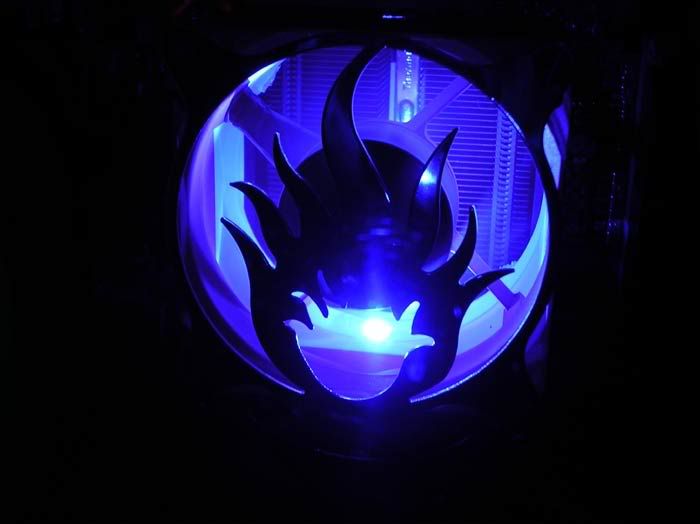

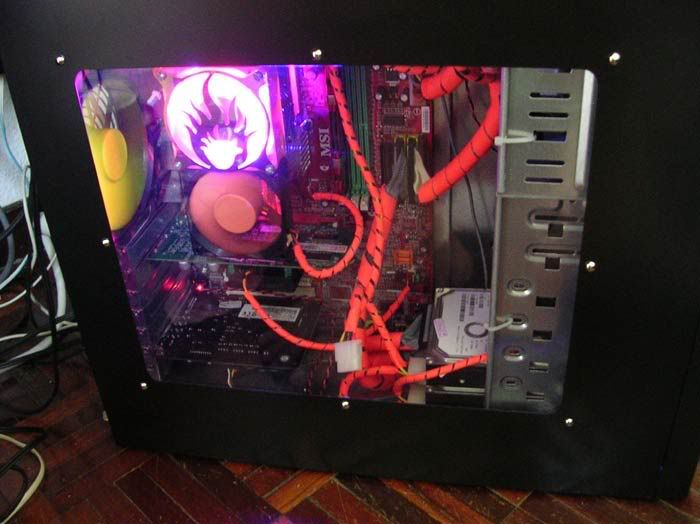

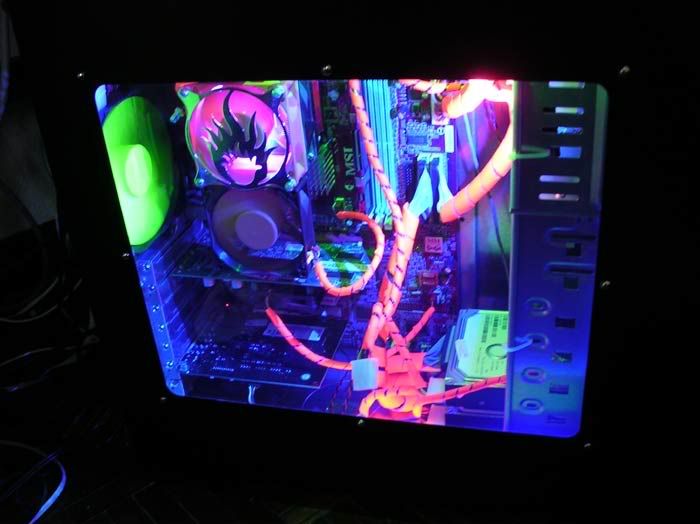

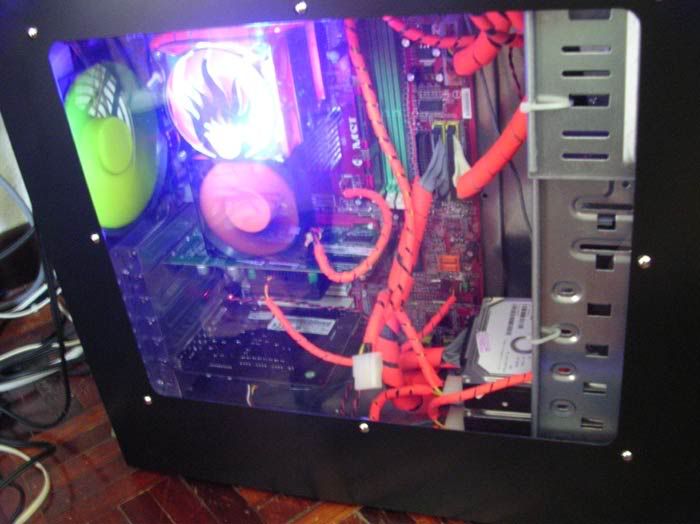

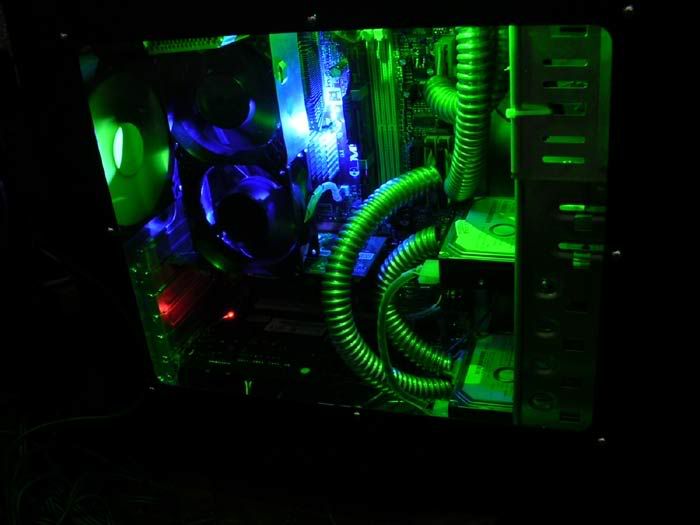

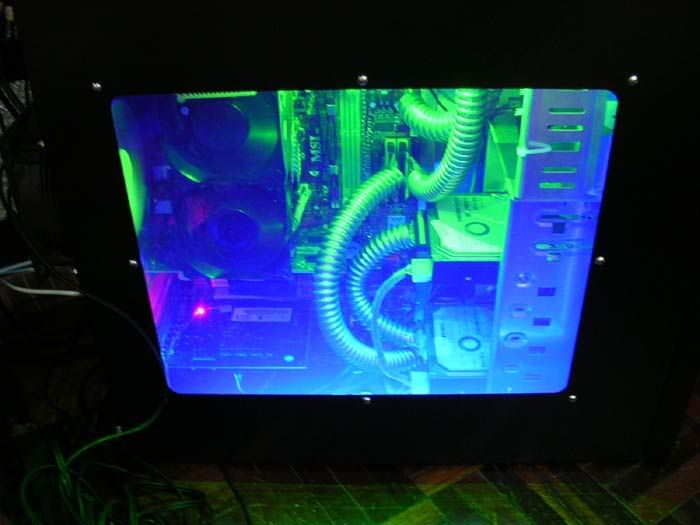

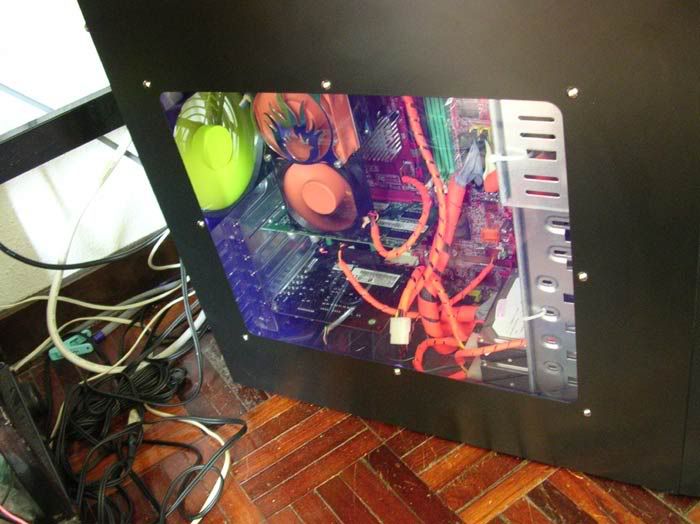

changed the theme a lil bit, got influenced by Sentinels when Matrix was still hot in the market

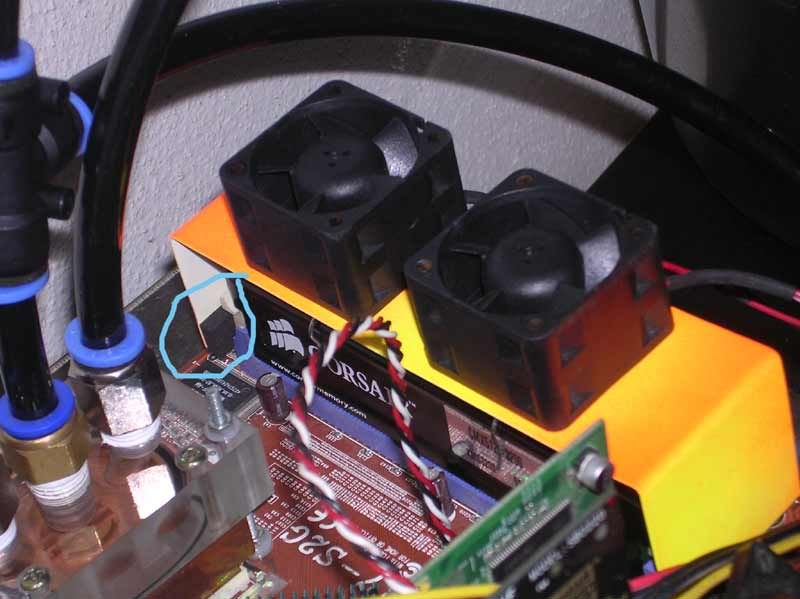

the two fans will push around 260cfm t the proc area when full speed,
it's so strong that it will push itself away from the Mobo




This post has been edited by AllnGap: Dec 1 2005, 03:10 AM

okay, i've finished uploading.

anyone can help me with the image hosting website ?


This post has been edited by AllnGap: Dec 5 2005, 11:34 PM

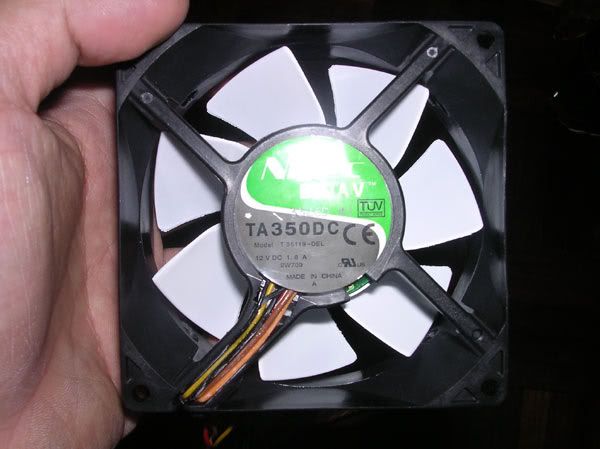

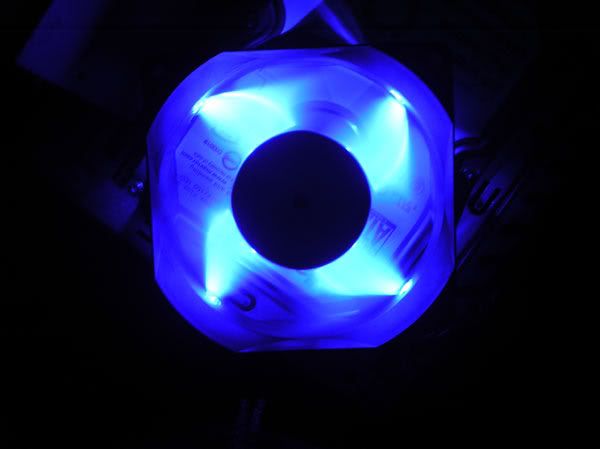

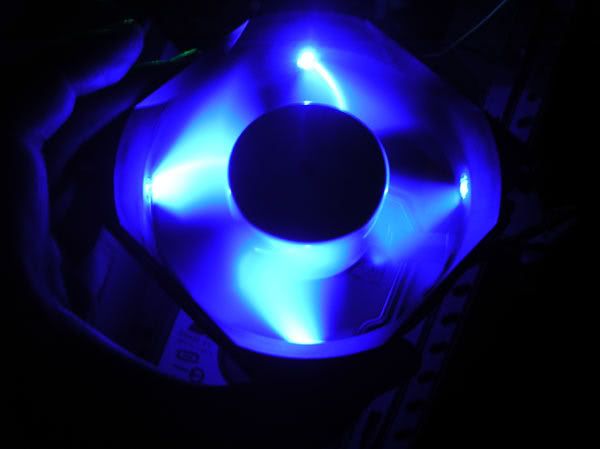

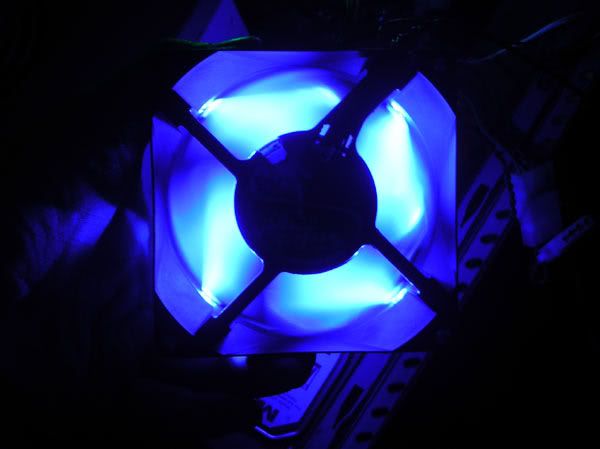

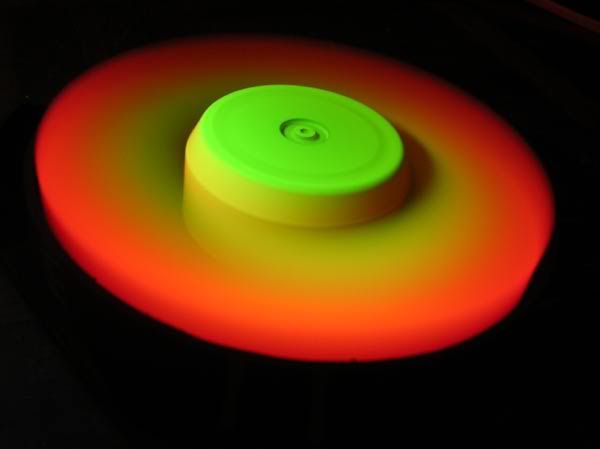

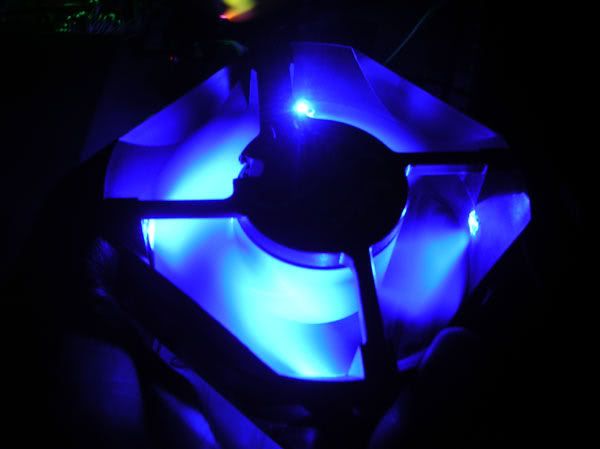

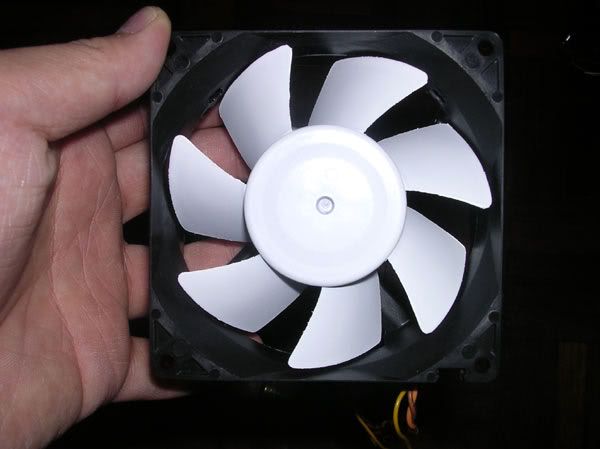

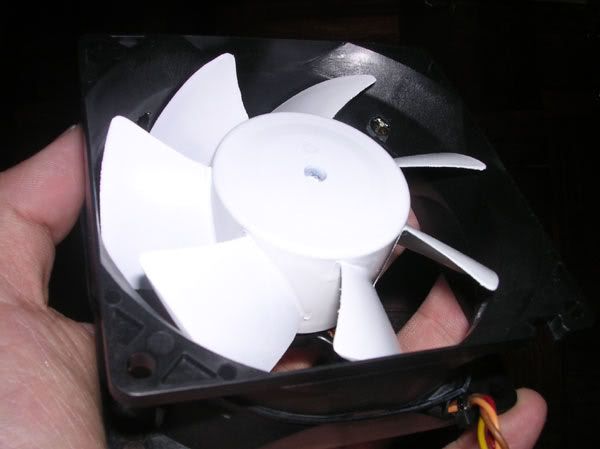

converted a dull nidec 92mm , 130cfm into a bling bling one...

just a normal mod, adding 4pcs of LED at the corners and sprayed the blades evenly









This post has been edited by AllnGap: Dec 24 2005, 08:00 AM

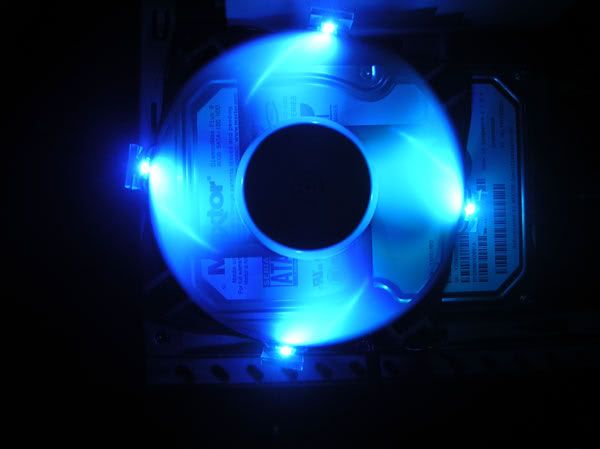

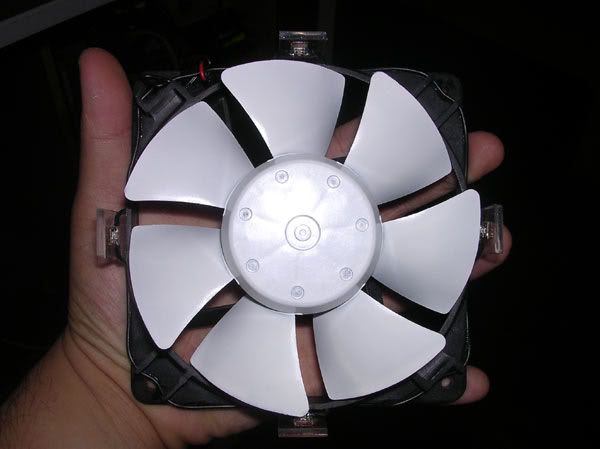

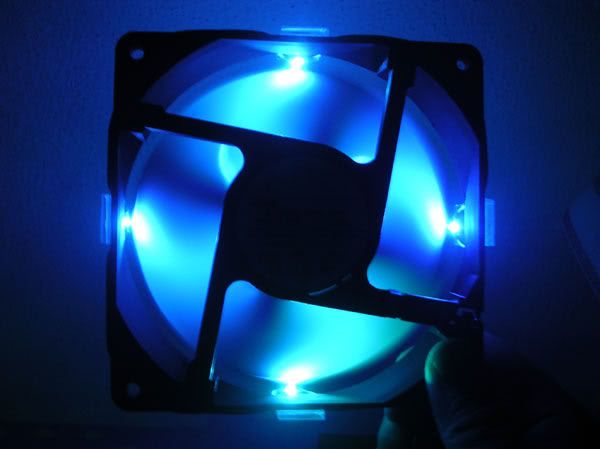

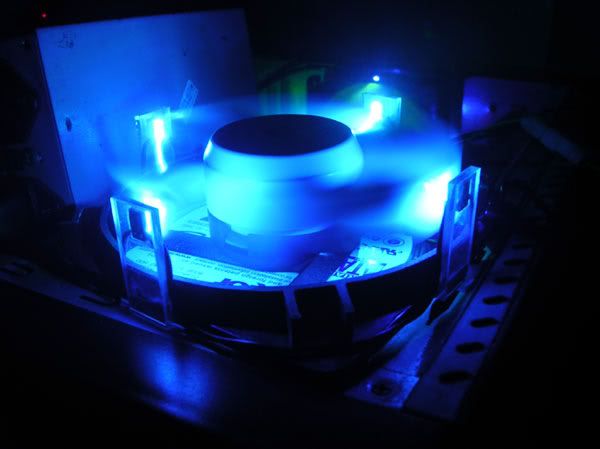

this is a forummer's item as well, he requested for ULTRA - BRIGHT AQUA shine to the NMB for his SI-120.

so i proceeded with 3x SMD LEDs on each corner, total of 12 LEDs.
the LEDs consists of 1 green and 2 blue with the green in the middle in order to get aqua colour as requested
[ blue + green = aqua ]

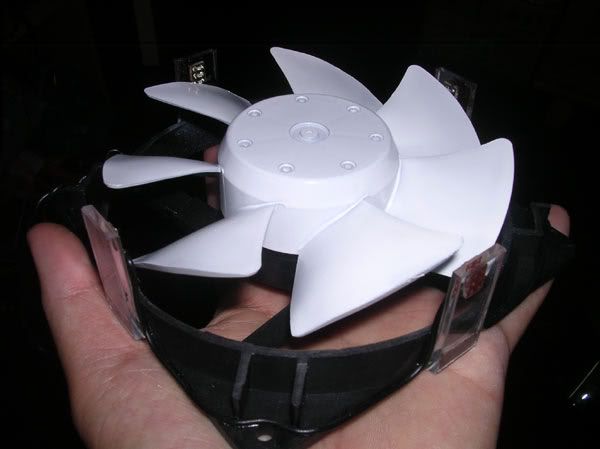

used acrylic as mounts to put the LEDs in place so that can get maximum lighting effect from any angle

on top of that i also did some frame cutting, what is left is just the structure to hole the motor only and it actually helps to reduce noise level which originally was from the pressure from compression

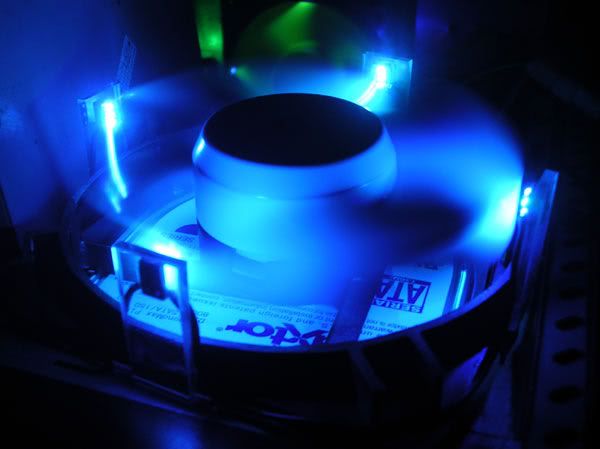

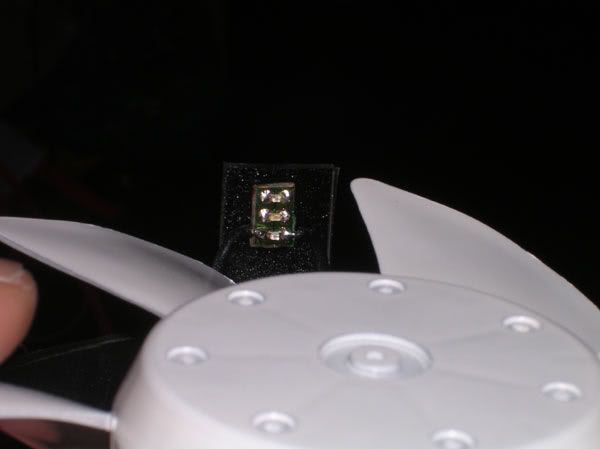

the 3 LEDs at one corner, the middle is green while the top and bottom is blue

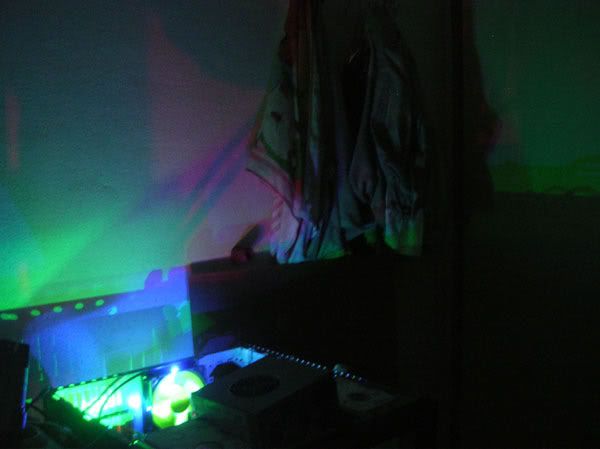

shots taken at nite....hopefully he wont complain about not being able to sleep at nite

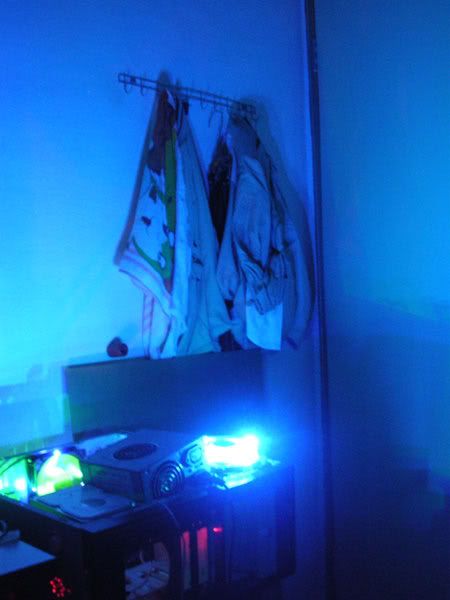

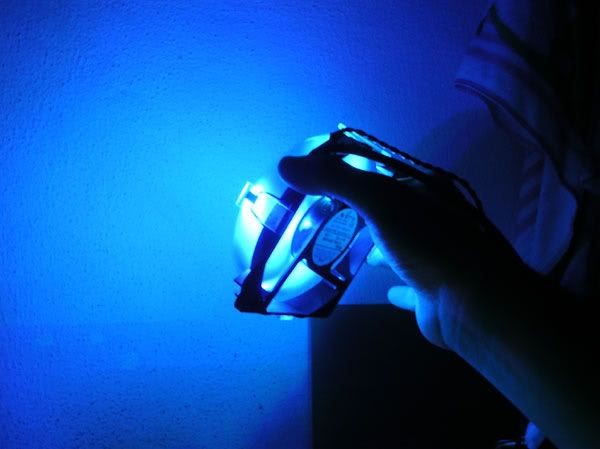

this is how bright it is.....




This post has been edited by AllnGap: Dec 24 2005, 01:35 AM

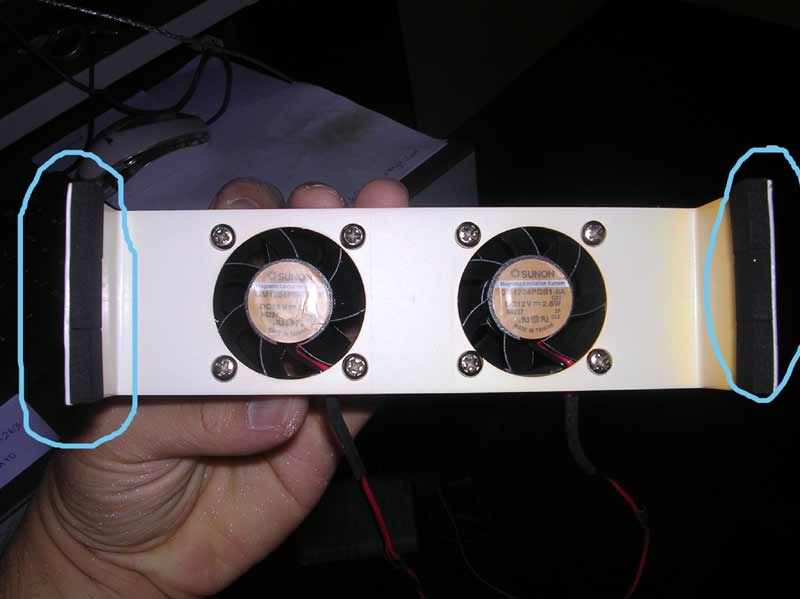

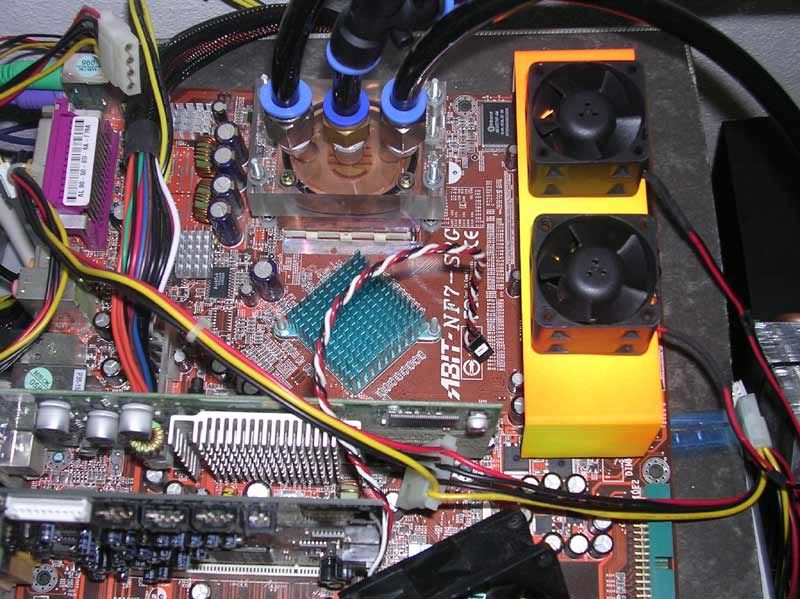

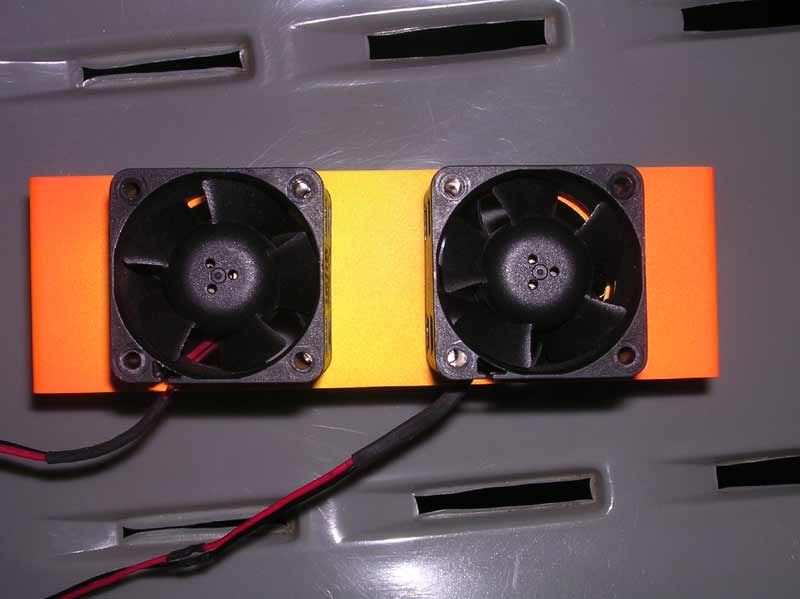

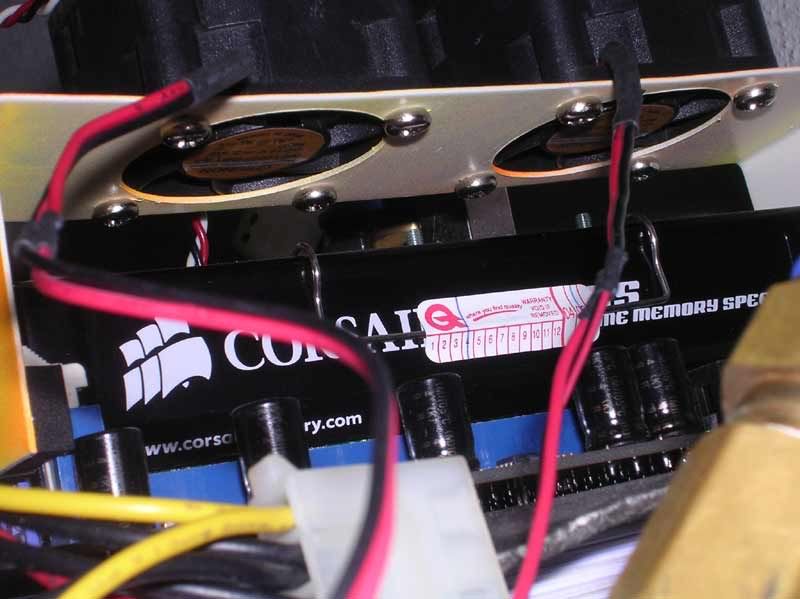

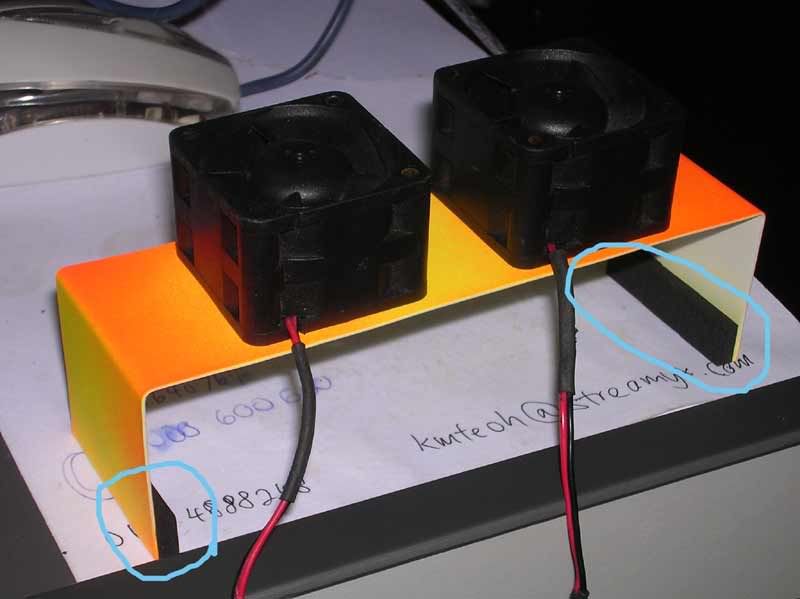

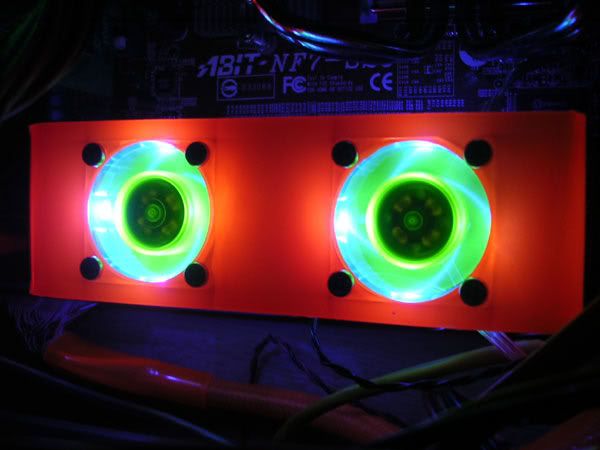

this is another custom ram cooler....
with UV reactive orange frame....pretty nice i'd say

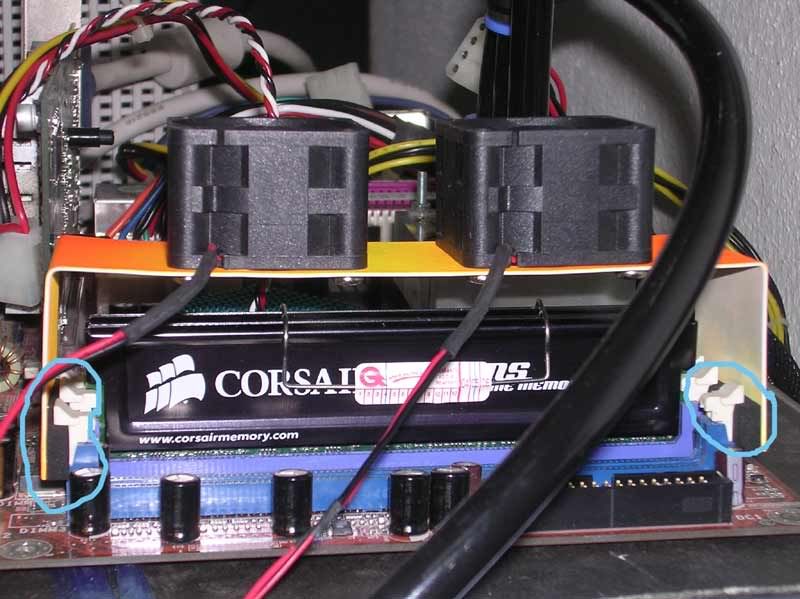

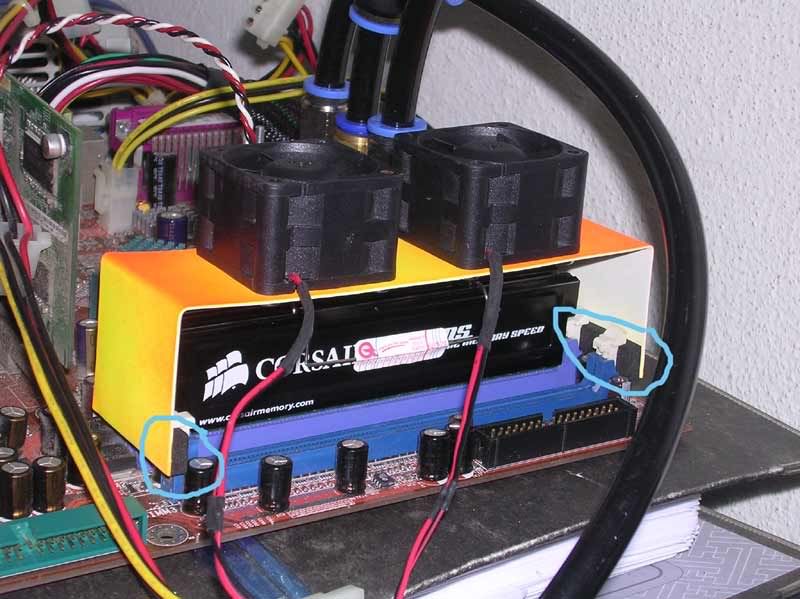

another ram cooler with UV reactive yellow frame, looks prettu cool at nite

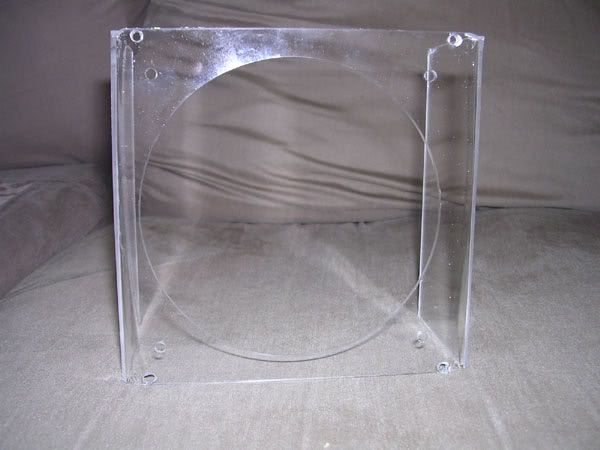

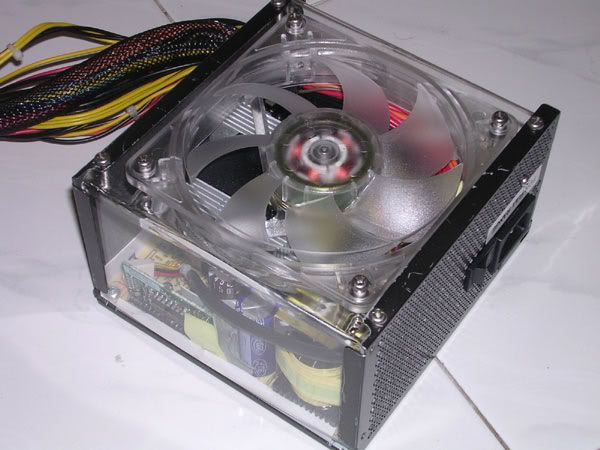

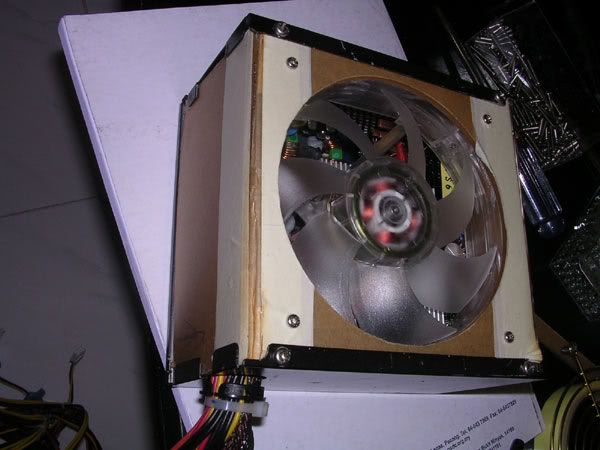

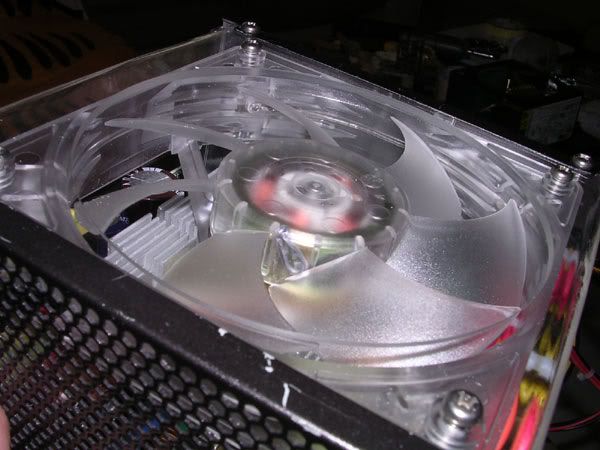

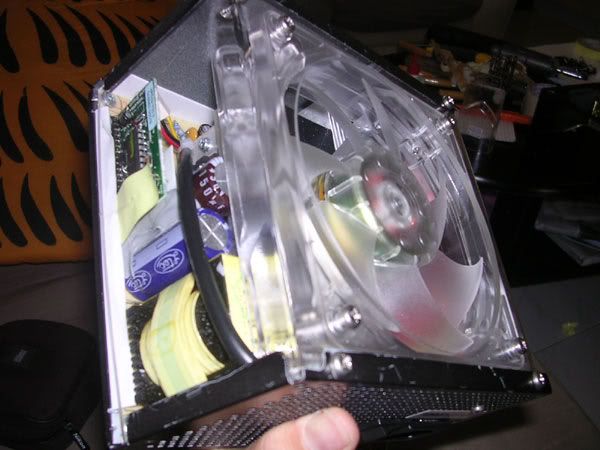

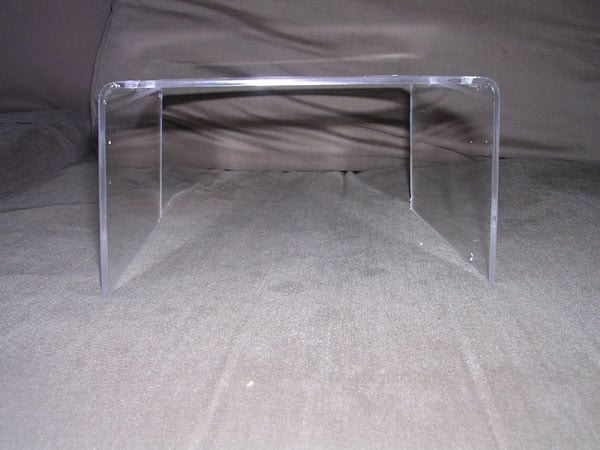

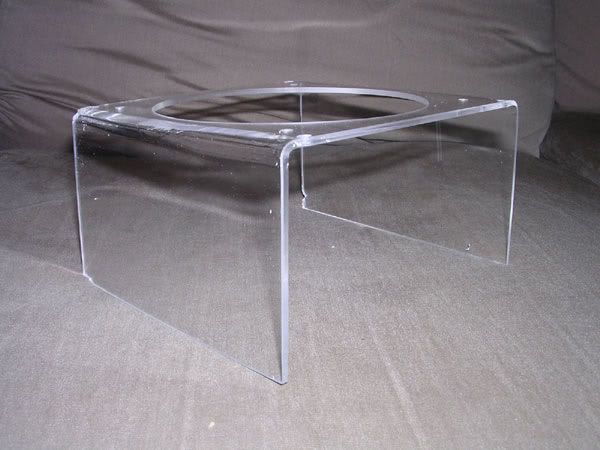

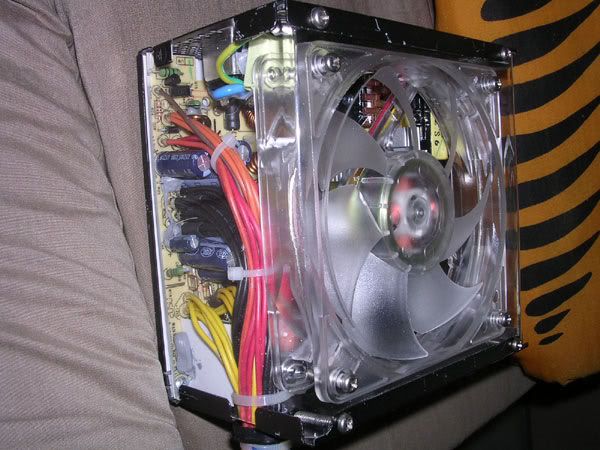

AcBel acrylic cover mod

what is so special ?? the cover goes inside the PSU instead of covering outside.
very difficult task, technically speaking, need a lot of trial and error and not giving up easily












This post has been edited by AllnGap: Dec 24 2005, 01:54 AM

hmmm.....good question.
doing the cover means voiding warranty u know, so think about it first.
anyway i need the PSU for the modding, because every PSU case is different.




SI-120's fins are loose, anyway, it's pushing more than 130cfm now

i read somewhere that frame design like Panaflo / TT Silent Cat (copied Panaflo design)
can actually put out more airflow (the comparison is between a solid frame and a frame which has got holes) and reduced the noise.

this is because air is being sucked in from the sides and excessive pressure (if exists) will be able to escape thru the holes on the frame.

but angle direction of the airflow would be bigger, meaning that the fan will blow outwards and as sniper said, pressure drops.

so depending on which type of application to use, frameless design is more suitable towards case fans.
but in this case, i want to reduce the noise.

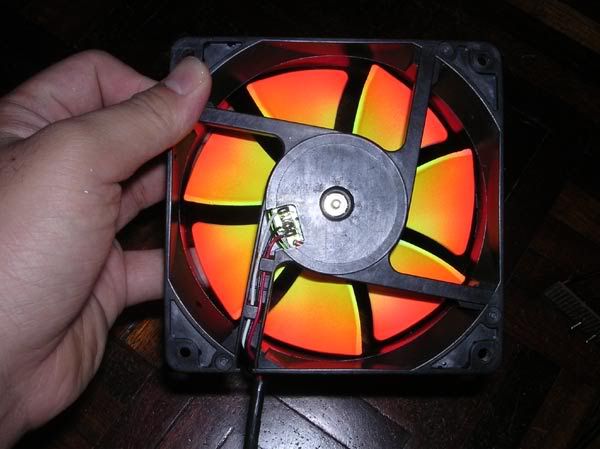

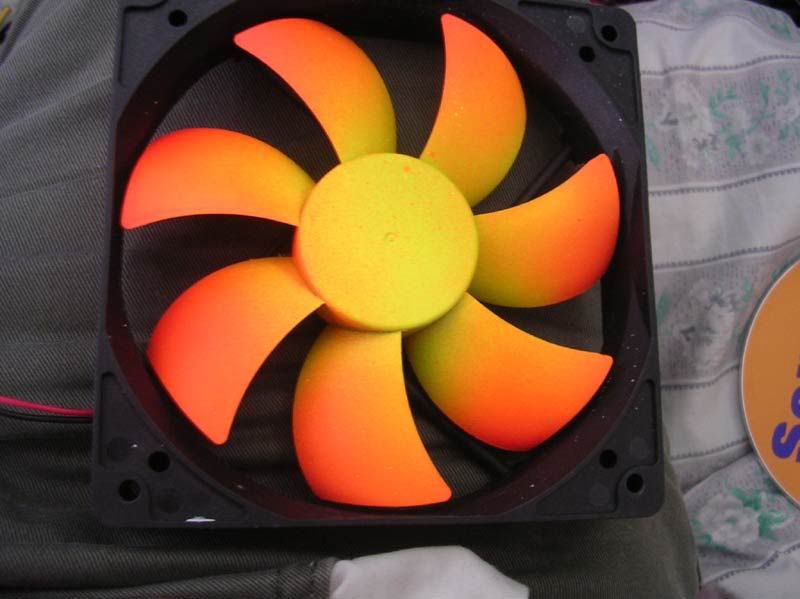

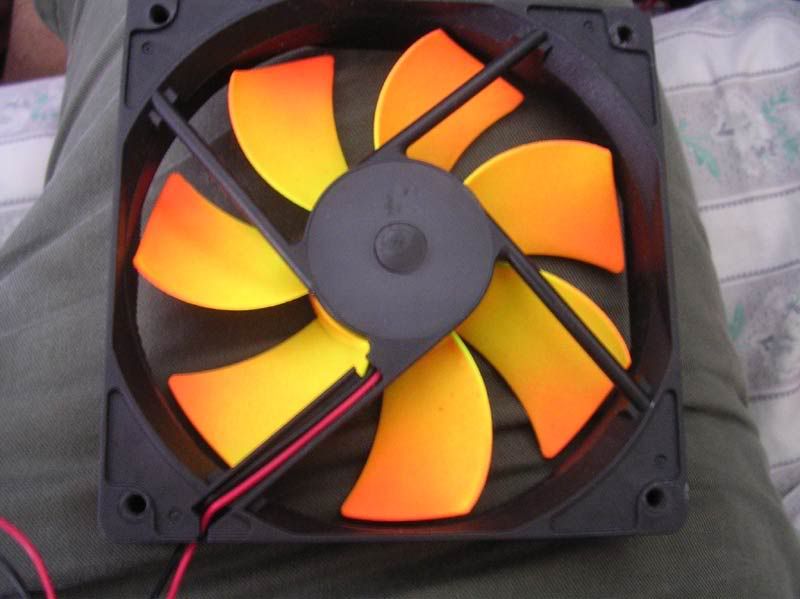

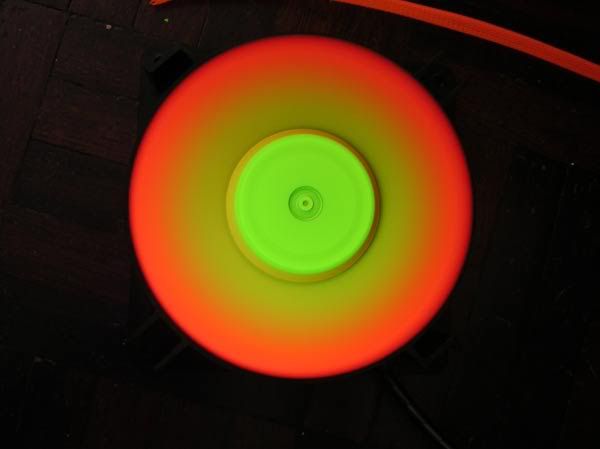

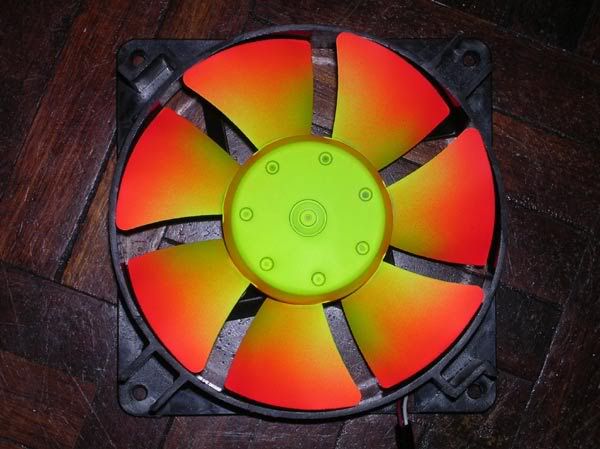

this is the 120mm NMB fan i modded for low yat 82

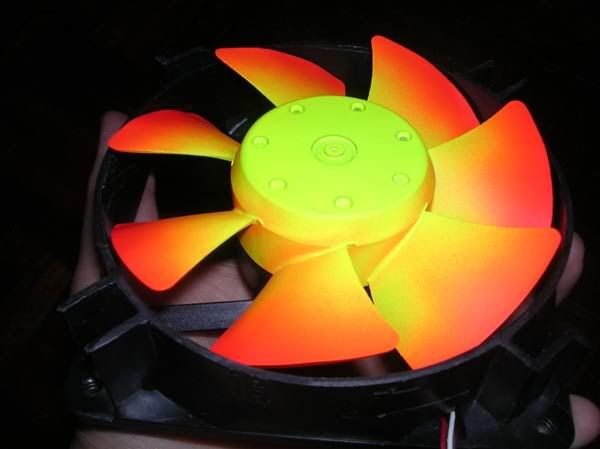

he wanted UV sunshine design, so i sprayed according to his request and did some frame trimming as well.

any comments are welcomed
