lol try nichlasteoh? he selling various type of sleeve ::

guys, i need help frm sifu2 here.
which is d correct crimp tools for psu terminal pin.
crimp tools 1 or 2 ??

1


2

1 - for crimping only

2 - crimping, cutting & stripping wires

oic tengs bro .
so which 1 u wud recommend to buy bro? (or can i borrow ur tools for 1week )
any recommendation on sleeve? mdpc sleeve is good but d price oooouuchhh...

It's depend on your requirement. 1st tool only have 1 function but 2nd tool is like 3-1 function. Me also borrow from my workplace laa... IMHO, for crimping your PSU only, 1st is enough...plus lower price than 2nd.
For sleeving can take a look for Topazzatale or Niclasteoh. I use both of them. So far no -ve perception from me regarding price & quality... .

This post has been edited by kherel77: Jul 11 2012, 05:46 PM

ooo tengs for d link .
probably will get sleeve frm Topazzatale. Niclasteoh price is too rich , eg. selling terminal pin for RM0.50 each whereby i cud buy it for only RM10 ringgit for 50 pins .

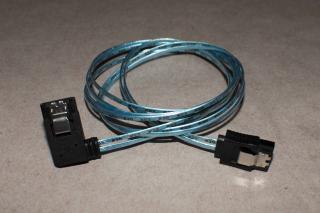

guys, any idea of sleeving this type of dual channel sata cable? sata cable by amphenol .


This post has been edited by bad melatonin: Jul 28 2012, 02:15 PM

Is it possible to sleeve 1 by 1 wire on NON MODULAR PSU?

Yes. It's possible. You can find lots in Worklog section.
Some example :

http://forum.lowyat.net/index.php?showtopi...post&p=49951203

http://forum.lowyat.net/index.php?showtopi...post&p=50040276

This post has been edited by kherel77: Oct 16 2012, 11:25 AM

Thanks, i should ask this professional user then

Soon, you can just buy the sleeves individually and create your custom extension kit the way you like it. If you want to sleeve the whole PSU, old skool method is still the only way. Unless we decide to offer full custom sleeved cables for full modular PSUs

This post has been edited by CyntrixTech: Nov 16 2012, 03:17 PM

Anyone here tried sleeving without the heat shrink before? Are there any cons to the heat shrink-less sleeving style?

Not try yet but as per i browsing somewhere you must clamp the sleeve together with the cable into contact pin, thus make the grip less effective (cable will get-off the contact pin easily). But it's will look more clean & sleek when put back into connector ... One solution is soldered the wire to contact pin after finish clamping both cable & sleeve...IMHO

Found a way where you don't have to clamp it down together. You melt the sleeve down and waste heat shrink instead. LOL.

Was just curious as to whether the heat shrink part on the "outside" has any benefits. Otherwise I might just take the dive and do heat shrink-less style MDPCX.

...that technique need some experiment to try & error + wastage....but the outcome is awesome... At the end it's up to you bro...

is sleeving will void the PSU warranty?

guys..need help..can recommend me a cheaper crimping,stripper,cutting tool? i want to make custom psu cable..tq

can find at jalan pasar. as cheap as cheap goes. lol.

already went there twice...but dont know which type is the best...

personally I'd go with pro's kit stuff. can get from meelectron, I think.

get the automatic cable stripper, really worth the while even though might cost a bit more than a normal one.

crimper got a lot, I won't know which to recommend coz I never use before, but if I buy I'd go with the ones from molex, but I don't think can get here.
