Enterprise Networking Mikrotik Routers (RouterBoard & RouterOS), User and owner discussion group
|
soonwai
|
Apr 17 2023, 10:28 AM
|
|
QUOTE(cyberic @ Apr 12 2023, 03:52 PM) Thank you. Seems like still not much improvement after all these years. For the older devices using "wireless" package, stability is very good and plenty of features but speed sure slower than consumer stuff. Here, I believe, Mikrotik wrote their own wireless driver. The new "wifiwave2" package uses stock driver. Can consider as work-in-progress for Mikrotik. Speed is much better ootb. The hAP ax3, and presumably the ax2, is actually faster than Deco x20 a bit. However, still very unstable. Wifi on the ax3 keeps dying on me. https://forum.lowyat.net/index.php?showtopi...ost&p=107059525This post has been edited by soonwai: Apr 17 2023, 10:29 AM
|
|
|
|
|
|
soonwai
|
Apr 17 2023, 04:09 PM
|
|
QUOTE(OlgaC4 @ Apr 17 2023, 11:20 AM) I don't think so but the only temp I can monitor on the ax3 is CPU temp and that's around 50-59c. Load 0-5%. It's not routing, just basic AP config and 2 containers. The wifi problem happens both AM and PM so I think not temp related. Will continue to monitor. Update: Not related to the wifi hanging but I noticed that with my ceiling fan on, hAP ax3 temp is 50C. Celing fan off, 59C. This post has been edited by soonwai: Apr 18 2023, 05:30 PM
|
|
|
|
|
|
soonwai
|
Apr 18 2023, 05:27 PM
|
|
QUOTE(hasmidzul_jojo @ Apr 12 2023, 03:42 PM) @soonwai,would you mind to do some test on max throughput on pppoe on those hap ax3?would love to see how much those 6010 @1.8Ghz could pull out. Thanks Will do once I figure out how to backup the ax3 and its containers & data. But I only Unifi 800/200 so that's the max I can test. The only pppoe server I have is on a tiny mAP Lite.
|
|
|
|
|
|
soonwai
|
Apr 18 2023, 06:00 PM
|
|
QUOTE(hasmidzul_jojo @ Apr 18 2023, 05:51 PM) Wanted to change my hap ac2 router which have been very good to me.Have not decide yet to use mikrotik from end to end exclusively or getting other brand WIFI AP.Been eyeing on wifi 6e ap for less noise. hAP ax3 is really hopeless. Wifi keeps hanging. Later check if I did anything stupid in the config but as far I remember, mostly defaults. I have ac2 also. Was using before I changed to Deco x20 and then ax3. Now the ac2 just running as switch and The Dude server. This post has been edited by soonwai: Apr 18 2023, 09:09 PM
|
|
|
|
|
|
soonwai
|
Apr 19 2023, 01:59 AM
|
|
QUOTE(tng55 @ Apr 19 2023, 01:52 AM) yah why Mikrotik wifi but speed sure slower than consumer stuff how about Ubiquiti Access Point Wifi i doubt wifi speed slower then consumer brand tp link asus etc wifi speed faster  No wor, ax3 faster a bit than Deco x20. But 1 ax3 = 1 x20 2-pack with a lot of change..  Actually ax2 is a fairer comparison with x20. ax2 specs closer to x20. Price still bit more expensive. Anyway ax2 oos forced me to buy ax3 but now I'm glad that happened. I really like ax3 because got USB port for thumbdrive to run containers. The container feature is really good. Especially because I don't have Raspi or other device running 24/7. Can't say anything about Asus or Ubiquiti which I don't use. This post has been edited by soonwai: Apr 19 2023, 02:08 AM
|
|
|
|
|
|
soonwai
|
Apr 19 2023, 12:59 PM
|
|
QUOTE(go626201 @ Apr 19 2023, 12:25 PM) What thumbdrive you are using? I was thinking to get a ssd to play with containers on RB5009. (Although i have a RPi 4 running 24/7 too) Because pendrive is not design for long operating time,and the overall performance and life cycle is lower than ssd. I’m using Sandisk Ultra Dual Drives. 2 older models with the white and clear casing instead of the current black one. I almost never use these so may as well stick it somewhere. I got too many thumbdrives. 64GB on the ax3 (containers and logs) 32GB on the RB5009 (just logs) Also the ac2 has a Kingston USB2 2GB.
|
|
|
|
|
|
soonwai
|
May 3 2023, 08:49 PM
|
|
QUOTE(hanny562 @ May 3 2023, 07:56 PM) Hi guys, I tried to setup pihole on my Mikrotik, everything done according to this link. https://www.bgocloud.com/knowledgebase/76/h...kroTik%20router. However, I'm not able to access to PiHole admin page. As I have two bridges, could it be due to the 2 bridges I created? My bridge: Bridge1 -> consists all ethernets interface (eth2, 3, 4, 5, 6 ,7 ,8 ,9) -> gateway 192.168.0.1 dockers -> setup for pihole (veth) -> ip 10.0.0.2 ->gateway 10.0.0.1 I did configure dstnat 192.168.0.1 port 4443 to 10.0.0.2 port 80. Could anyone advise how to set it up correctly please? I tried to search around google but no luck to find anything. You need srcnat masquerade rule for the container subnet. See here. https://help.mikrotik.com/docs/display/ROS/...r-CreatenetworkCan you Ping the container bridge? Can you Ping the veth? Alternatively, which is what I do, just put your container veths on your existing subnet, no need for another bridge or subnet. This post has been edited by soonwai: May 3 2023, 09:01 PM
|
|
|
|
|
|
soonwai
|
May 3 2023, 10:23 PM
|
|
QUOTE(hanny562 @ May 3 2023, 10:10 PM) Thank you for the link. I'm able to ping the bridge but not the veth using console in WinBox. Now I have configured my container veth on my existing subnet, but still no luck to access admin panel. I checked the link that you provided, I did the same as the link except I configured container veth on existing subnet. Besides that, at first I thought my firewall rules blocked it but I tried disabled all the rules and try again, no luck as well.  For your ori setup, did you add the veth to the container bridge? Easier if you just post /export.
|
|
|
|
|
|
soonwai
|
May 4 2023, 01:28 AM
|
|
QUOTE(hanny562 @ May 3 2023, 10:39 PM) Yes, I did add veth to the container bridge. Sure thing, Here you go - sorry I cannot upload the whole command here, lyn keep stopping me to post https://drive.google.com/file/d/1LO2Q5IZ_Kk...iew?usp=sharingCan you remove this and try again. I had a quick look and the container config looks ok. /ip firewall nat add action=masquerade chain=srcnat src-address=192.168.0.0/24 You only need the 2nd masq rule if you have a separate subnet for the containers.
|
|
|
|
|
|
soonwai
|
May 4 2023, 10:43 PM
|
|
QUOTE(hanny562 @ May 4 2023, 01:46 PM) At first I removed that masquerade NAT rules, but its still not able to work. I redo everything and restart it and it works for now. Thank you for the help.  No problem. Glad you got it working.
|
|
|
|
|
|
soonwai
|
May 4 2023, 11:18 PM
|
|
Dammit, I think my RB5009UG ether1 port dieded. Still troubleshooting.
|
|
|
|
|
|
soonwai
|
May 5 2023, 10:04 AM
|
|
QUOTE(tng55 @ May 5 2023, 01:46 AM) how possible easy died port 1 i know Mikrotik router look like Enterprise router not Consumer router i shock easy died Port i don't know how quality other brand ubiquiti First time for all the Mikrotik I've used.  The POE-in light on all the time now. Other ports ok, router still working. I used ether1 to my PC cos both are 2.5Gbps. PC's port is ok. This post has been edited by soonwai: May 5 2023, 10:07 AM
|
|
|
|
|
|
soonwai
|
May 6 2023, 02:00 AM
|
|
Update: RB5009 ether1 port 60% dead. Working at 1Gbps but not at 2.5Gbps. The yellow LED which is on all the time now is to indicate poe-in. Looks like something inside got shorted.  First time need to do RMA. Anyone gone through warranty claim with Subtel before? Easy or not? This post has been edited by soonwai: May 6 2023, 02:44 AM
|
|
|
|
|
|
soonwai
|
May 6 2023, 02:04 AM
|
|

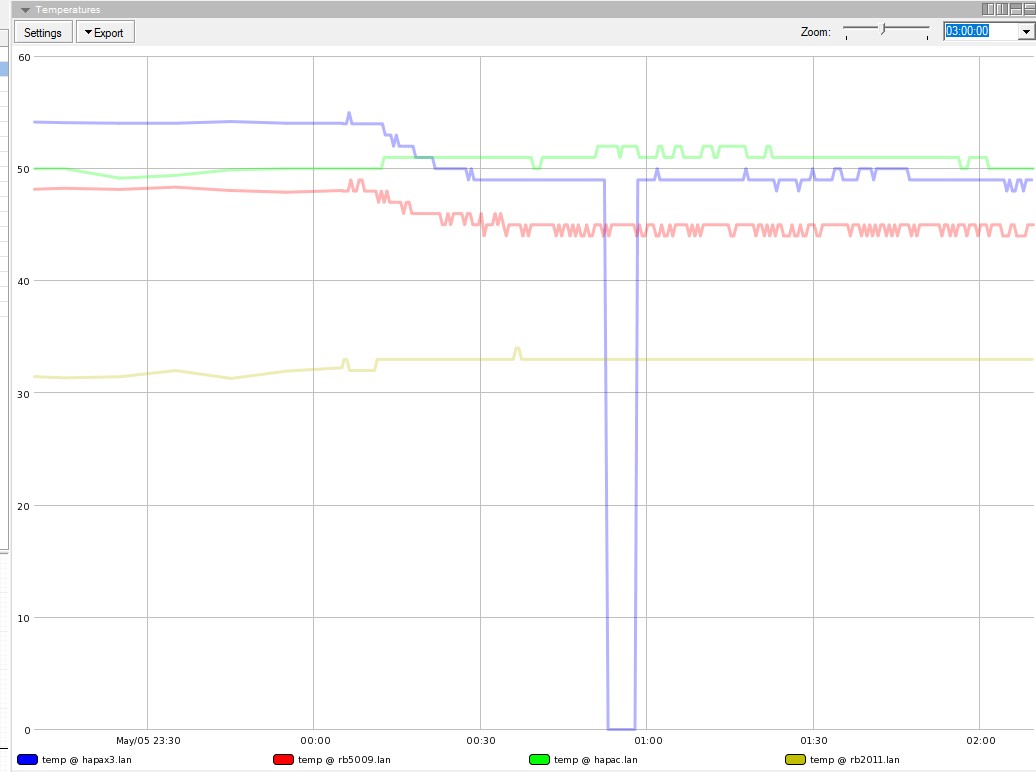

Posted this in mikrotik forum. May as well post here for ref also. QUOTE My ax3 is quite consistent at 20C above ambient when the ceiling fan is on and 25C above ambient when the fan is off.
CPU load is fairly low. Mostly at 1-2% with the occasional spike to 6%. It's running as an AP, switch and 3 containers (1 of which is only active every 60 days for a miniute.)
Currently (1:50am) it's at 49C. Room temp is 29.5C. Ceiling fan on.  RB5009, hAP ax3, hAP ax and RB2011. Also got hAP ac2 but this has no temp sensor. This post has been edited by soonwai: May 6 2023, 02:20 AM
|
|
|
|
|
|
soonwai
|
May 6 2023, 01:37 PM
|
|
QUOTE(OlgaC4 @ May 6 2023, 10:01 AM) My RB5009 always below 40c. Big heat sink below it and 3small fans rotating shift 24/7 Mine no fans other than the room’s ceiling fan but I use it as my metal ruler holder. LOL. The ruler helps 1-2C.
|
|
|
|
|
|
soonwai
|
May 7 2023, 05:25 PM
|
|
QUOTE(Jjuggler @ May 6 2023, 07:17 PM) Yo soonwai Give me review on MikroTik RB5009 and your usage scenario. Much appreciated if you're willing to. I planned to try out UDM-Pro by Ubiquiti, but Subtel's inhouse network engineer is not good enough in guiding me or providing me crucial details about UDM-Pro. bro, no time to do proper review. What do you want to know? Basically same old same old. Just faster processor, one 2.5G port, one 10G SFP+, ROS7, container support which is really nice. I just use as a router only. Nothing special. Just as legacy wireless package Capsman, a few internal VLANs, dyndns script. The containers also, I don't run on the RB5009, I put them on the ax3. This post has been edited by soonwai: May 7 2023, 05:27 PM
|
|
|
|
|
|
soonwai
|
May 7 2023, 06:52 PM
|
|
What's new in 7.9 (2023-May-02 08:35): *) ipv6 - send out RA packet with "preferred-lifetime" set to "0" when IPv6 address is deactivated; Is the above working for you all? I've been using the script below to achieve the same thing since ROS6. Lazy to reconfigure my router to try. Script (by sob) is from here: https://forum.mikrotik.com/viewtopic.php?t=182894#p911478*Can't seem to post the script. Trigger lowyat forum security every time. For some reason, lyn does not like this line of text:  CODE :local Config {{name="addr1";addr="::0:0:0:1"}} foreach C in=$Config do={ :local IdAddr [/ipv6 address find comment=($C->"name")] :local Interface [/ipv6 address get $IdAddr interface] :local Disabled [/ipv6 address get $IdAddr disabled] :local IdPrefix [/ipv6 nd prefix find interface=$Interface valid-lifetime="0s"] :local OldAddr [/ipv6 address get $IdAddr address] :local OldPrefix (([:toip6 [:pick $OldAddr 0 [:find $OldAddr "/"]]] & ffff:ffff:ffff:ffff::)."/64") #### pls remove extra spaces after the = sign :if ($"pd-valid"= 1) do={ :log info "pd-valid is 1" :local NewAddr (([:toip6 [:pick $"pd-prefix" 0 [:find $"pd-prefix" "/"]]] | [:toip6 ($C->"addr")])."/64") :local NewPrefix (([:toip6 [:pick $NewAddr 0 [:find $NewAddr "/"]]] & ffff:ffff:ffff:ffff::)."/64") :if ($OldAddr != $NewAddr || $Disabled = true) do={ :if ($OldPrefix = $NewPrefix) do={ /ipv6 nd prefix set $IdPrefix disabled=yes :delay 1s } :log info ($Interface.": new prefix: ".$NewPrefix) /ipv6 address set $IdAddr address=$NewAddr disabled=no :delay 1s :if ($OldPrefix != $NewPrefix && $OldPrefix != ::/64) do={ /ipv6 nd prefix set $IdPrefix prefix=$OldPrefix disabled=no :log info ($Interface.": expired prefix: ".$OldPrefix) :delay 1s } } } else={ /ipv6 address set $IdAddr disabled=yes :delay 1s /ipv6 nd prefix set $IdPrefix prefix=$OldPrefix disabled=no :log info ($Interface.": expired prefix: ".$OldPrefix) :delay 1s } }
This post has been edited by soonwai: May 7 2023, 07:14 PM
|
|
|
|
|
|
soonwai
|
May 9 2023, 02:16 PM
|
|
QUOTE(Jjuggler @ May 9 2023, 01:38 PM) Hi soonwai, thanks man for responding. Just wanted to know what your view about the RB5009 since you are the one who introduced me to MikroTik. I plan to buy RB5009 as my old RB750Gr3 does not support container since it is based on MMIPS architecture. So sad container requires MT routers with arm, arm64, and x86 architectures. Eventually I sold my RB750Gr3 to buy / planning to buy the RB5009. So, just poking you to know is the performance of the RB5009 is good or versa. Performance pretty good. As you know, I'm only Unifi 800/200. I run the RB5009 with Fasttrack off. If I do https://speedtest.tm.com.my, CPU is about 40%. My ax3 is running Adguard Home & Uptime-kuma and the CPU there is 1-2% with an occasional spike to 6%. Should be no problem putting these containers on the RB5009. Also have a 3rd container for letsencrypt but that only runs every 60 days.
|
|
|
|
|
|
soonwai
|
May 10 2023, 01:48 AM
|
|
QUOTE(Jjuggler @ May 9 2023, 02:38 PM) Are you planning to upgrade to higher package like 1/2Gbps? Do you think investing in MT 10GbE switch for home lab project, good? Have you used their switches before? Not at current pricing, hope got another round of turbo upgrade. 10GbE mahal. About RM650 for the 5 x SFP+ model then still need to get the SFP+ modules. Myself, maybe just get cheapo 2.5GbE switch from China or TPLink. This post has been edited by soonwai: May 10 2023, 01:49 AM
|
|
|
|
|
|
soonwai
|
May 11 2023, 01:25 AM
|
|
QUOTE(hasmidzul_jojo @ May 10 2023, 11:46 AM) Just tested Hap AX3, testing pppoe connected to unifi 300Mbps.Cpu still have a lot of room,clock at 1300Mhz approx @ 20% load on all cores without any SQM. For the queue side,i use cake simple queue,diff 4 on inbound/outbound,best effort on total queue with fasttrack off, @ 285Mbps/48Mbps.The hap ax3 easily handle cake queue very well. This will bring the cpu clock to max with plenty room to play with. Just feel very happy with my purchase. ... How's your ax3 wifi? I'm having so many probs with it on 7.9.
|
|
|
|
|
