Enterprise Networking Mikrotik Routers (RouterBoard & RouterOS), User and owner discussion group
|
|
 Apr 12 2023, 03:42 PM
Return to original view | IPv6 | Post
#21
|

Junior Member
203 posts Joined: Feb 2008
|
@soonwai,would you mind to do some test on max throughput on pppoe on those hap ax3?would love to see how much those 6010 @1.8Ghz could pull out.
Thanks |
|
|
|
|
|
Apr 18 2023, 05:51 PM
Return to original view | IPv6 | Post
#22
|
|
Junior Member
203 posts Joined: Feb 2008
|
QUOTE(soonwai @ Apr 18 2023, 05:27 PM) Will do once I figure out how to backup the ax3 and its containers & data. Wanted to change my hap ac2 router which have been very good to me.Have not decide yet to use mikrotik from end to end exclusively or getting other brand WIFI AP.Been eyeing on wifi 6e ap for less noise.But I only Unifi 800/200 so that's the max I can test. The only pppoe server I have is on a tiny mAP Lite.  |
|
|
May 3 2023, 04:44 PM
Return to original view | Post
#23
|
|
Junior Member
203 posts Joined: Feb 2008
|
CODE https://youtu.be/rIxkkNxsEhs credit to reddit Mikrotik 2011 replacement This post has been edited by hasmidzul_jojo: May 3 2023, 04:48 PM |
|
|
May 10 2023, 11:46 AM
Return to original view | IPv6 | Post
#24
|
|
Junior Member
203 posts Joined: Feb 2008
|

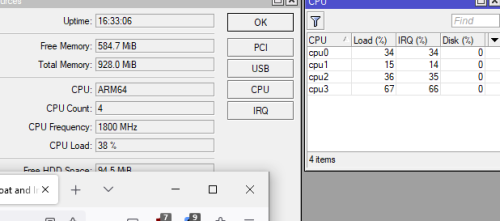

QUOTE(soonwai @ Apr 18 2023, 05:27 PM) Will do once I figure out how to backup the ax3 and its containers & data. Just tested Hap AX3, testing pppoe connected to unifi 300Mbps.Cpu still have a lot of room,clock at 1300Mhz approx @ 20% load on all cores without any SQM.But I only Unifi 800/200 so that's the max I can test. The only pppoe server I have is on a tiny mAP Lite. For the queue side,i use cake simple queue,diff 4 on inbound/outbound,best effort on total queue with fasttrack off, @ 285Mbps/48Mbps.The hap ax3 easily handle cake queue very well. This will bring the cpu clock to max with plenty room to play with. Just feel very happy with my purchase.  |
|
|
May 11 2023, 07:16 AM
Return to original view | IPv6 | Post
#25
|
|
Junior Member
203 posts Joined: Feb 2008
|
QUOTE(soonwai @ May 11 2023, 01:25 AM) How's your ax3 wifi? I'm having so many probs with it on 7.9. My hap ax3 running on 7.9 stable.The wifi is working fine on both bands,only one time the 5GHz down. I also actively ask my clients(sister and mother in law running 2,4GHz devices) weather they have disconnection or not.As per logged,no disconnection on 2GHz at this moment. I am running default firewalls,only disable the ipsec parts and adding wireguard part to allow the traffic to the router. DOH is cloudflare. CAKE is configured and currently disable. No docker what so over. Wifi 5 is manually set @ 5260Mhz(channel 52 ) AX mode @ 20/40/80Mhz width , wifi 2 is manually set at 2412Mhz(channel 1) AX mode @ 20/40Mhz width. It basically default config,running dual stack ipv4/ipv6. I only have two 5GHz AX clients,Mi 10t and my desktop computer (raptor lake) (win 10) (intel ax210),both could connect @ 1200Mbps. On 2GHz,all of them connected @ 72Mbps.(endavourOS laptop,win10 laptop,2 android phones) The only problem i have is the constant messese log of radvd invalid mtu 1492 on pppoe-out1 from fe80::200:xxxx:xxxx:xxxx,but all website could be access using ipv6. But this problem occur on both hap ac2 and hap ax3 since upgrading from 7.8 to 7.9( if not mistaken) or on unifi side of things. Any abnormality,i will update again. |
|
|
May 11 2023, 04:26 PM
Return to original view | IPv6 | Post
#26
|
|
Junior Member
203 posts Joined: Feb 2008
|
QUOTE(NovaPrime @ May 11 2023, 03:44 PM) Hi , I'm complete newbie here for Mikrotik Routers. Does hap ax3 easy to setup just like those consumer router like TPlink and asus? Just type in PPPOE account and password then setup WIFI SSID and PW you are good to go? Yes and no.Mikrotik has quick set template that you could fill in your WAN credential and wifi SSID and PWD. If you are willing to tinker,it is for you then. The wifi6 still having some issue but if you running on N or AC,most probably doesnt have some weird disconnection issue.Still monitoring on the wifi6. |
|
|
|
|
|
May 11 2023, 06:16 PM
Return to original view | IPv6 | Post
#27
|
|
Junior Member
203 posts Joined: Feb 2008
|
QUOTE(NovaPrime @ May 11 2023, 05:27 PM) After using the quick set template I fill in my WAN credential and wifi SSID and PWD then i can connect to the internet flawlessly already or i still need to tinker the SQM and firewall thing? You will need to setup some parameters for the SQM to work for mikrotik,the most queue i use if i have below 1Ghz of cpu speed,is fqcodel.On Cake,i just capped the speed to 100Mbps,just slightly below my hap ac2 cpu can handle.SQM is a must to setup to get full download speed at torrent? as previously i have tried on a openwrt router without setup the SQM i only manage to get half of the download speed of my internet bandwidth You can refer my test on my 300/50 unifi on CAKE SQM.Hap ax3 have some more cpu left to use. SQM is an intensive cpu usage.Maybe it could handle 500Mbps on Cake diff3. You dont need sqm to get full speed at torrent.SQM is needed for better network response(like video call,gaming) if you internet is under full load.SQM also implimented if you under very low broadband speed like 30Mbps with many clients,like 20 devices constantly hogging your internet. Most openwrt router wifi (all in one) like to name a few totolink,xiaomi (Mediatek based chip) doesnt have the cpu capability to handle 500Mbps in sqm,maybe try get desktop grade cpu and start building your router to handle it(openwrt x86). |
|
|
May 11 2023, 08:09 PM
Return to original view | IPv6 | Post
#28
|
|
Junior Member
203 posts Joined: Feb 2008
|
QUOTE(NovaPrime @ May 11 2023, 07:47 PM) i see i see.... previously the openwrt router i use is gl.inet GL-AX1800 (Flint) WiFi 6 on speedtest it can hit 500mbps.... Actually,i do like gl-inet flint,but since I just used to mikrotik GUI..I just wait for them to introduce new hardware on mikrotik line up.i dont know why when torrent it just wont hit max speed. tried to torrent with TIME internet's stock router can hit max speed easily Maybe try spoofing MAC address on the TIME stock router and put it on your new router. |
|
|
May 11 2023, 09:18 PM
Return to original view | IPv6 | Post
#29
|
|
Junior Member
203 posts Joined: Feb 2008
|
Since your problem solve,it is ok then.No need to chase another router if current router not giving any problem.
|
|
|
May 12 2023, 07:06 AM
Return to original view | IPv6 | Post
#30
|
|
Junior Member
203 posts Joined: Feb 2008
|
@soonwai,hap ax3 wifi 6 indeed have some problem.It is the "key handshake timeout thing",although the signal strengh is good.
On the 5GHz channel,the physical wifi indicate "down" several time but not on the 2GHz channel,but still rejecting clients on both band and on 2GHz client(running non AX devices) able to reconnect without intervention. Sadly thou,on the 5Ghz ax device,i still need to scroll to setting and wifi,initiate wifi search and select the given AP,( client is not connected automatically after disconnected.)But,it only occur once(manual reconnecting) during 20hrs of test. TWT problem introduce in the drivers?   |
|
|
May 12 2023, 09:03 AM
Return to original view | IPv6 | Post
#31
|
|
Junior Member
203 posts Joined: Feb 2008
|
QUOTE(OlgaC4 @ May 12 2023, 08:33 AM) Set the wifi country setting to Taiwan ada power lebih sikit. Ada tapi tak banyak. Superchannel over heat later. Thanks for the suggestion.Mine were set to Malaysia,channel manually selected based on unoccupied bandwidth. I dont need range for my application,our house is small(i catch fish for a living,not wealthy la). I basically need 5Ghz only,since i have guest at the house at the moment,i switched on the 2.4GHz(for mobile phones). Laptops and desktop pc all hardwired. Later may need switch for a couple of cctv cameras. All i need are stable responsive network,wireguard access and thats about it.wifi speed is not a concern,most of my time only at desktop pc. |
|
|
May 12 2023, 10:53 AM
Return to original view | IPv6 | Post
#32
|
|
Junior Member
203 posts Joined: Feb 2008
|
QUOTE(OlgaC4 @ May 12 2023, 10:27 AM) Catch fish lol. I love fishing. Ada port ke bang. I catch fish using net drifting technique.Mostly small threadfins and gonjeng.During low tide season,i went for giant river prawns using reels and hooks(baiting).If time permits,i do occationally catch hampala using small fishing outfits,baitfinness fishing.Old normal lure technique doesnt be as effective like before since they were easily spooked. Mostly eaten or sold if any surplus. On networking, moving from smoothwall to ipfire to m0nowall to pfsense and now...mikrotik,is the new home for last 5 years.Kipas susah mati.😂 |
|
|
May 12 2023, 03:31 PM
Return to original view | IPv6 | Post
#33
|
|
Junior Member
203 posts Joined: Feb 2008
|
QUOTE(zenix @ May 12 2023, 03:16 PM) wow install onto old pc? repurpose intel 478.Cant afford pc engines board 😁 |
|
|
|
|
|
May 13 2023, 08:39 AM
Return to original view | IPv6 | Post
#34
|
|
Junior Member
203 posts Joined: Feb 2008
|

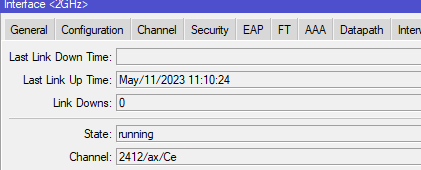

I have never have this "cant find PMKSA" on my log.
This is my wifi config CODE /interface/wifiwave2> print detail Flags: M - master; D - dynamic; B - bound; X - disabled, I - inactive, R - running 0 M BR default-name="wifi2" name="2GHz" mac-address=XX:XX:XX:XX:XX:XX arp-timeout=auto radio-mac=XX:XX:XX:XX:XX:XX configuration.mode=ap .ssid="2GHzAX" .country=Malaysia .hide-ssid=yes security.authentication-types=wpa2-psk,wpa3-psk .passphrase="XX:XX:XX:XX:XX:XX" channel.frequency=2412 .band=2ghz-ax .width=20/40mhz .skip-dfs-channels=disabled 1 M BR default-name="wifi1" name="5GHz" mac-address=XX:XX:XX:XX:XX:XX arp-timeout=auto radio-mac=XX:XX:XX:XX:XX:XX configuration.mode=ap .ssid="5GHzAX" .country=Malaysia .hide-ssid=yes security.authentication-types=wpa2-psk,wpa3-psk .passphrase="XX:XX:XX:XX:XX:XX" channel.frequency=5260 .band=5ghz-ax .width=20/40/80mhz .skip-dfs-channels=disabled 2 X name="wifi3" mac-address=XX:XX:XX:XX:XX:XX arp-timeout=auto master-interface=5GHz configuration.mode=ap .ssid="Guests" security.passphrase="XX:XX:XX:XX:XX:XX" 3 X name="wifi4" mac-address=XX:XX:XX:XX:XX:XX arp-timeout=auto master-interface=2GHz configuration.mode=ap .ssid="Guests" security.passphrase="XX:XX:XX:XX:XX:XX" What do you mean "wifi died"?Do you need to restart the router to get the wifi back on?Or just toggle reenabling wifi interface? |
|
|
May 14 2023, 09:02 PM
Return to original view | IPv6 | Post
#35
|
|
Junior Member
203 posts Joined: Feb 2008
|
Mine running 7.9.Hap ax3.Alerady running 2days 6 hours,disconnection on both 2GHz and 5GHz occationally depite having a good signal(signal lost on log),but able to reconnecting without wifi being dead.
|
|
|
May 15 2023, 06:52 PM
Return to original view | IPv6 | Post
#36
|
|
Junior Member
203 posts Joined: Feb 2008
|

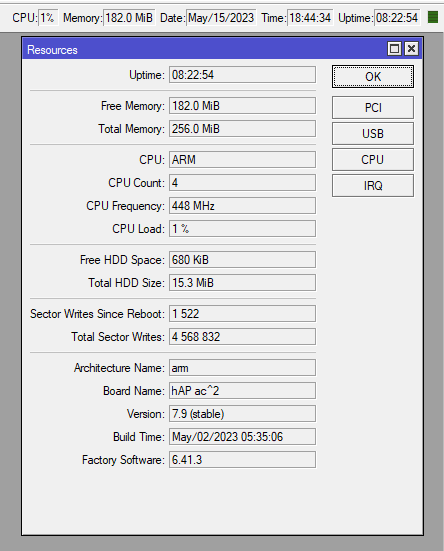

QUOTE(MX510 @ May 15 2023, 09:31 AM) Based on my personal experience i don't enable the wifi inside my hap ac2 it will cost the unit overheat and wifi crash get another ap for wifi purposes from Ubiquiti or WiFi 6 or 6e from another brand pair it with mikrotik . I personally use Huawei AX3 Pro for my WiFi AP so far no issues working great I run my hap ac2 with wireless turn on 24/7 since day one,run like a mule.the only thing that kaput was the power supply.Mine came with the 246MB of ram.It did run hot,dont get me wrong.No external cooling what so ever,sitting at our fisherman living room,with a table fan cooling me and my family. Never fail me once.I just run hap ac2 today just to compare the hap ax3 wifi log. |
|
|
May 15 2023, 06:59 PM
Return to original view | IPv6 | Post
#37
|
|
Junior Member
203 posts Joined: Feb 2008
|
QUOTE(soonwai @ May 15 2023, 06:32 PM) Too hot for our Malaysian weather. Currently I'm keeping track of the temp for ax3. As high as 55c. Mine run as high as 61 and as low as 59. |
|
|
May 16 2023, 05:15 PM
Return to original view | IPv6 | Post
#38
|
|
Junior Member
203 posts Joined: Feb 2008
|
Meanwhile...
 |
|
|
May 17 2023, 07:45 AM
Return to original view | IPv6 | Post
#39
|
|
Junior Member
203 posts Joined: Feb 2008
|
QUOTE(hasmidzul_jojo @ May 11 2023, 07:16 AM) The only problem i have is the constant messese log of radvd invalid mtu 1492 on pppoe-out1 from fe80::200:xxxx:xxxx:xxxx,but all website could be access using ipv6. But this problem occur on both hap ac2 and hap ax3 since upgrading from 7.8 to 7.9( if not mistaken) or on unifi side of things. My hap ax3 run just pass 1 day mark and still monitor it from time to time. |
|
|
Jun 5 2023, 10:13 PM
Return to original view | IPv6 | Post
#40
|
|
Junior Member
203 posts Joined: Feb 2008
|
running 7.9.1,lasted only 12 Day 8 hours,disconnecting all wifi devices.Only reboot can ensure wifi client connecting to internet. supout.rif created before rebooting hap ax3.
|
