Testing my newly configured routeros

i dont have rb5009.overkill for me.100Mbps unifi cgnated.

Seen it on shopee asking for rm900 but I never buy from the shop also.

Still have

Did you set anything on the MTU? If not,set the MTU to 1480 on the ND.Im running the same hardware/software as yours,minus the only snapshot missing there is the neighbor discovery.

Set the MTU to 1480 on ND and on the DHCP client,add default route option to NO.

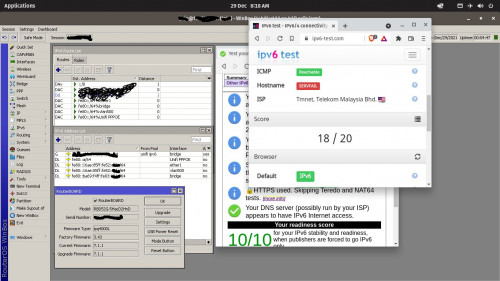

Testing out fq_codel.No more broken on ipv6.Hap ac2 on 7.2.3

I second to that.Do you think Malaysian ISP give biz package to home user like us?Never try to ask them tho.. /56 is good enough than what HE provided.
Thanks again for sharing your workaround.

Playing around with CAKE diffserv 4
Hap Ac2 v7.2.3 / Unifi 100Mbps

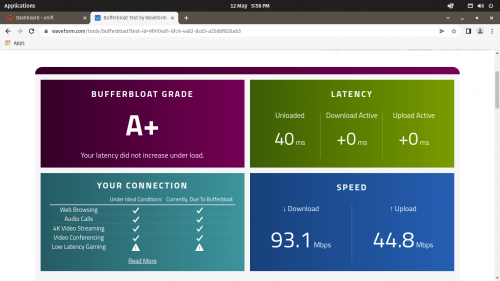

Baseline

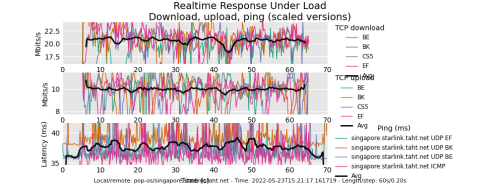

Cake Diffserv 4

Im on 300Mbps.Hap Ac2 would not do CAKE @300Mbps (fast track disable,wash 'on',diffserv 4) if you are planning to use it.
Just my 2 cents

Its a tool to combat bufferfloat.Just do a test using flent,maybe you dont need CAKE or other type of aqm.

To give you some perspective,i did some test with my sister's house with this parameters.
(Only my laptop hooked up directly to router LAN,both Wifi was turned off,same laptop)

Disclaimer,Im not an expert,and i have no networking background or working in networking field and english is not my main language,
and take my explaination with a grain of salt.

RRUL(realtime response under load) Flent.

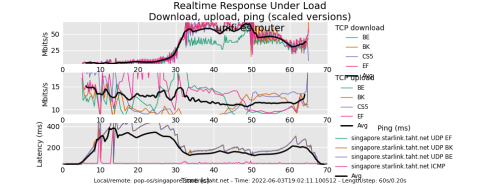

Without Cake(default Unifi Router,default setting)

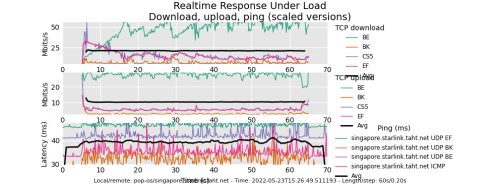

With CAKE(Hap ac2,diffserv 3,wash is ON)



The ping shoot up to nearly 400ms for the first 15s,and hoovering to 200-250ms with default router.Tik with CAKE,it was at 45ms some sort of under control.

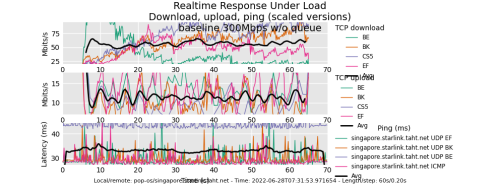

This is my flent result at our home without any AQM.



I have no need of AQM on our home.

Enjoy your reading.

Both were 300Mbps.We are living approx at 600KM apart,not on the same division.I had the test during my visit to her house during Gawai.
Just to give example,some do need it and some dont.Maybe something to do at her end(congestion,oversale or other possibility)

There are some more servers,but those were located very far from us.Singapore was the closes server that I know.Just replace the singapore to other place that you could think of.

It seem you capped the download/upload to 50/10 Mbps.On my previous test on cake with (95 % bandwidth) fasttrack disable,dual stack,diffserv 4,wash "on",max out at only ~230Mbps ish on 300Mbps with Hap ac2.It can do on fq codel.

Im wondering,how much could hap ac2 could take on fq codel?400Mpbs?or 500Mbps maybe?

Im learning this aqm because im planning to install 4g internet to my parent in law since there was no fiber on the area and hopefully can control latency since we often video calling.

Also,i did my first wireguard vpn server with hap ac2 with my android mobile as client

Here you go...




This post has been edited by hasmidzul_jojo: Aug 3 2022, 04:21 PM

Hopefully the price not too steep and a GHz cpu speed.Wonder which chipset they will put inside?ipq6000 series maybe?I might buying one to replace my hap ac2.Been tinkering with openwrt,but seem favour to routeros.Suite my need,on my small house.

I think it will be steep increase in price,from usd79 for hap ac2.to maybe slighly above hap ac3 price.It is frustrating to compare current ax1800 wifi price 2x lower than that.Even linksys e8450 priced lower than hap ac3 with ax3200.Guest i need to sell more fish to obtain this hap ax2

And again LTE18 and 5G router.

With 2.5Gbe

I cant afford this

How do you pre-order the 5g ax router from them?Full payment of the said product?
