QUOTE(saru04 @ Oct 31 2011, 06:58 PM)
gurus, how to know if my car engine is Campro CPS or Campro IAFM?
dude...u serious? go google la bro google...a lot of image out there that can differentiate cps and non cps...
QUOTE(nicedevil @ Oct 31 2011, 08:09 PM)
tu lar.. melayang 400 hinggit.. naper manual drng x recall? pelik aku..
rm400 bole tuka momo replica ke xpon klo pandai carik momo ori japan yg in excellent condition etc complete with bosskit...
QUOTE(nicedevil @ Oct 31 2011, 08:32 PM)
leh tolong suggest ckit stereng yg best.. aku x pandai bab2 stering nie.. boler usha2..
g je brothers try shop around kt sana tp jgn beli kt sana at least dptla idea...klo replica byk jenis sparco, momo, omp etc...xpon pegi kt tuners area yg jual byk performance parts ke kakimoto ke sana pon mesti ada...replica pny harga dlm 150 siap pasang dgn bosskit...
QUOTE(alpha33 @ Oct 31 2011, 08:38 PM)
aftermarket stering xde pon tempat nak letak clockspring tu...clockspring tu guna utk control airbag n radio function...stereng aftermarket xde airbag n xde button radio pon so just buang je...klo nak aku pon ada clockspring aku aritu nak jual sapa2 yg nak clockspring murah hahaha...horn function dia sambung je kt connector horn tu xde masalah...
klo nak pakai stereng cps bole gak...tapi stereng cps bkan kategori aftermarket n boleh la pakai clockspring tu balik n dpt la function2 radio button n airbag tu...
QUOTE(ahlong @ Oct 31 2011, 09:05 PM)
byk kete gen2 aku tgk xpakai pon clockspring bila tukar stereng mangkuk tu
nampak gaya kedai yg pasang tu buat mejik kot sorok clockspring

stereng mangkuk tu ikut pada kreativiti tukang pasang...klo tukang pasang iq tahap mangkuk mmg mangkuk la jawapnya kete tu nnt hahahaha
Added on November 1, 2011, 9:05 amhttp://en.wikipedia.org/wiki/Campro_engine
Campro standard
» Click to show Spoiler - click again to hide... «

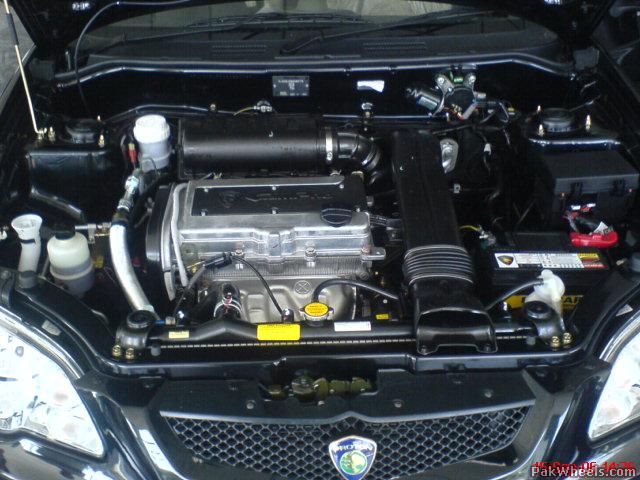

This is campro standard engine with the engine head cover...

if u open the cover u will see something like this

notice the black cam valley cover with campro wordings on it...and the intake hose at the right side beside the battery is more like oval not round...
This is Campro IAFM
» Click to show Spoiler - click again to hide... «

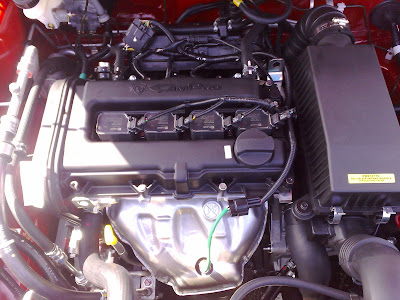

This is campro iafm with the engine head cover...the intake hose at the right side beside the battery has a box there for air filter...

if u open the cover u will see something like this...there's no cam valley cover as it use a Coil On Plug

This is CPS engine
» Click to show Spoiler - click again to hide... «
For CPS take note on the RED CAM VALLEY COVER with CAMPRO CPS...the head dimension is bigger to standard campro...notice the intake hose at the right side beside the battery is round...


anyway the most easiest way to determine ur engine is campro or cps is take a look at your car rear bonnet la...if got only campro 1.6 then its a normal campro la...if got cps then its a cps la...
This post has been edited by shazmn: Nov 1 2011, 09:05 AM
