Anybody know how to unscrew this laptop , I want to clean this laptop XD
Acer Aspire 5750G, Malaysia's 1st Sandy Bridge laptop
Acer Aspire 5750G, Malaysia's 1st Sandy Bridge laptop
|
|
Feb 6 2012, 06:15 PM
Return to original view | Post
#61
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |
Anybody know how to unscrew this laptop , I want to clean this laptop XD
|
|
|
|
|
|
Feb 16 2012, 01:48 AM
Return to original view | Post
#62
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |
QUOTE(lun073 @ Feb 15 2012, 10:52 PM) hi guys. How about , un-attach and re-attach ur keyboard .my function keys and Esc all are not working.... if i press Alt+F4, it's good... but when i press Esc or Fn+F6 or Fn+ Arrow (up, down, left, right) all are not working... i tried to uninstall Launch Manager and resintall but it didn't help... anything else that i can do? thanks. |
|
|
Mar 4 2012, 09:39 PM
Return to original view | Post
#63
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |

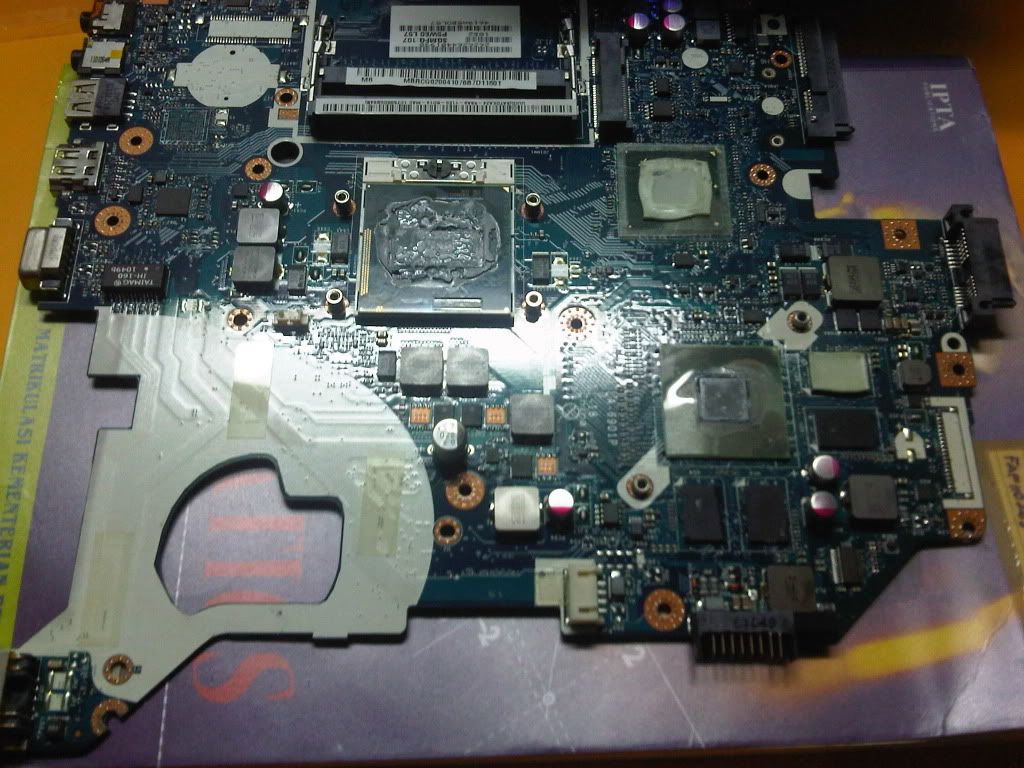

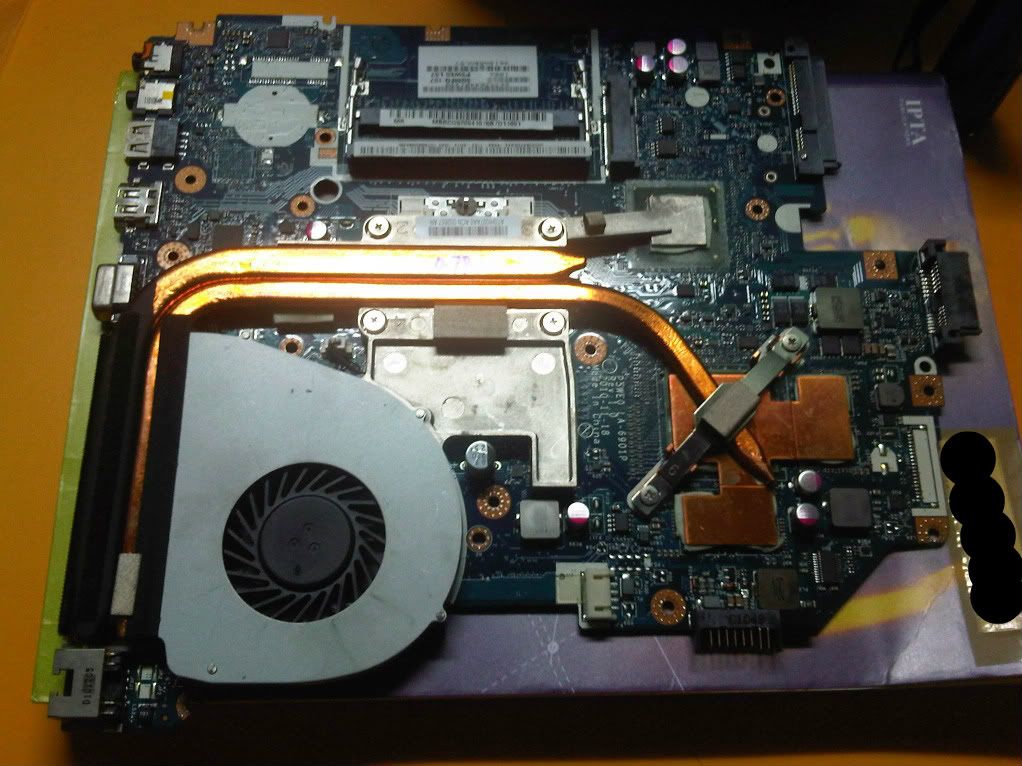

So today I open my laptop to replace stock thermal compound and to clean fan and vent , pics here :

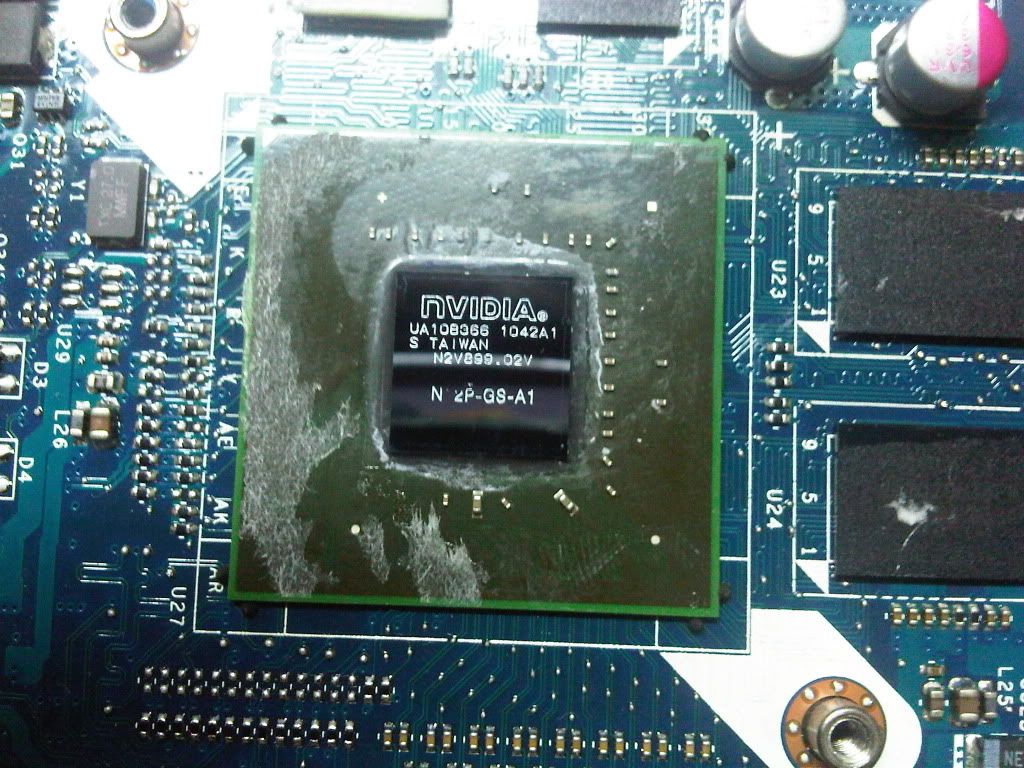

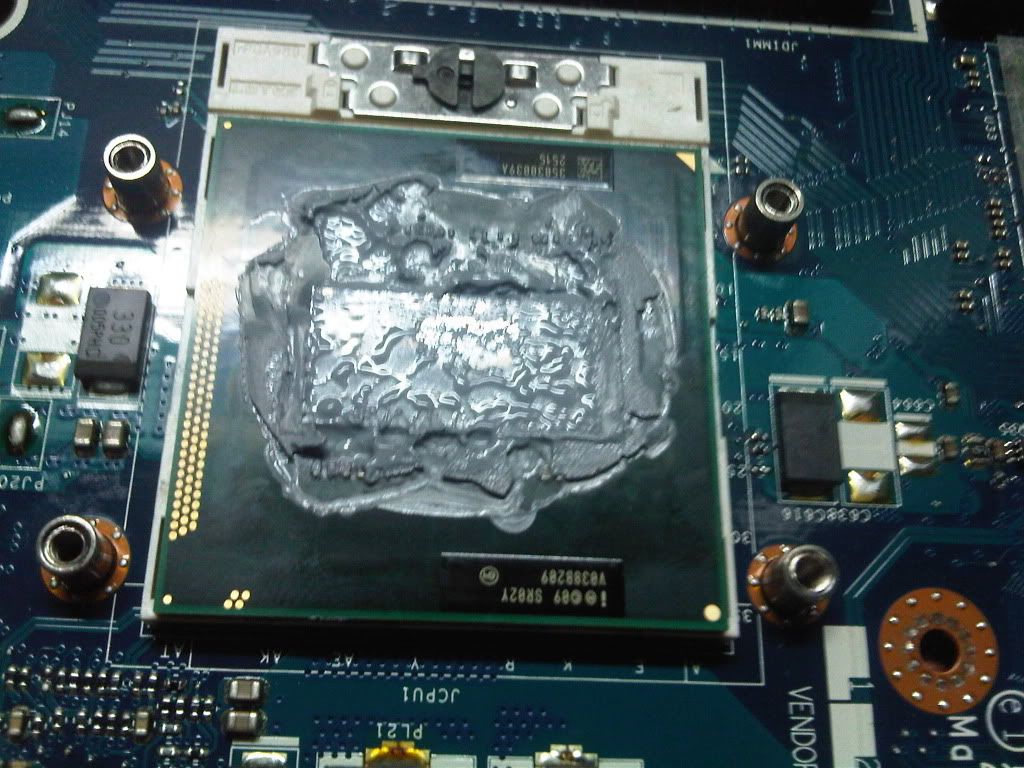

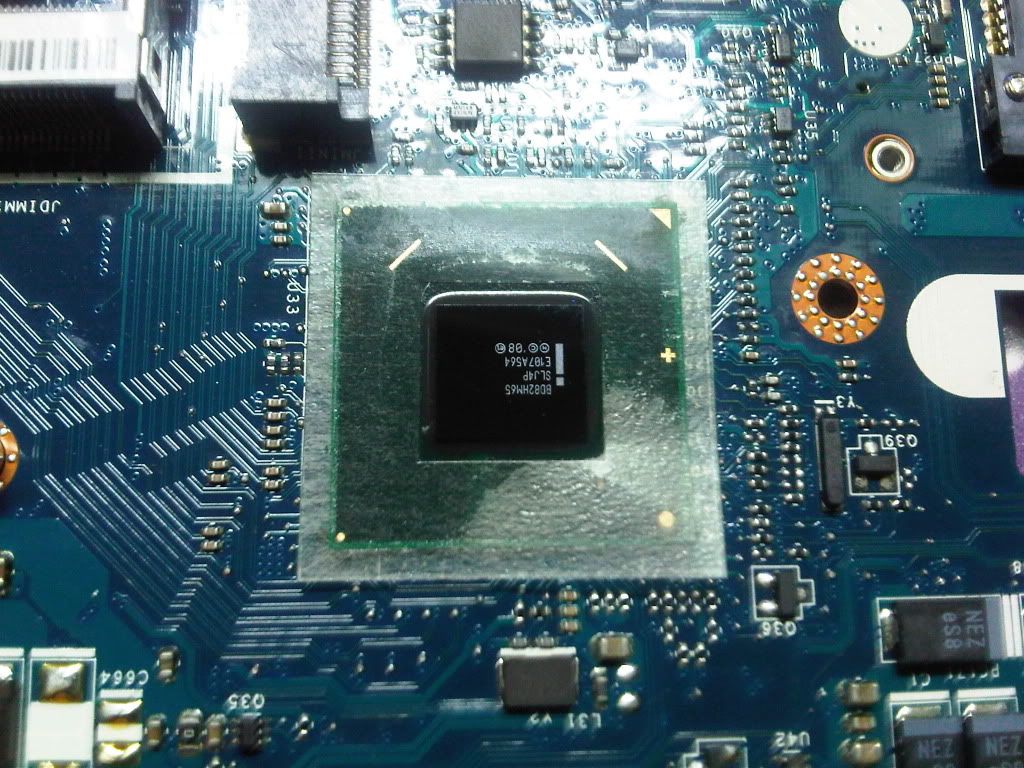

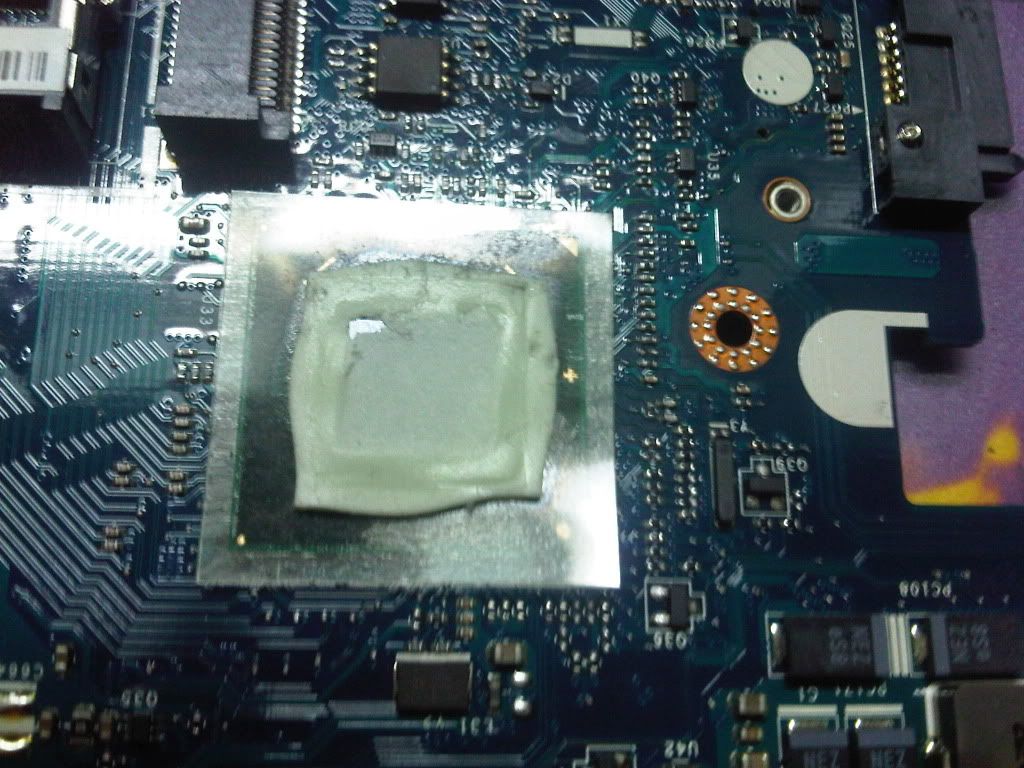

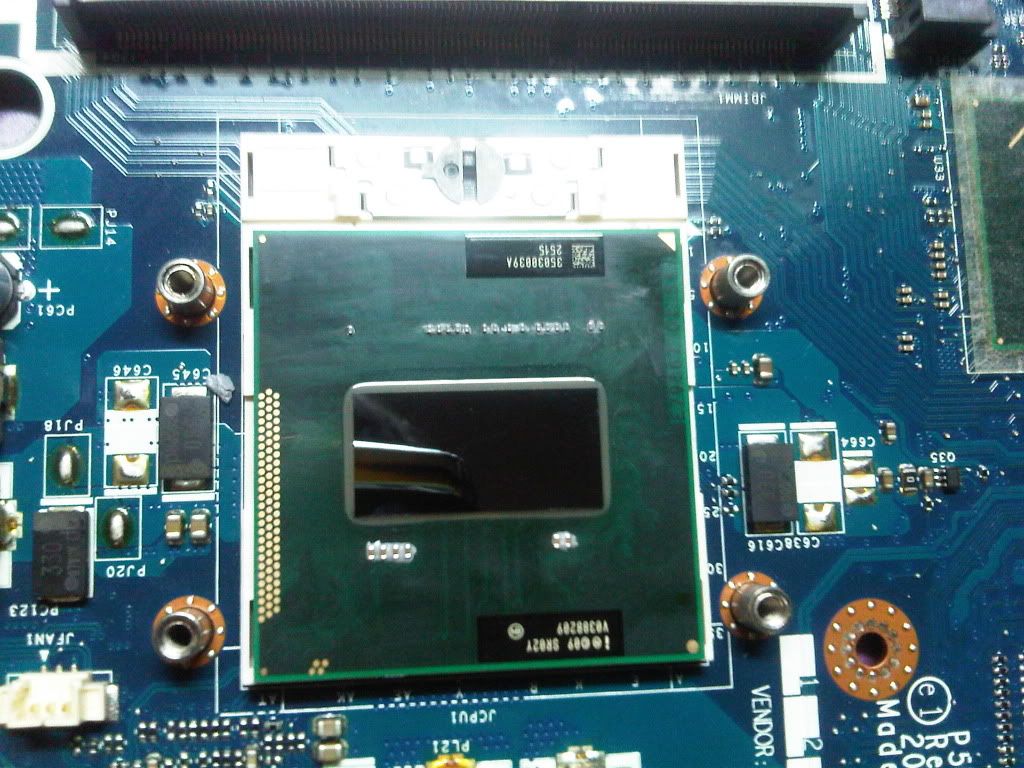

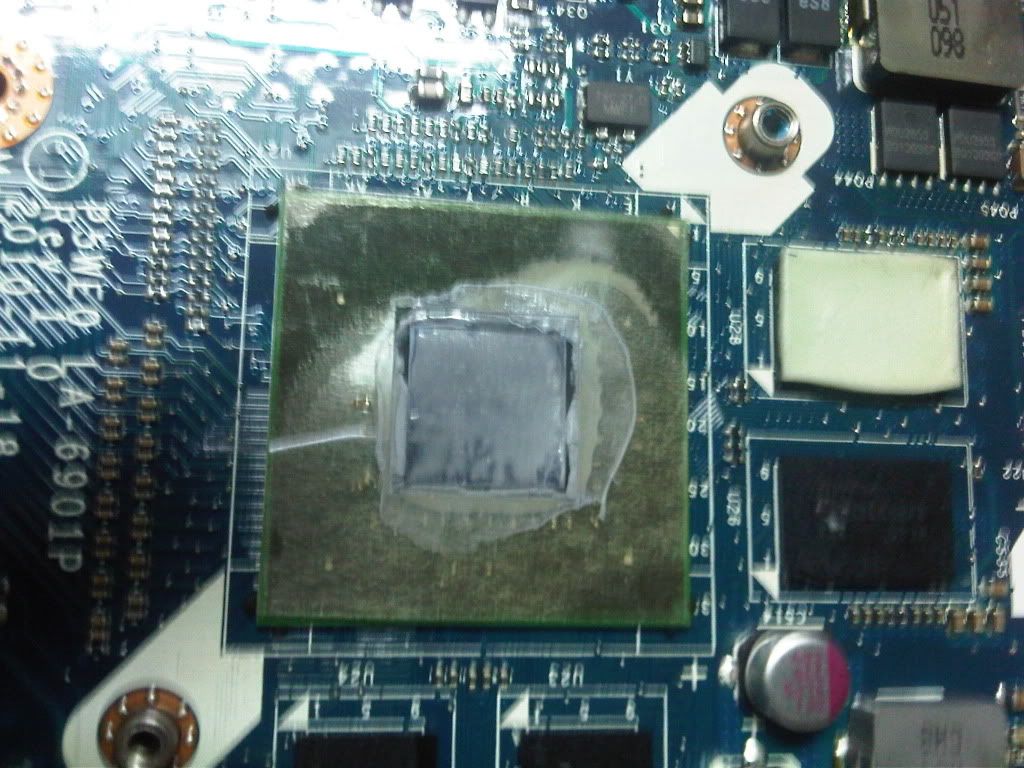

![]() » Click to show Spoiler - click again to hide... « Stock thermal compound and thermal tape placed by Acer Factory » Click to show Spoiler - click again to hide... « After Cleaning stock thermal compound and thermal tape: » Click to show Spoiler - click again to hide... « TAGS : Acer 5750G , cleaning dust , cleaning fan , Replacing Thermal Compound in Acer 5750G , Replacing Thermal Paste in Acer 5750G , use Arctic Silver 5 , Arctic Silver 5 in Acer 5750G This post has been edited by skycrawler: Jul 9 2012, 02:41 PM |
|
|
Mar 4 2012, 09:39 PM
Return to original view | Post
#64
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |
Temperature idle before applying new thermal compound:
» Click to show Spoiler - click again to hide... « Temperature idle after applying new thermal compound: » Click to show Spoiler - click again to hide... « oh , btw I'm using Arctic Silver 5 as replacement to the stock thermal compound . » Click to show Spoiler - click again to hide... « This post has been edited by skycrawler: Mar 9 2012, 11:40 AM |
|
|
Mar 12 2012, 10:14 PM
Return to original view | Post
#65
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |
QUOTE(marksasdf @ Mar 11 2012, 02:47 AM) Hi Yup , to reach the fan and vents u have to remove everything (except monitor) including motherboard . I just try it myself Well i also get some serious temperature issues and i think the laptop needs to be cleaned from dust. I really searched a lot however didn't find any instructions how to open up the 5750. Actually i have an Aspire 5755G but i think they are the same. @skycrawler: As I saw from your postings you opened up the laptop. Is it really necessary to remove the whole chase to be able to clean the fan and the cooler fins? Where did you find the instructions how to do it or did you just try it out yourself? Could you maybe then post some links or some instructions? It would really help a lot! Thank you already Greetins, marks |
|
|
Apr 6 2012, 06:04 AM
Return to original view | Post
#66
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |
|
|
|
|
|
|
Apr 11 2012, 08:45 AM
Return to original view | Post
#67
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |
QUOTE(apek1989 @ Apr 11 2012, 12:50 AM) @skycrawler This one consider easy compared to Compaq laptop how u open ur laptop casing ah? need to unscrew all screw on laptop?? btw u use what to clean inside the laptop? huhu..nvm la..i just finish opening n cleaning my lappy.. but still not yet repace the stock thermal paste yet.. huhu..nid to buy the paste 1st..btw reli hard ooo wan dissemble all =-= |
|
|
Apr 11 2012, 03:39 PM
Return to original view | Post
#68
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |
QUOTE(apek1989 @ Apr 11 2012, 02:45 PM) yah..i think its a easy after i refer to the tutorial.. Yup , both on intel gpu and nvidia 1st try without the tutorial is really hard to open.. haha..btw already bought arctic silver 5 from garage.. will upload some pics after replacing the thermal paste.. after cleaning out the fan, my lappy idle temp minimum is aroung 43-45.. thats quite good..no overheationg also..huhu.. Added on April 11, 2012, 2:47 pm@skycrawler btw..u are put the arctic silver 5 paste on the gc also?? |
|
|
Apr 12 2012, 05:57 AM
Return to original view | Post
#69
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |
QUOTE(lee_what2004 @ Apr 11 2012, 04:10 PM) Thermal tape, sometimes its needed, to fill the gap cause by height difference, so don't recklessly throw it away too soon.. yes i know , intel gpu has heat pipe screwed on top of it , so confirm no gap liao Added on April 12, 2012, 5:59 am QUOTE(apek1989 @ Apr 11 2012, 02:45 PM) yah..i think its a easy after i refer to the tutorial.. Where did u get the tutorial ? I open it myself coz really eager what its look on the inside 1st try without the tutorial is really hard to open.. haha..btw already bought arctic silver 5 from garage.. will upload some pics after replacing the thermal paste.. after cleaning out the fan, my lappy idle temp minimum is aroung 43-45.. thats quite good..no overheationg also..huhu.. This post has been edited by skycrawler: Apr 12 2012, 05:59 AM |
|
|
Apr 14 2012, 01:54 PM
Return to original view | Post
#70
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |
New Window's Experience Index after installing new nvidia driver , SSD , and 2nd HDD :
![]() |
|
|
Apr 15 2012, 10:06 PM
Return to original view | Post
#71
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |
|
|
|
Apr 16 2012, 11:09 AM
Return to original view | Post
#72
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |
|
|
|
Apr 17 2012, 10:50 AM
Return to original view | Post
#73
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |
|
|
|
|
|
|
May 18 2012, 09:40 PM
Return to original view | Post
#74
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |
Im back from one month vacation to Bora2 island
Added on May 18, 2012, 9:45 pm QUOTE(apek1989 @ Apr 17 2012, 11:01 PM) U can get it from forumers here , I bought from taobao.com QUOTE(springfall @ Apr 18 2012, 12:19 AM) There are two sizes , acer 5750G use 12.7mm while another size is 9.7mm which is quite rare This post has been edited by skycrawler: May 18 2012, 09:45 PM |
|
|
May 27 2012, 04:43 PM
Return to original view | Post
#75
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |
Hi guys , Im going to buy something from China this 15 June . So im doing this bulk to help u guys get this HDD caddy bay with cheaper price . Dateline is 13 June .
Please do visit my thread : http://forum.lowyat.net/topic/2363123 Added on May 30, 2012, 10:02 pmHi guys , Im going to buy something from China this 15 June . I can help u guys get this keyboard skin . Dateline is 13 June . I will make order on 15 June . RM14 per skin *excluding poslaju fee Picture : ![]() ![]() » Click to show Spoiler - click again to hide... « This post has been edited by skycrawler: May 30 2012, 10:02 PM |
|
|
Jun 3 2012, 08:46 PM
Return to original view | Post
#76
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |
QUOTE(faezfahmi618 @ Jun 3 2012, 07:39 PM) Im going to buy something from China this 15 June . So im doing this bulk to help u guys get this skin with cheaper price . Dateline is 13 June . You will get your item in last week of June |
|
|
Jun 3 2012, 09:17 PM
Return to original view | Post
#77
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |
|
|
|
Jun 3 2012, 10:18 PM
Return to original view | Post
#78
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |
QUOTE(faezfahmi618 @ Jun 3 2012, 10:06 PM) wow the price very difference in just 2 months Just go for 9.5mm one i think wanna buy Crucial M4 from Hikari84 can u tell me what is the difference between CT128M4SSD2 9.5mm and CT128M4SSD1 7mm? http://forum.lowyat.net/index.php?showtopic=1243420&hl= |
|
|
Jun 4 2012, 09:50 AM
Return to original view | Post
#79
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |
QUOTE(DayatXIII @ May 27 2012, 01:08 AM) Guys, any body knows any shop at lowyat which sell 5750G laptop internal fan, the one which on the heat sink. I found out that my laptop fan right now didn't work properly. Already re-paste using MX-4 and clean all the dust inside the sink. Even using a laptop master cooler pad didn't help cooling down my laptop. And i noticed that the internal fan speed quite slow compared with my wife's laptop. My wife's laptop able to suck a piece of tissue thru the fan's 'hole' (whatever that thing you call it), my laptop cannot, just falls down. I suspect the fan has issues, need to replace it ASAP. Hi guys , Im going to buy something from China this 15 June . I can help u guys get this internal fan . Dateline is 13 June . I will order on 15 June . |
|
|
Jun 6 2012, 12:54 PM
Return to original view | Post
#80
|
![]() ![]() ![]() ![]() ![]() ![]() ![]()
Senior Member
2,227 posts Joined: Jan 2009 |
|
