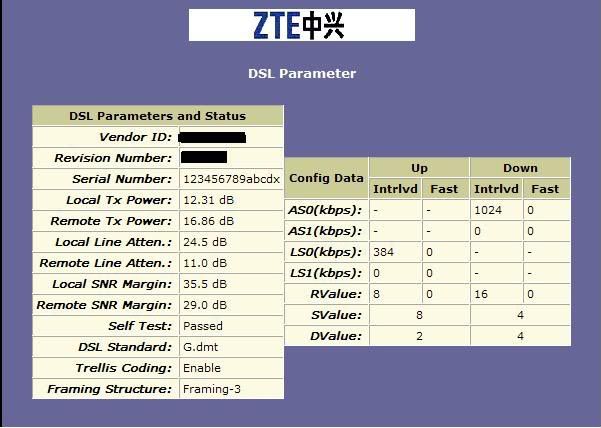

Is mine normal? Cause after sometimes even if i still connected i cannot surf the net. After i dc manually and reconnect back from the dial-up connection there, i can surf again.. Lame... any problem here?


Attached thumbnail(s)

is my connection ok???? can pls help me out...
i suffer from frequent disconnection.. and also internet down...
sharing my connection with 4 others...
thanks

y my revision number is different from the other posted prints??? izzit mine older???

siaush : i think urs quite ok leh..despite the high attenuation, ur SNR is still quite high. u shouldnt have many dc problems.

gold3knight : Try connecting direct without filter. if still no improvement, you have to wait until telekom come and change ur cables...

[W]HIT3_@NG3L : CRC error ar? CRC very hard to say wor...might be streamyx might be the router that ur data hopped on got errors or attenuation....

ampbuster and darkjedi : WAH........omg...so high..the stats same like my streamyx connection back in my hometown.....dc every few mins and then have to wait over 1 hour only can connect back ><. are u using any lightning surge protector?

timothyy: 2MB ADSL? *jaws dropped. ur SNR looks quite ok ak....make sure ur modem doesnt autostop when there's no data transmitting lor....

Morpheusyeng: if u want to access ur router via telnet, u have to go into the web interface first,make a username and password in authentication (i think). den run hyperterminal or cmd -> telnet ip address and enter ur username and password that u created. aztech telnet is a bit hard to use though, so be careful when u fiddle wif stuff via telnet. as of modem status, u check ur web interface -> under dsl, there should be a status about what ur modem is doing....

wk1168 and yyteik : ur SNR a bit low...maybe thats y always dc or got packet drop lor....is ur modem directly connected from the wall port or it got split at a filter /telephone splitter. if not, maybe ur line old oredi lor...check with ur frens nearby about the SNR margin and see....

2MB ...

I mean 2.0mbps. He! He!. My IT knowledge very "cha" one.

I will try to turn off the auto off.

Don't think I can turn it off. It says Reconnect when no signal then 1 empty box for you to fill in, and max is 32767 seconds. Previously was 0. So, I changed it to 32767 now.
Correct ah?


This post has been edited by timothyy: Jul 19 2005, 11:59 PM

how about mine?what's the different between interleaved and fast latency?any different?

erm .. i think if u wanna get higher SNR Margin or low Line Atten...
just move ur house closer to Exchange .... hehe ...
if next door to Exchange still get low SNR margin .. then cabling problem ....
check phone line ... shorter better ...

is there any way to check my DSL parameters and status without the router?
thanks

SnowFish look at mine



Any comments on this?

wow! maximum download is 5184 and upload is 416, it will never reach 8mbps max. i saw the reading from the tester that a technician used.

Dear XXXXXXXXXXXXXX,

Thank you for your e-mail to TM Net.

Referring to your query on upgrading, we are glad to inform you that your package have been successfully upgraded to Streamyx G.Lite Home 512K Basic 77 on 20th July 2005. Kindly be informed that your new charges will be reflects on the next bill onwards.

We hope the above reverts to your query.

Please feel free to contact us should you require further assistance either via e-mail at streamyx@tm.net.my or call us at 1-300-88-9515.

Mr. XXXXXXl, we thank you for taking the time to write to us and look forward to serve you better.


Regards,
Customer Care Support,
TM Net Sdn. Bhd.

Downgrade done !

ermmm....
after seeing you people's DSL parameter.... i cant help but wonder about mine...



izzit normal to have 0.0dB on both Local and Remote Tx power??
BTW whats Tx power??
izzit good??

my connection is okay.. no DC at all... highest DL speed 40Kbps on Azureus downloading Linux torrent...

any comment??

thanx...

Unless the lines is ok go for it do u use any ADSL surge line protector?

yup... why?? does it have sumthing to do with the 0.0 dB Tx Power??
izzit true the lightning/surge protector can affect my DL performance?? if it does, then i guess better take it out...

Yes it can take out ur download performance try the same things did u see an differences?

I've noticed that if i set the modem to T1.413, i have SNR download 45++ and SNR upload 25++, but if in G.dmt mode, SNR download 43++ and the SNR upload is around 4/5
DOes the handshake protocol affect my connection? Whats the differentce between those two aside from the speed supported?

I am juz curios....What is this (rounded in red...)What is the erros...n mine is OK...but y i getting dc every time..??any reason...

don't give it a see, who cares? as long as the connection is stable.

my snr margin was very low,the onli way to increase it is ask tmnet to change the line?i just facing dc problem since this week.last 2 month no problem at all.



This post has been edited by amenlo9: Aug 18 2005, 02:47 AM

amenlo9:a lot of thunderstorms around ur area? how about construction?

CRC errors generally are due to the data are changed/damaged/loss en route to ur. maybe due to attenuation or routers error. each data packet has a crc checksum for the router recalculate to see if the data packet received is 100% complete. if its not, it will be discarded. basically there's nothing much u can do about crc error,most of the time the cause is due to the fault of the transmission medium. in other words, ur telephone line (most probably).

interleaved - slower but less error
fast - fast but might have more error
these are posted somewhere in the forums but i cant recall....

i try to answer the rest of the questions later k...i doing assignment now......hard disk kena bad sector today just got replacement

This post has been edited by SnoWFisH: Aug 20 2005, 04:24 AM
