> DDR3 Clock and Timing Database, for AMD platform

views

TSkuntawakaw
post Nov 13 2010, 10:54 PM, updated 10y ago

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....


This thread is to share your memory OC.
the main purpose for this thread is to share with everyone ur ram setting.. and yet me myself surveying which ram is good..
value ram is most welcomed laugh.gif

you can post what ever clocks u can get, not just max clocks, tightest timings, but everything that u think the most sweet for u.
with same setup, u can post few results with difference timing. if the timing difference is not major, i will replace the older or slower result.
eg :
1: 7-9-7-25-35 @ 1600mhz
2: 7-9-7-22-34 1600mhz

i will take the second one..

but if...
1: 7-9-7-25-35 @1600mhz
2: 8-10-8-25-35 @ 1700mhz

i will take both

template:
Nick | Processor | Motherboard | Ram Brand @ Rated Speed | Ram Freq | Timing | Vdimm | vIMC | Ram IC | #Channel

rules
1- Complete screenshot with CPUZ tabs ( Main, mainboard,mem,SPD)
2- To put under Stable, u should post any stressing tools SS. without it will be categorize under Suicide
3- flame me if anything goes wrong laugh.gif


i have very little knowledge about Intel. so This database is for AMD platform only.

This post has been edited by kuntawakaw: Nov 14 2010, 10:48 PM
TSkuntawakaw
post Nov 14 2010, 10:22 PM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....


Results

Cas Latency 4 & 5

fatalynx | X6 1090T | asus sabertooth 990FX | 2 x 2GB ADATA G series DDR3-2000 CL9 @ 9-9-9-24 | 1540MHz | 4-7-5-18-28 1T | 1.63v | 1.262v | Dual Channel
1024kbps | 1055T x6 | GIGABYTE 890FXA-UD7 rev2.0 | G.skill ECO @ 1600mhz [email protected] | 1600MHz | 5-8-7-24-27 1T | 1.55v | 1.15v | Unknown | Dual Channel

Cas Latency 6

verdict | X6 1090T | MSI 990FXA-GD80 | 2 x 2GB Gskill Flare DDR3-1800 CL9 @ 9-9-9 | 2000MHz | 6-8-6-16-23 1T | 1.65v | PSC | Dual Channel
verdict | X6 1090T | Gigabyte GA-890FXA-UD7 | 2 x 2GB Gskill Flare DDR3-1800 CL9 @ 9-9-9 | 1824MHz | 6-8-5-16-26 1T | 1.68v | 1.2815v | PSC | Dual Channel
ah_khoo | X3 445 | Asus M4A88TD-V EVO /USB3 | OCZ Reaper 1600 LV @ 7-7-7 | 1800MHz | 6-8-6-20-26 1T | 1.725v | 1.2375v | Unknown | Dual Channel
kuntawakaw| AthlonII x2 245 | Gigabyte 870A-UD3 | Kingston Value 1333 @ 9-9-9 | 1696mhz | 6-8-6-20-35-1T | 1.73v | 1.25v | Kingston Relabeled | Dual Channel
haziqk10 | X4 B50 | Msi 790FX GD70 | 2 x 2GB Corsair Dominator DDR3-1600 CL8 @ 8-8-8 | 1600MHz | 6-6-6-18-24 1T | 1.65v | 1.26v | Unknown | Dual Channel
ah_khoo | X6 1090T | Asus M4A88TD-V EVO /USB3 | Gskill Ripjaws 2000 @ 9-9-9 | 1600MHz | 6-7-6-19-25 1T | 1.665v | 1.275v | PSC (pretty sure) | Dual Channel
ah_khoo | X6 1055T | Asus M4A88TD-V EVO /USB3 | Gskill ECO 1333 @ 7-7-7 | 1600MHz | 6-8-6-20-26 1T | 1.51v | 1.175v | Gskill relabeled | Dual Channel
ah_khoo | PII X6 1055T | Asus M4A88TD-V EVO /USB3 | GSkill Ripjaws 1600 (9-9-9) | 1600MHz | 6-8-6-20-26 1T | 1.575v | 1.2815v | unknown | Dual Channel
kuntawakaw| sempron 140 | Asus M4A88TD-V-EVO/USB3 | Gskill Eco @1600mhz 7-8-7 | 1626mhz | 6-8-6-24-27-1T | 1.665v | 1.45v | Unknown | Dual Channel
fatalynx | X6 1090T | asus sabertooth 990FX | 2 x 2GB ADATA G series DDR3-2000 CL9 @ 9-9-9-24 | 1832MHz | 6-9-6-18-28 1T | 1.63v | 1.262v | Dual Channel

Cas Latency 7


ah_khoo | X6 1090T | Asus M4A88TD-V EVO /USB3 | OCZ Reaper 1600 LV @ 7-7-7 | 2000MHz | 7-9-7-23-30 1T | 1.68v | 1.2815v | Unknown | Dual Channel
ah_khoo | X6 1055T | Asus M4A88TD-V EVO /USB3 | Gskill ECO 1333 @ 7-7-7 | 1968MHz | 7-9-7-23-30 1T | 1.665v | 1.2125v | Gskill relabeled | Dual Channel
kuntawakaw| sempron 140 | Asus M4A88TD-V-EVO/USB3 | Gskill Eco @1600mhz 7-8-7 | 1920mhz | 7-9-7-24-35-1T | 1.77v | 1.3v | Unknown | Dual Channel
ah_khoo | PII X6 1055T | Asus M4A88TD-V EVO /USB3 | GSkill Ripjaws 1600 (9-9-9) | 1904MHz | 7-9-7-23-30 1T | 1.725v | 1.2625v | unknown | Dual Channel
ah_khoo | X6 1090T | Asus M4A88TD-V EVO /USB3 | Gskill Ripjaws 2000 @ 9-9-9 | 1800MHz | 7-8-7-22-29 1T | 1.635v | 1.275v | PSC (pretty sure) | Dual Channel
ah_khoo | Sempron 140 | Asus M4A88TD-V EVO /USB3 | Geil Value 1600 @ 8-8-8 | 1706MHz | 7-7-7-24-33 1T | 1.81v | 1.25v | D9??? | Dual Channel
kuntawakaw| sempron 140 | Gigabyte GA-770T-UD3P | Team Elite @ 1333mhz -9-9-9 | 1610mhz | 7-8-7-21-25-2T | 1.76v | Unknown | Unknown | Dual Channel
haf 932| x4 b55 | msi 790gx-g65 | kingston kvr @1333mhz 9-9-9-24 1T | 1600mhz | 7-8-8-26-34-1T | 1.67v | 1.3v | Unknown | Dual Channel
dafreak | AMD Phenom II x2 555 | Gigabyte 785GT-UD3H | Patriot 1333 @ 9-9-9 | 1333mhz | 7-7-7-19-26 1T | 1.65v | 1.35v | Micron d9kpv | Dual Channel


Cas Latency 8


ah_khoo | X6 1055T | Asus M4A88TD-V EVO /USB3 | Gskill ECO 1333 @ 7-7-7 | 2000MHz | 8-9-8-25-33 1T | 1.53v | 1.23125v | Gskill relabeled | Dual Channel
ah_khoo | X6 1090T | Asus M4A88TD-V EVO /USB3 | Gskill Ripjaws 2000 @ 9-9-9 | 2000MHz | 8-9-8-25-33 1T | 1.665v | 1.275v | PSC (pretty sure) | Dual Channel
ah_khoo | PII X6 1090T | Asus M4A88TD-V EVO /USB3 | GSkill Ripjaws 1600 (9-9-9) | 2000MHz | 8-10-8-28-34 1T | 1.635v | 1.2815v | unknown | Dual Channel

Cas Latency 9

ah_khoo | X6 1055T | Asus M4A88TD-V EVO /USB3 | Gskill ECO 1333 @ 7-7-7 | 2120MHz | 9-11-9-29-40 1T | 1.785v | 1.25v | Gskill relabeled | Dual Channel
ah_khoo | PhenomII 550 | Biostar TA790GX A3+ | KVR 1333 @ 9-9-9 | 1652MHz | 9-9-9-24-33 1T | 1.60v | N.A | Qimonda | Dual Channel
lengchai86 | X4 945 | Asus M4A87TD/USB3 | 2 x 2Gb winova xtune 1600 @ 11-11-11 | 1854Mhz | 9-9-9-28-39-1T | 1.55V | 1.23V | elpida | dual channel

This post has been edited by kuntawakaw: Aug 19 2011, 01:21 AM
TSkuntawakaw
post Nov 14 2010, 10:39 PM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....

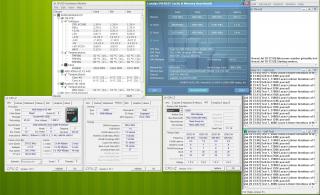

1st testing entry.. wel..this is the example.. i hope ppl here dont mind sharing..

Attached Image
kuntawakaw| sempron 140 | Gigabyte GA-770T-UD3P | Team Elite @ 1333mhz -9-9-9 | 1610mhz | 7-8-7-21-25-2T | 1.76v | Unknown | Unknown | Dual Channel

This post has been edited by kuntawakaw: Nov 14 2010, 10:49 PM
TSkuntawakaw
post Nov 14 2010, 11:27 PM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....


QUOTE(ah_khoo @ Nov 14 2010, 11:23 PM)
great efforts there...a humble suggestion, u mite wanna divide d entries into categories according to generation of chip. eg: deneb/regor 1 category, thuban another.  smile.gif

keep up d gud works...  thumbup.gif
*
indeed a great suggestion.but i plan to categorize under diff CL. if differentiate to proc also, the category will be double.. so not nais to the eyes..kekee
well.. i hope ppl do submit the result 1st. if the results submitted is quite alot, will do as u wish..

but... u have to post here atleast 10results unker..
well.. i know u have more..
TSkuntawakaw
post Nov 16 2010, 05:44 AM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....


unker ah khoo..
i know u not only have this gskill eco tested..since this is a tread for sharing, any lowly ram that u clock also u can submit..but..i doubt u clock lowly value ram.. laugh.gif
not the best max clock.. nod.gif

Attached Image
kuntawakaw| sempron 140 | Asus M4A88TD-V-EVO/USB3 | Gskill Eco @1600mhz 7-8-7 | 1920mhz | 7-9-7-24-35-1T | 1.77v | 1.3v | Unknown | Dual Channel

Attached Image
kuntawakaw| sempron 140 | Asus M4A88TD-V-EVO/USB3 | Gskill Eco @1600mhz 7-8-7 | 1626mhz | 6-8-6-24-27-1T | 1.665v | 1.45v | Unknown | Dual Channel

This post has been edited by kuntawakaw: Nov 16 2010, 05:51 AM
TSkuntawakaw
post Nov 16 2010, 02:17 PM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....


QUOTE(ah_khoo @ Nov 16 2010, 02:08 PM)
eco 1333 is d cheapest ram i've tried lately, d rest are more towards midrange type. it's been a while since i last tested a pair of kvr, mebe next month if i have d moolah.  laugh.gif

no suicide entry from u? all stable stable make d chart not so interestin leh...  tongue.gif
*
u can see got 1 entry with my name red.. that was a stable clock..but only i could find the prime for 10mins SS that cant be put under stable..so i make it red..it was a not stable clock..
a stable clock with acceptable time of prime will be colored green nod.gif

suicide is not my kind.. verdict's perhaps.. ekekeke


well unker.. no matter what kind of ram u tested, u can always bombard the results here..
TSkuntawakaw
post Nov 20 2010, 07:42 PM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....


wow.. cl5.. rare ppl make it cas5 with ddr3.. cas6 can go further?

updated..thanks
u have any other result? bombard this thread with em pls tongue.gif

well.. my own update.

Attached Image

kuntawakaw| AthlonII x2 245 | Gigabyte 870A-UD3 | Kingston Value 1333 @ 9-9-9 | 1696mhz | 6-8-6-20-35-1T | 1.73v | 1.25v | Kingston Relabeled | Dual Channel
TSkuntawakaw
post Mar 3 2011, 06:13 PM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....


QUOTE(haf 932 @ Mar 1 2011, 11:29 PM)
wah everybody also nice clock and timings drool.gif i want to join what u guys doing here can ah? notworthy.gif let me post my setting,maybe u guys can comment or give advice to make it better.use super pi 32m only enuf or not?my setting may not be godlike like all u pros so dun laugh at me ya haha

haf 932| x4 b55 | msi 790gx-g65 | kingston kvr @1333mhz 9-9-9-24 1T | 1600mhz | 7-8-8-26-34-1T | 1.67v | 1.3v | Unknown | Dual Channel
*
the chip is relabeled or what bro? kvr is naked.. so is either relabel/ remark or got actual chip print.. is easier to guide if u know the chip
btw.. proceed here to discuss.. http://forum.lowyat.net/topic/1601279/+1760
TSkuntawakaw
post Apr 26 2011, 03:56 PM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....


QUOTE(akagidemon @ Apr 26 2011, 03:42 PM)
guys, i'm very new to ram ocing and i am abit confuse about a few stuff.

i followed this setting

kingston kvr @1333mhz 9-9-9-24 1T | 1600mhz | 7-8-8-26-34-1T | 1.67v | 1.3v

but i didnt adjust the voltage since i dont know which is the voltage setting in my bios. the 1st voltage is the dram voltage right, then what is the second voltage?

i'm using asus m4n89td evo board.
*
the 2nd volt is the CPU-NB voltage aka IMC voltage..

head to http://forum.lowyat.net/topic/1601279/+2180 here if u have any questions regarding AMD oc..thanks tongue.gif
TSkuntawakaw
post May 2 2011, 04:22 PM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....


@haziqk10 updated
nice timing there.. mind to share the revision?
TSkuntawakaw
post May 2 2011, 11:05 PM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....


user posted image
eg: lower ram, the ver.3.1 after the vdimm..


TSkuntawakaw
post May 3 2011, 08:40 PM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....


QUOTE(haziqk10 @ May 3 2011, 12:27 AM)
mine ver 2.1 10060490
so what does this revision mean??
*
the chip manufacturer..but not the exact ic
u can refer here..

http://forum.corsair.com/forums/showthread.php?t=68811
QUOTE
Version Vendor IC Size
1.X Qimonda 64/128Mx8
2.X Elpida 64/128Mx8
3.X Micron 128Mx8
4.X Samsung 128Mx8
5.X Hynix 128Mx8
6.X Promos 128Mx8
7.X (PSC) 128Mx8
8.X Nanya 128Mx8
9.X Winbind A1-Die 128MX8

TSkuntawakaw
post Aug 19 2011, 01:22 AM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....


so sorry for delay..
thanks to both of u.. me also quite sometimes havent update with result..
TSkuntawakaw
post Oct 8 2011, 07:45 PM

imma tag fag!
*******
Senior Member
3,795 posts

Joined: Nov 2008
From: Varies....


lengchai86

u turn me on laugh.gif

will update your result asap.but lemme update with my result also.. but use normal setup la. normal value ram
