CM Storm Enforcer
My cable management （first time）



and DIY PCI Slot Fan





+ Vizo GC cooler








This post has been edited by Force_Ming: Feb 5 2012, 02:37 PM

wow~ blink~ blink~

Not so much, just upgraded my MOBO to ASUS SABERTOOTH, waiting for my MEGAFLOW 200mm LED Red for the front in-take together with ENERMAX 120mm as an exhaust fan. Will remove 1 of the HDD and to installed 2 SSDs as RAID 0. Good idea top fan to be as Intake but it doesn't have dust filter unless I can find one plus I have to remove my MOBO to switch the orientation. Still have not finish my cable management. Try to find sleeve cable for Seasonic Modular. And for the front USB 3 panel (on board) panel. Cheers

nice but dust under the HDD case

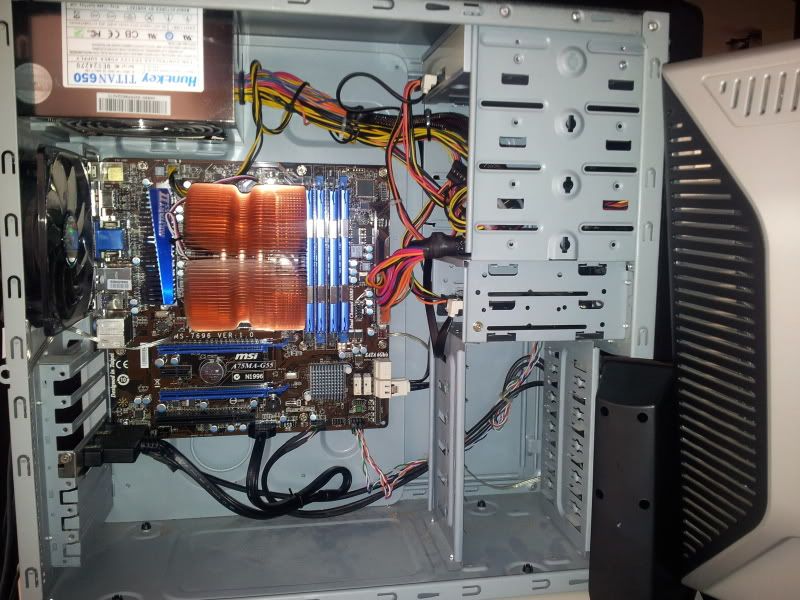

Yeah need to do some house cleaning. The front In take do have a dust filter but the dust is still there. When I'll remove 1 of the HDD while the 2 SSDs will be double tape back tape at the back, then it is easy for me to clean the HDD cage. Hmmmm probably will install the NZXT sleeve Red Led to have that bling bling effect. Next I will post my sons pc. But thid one using Huntkey PSU, non modular (hard to hide the cable) when using CM Elite 100s, very messy. 2 things to consider when doing cable management. Go for fully modular PSU and casing with enough space at the back. All those I've bought whether from Lelong or Lowyatt. Go Online Trading!!

212 EVO by Lolipopeer, on Flickr

This post has been edited by soR: Feb 7 2012, 05:50 PM

Updated after got my SSD and ENERMAX fans

my noob cabling

You need a better Casing.....The Cable management can be more improving

no juice and space to get a better casing..

before




after a little housekeeping



this is the best i can do.. my problem right now is the sata cables

i dont think i cant hide anymore cable

any suggestion is welcome

This post has been edited by hando911: Feb 9 2012, 06:29 PM

You still can do a lot because there are still many cable tie hole for cable management. Try to buy different sizes of cable tie, small for the thin cable and vice versa. HAF 912 do have the HDD cage but i remove it to improve air flow, so yours is still there meaning you can tie it up at the cage behind. Try not to use too many Power cable, for fans just hooked it up at the system fan, other just use extension. The 1st rule is plug all the cable first, start it up. If it is ok, then pull the cable slack to the behind, cable tie it for temp. Slow2 brother, no need to rush. The main objective is to improve air flow. You have the advantage there because you are using Modular PSU and Casing than meant for cable management. Cheers

Here are some good tips from LINUS NCIX on Cable Management through youtube http://www.youtube.com/watch?v=ERhxmzQR6xA

This post has been edited by sulfuriq: Feb 8 2012, 11:41 PM

hello all LYN mamber...want ask where i can get this??its come with casing or i can buy separate??if can buy separate where i can get??

This post has been edited by ashSDPC: Feb 9 2012, 03:39 AM


Attached thumbnail(s)

that comes with the chassis unless someone wanna sell off lol

DIY la bro...
-Sample-

dear modders.. nid help.. im planning to buy a psu for my rig.. corsair TX series.. i plan to sleeve my psu unit.. but i heard if sleeve psu unit, will void warranty.. thus i was told to create adapters and sleeve those..

juz wondering any of u created an adapter for 24pin and 8 pins? is it safe? what materials do i need?

Thanks..

You can try HERE & HERE ....

Happy modding~!

owh i see...can my casing use like that??because my tray hardisk different...
give my rig pic

This post has been edited by ashSDPC: Feb 9 2012, 01:54 PM


Attached thumbnail(s)

can...actually it's depend on your creativity. Can PM that TS for advice...

just my noob PC cable management .
