one day i got very bored.. i disassemble my G15 thinking of changing the LED to green so that it matches with my green CH and spraying it to black...
here's some of the pics...

Spray it to metallic black... actually i wanted to do flat black.. use silver as the undercoat but then something happen(my spraying skills sux)...
change my mind and spray it to metallic black with flat black as the undercoat... this pic is the 1st layer of the metallic black...

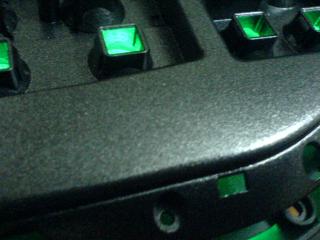

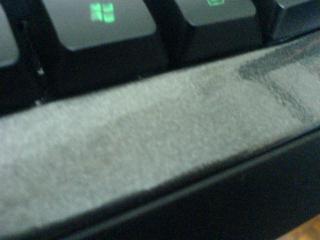

here's an upclose pic...


while waiting for the paint to dry, got my self some 3mm Green LED rated 3v and tested some on the G15 LED circuit board...

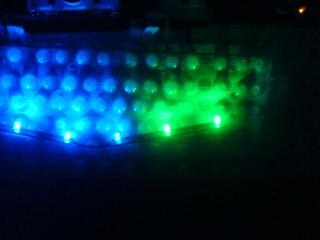

this is wat it looks like after i change all the LED... very hard to take out the old LED and solder a new one... the resistor located very near the LED...
summore, my soldering skills sux also... ehehe...

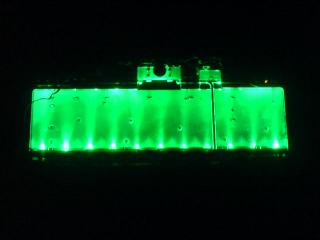

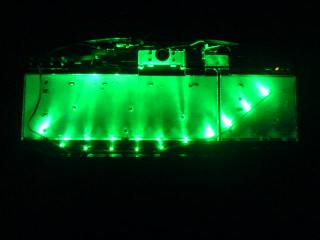

here's the pic on how the LED look on the acrylic inside...

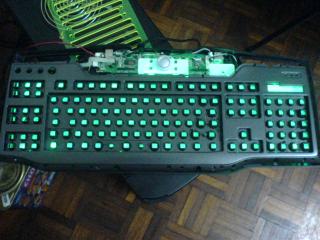

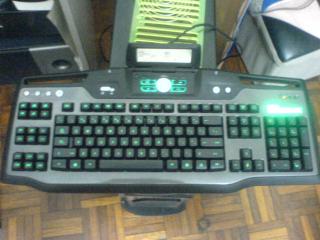

and here's the finish product....


upclose pic..

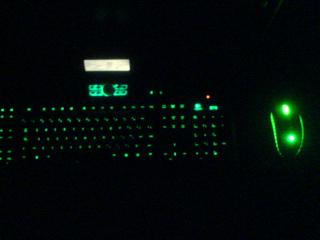

in the dark...


i didn't took pic of the modding process... forgot to took them plus busy with other stuff... ehehe... will take more pic for the next mod...
enjoy...

very nice mod bro !!

thumbs up for u !!

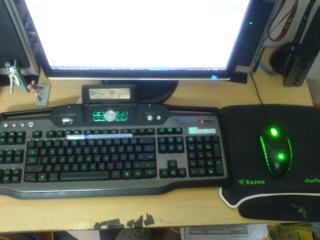

here's somemore pics ion my keyboard pairing up with my CH





@kayz1e
thanks bro...

Nice mod Green15.

Awsome dude.

thanx guys... im a noob in modding... this one is kinda like my 1st time mod... or rather 1st time mod posted on LYN... my other mods are too crap to be posted here...
my biggest thanx to google for helping me googling on how to disassemble G15 properly without tearing the LCD ribbon.. ekekekek....

nice mod.....

what can i say, it's a really awesome mod.

not that awesome la... got more awesome than this...

yo man, if u can post the step by step guidelines, it would be nicer, coz many

ppl hate their orange LED G15, and those G15 V1 owners "diao geh" selling

their blue LED one, this makes me very dulan.

This post has been edited by chyu89: Nov 9 2008, 10:39 PM

for V1, its very easy to change the LED coz onli got 11 blue LED... juz need to be careful of the LCD ribbon connector.. if u tear the ribbon while removing the cover, the keyboard still usable.. but no more LCD.... for V2 ita kinda hard since the LCD is using SME LED which is kinda hard to remove and solder a new one...... but the keyboard lower part still using the same type of LED as V1 onli orange color...

the G15 disassembly step u can get by google...

if i wanna post a guide, i have using other peoples pic la since i didn't took any pic of my modding process... dun want to be cop as a copy cat.. ehehehe

maybe i'll provide links on how to change the LEDs... shud be good enuff aight??

This post has been edited by casperito: Nov 9 2008, 10:48 PM

wow...it matches with ur razer....way to go buddy!

very nice with the LED man....

as for the spraying, me thinks should have gone with a darker black. coz at first glance i thought i was looking at the g15 v2 (which has a darker shade compared to v1)

yup.. actually my i wanted to do flat black.. but then got problem occur... change it to metallic black... the flat black was very cun alreadi without clear coat...
thinking to do like ianho's stealth black... but have no idea how did he spray it to be like that... ehehehe

@madman
urs alreadi cun, change LED la... ehehe.. sure more cun one...

This post has been edited by casperito: Nov 10 2008, 10:13 AM

dun wanna change LED la.... the blue already matches with the rest of my rig's LEDs

monitor power button - blue...

casing power led - blue

change every thing la.. ekeke.. make all white... then mod ur MX518 with LED also... ekekekeke...

nice mod there......... looks better then my saitek lol........

i want ur mouse lar, i cannot get choas green last time....... had to settle on anarchy red......

lor.. if like that then i have to change the g15 LED again la... adoi...

wahhh nice, but above numpad there like too bright? sakit mata lol

the pic was taken with my phone and the nightmode is on.. thats y the lights above the looks very bright...
