Playback Guide : Smooth Playback For MKV 720P & 1080P, Enabling Hardware Acceleration for MKV

views

TSdemeter
post Sep 21 2008, 06:10 PM, updated 13y ago

Getting Started
**
Junior Member
53 posts

Joined: Jan 2003
From: Johor Bahru
Hi people,

I've just bought a htpc to hook up to my sony 40" and at first i was really dissapointed at the mkv 720p and 1080p playback, i almost bought those tvix stand alone players , but luckily there's the internet (thanks to bit-tech.net)

here is my set up

Proc : AMD X2 5000+
Mobo : Gigabyte GA-MA78GM
RAM : Apogee 2 GB running at DDR 800, i put 512 MB for the display
OS : Windows XP SP3

First UNINSTALL ALL your codec and download CCCP

Please overwrite the original mpc-hc that came with the codec with this one http://www.xvidvideo.ru/media-player-class...cinema-x86-x64/ (CREDIT & THANKS TO FARIZ)

the old version is very picky when enabling dxva support

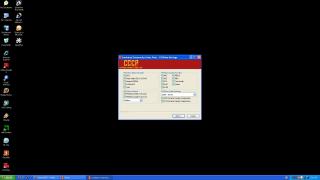

Install the codec , just click next untill finish, you dont need to do any changes here.

Attached Image

Untick the H.264/AVC

Attached Image

Attached Image

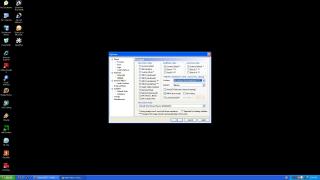

Open the Windows Media Player Classic Home Entertainment , It should be at Start - Program - Combined Community Codec Pack - Players - Media Player Classic , Then click options

Attached Image

Under Output do what i do

Attached Image

Under Playback TICK the "Auto-Load Subtitles"

Attached Image

RESTART THE MEDIA PLAYER CLASSIC

Load any mkv file that you want and right click , under filters you should see MPC Video Decoder (low merit)

Attached Image

then click it, you should see this window poping up, you will see the DXDA mode tick and it's showing that Hardware Accleration is working

Attached Image

Then the magic begins, watch your cpu load , here's mine tongue.gif

Attached Image


THIS GUIDE IS FOR WINDOWS XP ONLY. VISTA USERS YOU HAVE TO EXPERIMENT WITH EVC, I DONT HAVE VISTA DONT ASK ME..

HARDWARE ACCELERATION ONLY WORKS IF YOU HAVE THOSE ATI HD CARDS , ABOUT NVIDIA I'M NOT SURE WHICH CARD HAS IT.

i tested on my 7900 gs and it does not work

for reference i have catalyst 8.9 installed and .net 3.5 installed

credit goes to the internet.

PLEASE POST IF THERE'S ANY DIFFERENCE IN YOUR CPU USAGE AND PLAYBACK , THANK YOU , WANTED TO SEE IF IT WORKS FOR EVERYONE WITH HD ENABLE GRAPHIC CARD

This post has been edited by fariz: Apr 12 2011, 06:23 AM
amirsubhi
post Sep 21 2008, 06:25 PM

The Power Is IN Your Hand!
******
Senior Member
1,470 posts

Joined: Apr 2005
From: SumwHeRe In MaLaYsIa



well..all u need act is media player classic home Cinema...then for vista must change to EVR

no need to uninstall..i'm using klite codec pack..yet i;m using dxva to decode my h264...using media player classic HOME Cinema

http://mpc-hc.sourceforge.net/DXVASupport.html


here a simple guide on how to enable it under vista

1st..Get Media PLayer Classic Home Cinema,

2nd..Go To View ,then Choose Option,then go to playback...Choose EVR at direct show video

3rd..Go to playback Check/Tick Auto Load Subtitle

then..u can have it!

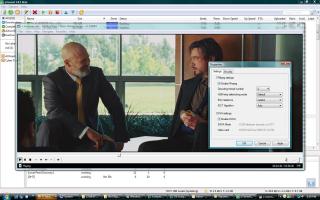

see the attachment for screenies


Edited for a simple guide for vista

This post has been edited by amirsubhi: Sep 21 2008, 07:09 PM


Attached thumbnail(s)
Attached Image
pikacu
post Sep 21 2008, 06:27 PM

male tag rosak
*******
Senior Member
7,740 posts

Joined: Jun 2006
From: Some Yih


nice guide there @40" lcd there biggrin.gif

any test on 1080i? laugh.gif
angelic-x
post Sep 21 2008, 06:29 PM

Not a member
****
Senior Member
643 posts

Joined: Dec 2006

OMG, it wont worked for me at X300.. Playing more worst then before.. = ="
0168257061
post Sep 21 2008, 06:36 PM

EimiFukada
********
All Stars
14,240 posts

Joined: Jul 2007
From: JAVABUS


QUOTE(pikacu @ Sep 21 2008, 07:27 PM)
nice guide there @40" lcd there biggrin.gif

any test on 1080i? laugh.gif
*
interlaced or progressive, ahh ?
TSdemeter
post Sep 21 2008, 06:36 PM

Getting Started
**
Junior Member
53 posts

Joined: Jan 2003
From: Johor Bahru
QUOTE(amirsubhi @ Sep 21 2008, 06:25 PM)
well..all u need act is media player classic home Cinema...then for vista must change to EVR

no need to uninstall..i'm using klite codec pack..yet i;m using dxva to decode my h264...using media player classic HOME Cinema

http://mpc-hc.sourceforge.net/DXVASupport.html
see the attachment for screenies
*
yeah just use those MPC-HC, i made this guide because i saw lots of people complain about their htpc set up.. just wanted to help hehe..

for vista please follow AMIRSUBHI'S guide

for Xp just follow mine

This post has been edited by demeter: Sep 21 2008, 06:52 PM
Skylinestar
post Sep 21 2008, 09:01 PM

Mega Duck
********
All Stars
10,090 posts

Joined: Jan 2003
From: Sarawak
7900GS does not have H264 AVC DXVA
PaiGeWonG
post Sep 21 2008, 09:31 PM

Getting Started
**
Junior Member
219 posts

Joined: Jul 2008


As for mine i just use VLC player it plays all my HD movies as smooth biggrin.gif
RangerRed
post Sep 21 2008, 10:25 PM

Look at all my stars!!
Group Icon
Moderator
2,083 posts

Joined: Jan 2003
From: Penang

For XP it is simple.

Download and register ATIDVCR.DLL
Install DOTNET 3.xx
Then register evr.dll just incase
Then look in MPC under the renderers and you'll see EVR.


Added on September 21, 2008, 10:27 pmOr grab CoreAVC, install. Go to the ffdshow video codec settings. Disable codec source for h.264 it will now render in all ur h.264 with CoreAVC.


Added on September 21, 2008, 10:28 pmBTW click my blog just to see how powerful is CoreAVC.

This post has been edited by RangerRed: Sep 21 2008, 10:28 PM
lex
post Sep 21 2008, 11:59 PM

Old Am I?
Group Icon
VIP
18,182 posts

Joined: Jan 2005
From: Dagobah
QUOTE(Skylinestar @ Sep 21 2008, 09:01 PM)
7900GS does not have H264 AVC DXVA
Most of the 7-series doesn't support it.. Minimum NVIDIA chipset to support that feature is the 8600GT... wink.gif

aLWAYStHEsAME
post Sep 22 2008, 12:13 AM

Casual
***
Junior Member
336 posts

Joined: Oct 2007



Nice guide... thanks 4 sharing thumbup.gif
Irishcoffee
post Sep 22 2008, 12:16 AM

ilX / Espressivo
*******
Senior Member
2,994 posts

Joined: Jan 2003
From: Behind You

klite codec + MPC HC work as well with DXVA
xpresside
post Sep 24 2008, 03:23 AM

Regular
******
Senior Member
1,969 posts

Joined: Aug 2005
From: TTDI


hmm.........cant get it to work with vista 64 ?
nvm lol hav to get tthe 64bit version doh.gif

This post has been edited by xpresside: Sep 24 2008, 03:26 AM
sonic_cd
post Sep 24 2008, 05:21 AM

Friendship Is Magic
********
All Stars
19,035 posts

Joined: Jan 2003
From: Soleanna

well power dvd will mess up the settings abit though .
cannavaro
post Sep 24 2008, 05:35 AM

CATTENACIO
*******
Senior Member
3,001 posts

Joined: Sep 2005
From: T.T.D.I, Bukit Damansara


QUOTE(RangerRed @ Sep 21 2008, 10:25 PM)
For XP it is simple.

Download and register ATIDVCR.DLL
Install DOTNET 3.xx
Then register evr.dll just incase
Then look in MPC under the renderers and you'll see EVR.


Added on September 21, 2008, 10:27 pmOr grab CoreAVC, install. Go to the ffdshow video codec settings. Disable codec source for h.264 it will now render in all ur h.264 with CoreAVC.


Added on September 21, 2008, 10:28 pmBTW click my blog just to see how powerful is CoreAVC.
*
Yes I'd go as far as saying CoreAVC is the best when decoding H264.
chickenducksoup
post Sep 24 2008, 09:08 AM

I'm so GAY
******
Senior Member
1,298 posts

Joined: Jan 2003
From: utopia
i got 7900gs also
that mean the setting provide by amirsubhi is useless for me?

stone13
post Sep 24 2008, 09:19 AM

Getting Started
**
Junior Member
272 posts

Joined: Jun 2006


good guide man thanks
rsangel
post Sep 24 2008, 05:10 PM

No Smoking pls @_@
******
Senior Member
1,487 posts

Joined: Dec 2006
From: Ja Bee


Just wanna share my setting

Sammy A550 40" Full HD
Proc : AMD X2 4800+
Mobo : ASUS 690G Board with HDMI
RAM : Kingston 2 GB running at DDR 800, i put 256 MB for the display
OS : Windows XP SP3

At 1920x1080p res, can't play 720p source well.... still feel lagging all the way, if i play 1080p source......... biong~

At 1280x720p res, can play 720 source, output ok, play 1080p source not very ok haha

tha's my small exp
Riddhy
post Oct 31 2008, 08:33 AM

Regular
******
Senior Member
1,956 posts

Joined: May 2008


@demeter whats your monitor resolution size and how many inch is it 24 inch or more?
TSdemeter
post Oct 31 2008, 01:01 PM

Getting Started
**
Junior Member
53 posts

Joined: Jan 2003
From: Johor Bahru
QUOTE(Riddhy @ Oct 31 2008, 08:33 AM)
@demeter whats your monitor resolution size and how many inch is it 24 inch or more?
*
i'm not using a monitor, i hook up my pc to my lcd 40" tv via hdmi, resolution is full hd at 1920 x 1080 @ 60hz
