Well, New Q9550 C1 user reporting in,
now i'm using stock fan, stock clock, the temps are
idle 53/35/53/49 ....wat a wierd temps, load is 74 /60 /70 / 62

why is the temps so special one?

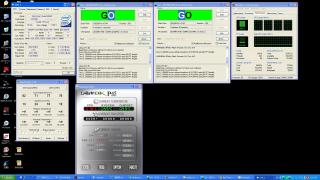

Check this out



power of SFF

maybe as pws said, the sensor or Q9550 are mulfunction, i try to touch it with my finger..... not hot at all =_="

but i don't no how to oc using P45 JR

someone teach me pls~~~

lol..... is a common prob for Q9550 sensor prob, aiks.... using stock HSF haha... any nice SFF HSF intro john?

RAM? using corsair XMS2 800 mhz 2gb kit lol

lol, this comming IT show i think i'll ask my cousin to survay the price for AXP140, if cheaper than MY, i'll ask him to buy one for me lol

john, possible to get a 120x120x12mm fan? 12mm thickness, do u know any brand?

lol... same with me, first core in real temp showing the highest temp

john, for the IT show it will be on march 14 if i'm not wrong haha, btw yesterday i tried normal OC with my Q9550 C1, 1:1 400 x 8.5 stable at normal vcore , vdim 2.0..... temp shoot up to 85c =_=" (stress time)

cannot ... AXP140 is around 70.2mm tall, so i need to find a 12mm thickness 120mm fan to fit in my sugo for the cooling lol

Happy birthday brian =_="

me also.... stop monitoring, i know is a common prob for C1 batch of Q9550 ...

well, i've change back to default setting 2.83ghz, i'll wait for IT show then see how is the price for AXP 140 lol

i can't make my system stable at 3.2ghz Q9450 T_T
DK X48-T2RS + IFX-14
TristanX, what's ur chipset's Temps? mine idle at 54c bro
Run OCCT, 1 min + will come out error on either core 0 or 1

Well, in my bios

Genie BIOS Page BIOS Field
Exit Setup Shutdown……Mode 2
Shutdown After AC Loss……Enabled
OC Fail Retry Counter……1
OC Fail CMOS Reload……Disabled
CPU Clock Ratio……8
CPU N/2 Ratio……Enabled
Target CPU Clock……3200 MHz
CPU Clock……400
Boot Up Clock…… Auto
CPU Clock Amplitude……800mV
CPU Clock0 Skew……0ps
CPU Clock1 Skew……0ps
DRAM Speed……400/800
Target DRAM Speed……DDR2 800
PCIE Clock……100 MHz
CPU Spread Spectrum……Disabled
PCIE Spread Spectrum……Disabled

CPU Feature Page
Thermal Management Control……Disabled
PPM (EIST) Mode……Disabled
Limit CPUID MaxVal……Disabled
C1E Function……Disabled
Execute Disable Bit……Disabled
Virtualization Technology……Disabled
Core Multi Processing……Enabled

DRAM Timing
Enhance Data Transmitting……Normal
Enhance Addressing……Normal
T2 Dispatch……Disabled
Flex Memory Mode……Auto
Cas Latnecy Time (tCL)……5
RAS# to CAS# Delay (tCRD)……5
RAS# Precharge Time (tRP)……5
Precharge Delay (tRAS)……18
The Rest Auto

Voltage Settings
CPU VID Special Add……+112.5mV
DRAM Voltage Control……2.100V
SB Core/CPU PLL Voltage……1.52V
NB Core Voltage……1.2825V
CPU VTT Voltage……1.20V
Vcore Droop Control……Enabled
Clockgen Voltage Control……3.45V
CPU GTL 0/2 REF Volt……0.67x
CPU GTL 1/3 REF Volt……0.67x
North Bridge GTL Ref Volt……0.67x

T_T failed lol, but i can play COD WF 2 without problem, but when run OCCT, it show core 0 and core 1 error lol

Thxs tristanX, may i know what's ur Temps on ur Q9450@3.2ghz on IFX?

i'm using IFX with 1 FM123, stock clock 2.66ghz, min avr 44, load some cores can reach 60c, the chipset is >60c already lol
how u mount the 40mmfan on the cipset bro? can show me some pics?
