 Cooler Master Mystique 632s Mod

views

TScskeong
post Jun 23 2008, 09:44 AM

Casual
***
Junior Member
438 posts

Joined: Oct 2006


QUOTE(sukatra_aicaca @ Jun 20 2008, 11:15 AM)
TS
this casing  secc @ alu ??
*

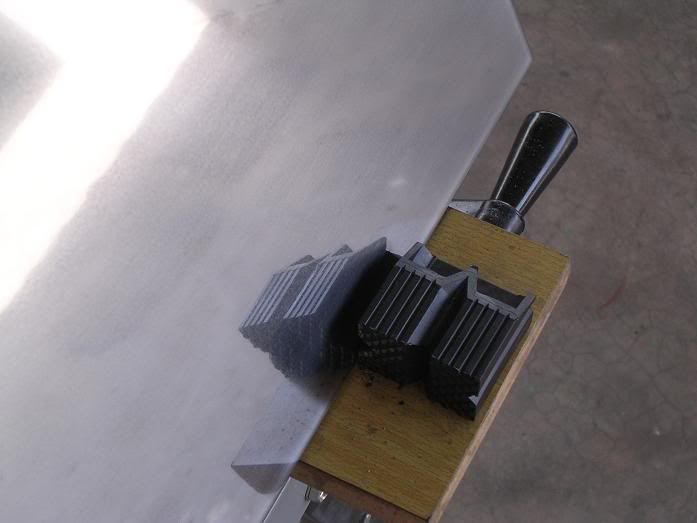

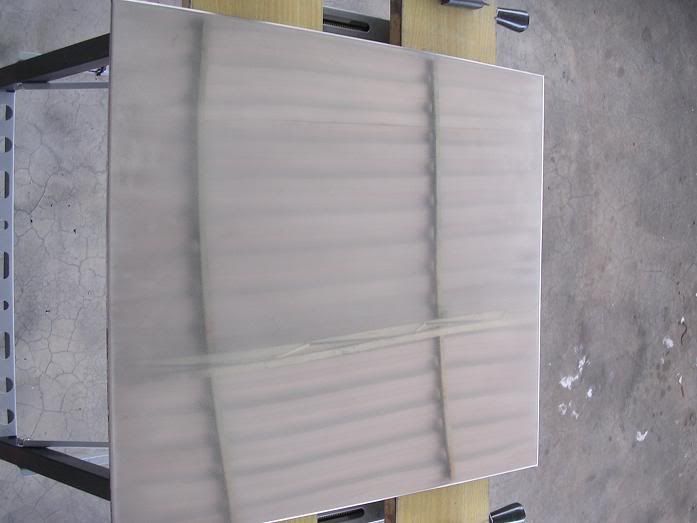

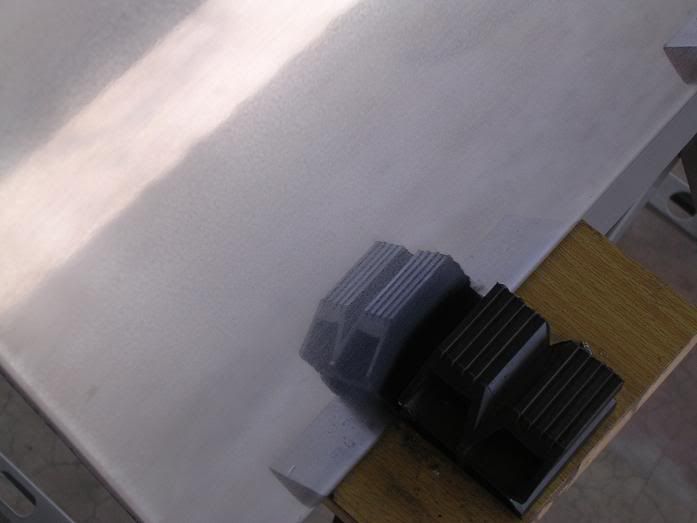

casing body is secc. the 2 piece front panel are alu and anodized black.........gonna have a hard time polishing those 2. little bit of updates. managed to sand and clear coat the right and left panels. below are the right panels pic before clear coating. forgot to take pics of left panel before clear coating.


» Click to show Spoiler - click again to hide... «

renzaku
post Jul 1 2008, 04:32 PM

Getting Started
**
Junior Member
53 posts

Joined: Jul 2008


QUOTE(cskeong @ Jun 15 2008, 06:33 PM)
2nd time modding. 1st time was nothing much to shout about. heres the progress so far.

first up some pics of the casing straight out of the box

» Click to show Spoiler - click again to hide... «

now some pics of the casing after it has been taken apart

» Click to show Spoiler - click again to hide... «


i'm gonna sand them down to metal layer and mirror finish. the front panels are aluminum so they won't rust however the body of the casing is SECC........they rusted after i sanded of the paints and left them overnight. any idea how to prevent that. below is the top panel after going through 240,400,800,1200,1500 & 2000. i have yet to use the metal buffer and polish. any good brands to recommend?
» Click to show Spoiler - click again to hide... «

*
wow your is coooooooooooollllll mannnnn!!!!!


overclockalbert
post Jul 2 2008, 05:49 AM

Regular
******
Senior Member
1,058 posts

Joined: Apr 2006
From: Penang , Malaysia


finished the 1st part,
let's start the 2nd part.

how to maintain the expose metal from oxidation?
clear coat, plated, anodized,paint.

wallpaper drool.gif



TScskeong
post Jul 18 2008, 03:04 PM

Casual
***
Junior Member
438 posts

Joined: Oct 2006


wallpaper??? lol u'r joking........rite? anyways lack of updates recently as these few weekends was running around and no time to really get into modding. hopefully i can update a few more pics by next week.


Added on August 8, 2008, 9:50 amok after such a long period of no updating i finally finished my casing. i'm rather dissappointed with the end result. the clear coat completely messed up the bare metal finish and there were some accidents when my mum sprinkled some metal paints on my clear coat while i was waiting for them to dry and cure up abit cry.gif

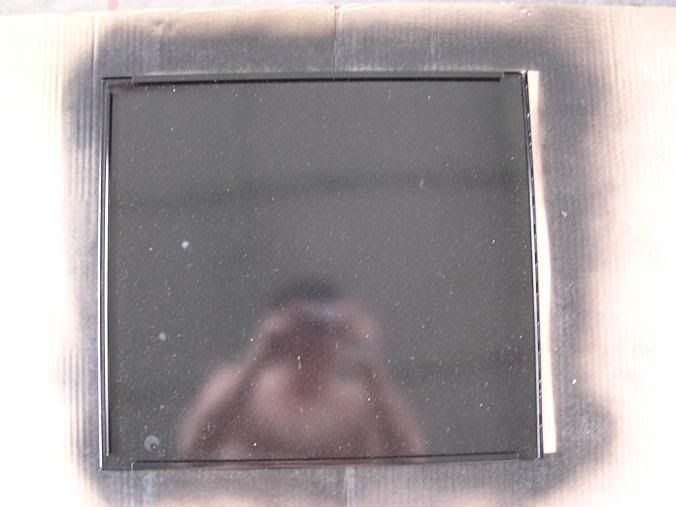

inner right panel sprayed black
» Click to show Spoiler - click again to hide... «

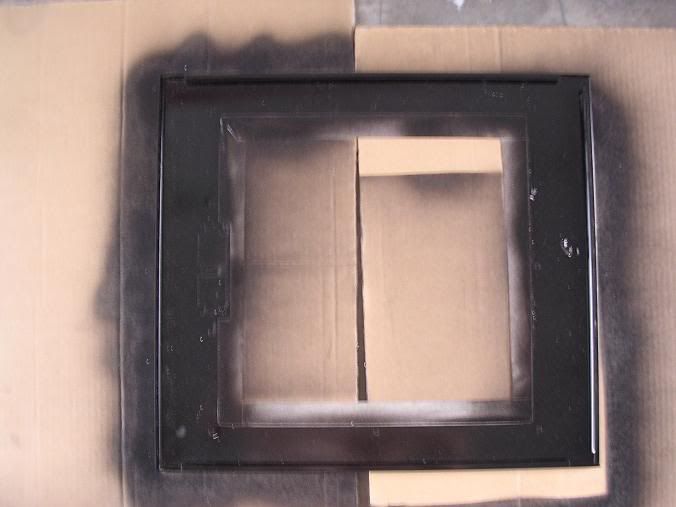

inner left panel sprayed black
» Click to show Spoiler - click again to hide... «

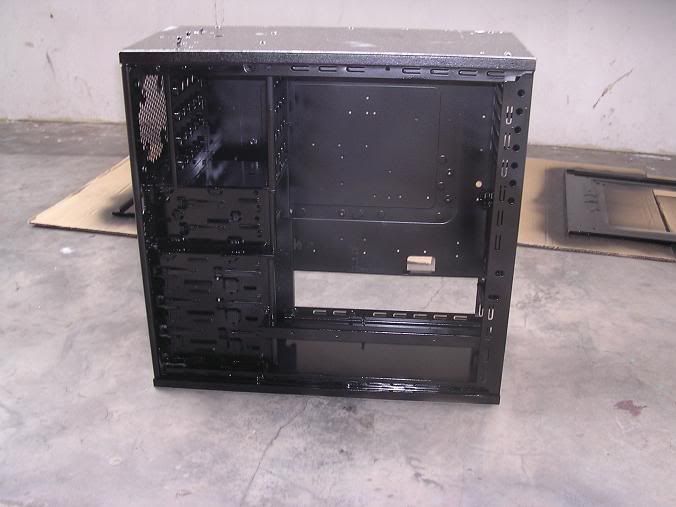

inner part of casing sprayed black
» Click to show Spoiler - click again to hide... «

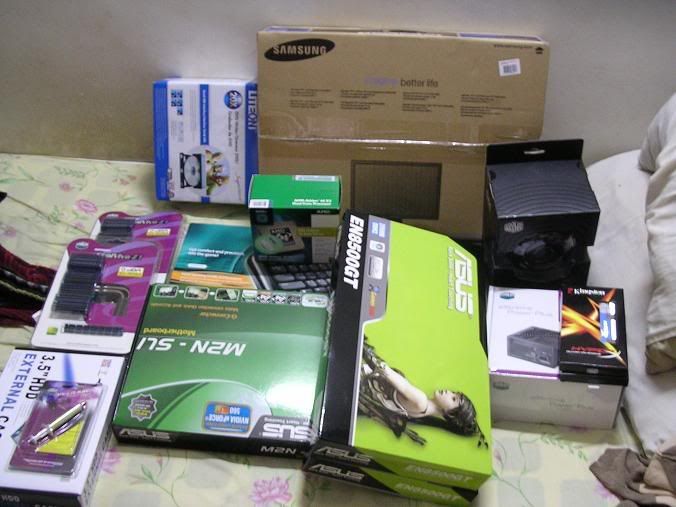

the pc parts that are going into the casing.
mobo: asus m2n sli
proc: amd am2 6000+ 3.0 ghz
proc cooler: cooler master sphere
rams: 4 X 1 gb 800 kingston hyper x
vga: asus 8500 X 2
vga cooler: cooler master cool viva z1 X 2
lcd: samsung 19" wide screen
power supply: cooler master 500 watt
hdd: western digital 160gb sata
optical: liteon sata dvd rw
» Click to show Spoiler - click again to hide... «

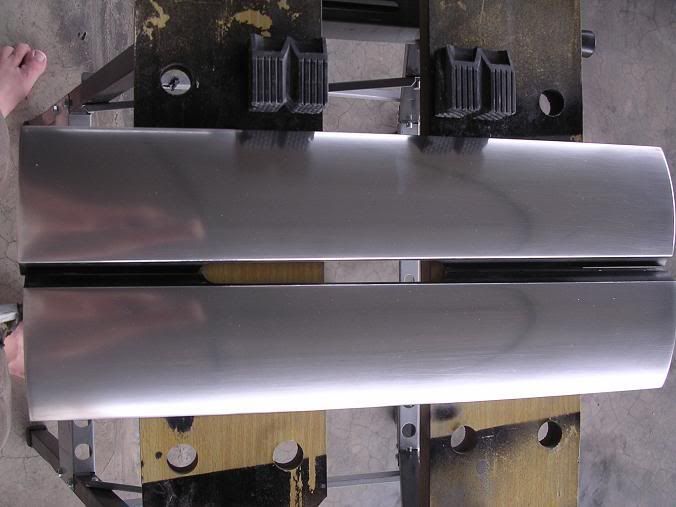

front panel after sanding.
» Click to show Spoiler - click again to hide... «




This post has been edited by cskeong: Aug 8 2008, 09:50 AM
Cloudx
post Aug 8 2008, 10:05 AM

(╯°□°)╯︵ ┻━┻
******
Senior Member
1,521 posts

Joined: Oct 2004
From: Island where you get pearl


Fuuuyoh... cantik!!! drool.gif
TScskeong
post Aug 8 2008, 10:05 AM

Casual
***
Junior Member
438 posts

Joined: Oct 2006

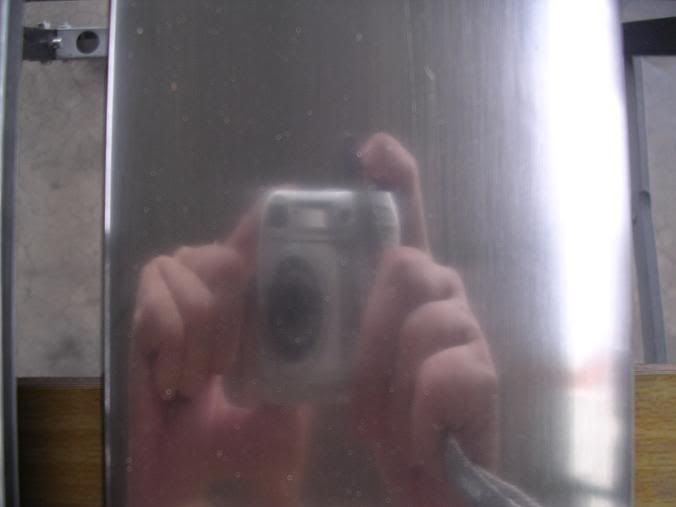

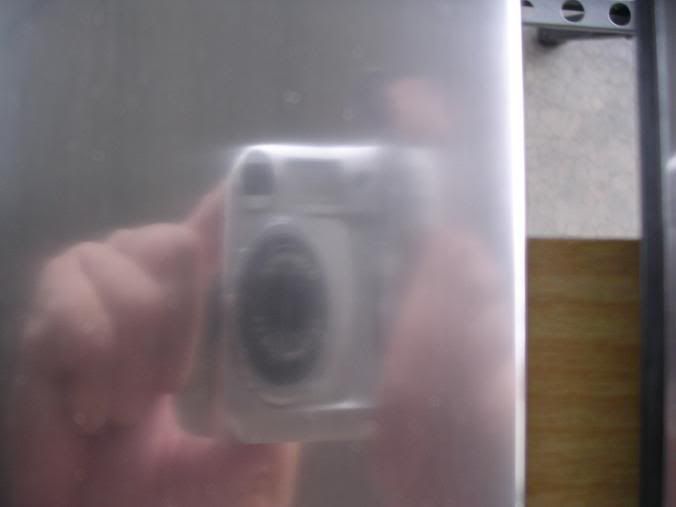

close ups of front panel
» Click to show Spoiler - click again to hide... «


front panel after clear coating and assembly
» Click to show Spoiler - click again to hide... «


ok the following pics are kinda blurry due to shaky hands.

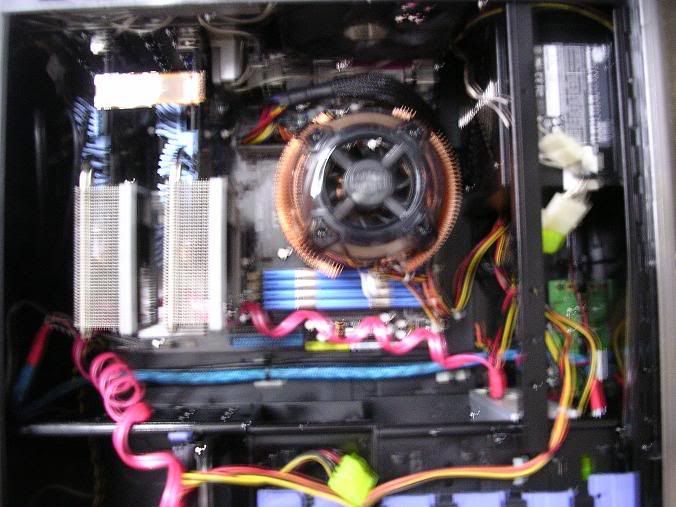

parts installed into pc
» Click to show Spoiler - click again to hide... «

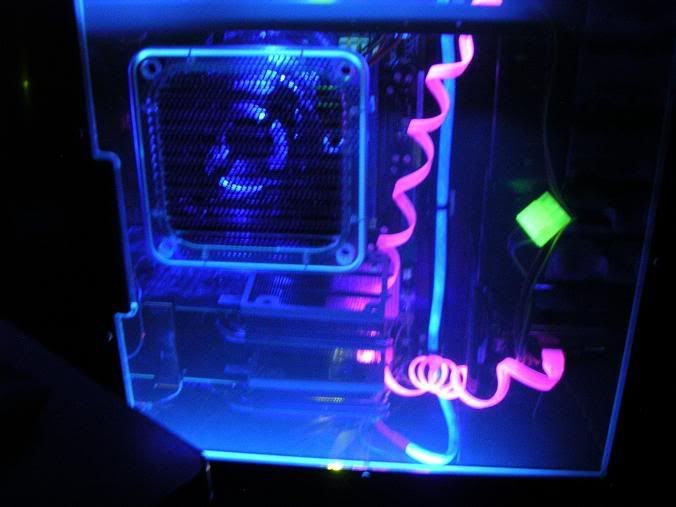

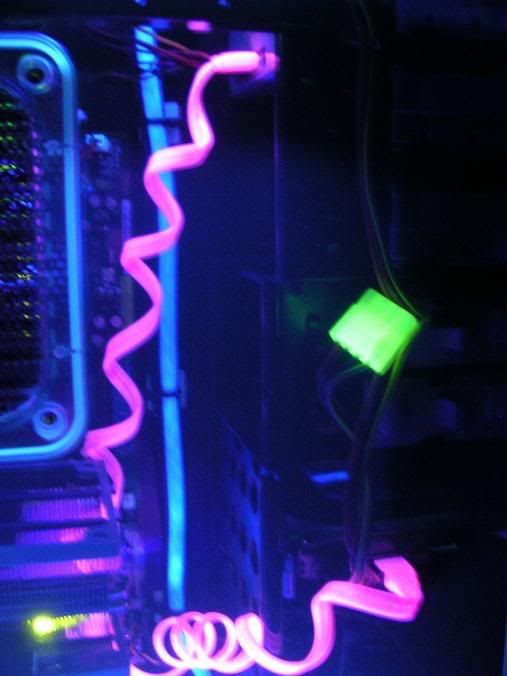

night shots for uv effect. need more improvement on cable management please advice
» Click to show Spoiler - click again to hide... «


have a few more minor things that i have yet to add. will continue updating. hopefully someone can advice me on how to fix up my cable management even further.
mfcm
post Aug 8 2008, 03:03 PM

Look at all my stars!!
*******
Senior Member
2,765 posts

Joined: Nov 2005
From: **Hornbills**



aiseh bro..all great job n uv mode..spoiled with sata cable hanging there rclxub.gif
TScskeong
post Aug 11 2008, 09:24 AM

Casual
***
Junior Member
438 posts

Joined: Oct 2006


tq very much. trying to find solutions to the sata hmmmm
ryudox
post Aug 11 2008, 06:31 PM

~~ ConVict ~~
*****
Senior Member
732 posts

Joined: Nov 2004
From: where to where...



only 2 sata and 1 molex only UV reactive? lolz..

anyway,u should SLi 8600GT...not 8500GT..in my opinion..
TScskeong
post Aug 12 2008, 09:55 AM

Casual
***
Junior Member
438 posts

Joined: Oct 2006


if u take a look properly there is another cable in the back that is uv reactive. i'm more to stealthing my cables instead of uv them. i only uv those that i'm unable to stealth. and about the cards..............i'm too lazy to wait for stock as the place i bought my pc doesn't have any on hand 8600. so far 8500 is rendering the games i'm playing beautifully on highest settings without any hiccups. thank you for your erm pointless comments.
chyu89
post Aug 12 2008, 08:11 PM

I'm not a gynaecologist but I'll take a look
*******
Senior Member
2,465 posts

Joined: Sep 2007
From: Kuala Lumpur     Status: Freeride not dead
U need more uv fans to enhanced ur uv effect. 8500gt sli? worth it ker. why not just get a 9600?
ryudox
post Aug 12 2008, 10:36 PM

~~ ConVict ~~
*****
Senior Member
732 posts

Joined: Nov 2004
From: where to where...



QUOTE
if u take a look properly there is another cable in the back that is uv reactive. i'm more to stealthing my cables instead of uv them. i only uv those that i'm unable to stealth. and about the cards..............i'm too lazy to wait for stock as the place i bought my pc doesn't have any on hand 8600. so far 8500 is rendering the games i'm playing beautifully on highest settings without any hiccups. thank you for your erm pointless comments.
Ok..u are welcome..thanks for your respond.. just my 2 cent..no offense at all..gud luck in your modding buddy..i appreciate your comment..
TScskeong
post Aug 13 2008, 04:29 PM

Casual
***
Junior Member
438 posts

Joined: Oct 2006


no offense taken and i hope the same to u too lol. though it is kinda pointless since that well.........card already bought and i cannot exchange. besides this is modding thread was hoping for more comments on how to improve cable management, uv look etc etc. sorry if i sounded too mean.


Added on August 13, 2008, 4:32 pm
QUOTE(chyu89 @ Aug 12 2008, 08:11 PM)
U need more uv fans to enhanced ur uv effect. 8500gt sli? worth it ker. why not just get a 9600?
*
the price my fren the price. we all have budget mah. this setup including casing is already 3.3~3.4.

This post has been edited by cskeong: Aug 13 2008, 04:32 PM
styloe
post Aug 14 2008, 01:50 AM

6 sTaR wORkaHOLic JuNKie
******
Senior Member
1,242 posts

Joined: Aug 2005
From: Sila Mampir,JB sTaTus:GTX 680 SLI



since ur innerside of ur case is black i recommend ur change ur sata cable to black and sleeve everything in black as it hides well and will look a lot neater my fren...
ParasitAmol
post Aug 20 2008, 03:55 PM

Getting Started
**
Junior Member
134 posts

Joined: Jul 2008


damn..what a beauty u have there..!
